Product Description

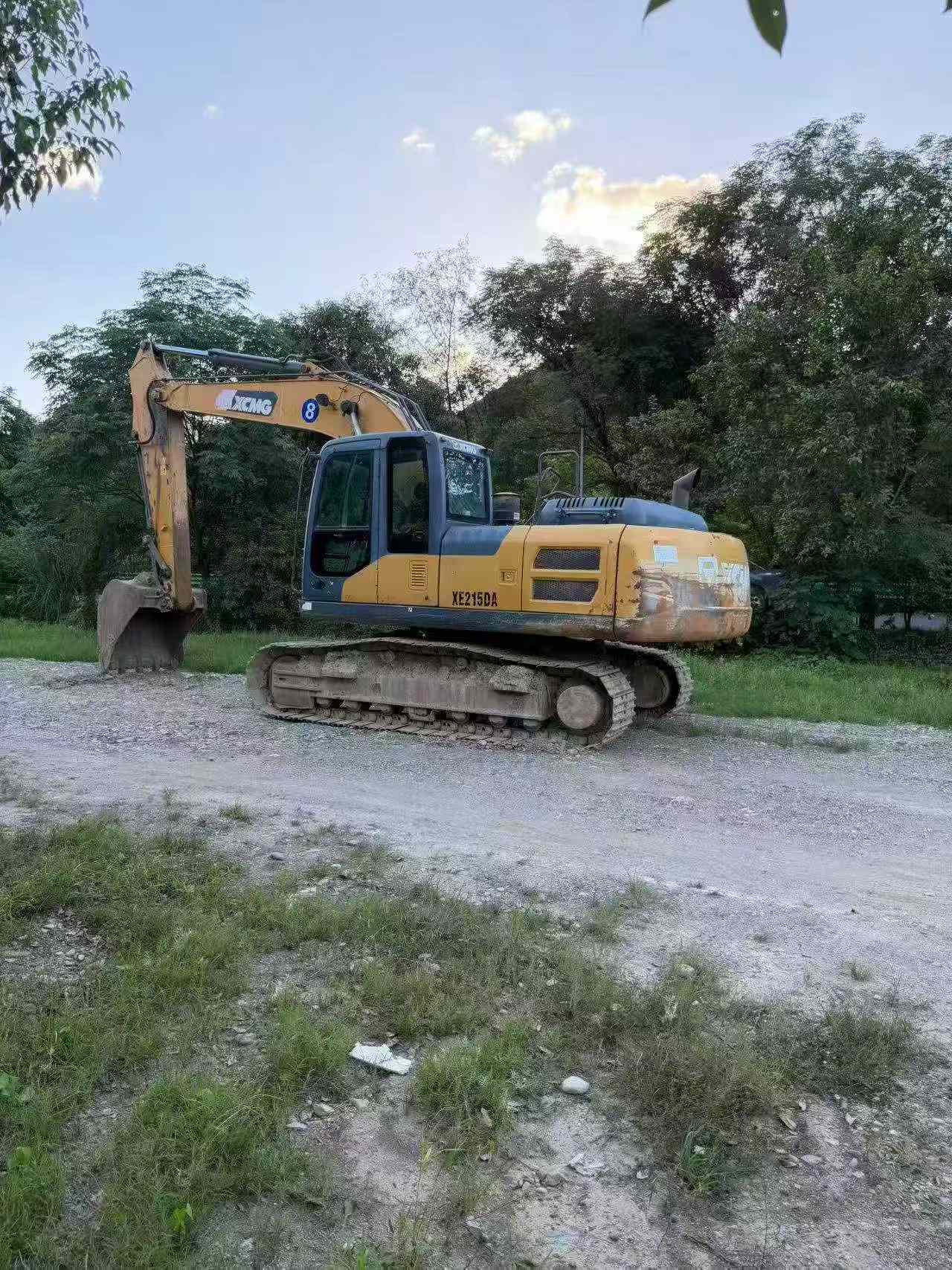

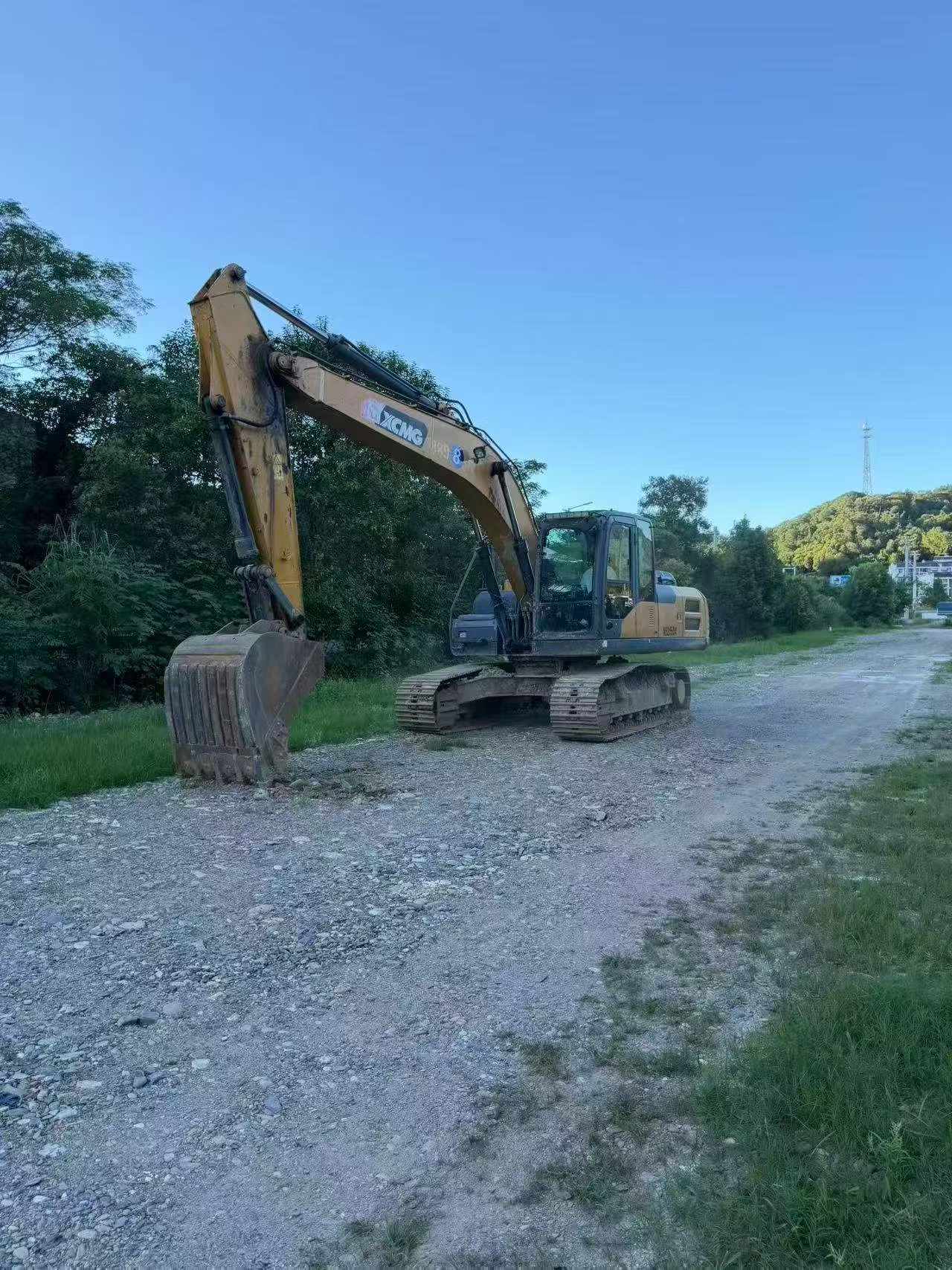

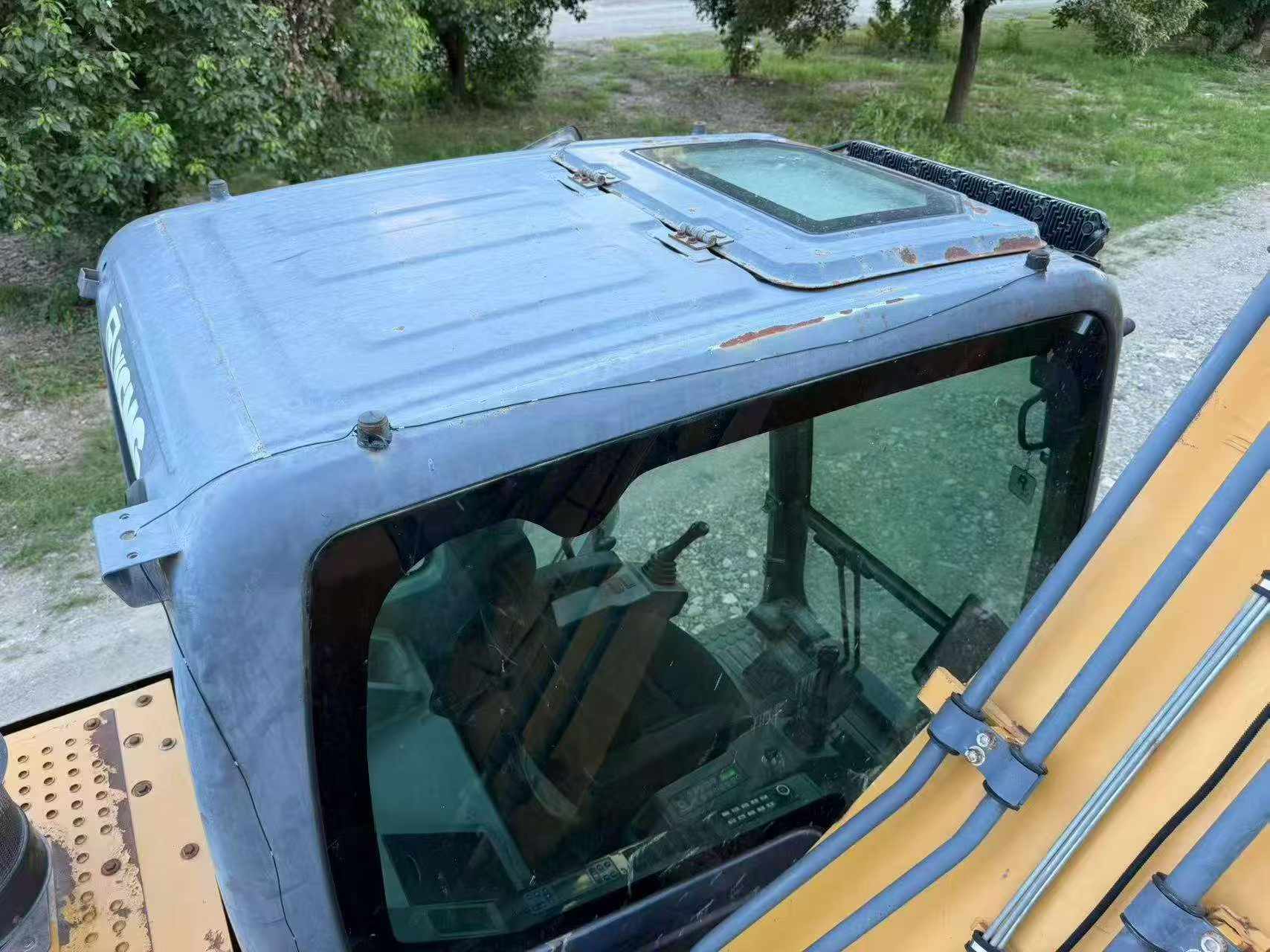

Discover the reliability and efficiency of the 2020 XCMG XE205DA, a premium used excavator currently available in Zhejiang, China. This machine has been meticulously maintained by its single owner, with genuine documentation and a verified operational history of over 5,000 hours. Known for its robust performance and durability, the XE205DA is ready to meet the demands of your construction projects. All necessary inspections and certifications are up to date, ensuring a seamless acquisition process. Priced at just over 180,000 RMB, this excavator offers an excellent cost-to-performance ratio, making it a smart investment for any industrial fleet.
- Year: 2020
- Brand: XCMG
- Model: XE205DA

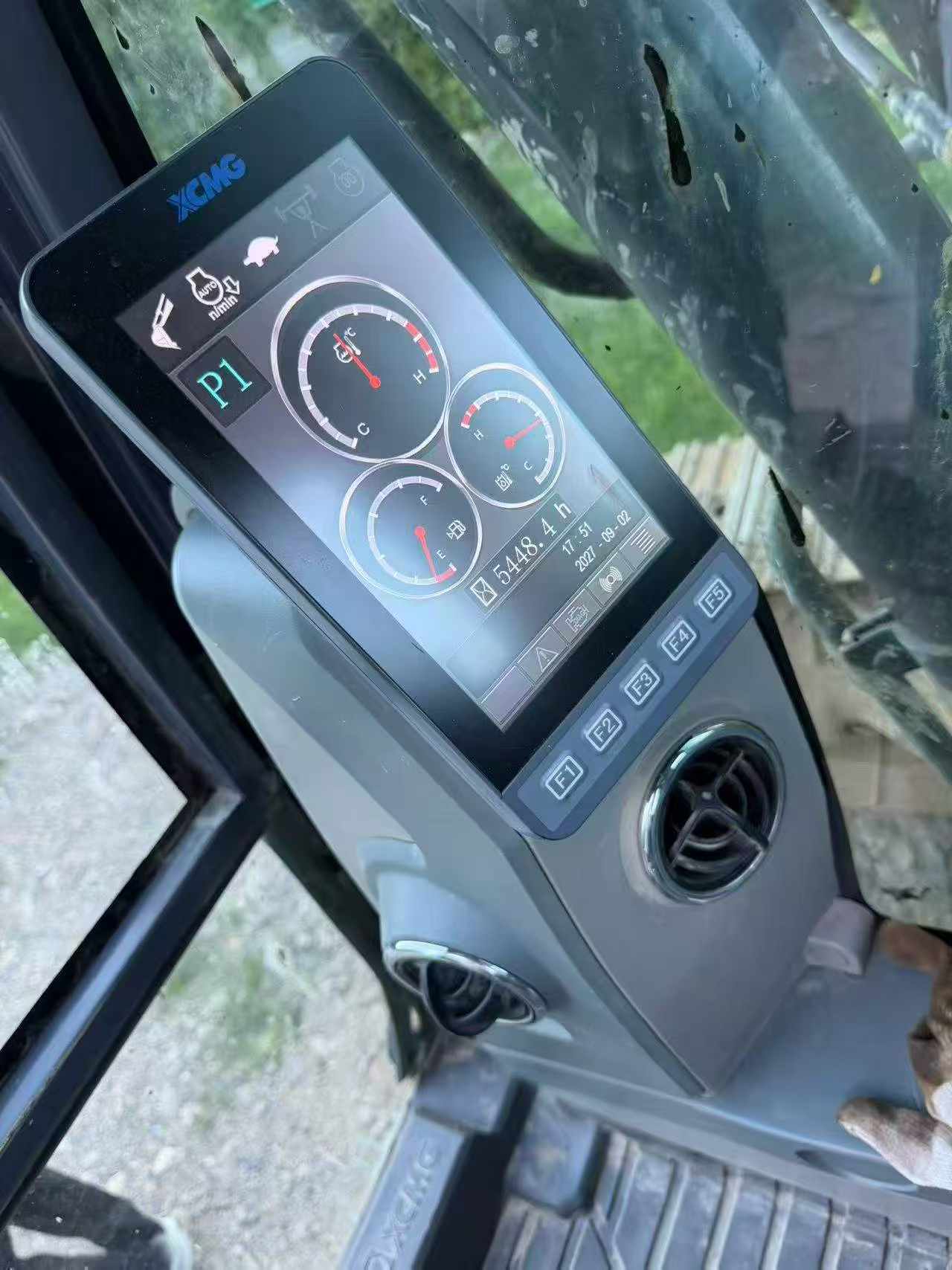

- Operational Hours: Over 5,000
- Location: Zhejiang, China
- Price: Just over 180,000 RMB
| Specifications | Value |
|---|---|
| No. | 1133404 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

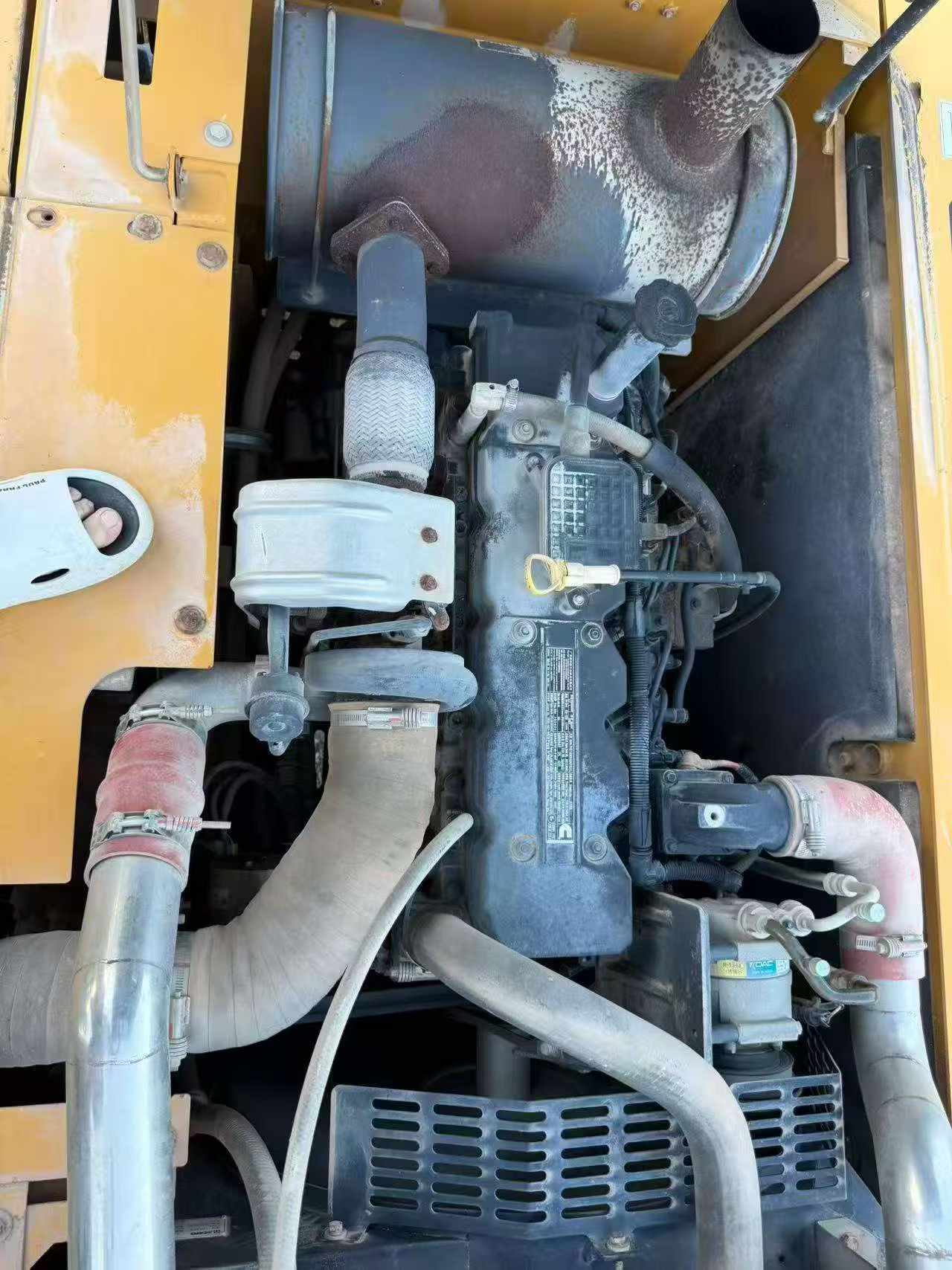

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
