Product Description

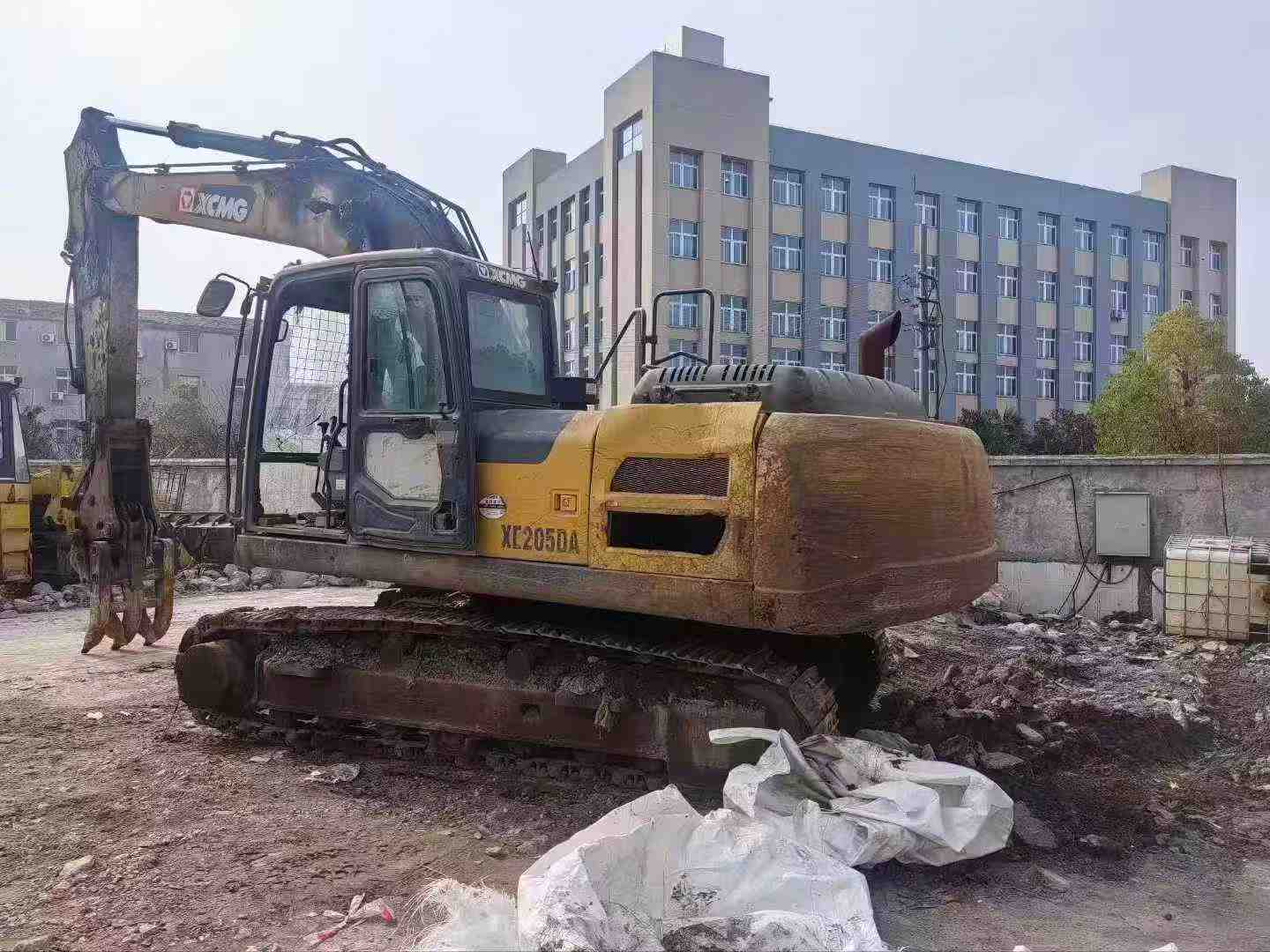

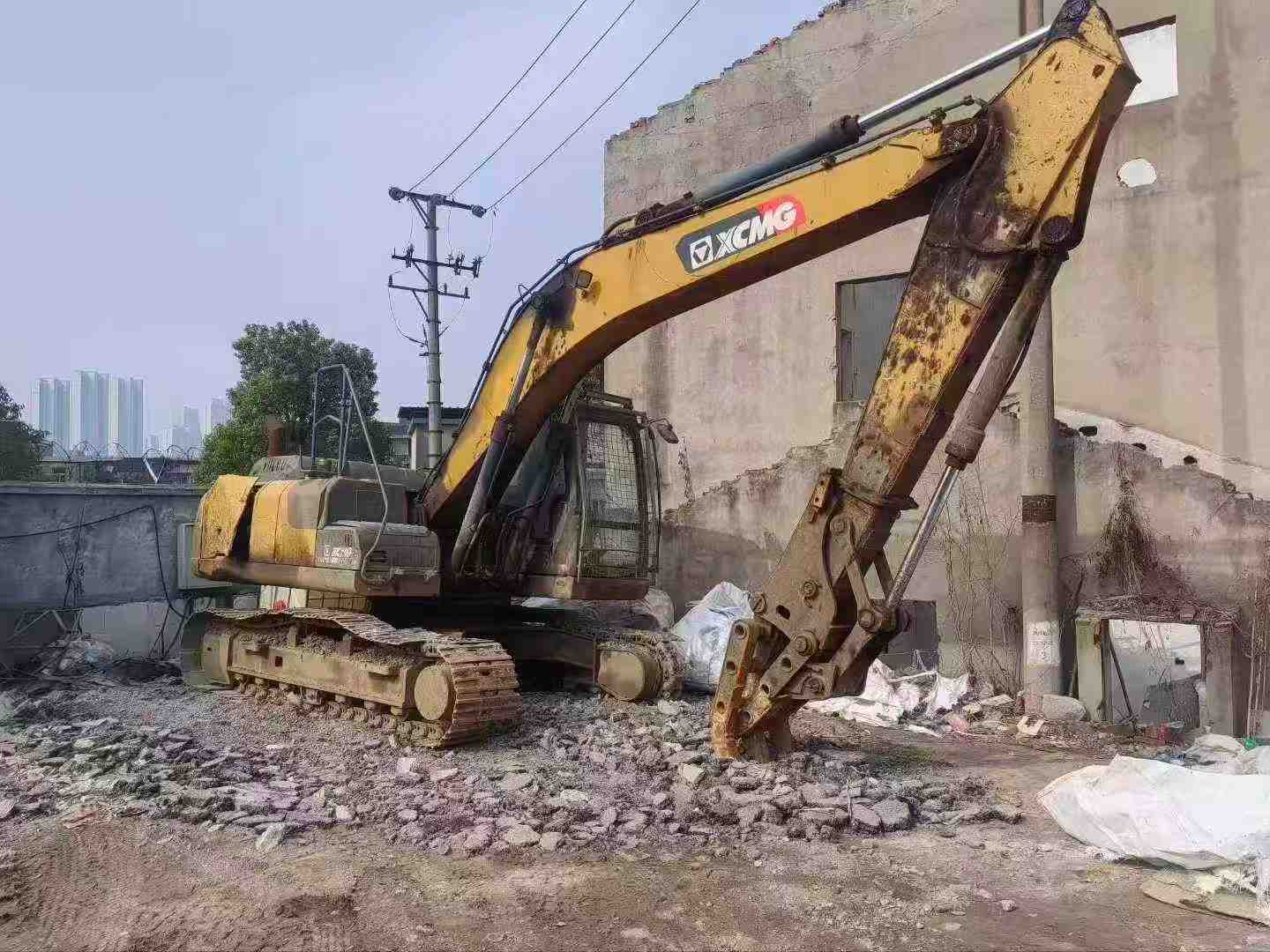

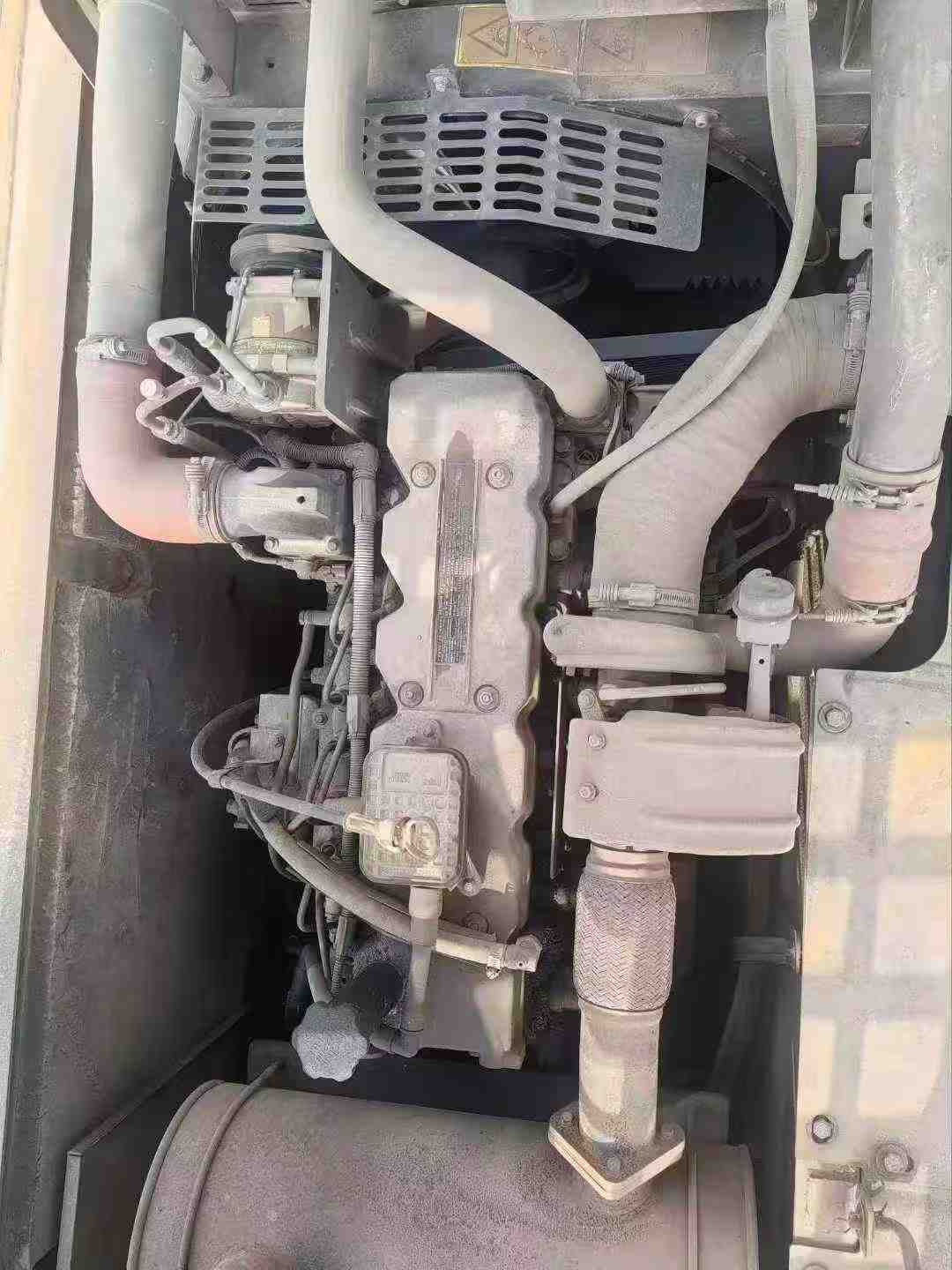

Built for heavy-duty excavation, this 2021 XCMG XE205DA delivers 20-ton performance with immediate site deployment capability. Powered by a robust QSB7 engine producing 135 kW at 2050 rpm, this machine tackles demanding digging, grading, and demolition tasks with consistent power delivery. The 6.7L turbocharged, water-cooled system maintains optimal performance across extended work cycles.
Operational specifications prove job-ready capability:
- Maximum digging reach of 9760mm covers extensive work zones
- Digging depth to 6660mm handles deep foundation and trench work
- Bucket digging force of 157 kN breaks through compacted soil and rock
- 1.0-1.2 m³ bucket capacity moves substantial material per cycle
- 35% climbing ability navigates challenging terrain
- 400L fuel tank supports full-day operation without refueling delays
Currently located in Luzhou, Sichuan, this excavator arrives with proven Chinese manufacturing quality. The 21,500 kg working weight provides stability during high-force digging operations, while the 600mm track width balances ground pressure at 47.5 kPa for reduced site disturbance. Ready for immediate deployment on construction, mining, or de
| Specifications | Value |
|---|---|
| No. | 1025668 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
