Product Description

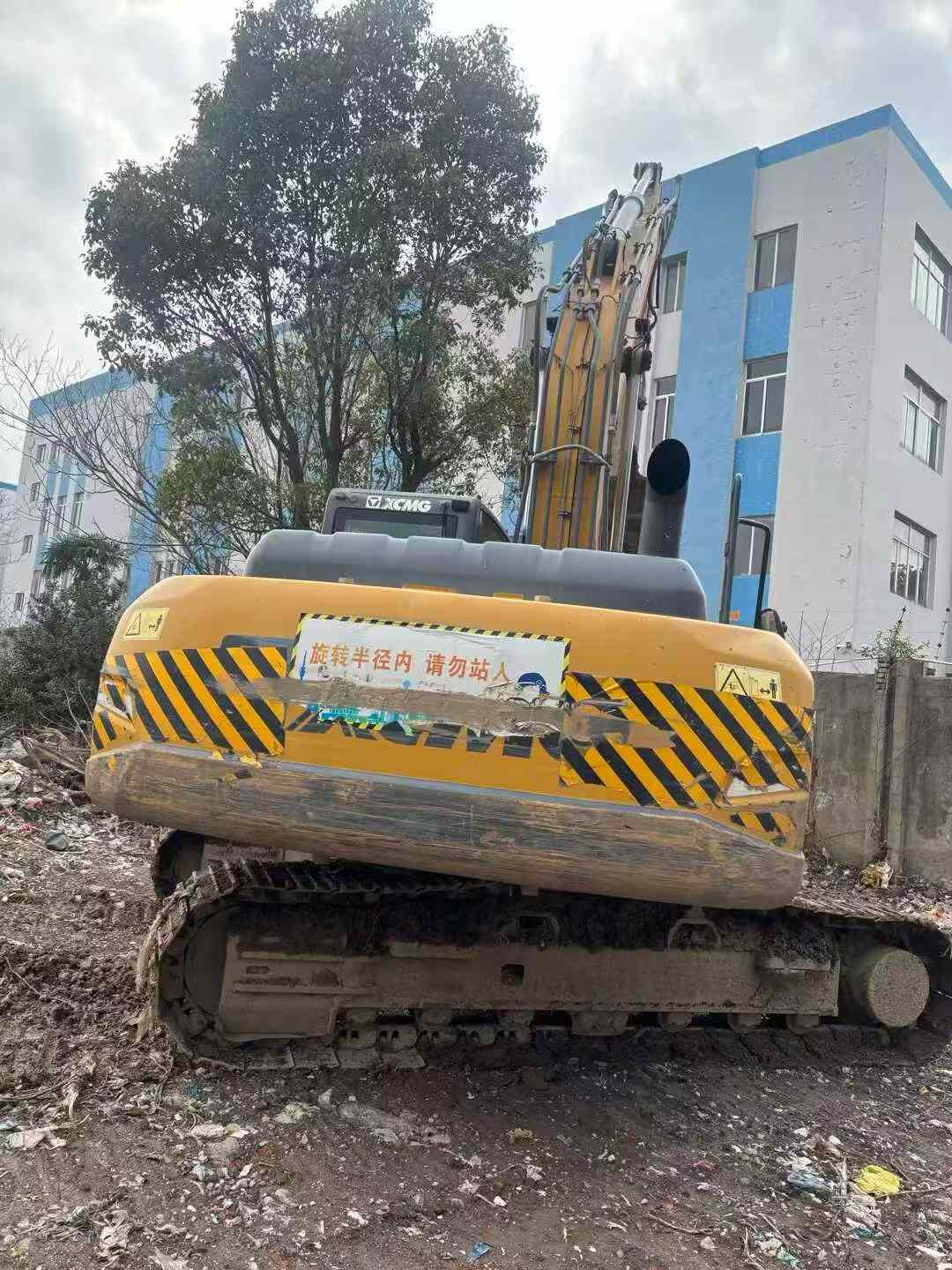

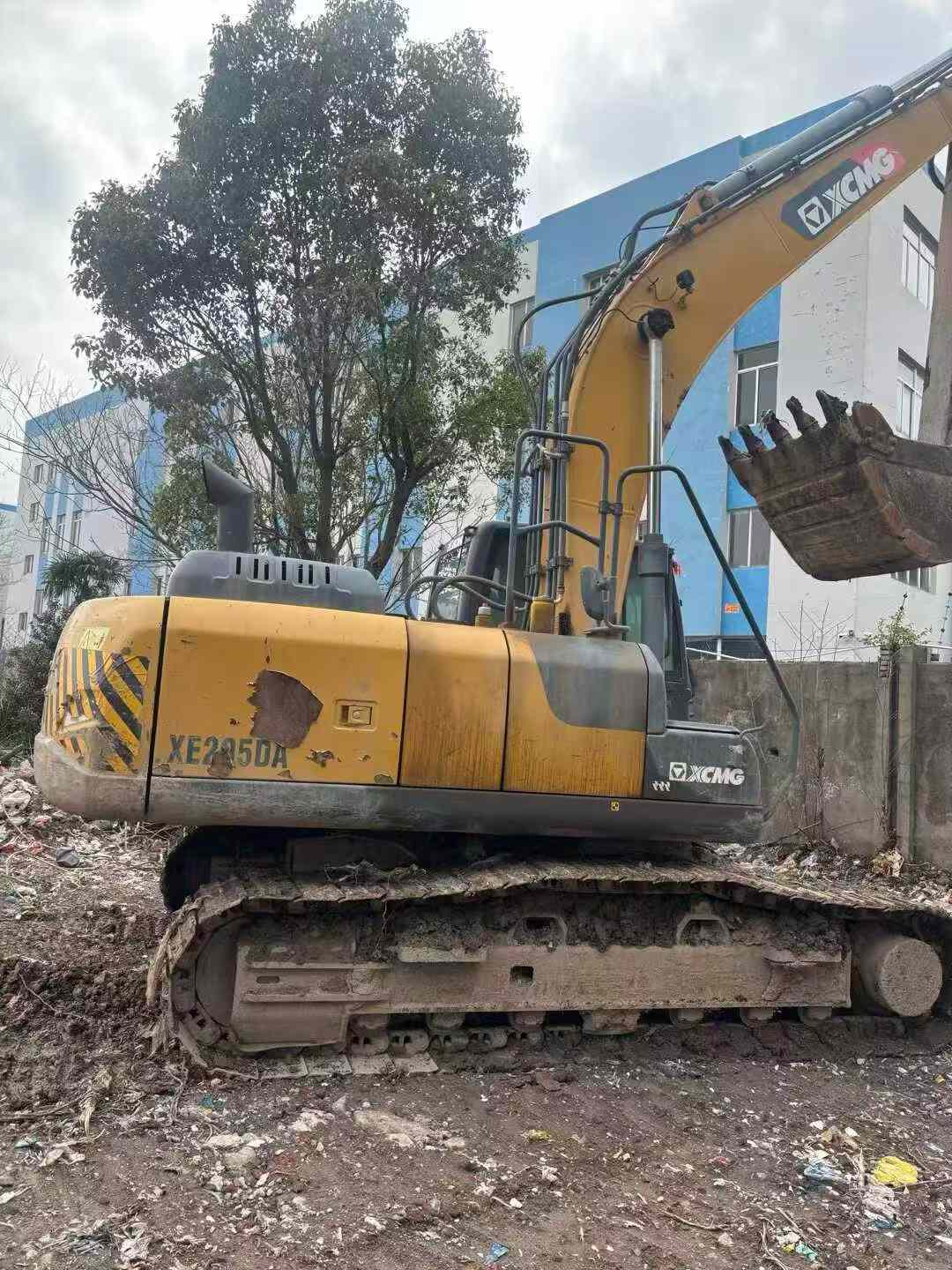

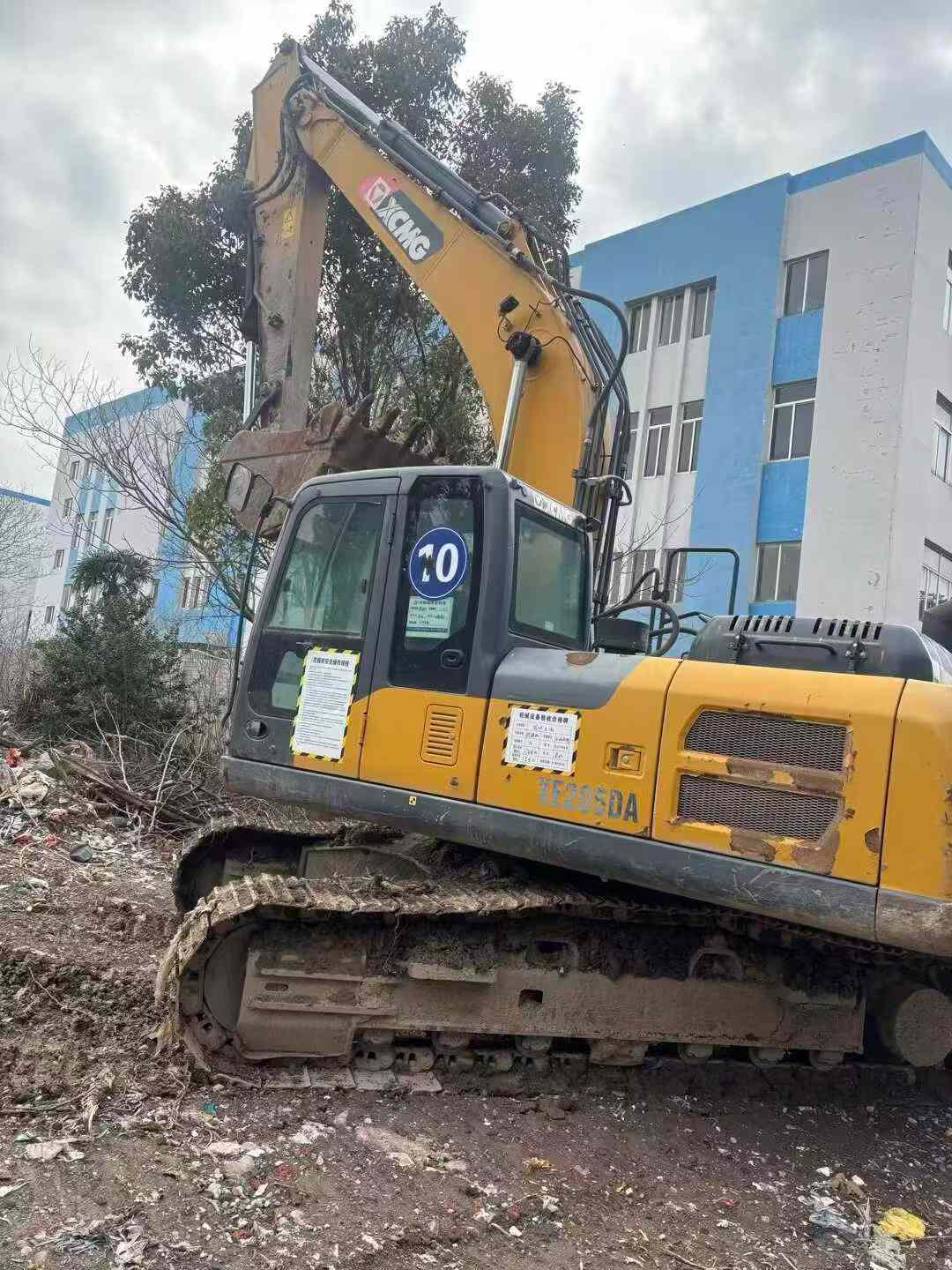

Expand your operational capacity with this 2021 XCMG XE205DA excavator, currently stationed in Ningbo, Zhejiang. Built for contractors managing multiple job sites simultaneously, this 20-ton machine delivers consistent performance as a primary workhorse or strategic backup unit. Powered by a QSB7 engine producing 135 kW at 2050 rpm, it maintains productivity across demanding applications without compromising fuel efficiency from its 400L tank.
Engineered with fleet managers in mind, this model offers:
- Maximum digging reach of 9760 mm and depth of 6660 mm for versatile site applications
- Robust digging forces: 157 kN bucket force and 116 kN arm force for tough material handling
- 35% grading capability and 47.5 kPa ground pressure for stable operation on variable terrain
- Compact transport dimensions (9630×2910×3100 mm) enabling efficient mobilization between projects
- 1.0-1.2 m³ bucket capacity matching standard 20-ton class productivity benchmarks

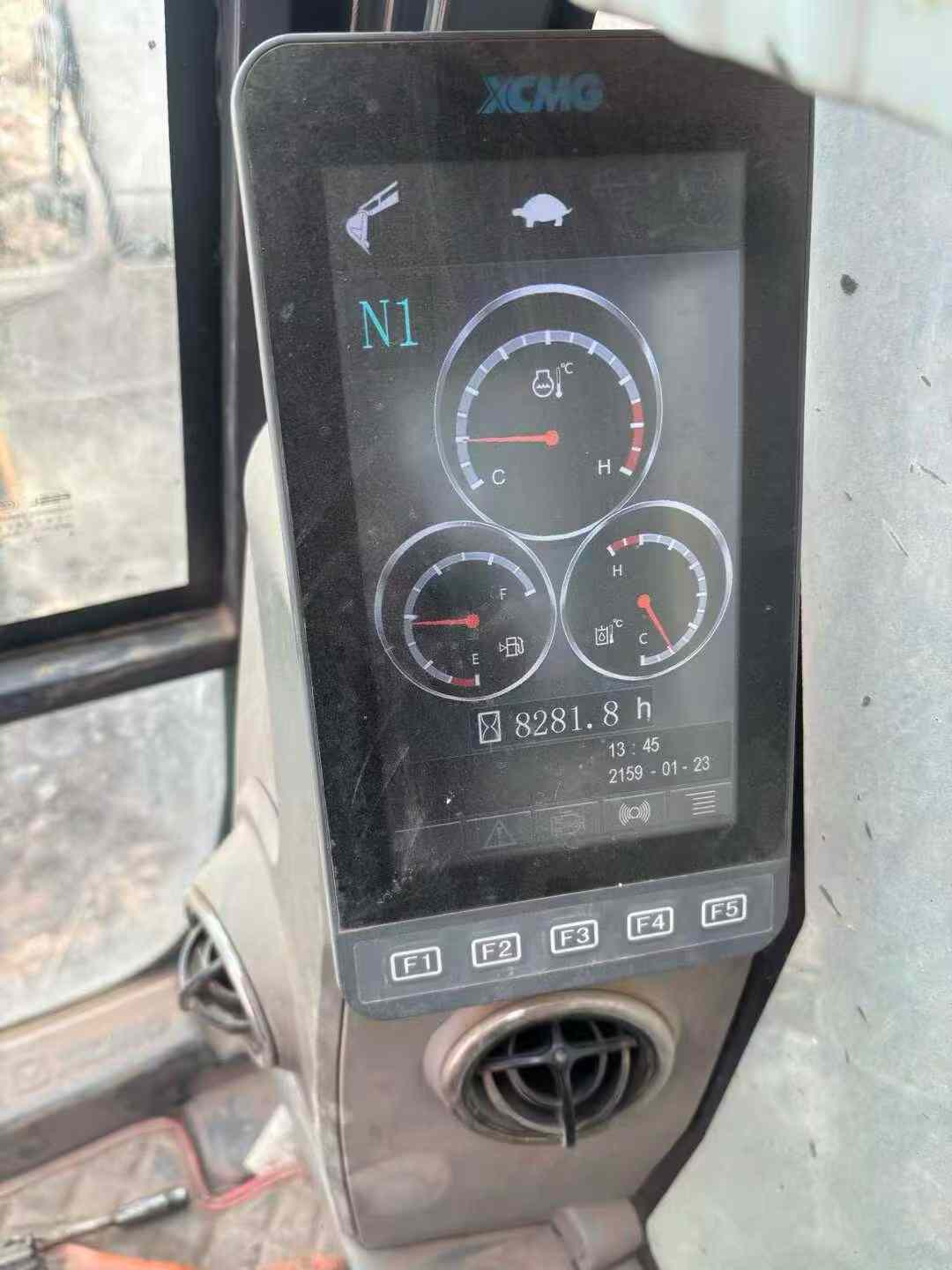

With low operational hours for a 2021 unit, this XCMG integrates seamlessly into existing equipment rotations, minimizing downtime during peak season demands or scheduled maintenance cycles.
| Specifications | Value |
|---|---|
| No. | 1026932 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

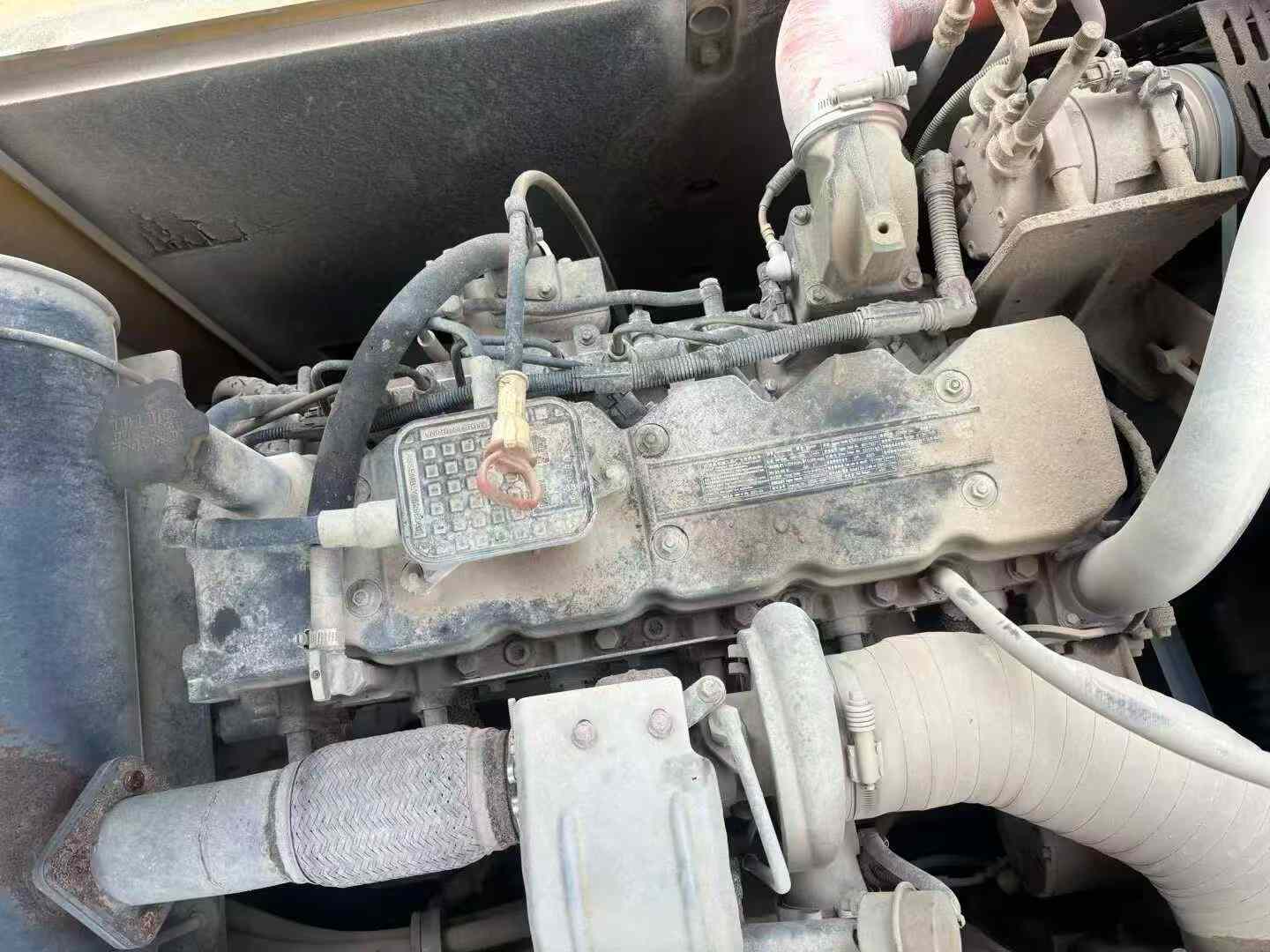

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
