Product Description

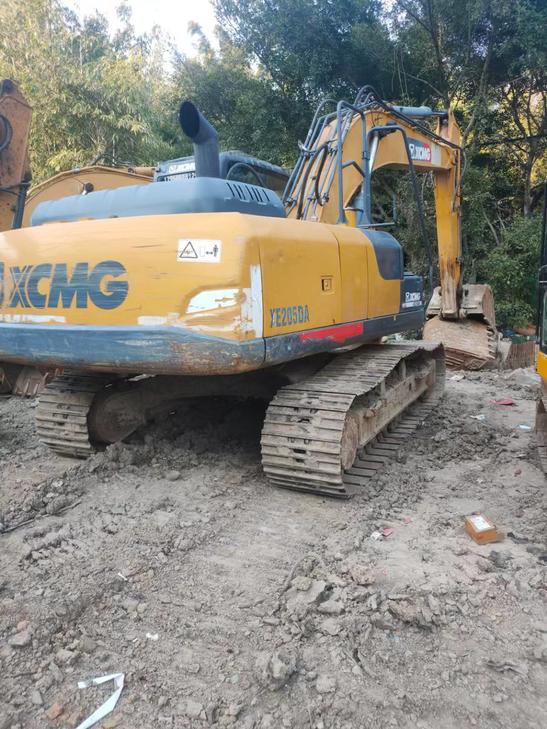

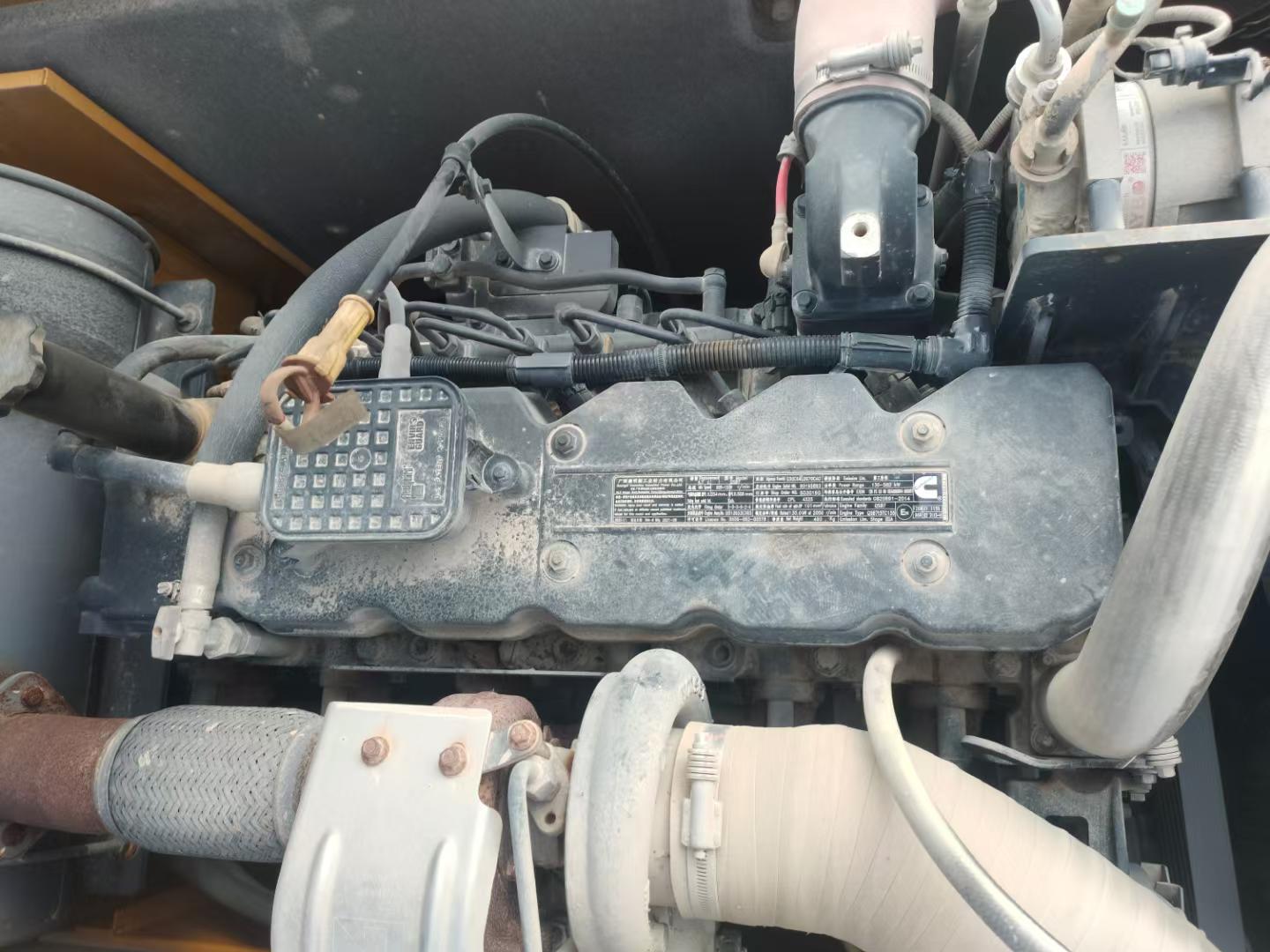

Acquire proven performance without the premium price tag. This 2021 XCMG XE205DA hydraulic excavator delivers 20-ton class productivity at a fraction of new equipment cost, making it an intelligent choice for contractors seeking reliable capacity expansion. Powered by a Cummins QSB7 engine producing 135kW, this machine combines substantial digging force (157kN bucket, 116kN arm) with efficient water-cooled operation across six cylinders and 6.7L displacement.
Operational specifications demonstrate serious working capability:
- Maximum digging reach: 9,760mm with 6,660mm depth capability
- Standard bucket capacity: 1.0-1.2m³ for versatile material handling
- Working weight: 21,500kg ensuring stability during demanding excavation
- Fuel capacity: 400L supporting extended shifts without refueling interruptions
- Travel speeds: 5.7/3.1 km/h for efficient site repositioning
Currently located in Zhejiang Taizhou, this Chinese-manufactured excavator represents smart capital allocation—offering late-model technology, manufacturer-backed engineering, and immediate deployment readiness. Invest strategically in equipment that works as hard as your bottom line demands.
| Specifications | Value |
|---|---|
| No. | 1031014 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
