Product Description

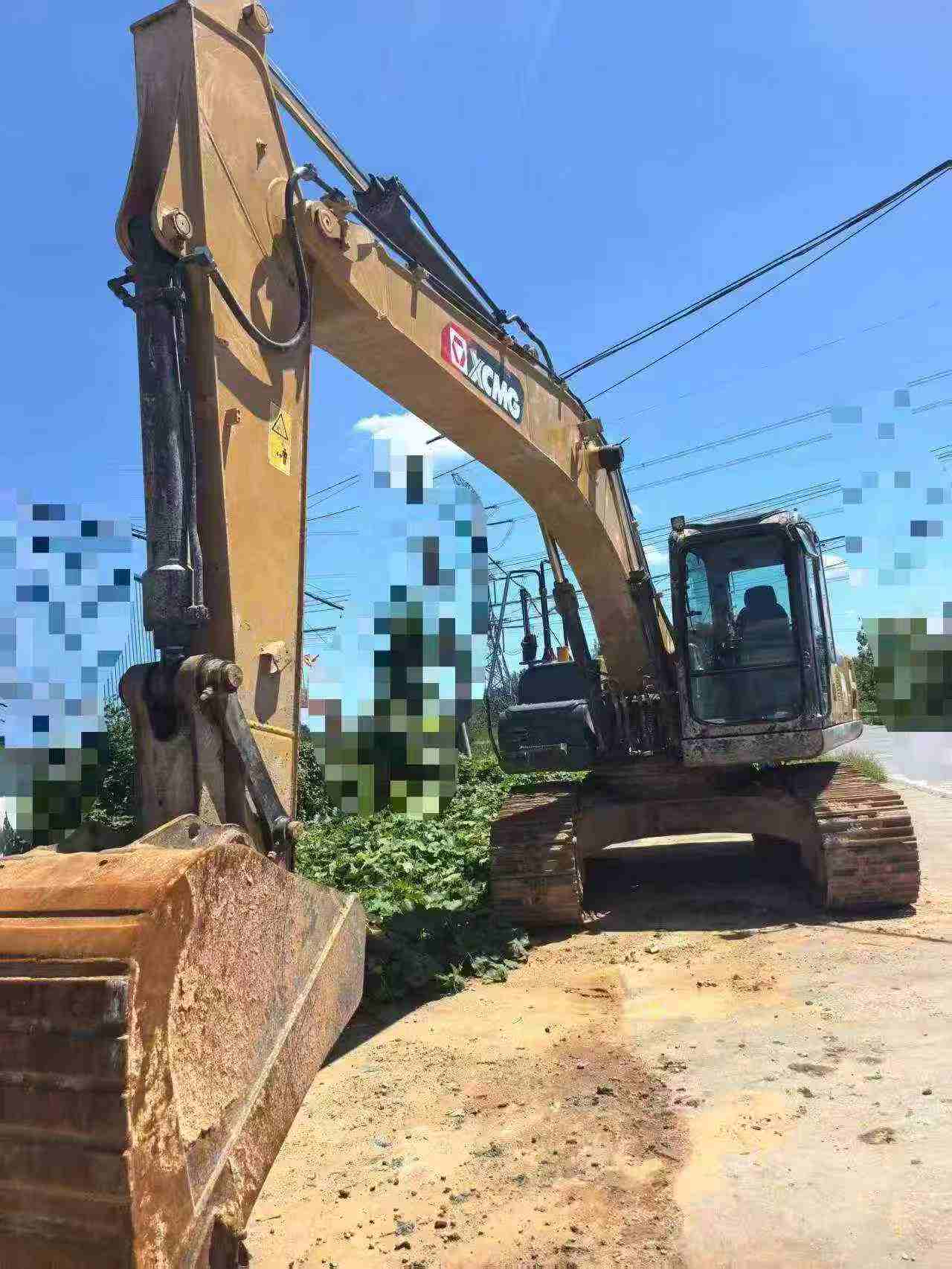

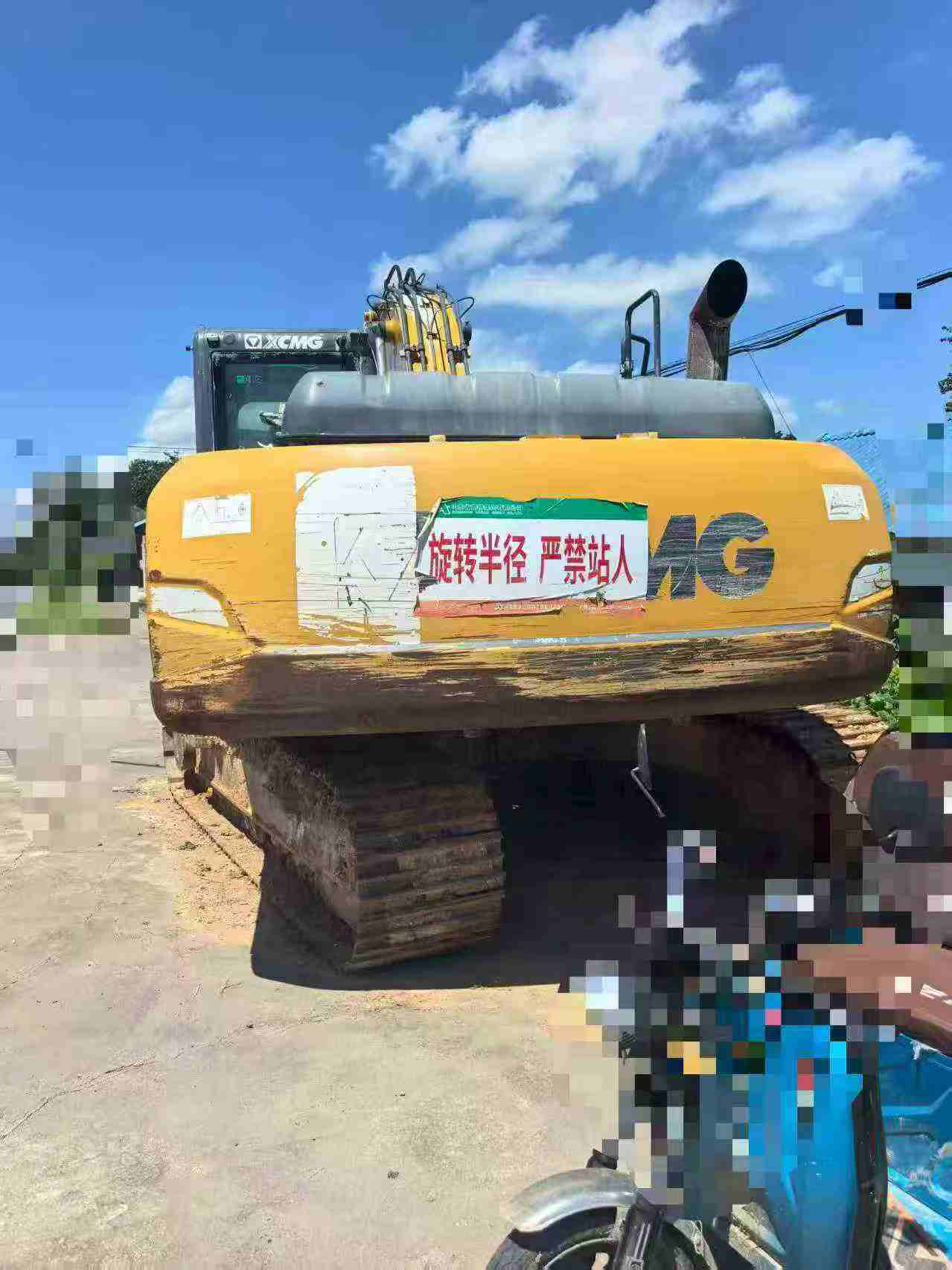

This 2021 XCMG XE205DA excavator represents a reliable mid-sized solution for construction and earthmoving operations. Manufactured by one of China's leading heavy equipment producers, this 20-ton class machine offers proven performance in demanding applications. Currently located in Zhejiang, China, the unit is available for immediate inspection and export.
Key features include:
- Low operating hours for a 2021 model year

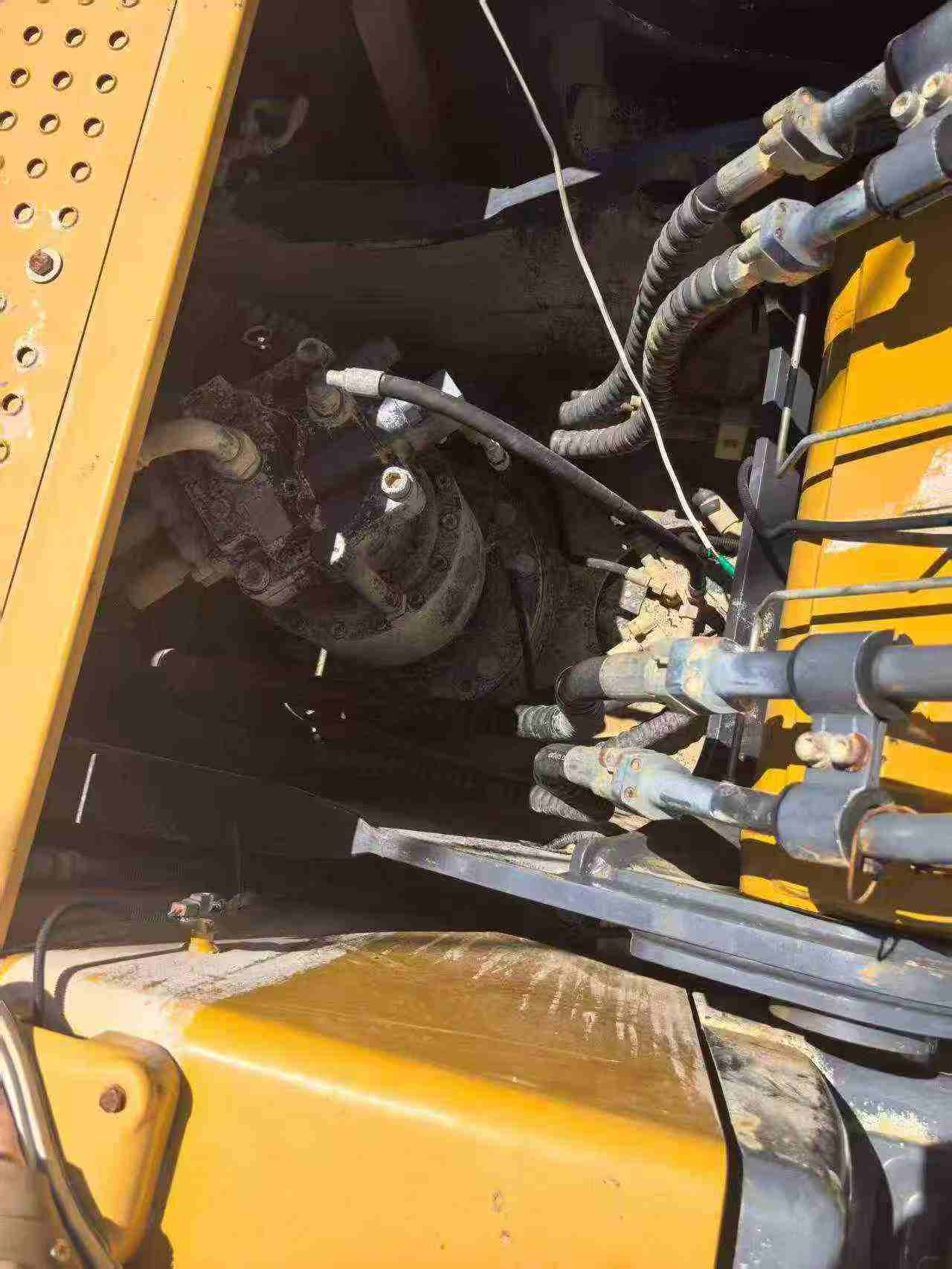

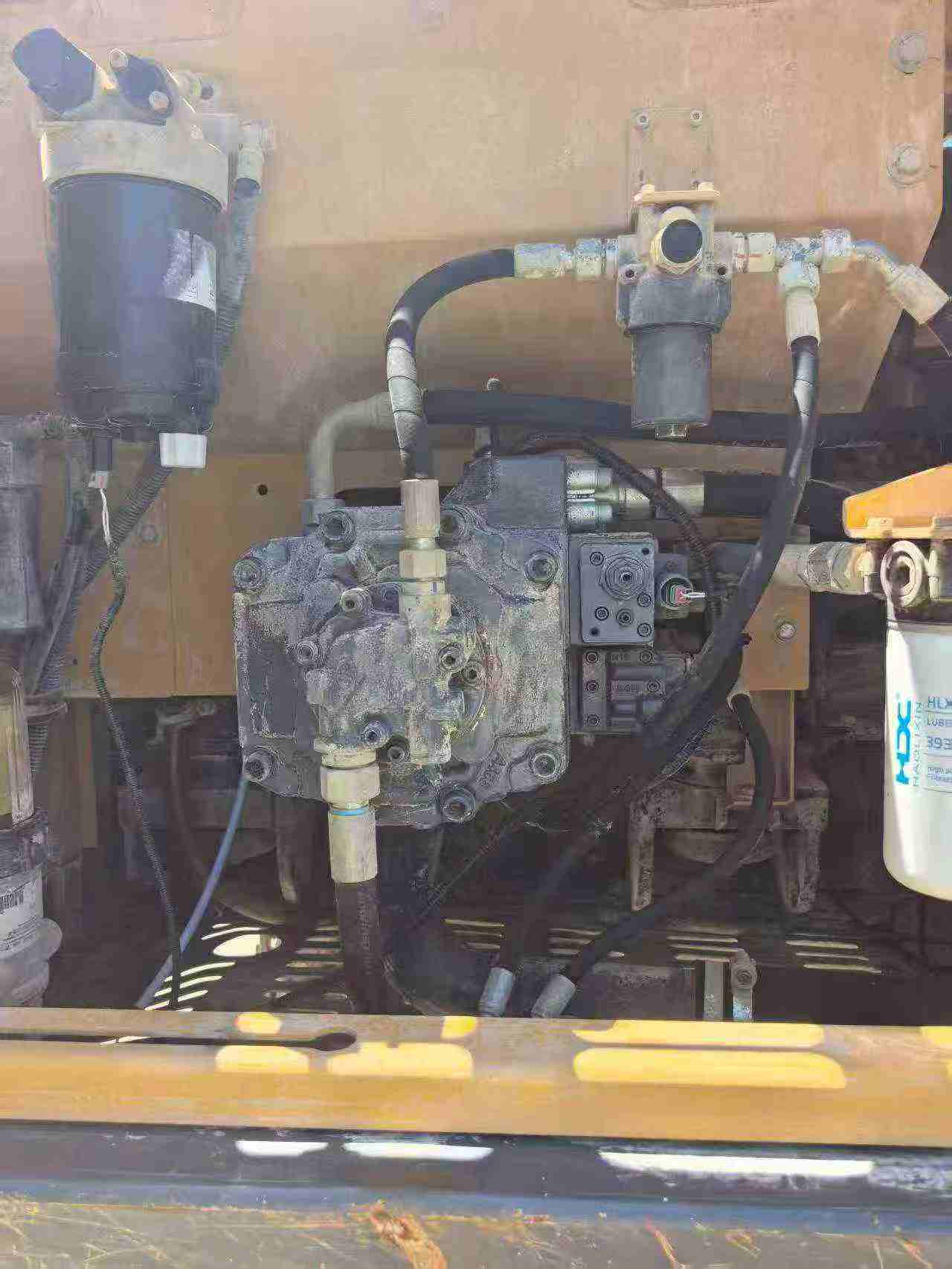

- Hydraulic system designed for fuel efficiency

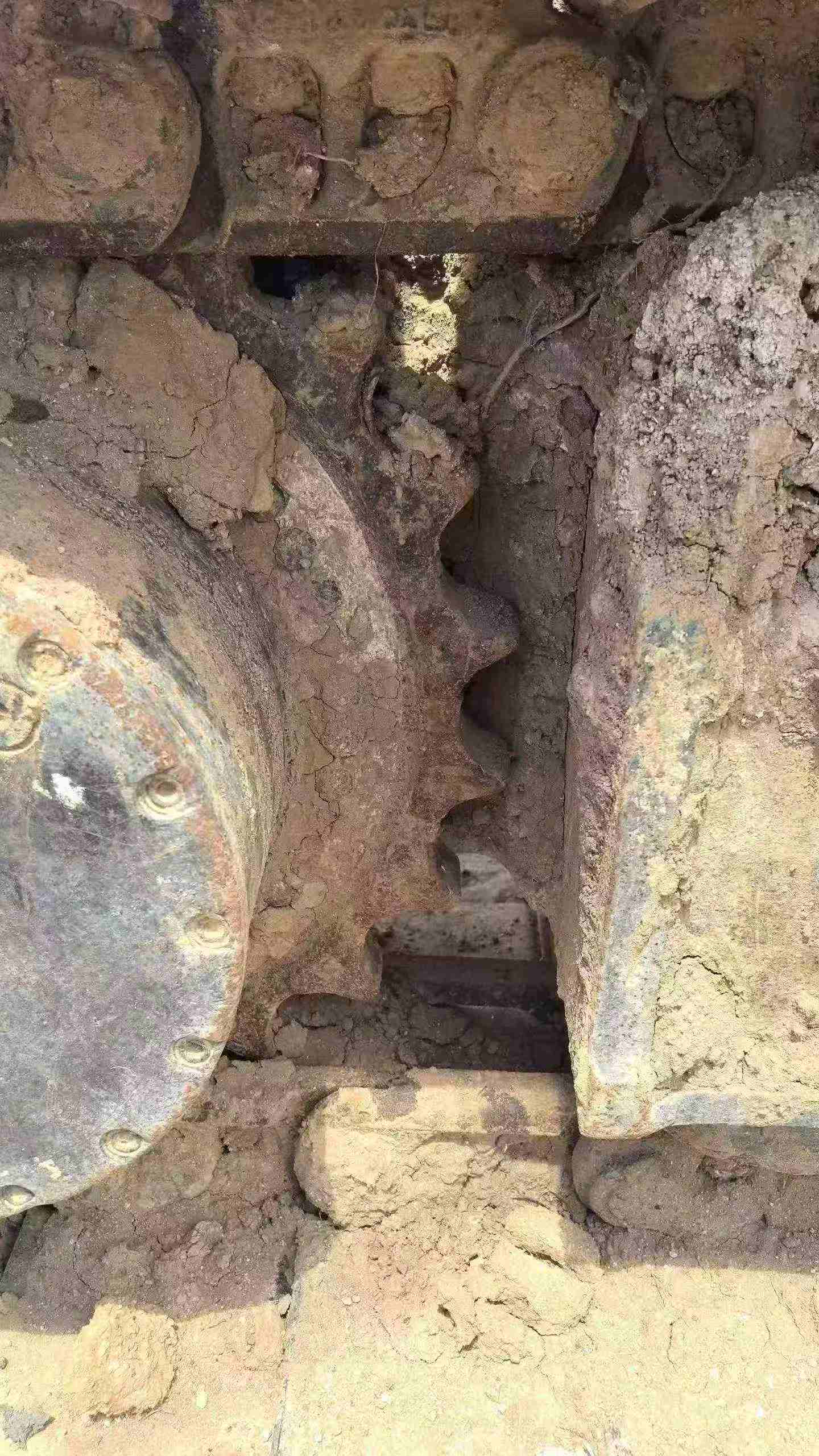

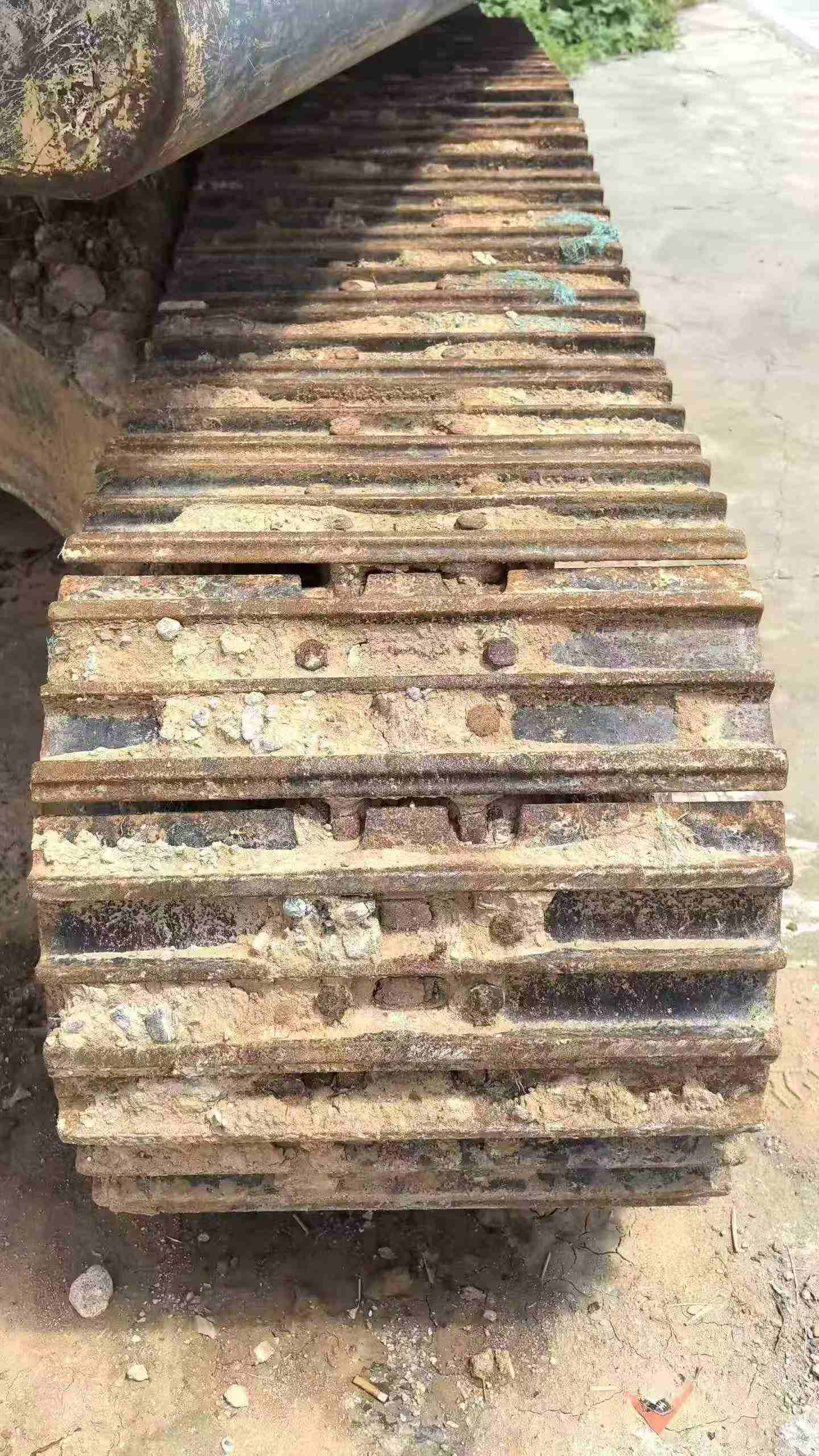

- Robust undercarriage suitable for varied terrain
- Spacious operator cabin with ergonomic controls
- Standard auxiliary hydraulic connections
The XE205DA is well-suited for general excavation, trenching, and material handling tasks. This unit has been maintained in operational condition and is priced competitively for the international used equipment market. Detailed inspection reports and export documentation can be arranged upon request.
| Specifications | Value |
|---|---|
| No. | 1139180 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

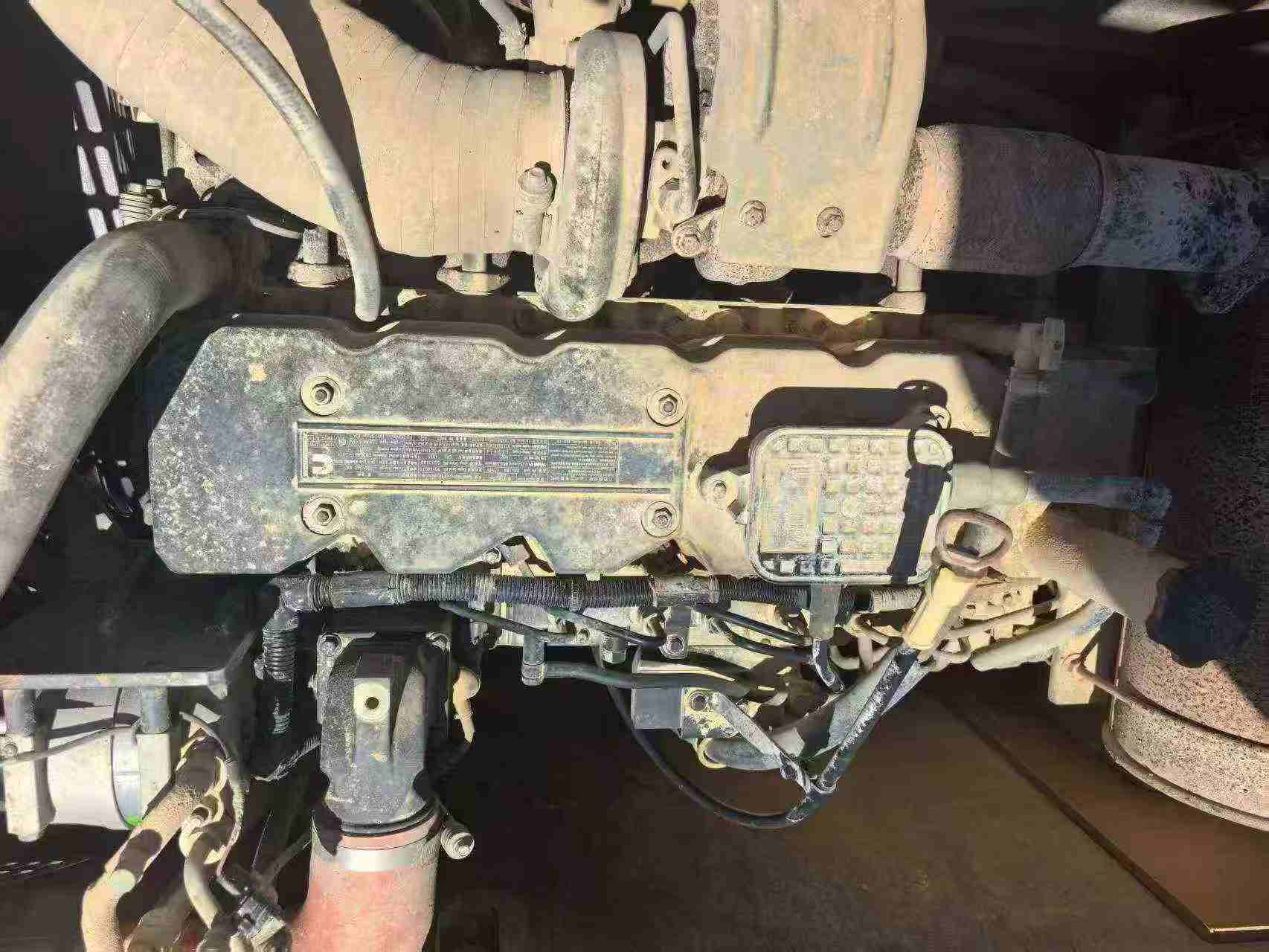

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
