Product Description

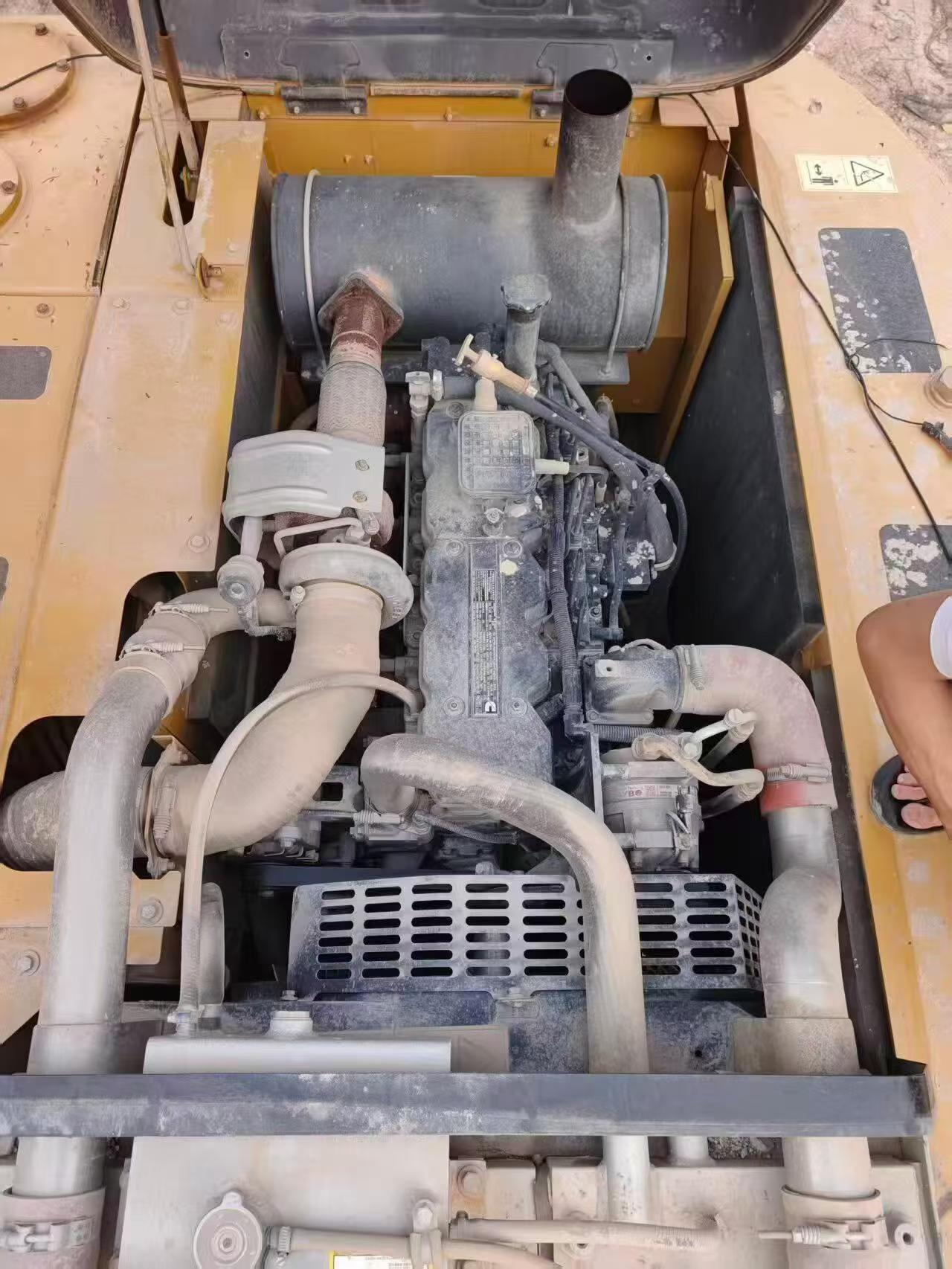

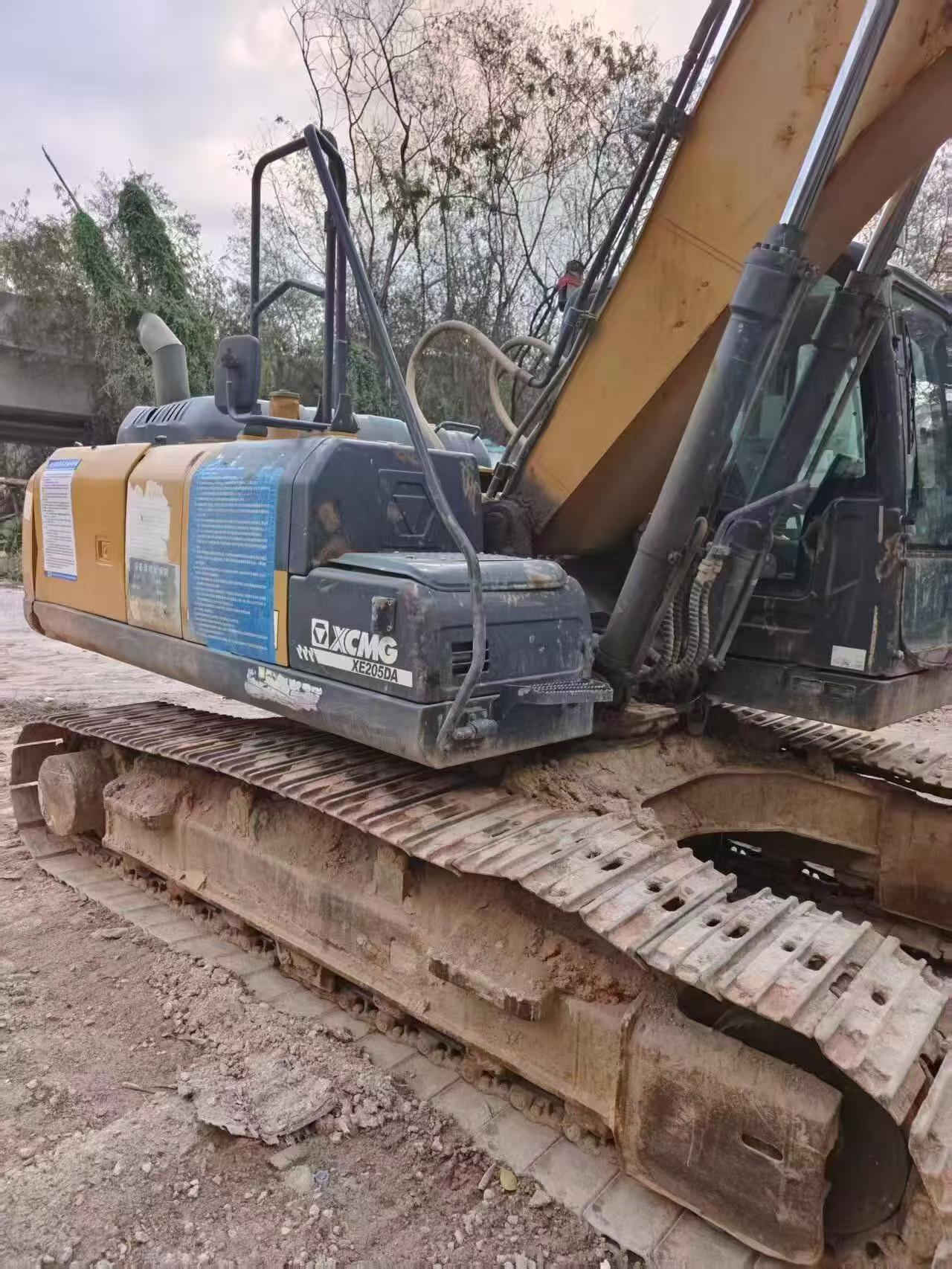

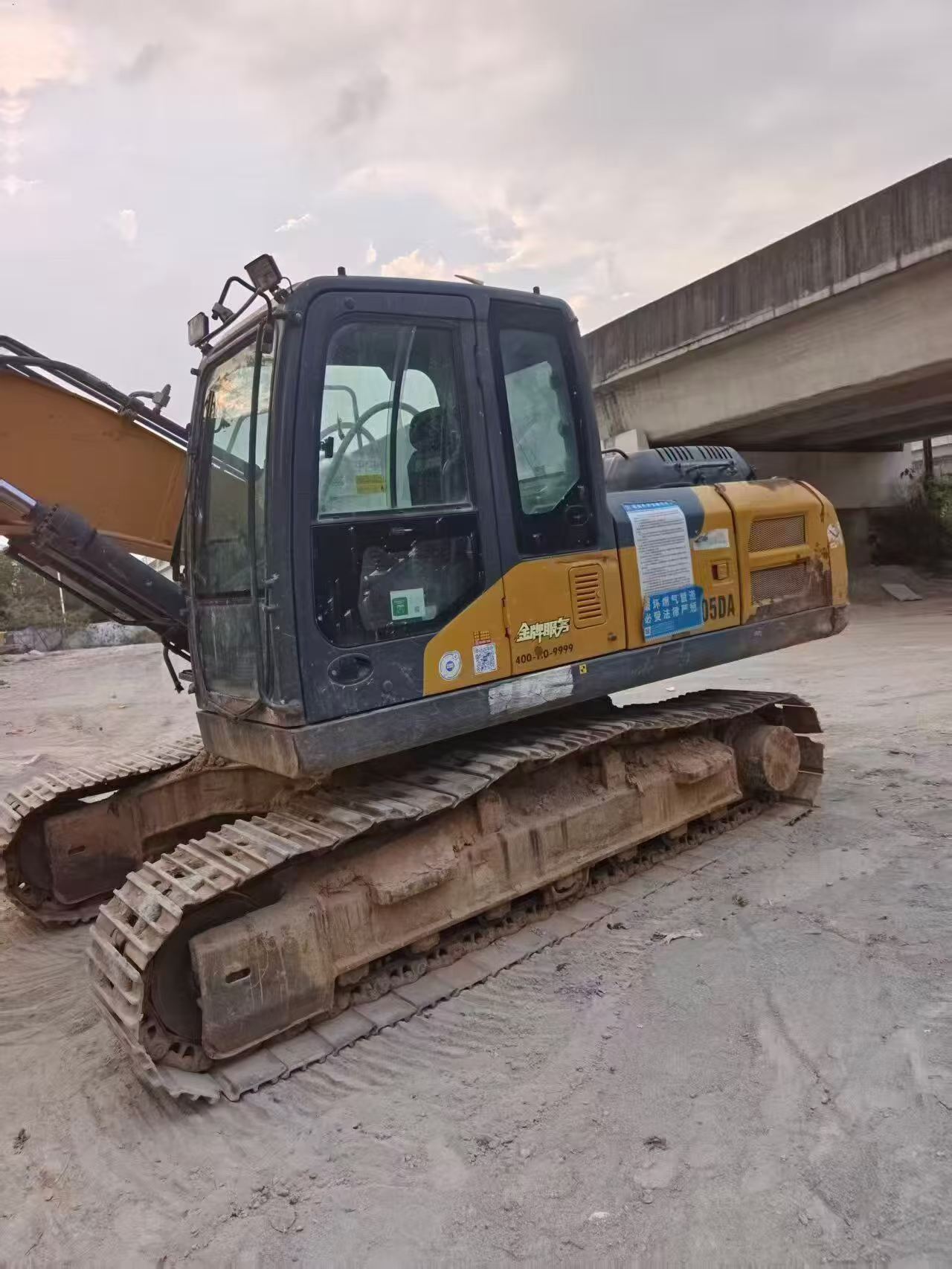

Expand your operational capacity with this 2022 XCMG XE205DA excavator, a robust 20-ton workhorse engineered for contractors demanding reliable fleet performance. Built in China with proven QSB7 engine technology, this machine delivers 135kW of power at 2050 RPM through a water-cooled, 6-cylinder configuration designed for sustained productivity across demanding jobsites.
Equipped with a 1.0-1.2m³ backhoe bucket and featuring 157kN bucket digging force, this unit tackles earthmoving, trenching, and material handling with authority. The 5680mm boom and 2910mm arm provide a maximum digging reach of 9760mm and depth of 6660mm, offering versatility for utility work, foundation projects, and site preparation tasks.
- Working weight: 21,500kg with optimal 47.5kPa ground pressure
- 35% climbing ability and 184kN maximum tractive force for challenging terrain
- 400L fuel capacity supports extended operating shifts
- Compact transport dimensions: 9630mm × 2910mm × 3100mm
- Currently located in Hunan, China, ready for international delivery
Add consistent backup capacity to your fleet without the depreciation hit of new equipment. This 2022 model offers modern reliabilit
| Specifications | Value |
|---|---|
| No. | 1046484 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
