Product Description

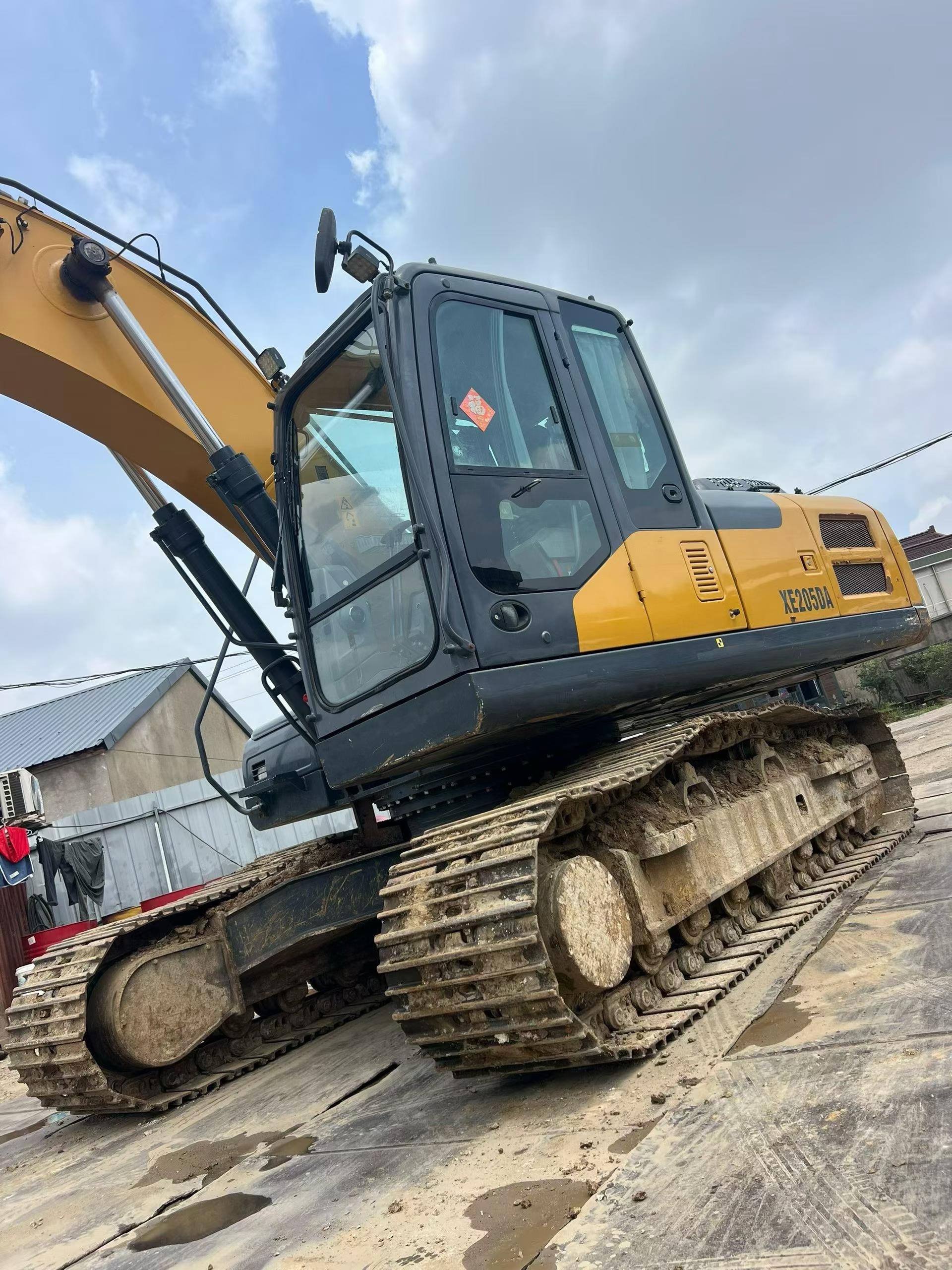

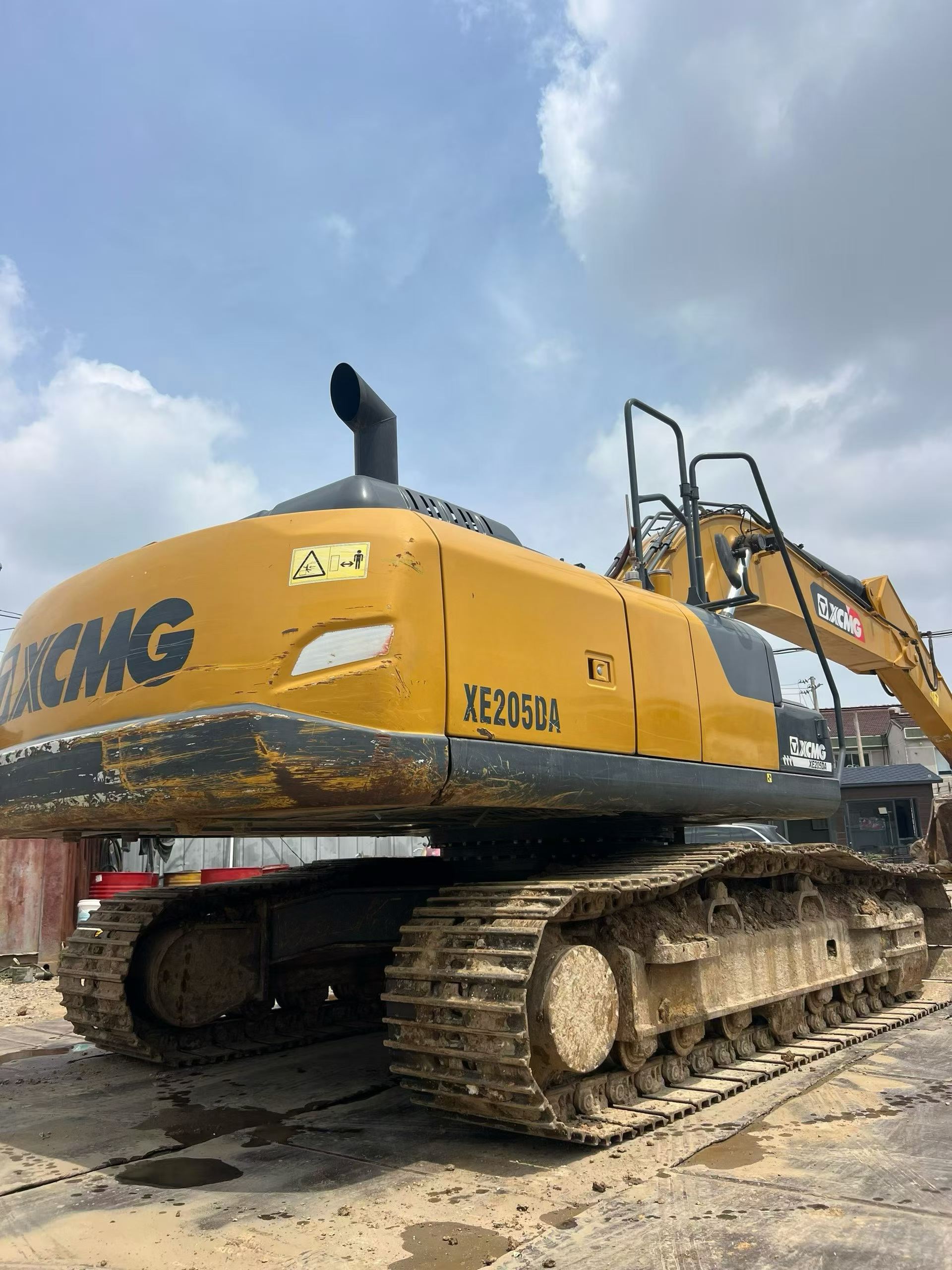

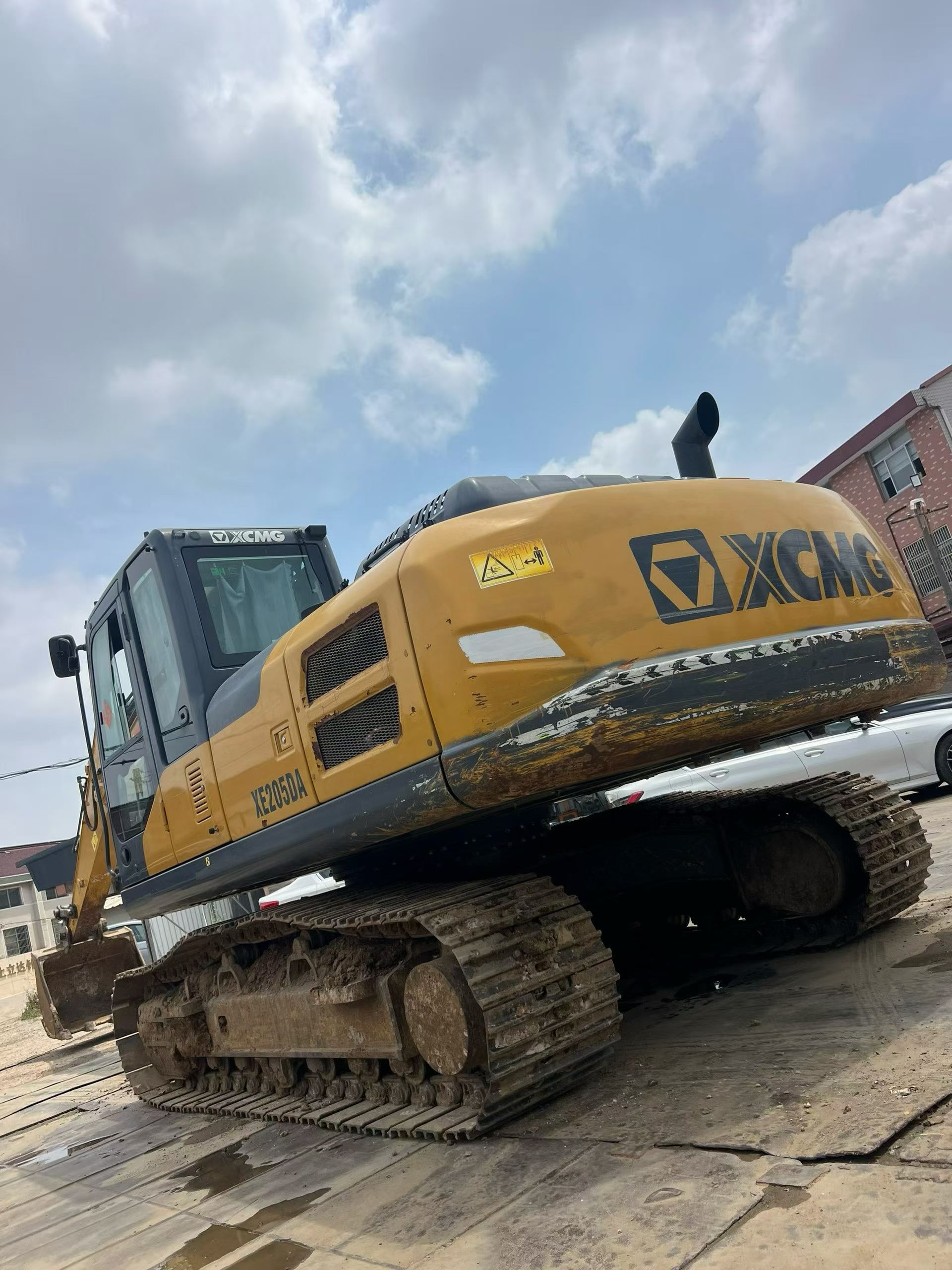

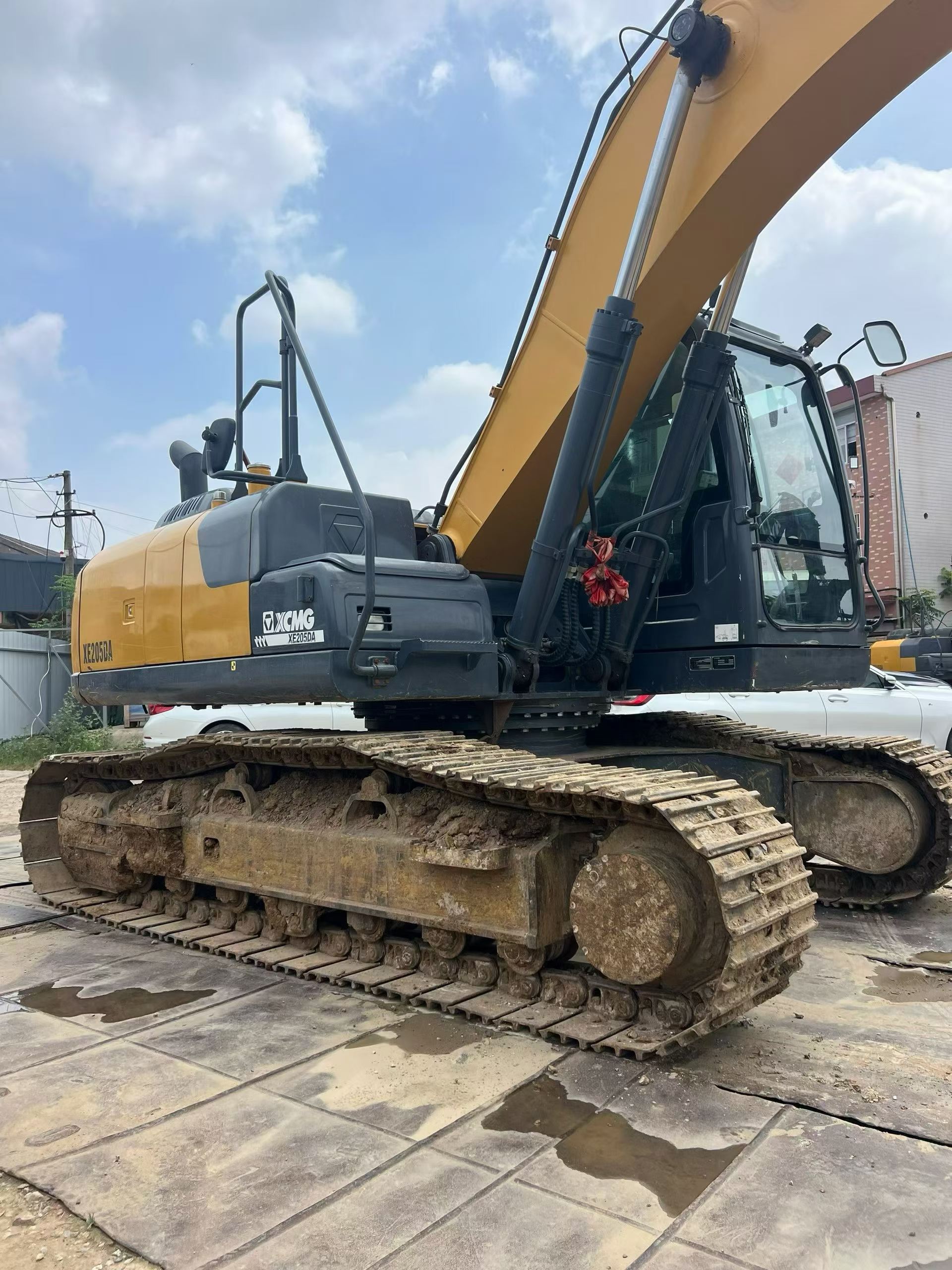

Built for serious earthmoving work, this 2022 XCMG XE205DA 20-ton hydraulic excavator delivers factory-fresh performance at a fraction of new equipment cost. Sourced directly from Jiangsu, China, this low-hours machine gives buyers a proven platform without the premium price tag of new iron.

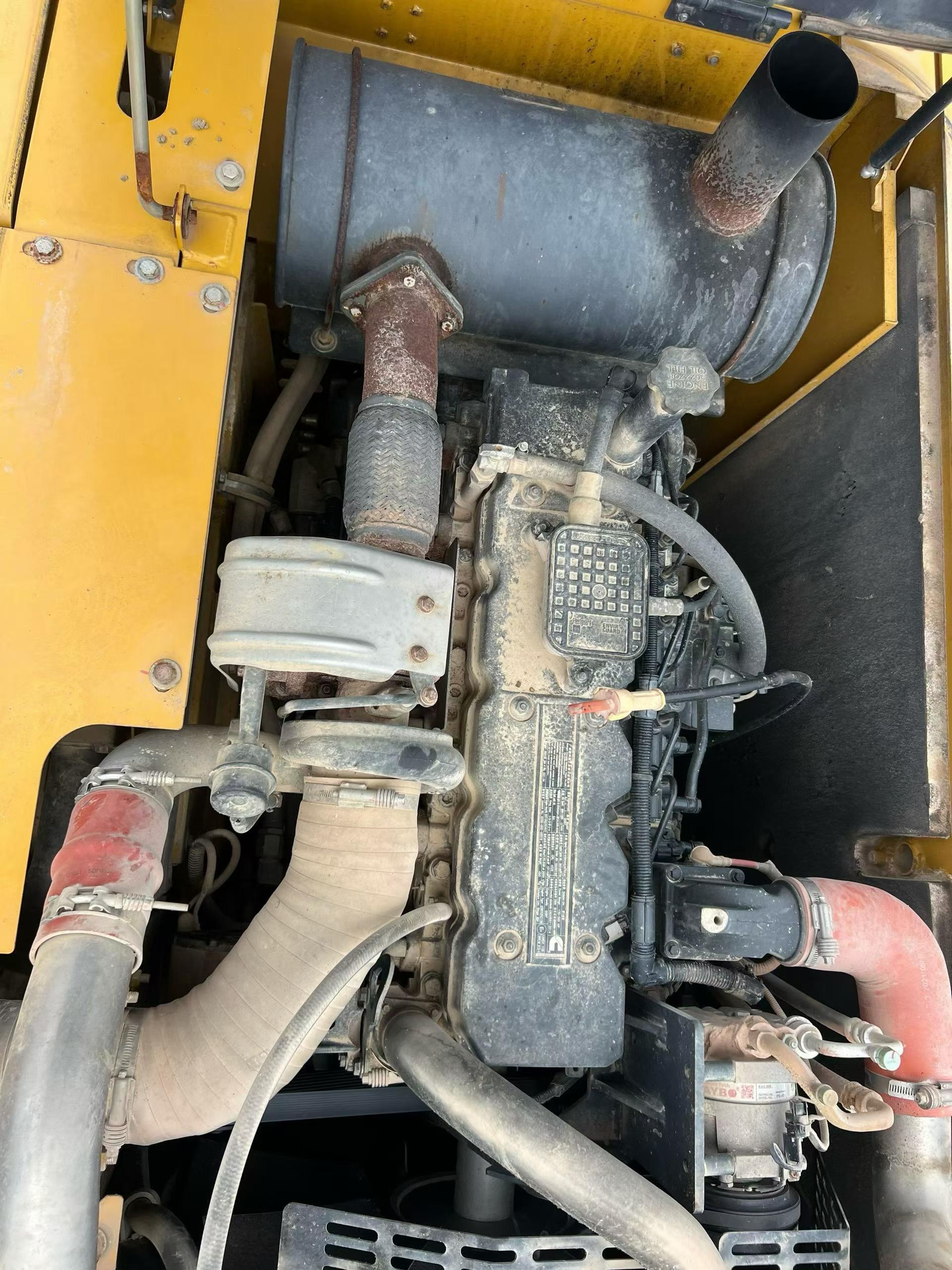

Powered by a Cummins QSB7 6-cylinder, 6.7L turbocharged diesel engine rated at 135 kW / 2,050 RPM with water-cooling, the XE205DA handles demanding dig cycles with consistent power output. A 157 kN bucket digging force and 1.0–1.2 m³ bucket capacity make it a productive choice for excavation, grading, and foundation work.
- Working Weight: 21,500 kg
- Max Digging Depth: 6,660 mm
- Max Digging Radius: 9,760 mm
- Max Unloading Height: 6,780 mm
- Bucket Digging Force: 157 kN
- Max Tractive Force: 184 kN
- Travel Speed: 5.7 / 3.1 km/h
- Fuel Tank Capacity: 400 L
- Climbing Ability: 35%
- Ground Pressure: 47.5 kPa
For contractors and fleet operators seeking maximum return on capital, this unit represents a smart, low-risk investment — proven Chinese engineering, readily available parts, and strong resale value in global markets.
| Specifications | Value |
|---|---|
| No. | 1092725 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
