Product Description

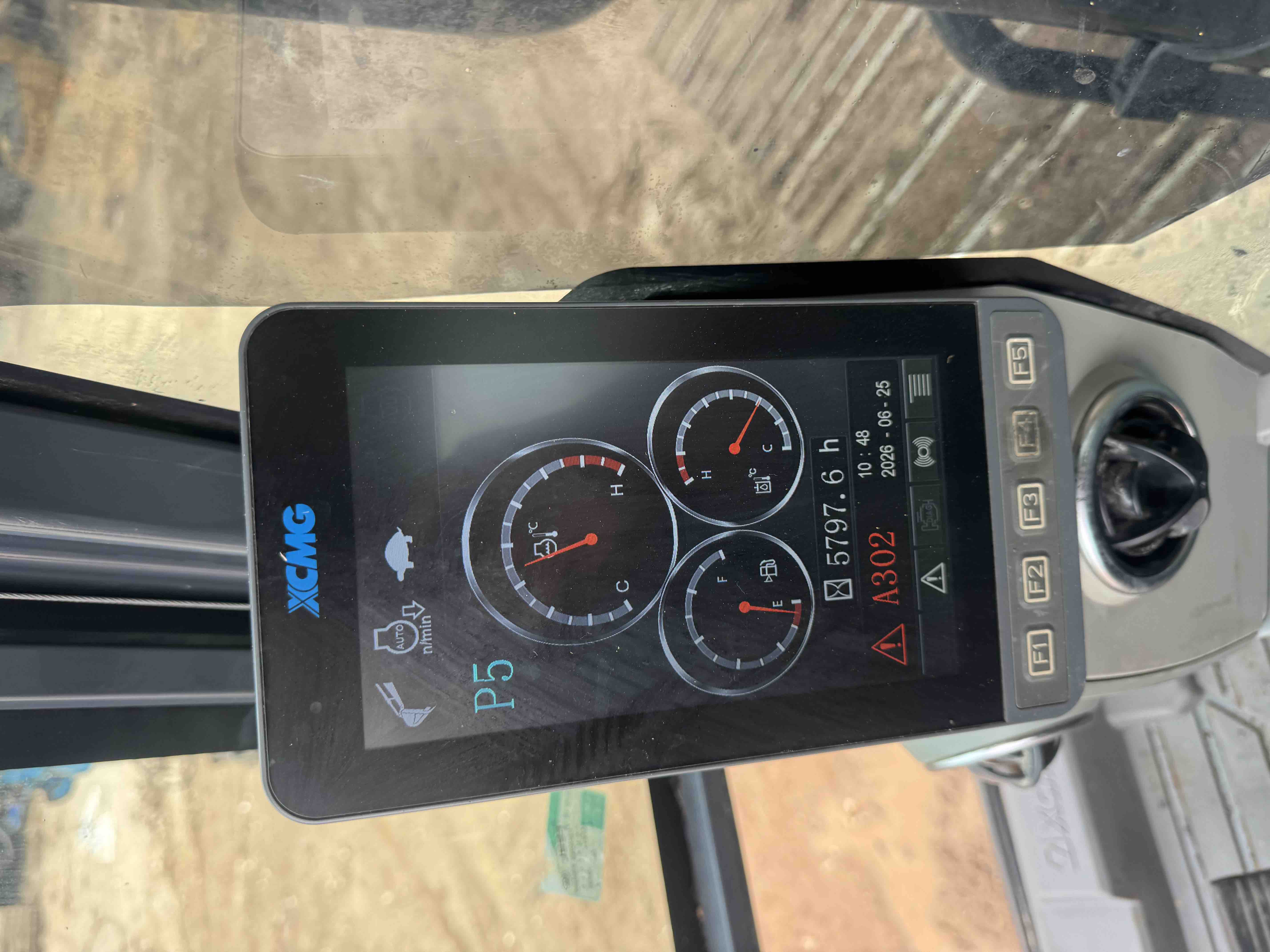

This 2022 XCMG XE210WB wheeled excavator, located in Guangdong, China, comes equipped with a specialized 25-meter long-reach boom configuration designed for extended working radius applications. With approximately 5,000 operating hours, this machine demonstrates moderate use while maintaining reliable performance for demanding excavation and material handling tasks.
Key features include:
- 25-meter long-reach boom for enhanced versatility in slope work and deep excavation
- Wheeled chassis providing superior mobility between job sites
- Complete documentation and certifications included
- Well-maintained condition with documented service history
The XE210WB's wheeled design offers operational flexibility for contractors requiring frequent relocation without transport logistics. This unit is ready for immediate deployment in infrastructure projects, municipal works, or specialized earthmoving applications requiring extended reach capabilities.
| Specifications | Value |
|---|---|
| No. | 1093077 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20500 |
| Bucket capacity (m³) | 0.86 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

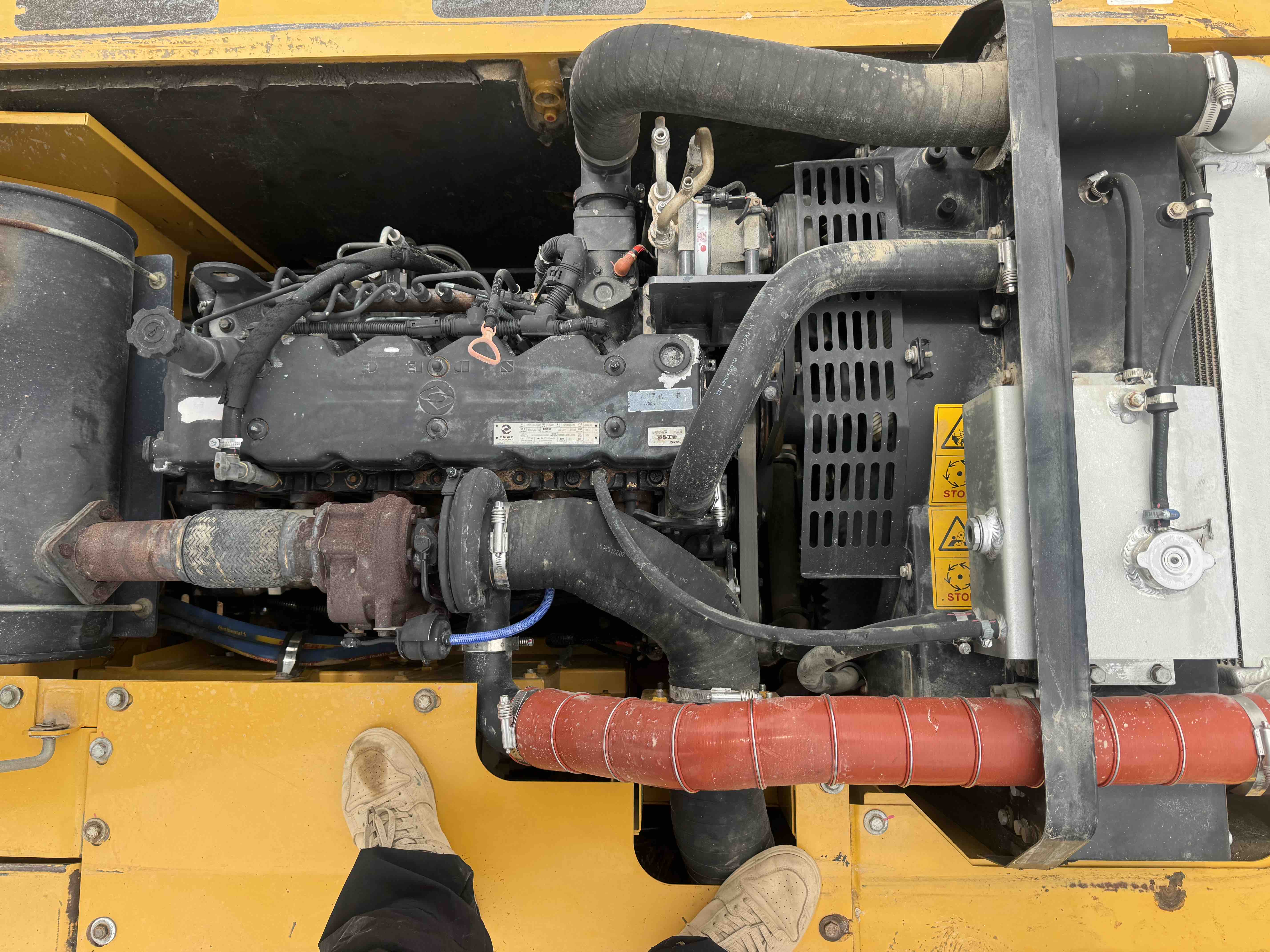

| Engine type | QSB6.7 |
| Rated power (kw/rpm) | 129/2200 |
| Total displacement (L) | 6.7 |
| Maximum torque (N.m) | 799 |
| Forward speed (Km/h) | 31/9.5 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 60 |
| Bucket digging force (kN) | 144 |
| Rod digging force (kN) | 100 |
| Minimum turning radius (m) | 6.5 |
| Maximum flow of main pump (l/min) | 2 x 220 |

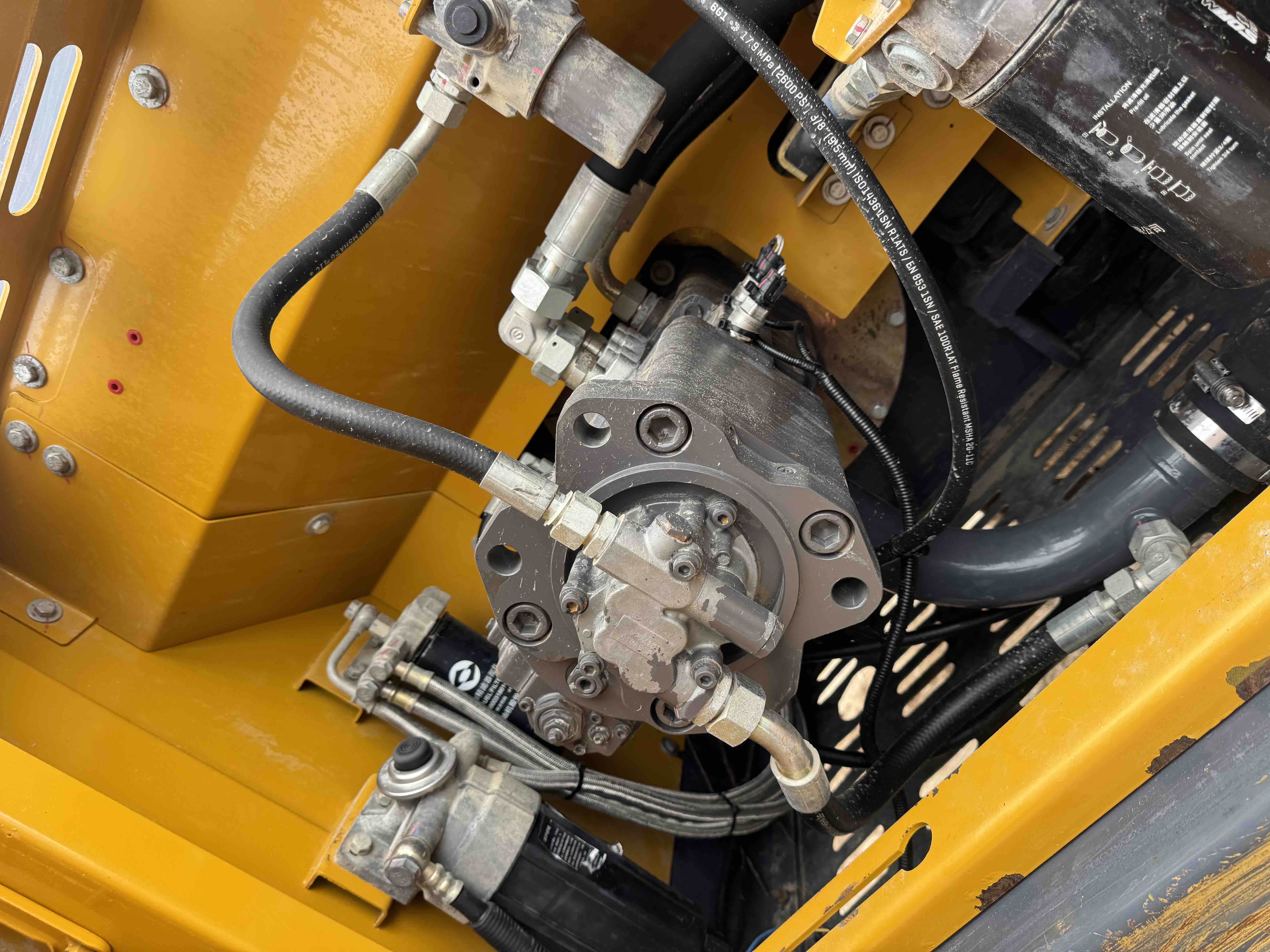

| Main pump type | Two plunger pumps |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 305 |
| Hydraulic Tank (L) | 202 |
| Total transport length (mm) | 9597 |
| Total transport width (mm) | 2552 |
| Total transport height (mm) | 3590 |
| Counterweight ground clearance (mm) | 1250 |
| Wheelbase (mm) | 2850 |
| Wheel base (mm) | 1890 |
| Minimum ground clearance (mm) | 340 |
| Back end turning radius (mm) | 2820 |
| Maximum digging radius (mm) | 9840 |
| Maximum excavation radius (mm) | 9638 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9000 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5810 |
| Bulldozer lift or depth (mm) | 497 x 145 |
| Dodging plate width × height (mm) | 2495 x 566 |
