Product Description
Built for operators who demand precision and control, this 2016 XCMG XE215C delivers 21-ton performance with exceptional jobsite maneuverability. Powered by an ISUZU 6-cylinder engine producing 106.5 kW at 1950 rpm, this excavator combines reliable water-cooled turbocharged power with hydraulic efficiency from dual plunger pumps flowing 2×206 L/min. Operators benefit from stable ground pressure of just 45.5 kPa across 600mm track plates, ensuring confident operation on varied terrain.
- Operator-Centric Design: 13.3 rpm rotation speed and 3530mm front turning radius enable smooth, controlled movements in confined spaces
- Robust Digging Force: 138 kN bucket force and 103 kN arm force tackle demanding excavation tasks with authority
- Impressive Reach: 9925mm maximum digging radius and 6655mm digging depth extend your working envelope
- Proven Stability: 21,450 kg working weight and 35° climbing ability maintain balance on challenging grades
- Extended Hydraulics: 5680mm boom and 2910mm arm provide optimal positioning for loading and trenching operations
Currently located in Suqian, Jiangsu, this
| Specifications | Value |
|---|---|
| No. | 1024218 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21450 |
| Bucket capacity (m³) | 0.8-1.0 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

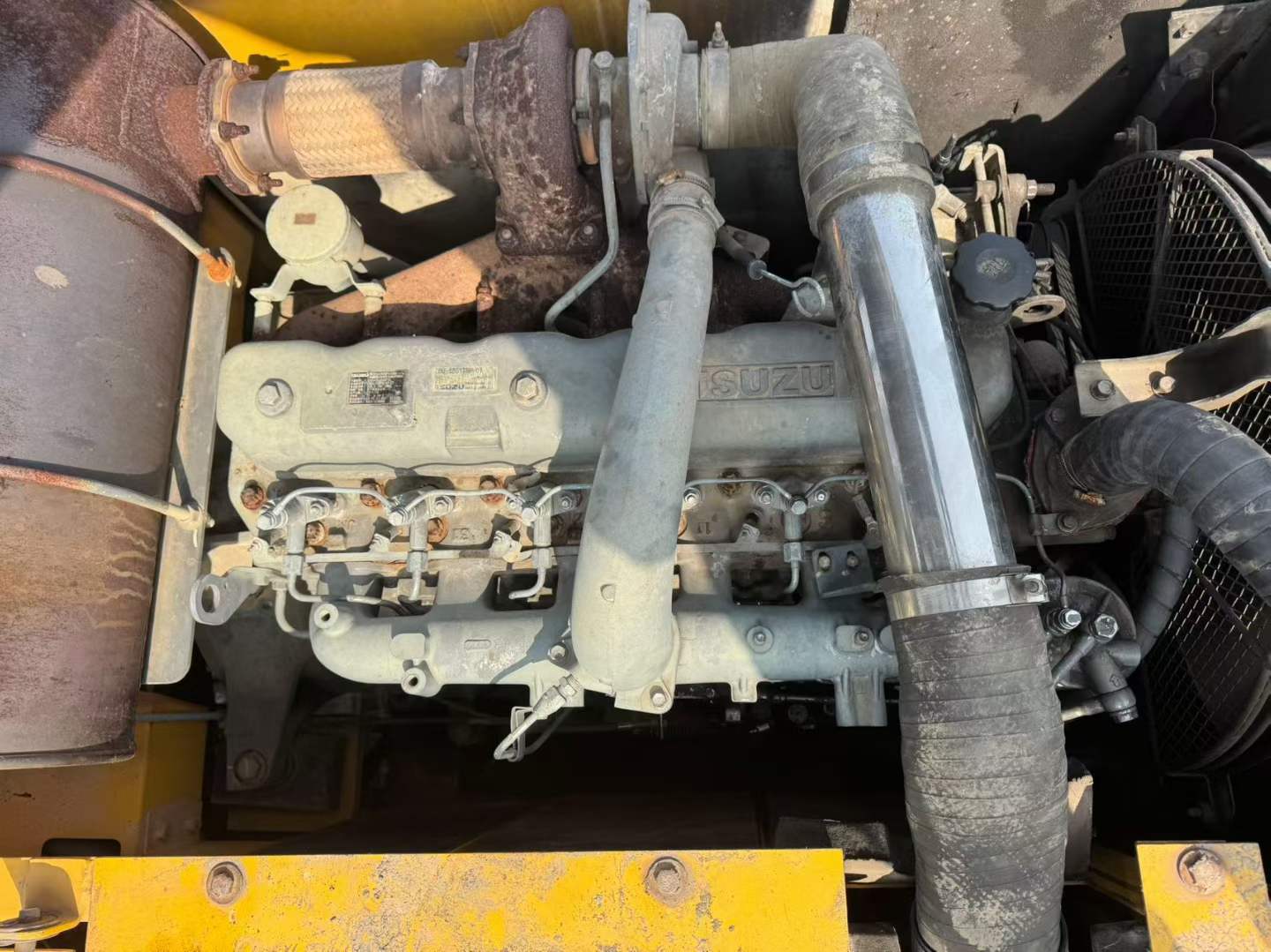

| Engine type | ISUZU BB-6BG1TRP |
| Rated power (kw/rpm) | 106.5/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 45.5 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 31.5/34.3 |
| Maximum flow of main pump (l/min) | 2*206 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 9525 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3462 |
| Maximum digging radius (mm) | 9925 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5695 |
