Product Description

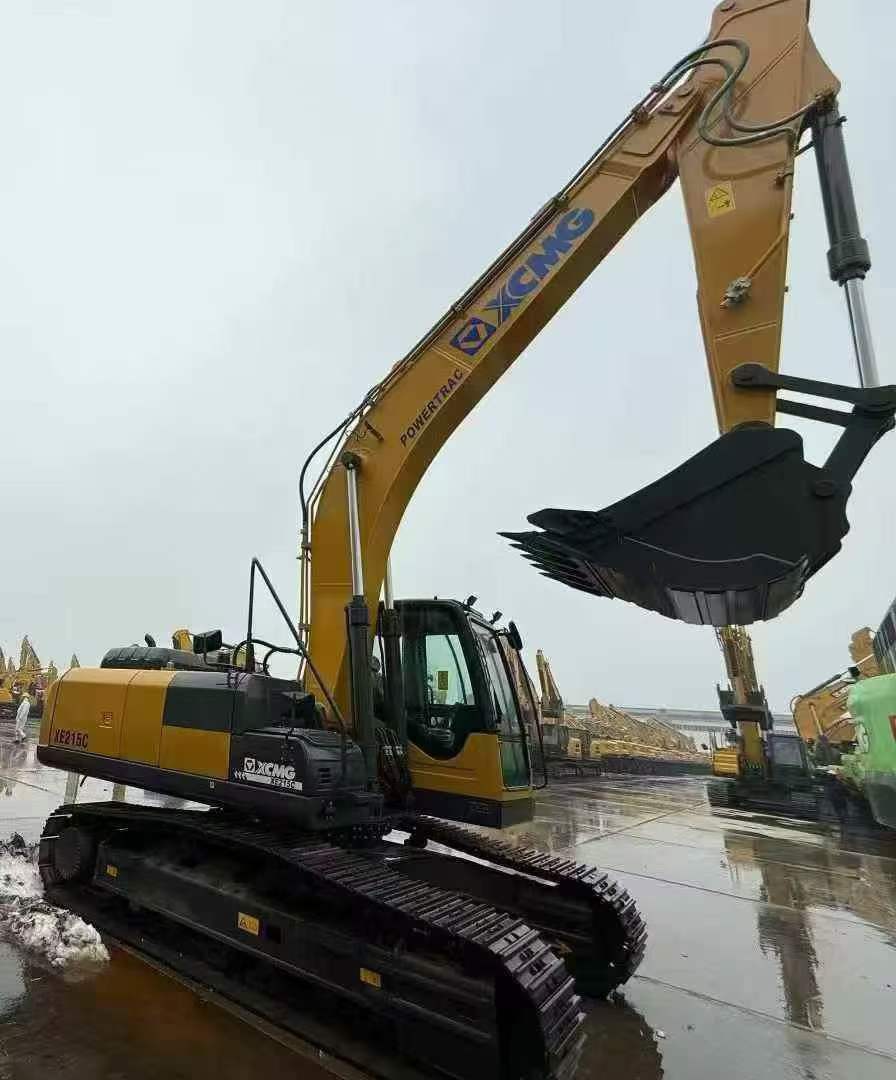

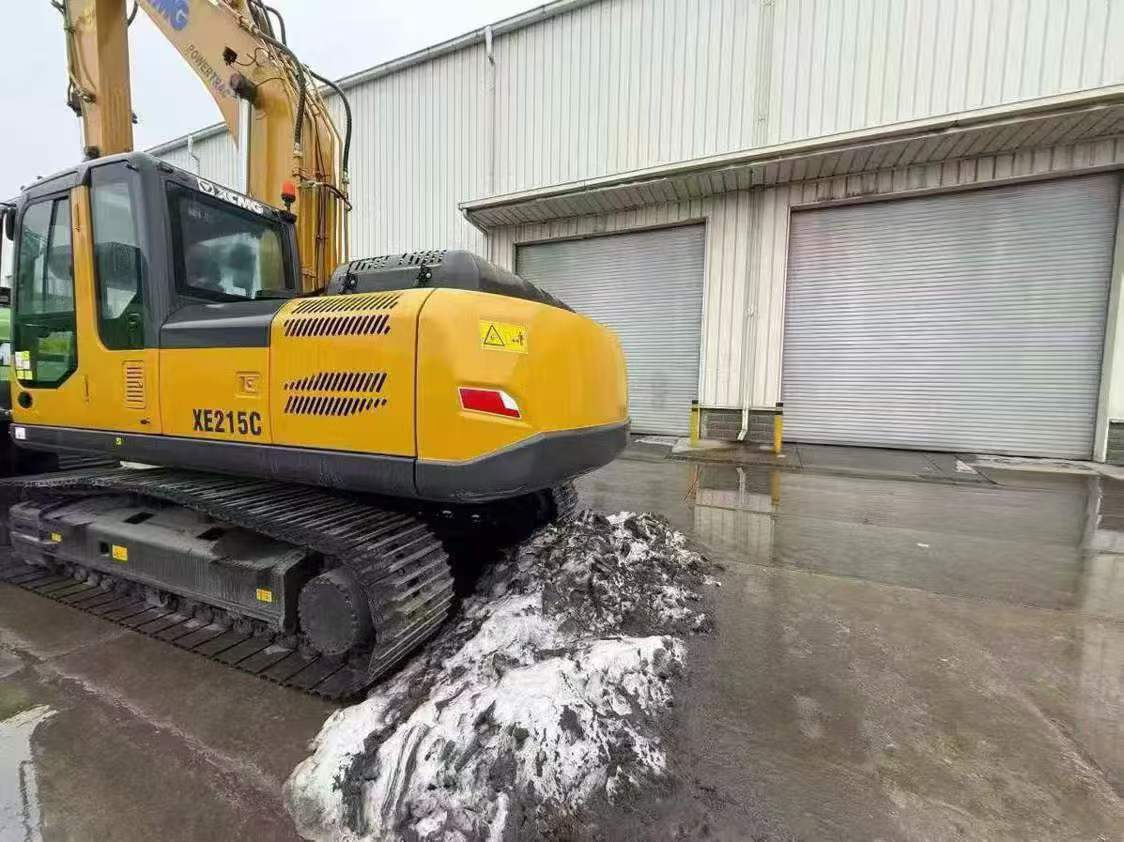

Built for demanding excavation and grading operations, this 21-ton crawler excavator delivers reliable performance across construction, demolition, and earthmoving sites. Powered by an ISUZU BB-6BG1TRP engine producing 106.5 kW at 1950 rpm, the XE215C combines proven hydraulic technology with precision control for maximum productivity.

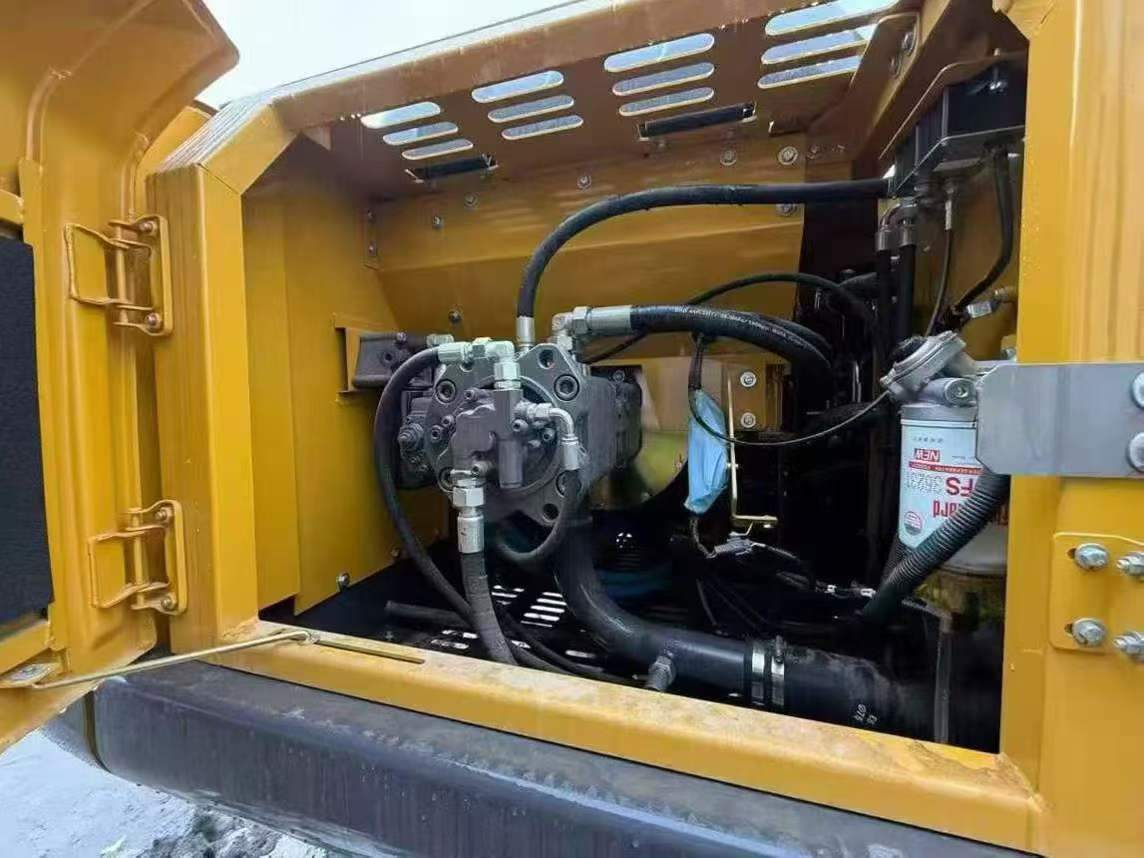

Equipped with dual plunger pumps delivering 2×206 L/min and a 0.8-1.0 m³ bucket capacity, this machine tackles heavy-duty digging with 138 kN bucket force and 103 kN arm force. Reach extends to 9925 mm horizontally and 6655 mm depth, while the 5680 mm boom and 2910 mm arm handle foundation work, trenching, and material handling efficiently. The 360-liter fuel tank supports extended shift operation without frequent refueling interruptions.
Key specifications include:
- Working weight: 21,450 kg with optimal 45.5 kPa ground pressure

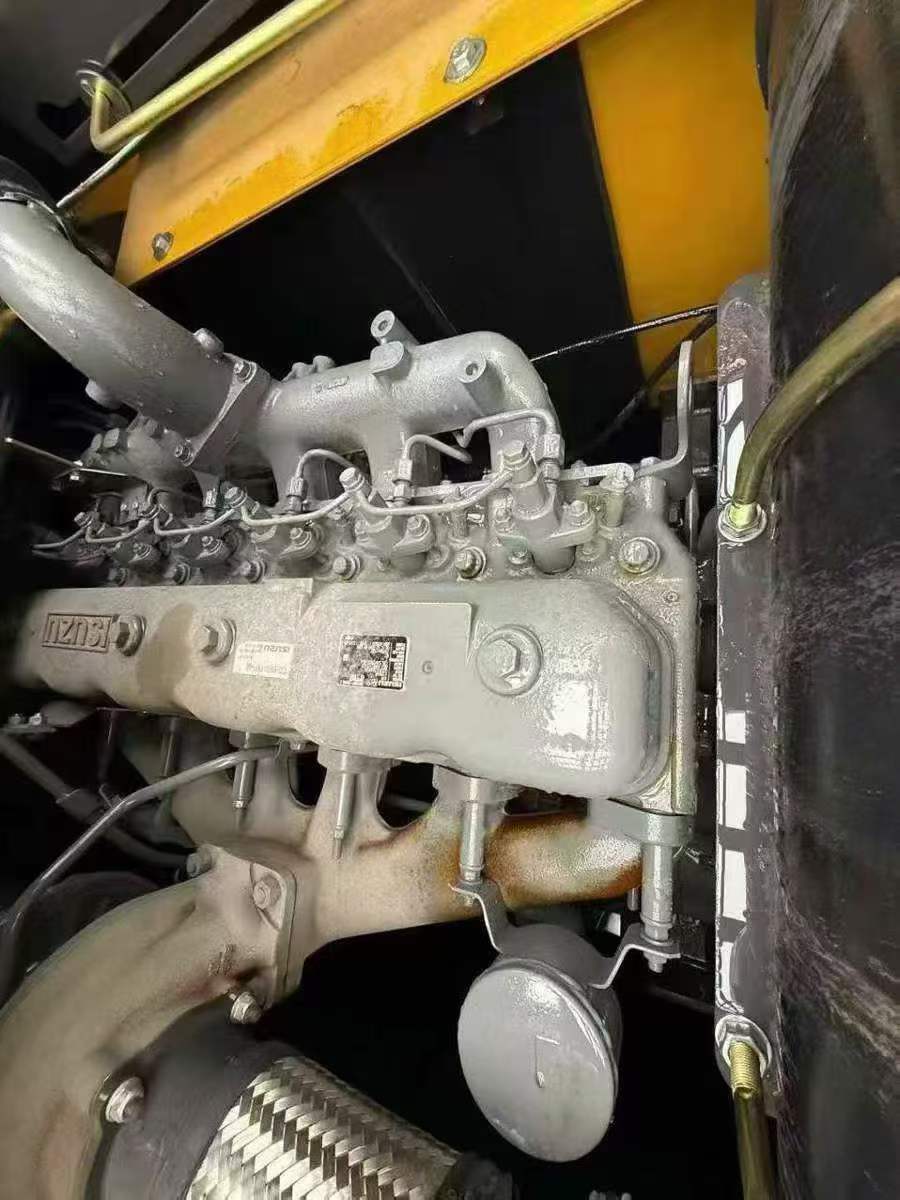

- Water-cooled 6-cylinder turbocharged diesel engine (6.494 L displacement)
- Travel speeds: 5.5 km/h high / 3.5 km/h low range
- 35° gradeability and 13.3 rpm swing speed
- Transport dimensions: 9525×2990×3000 mm
Ready for immediate deployment in Xuzhou, this machine offers dependable Chinese engineering
| Specifications | Value |
|---|---|
| No. | 1023439 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21450 |
| Bucket capacity (m³) | 0.8-1.0 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1TRP |
| Rated power (kw/rpm) | 106.5/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 45.5 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 31.5/34.3 |
| Maximum flow of main pump (l/min) | 2*206 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 9525 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3462 |
| Maximum digging radius (mm) | 9925 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5695 |
