Product Description

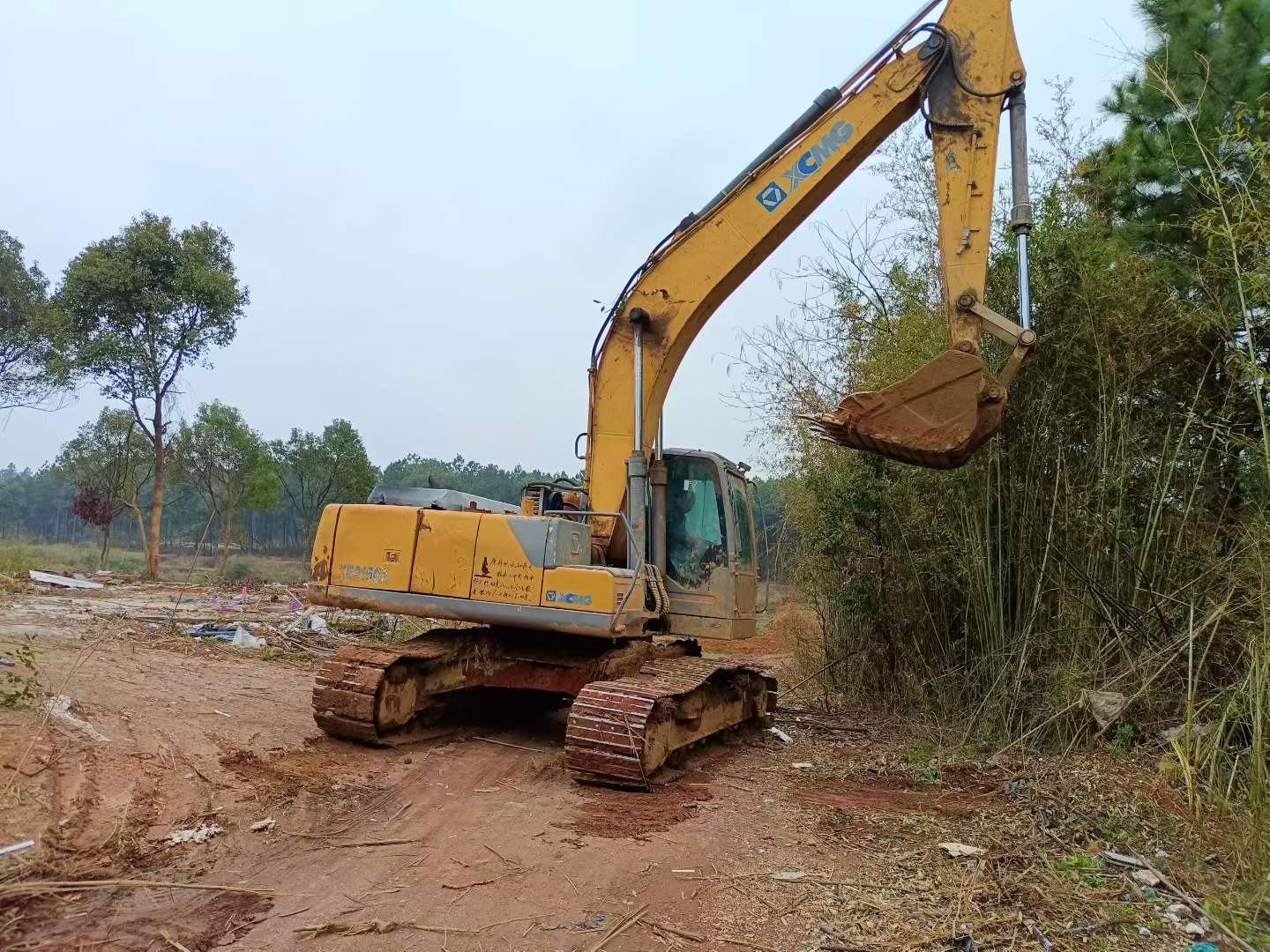

Maximize your ROI with this 2013 XCMG XE215CA excavator—a proven 21-ton workhorse delivering professional-grade performance at a fraction of new equipment costs. Powered by a reliable Isuzu 6BG1TRP engine generating 128.5 kW, this machine combines robust digging force (149 kN bucket, 111 kN arm) with an impressive 9,925 mm maximum reach for versatile job site applications.
Built for productivity, this model features:
- 0.93 m³ bucket capacity with dual plunger pumps (2×209 L/min flow)
- Water-cooled turbocharged engine with 637 N·m torque for sustained heavy-duty operation
- 6,655 mm maximum digging depth and 6,800 mm unloading height
- 360-liter fuel tank for extended work cycles
- Currently located in Fuzhou, Jiangxi—ready for immediate deployment
Smart buyers choose quality used equipment over depreciating new purchases. Get contractor-level capability with established reliability and immediate availability. Contact Fair Trade Machinery today for detailed inspection reports and competitive export pricing.
| Specifications | Value |
|---|---|
| No. | 1026214 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu CC-6BG1TRP |
| Rated power (kw/rpm) | 128.5/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 637/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 45.5 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 35 or less |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.5/3.3 |
| Maximum flow of main pump (l/min) | 2 x 209 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | 2 plunger pumps |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 9565 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2790 |
| Onboard width (mm) | 2710 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4270 |
| Maximum digging radius (mm) | 9925 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5695 |
