Product Description

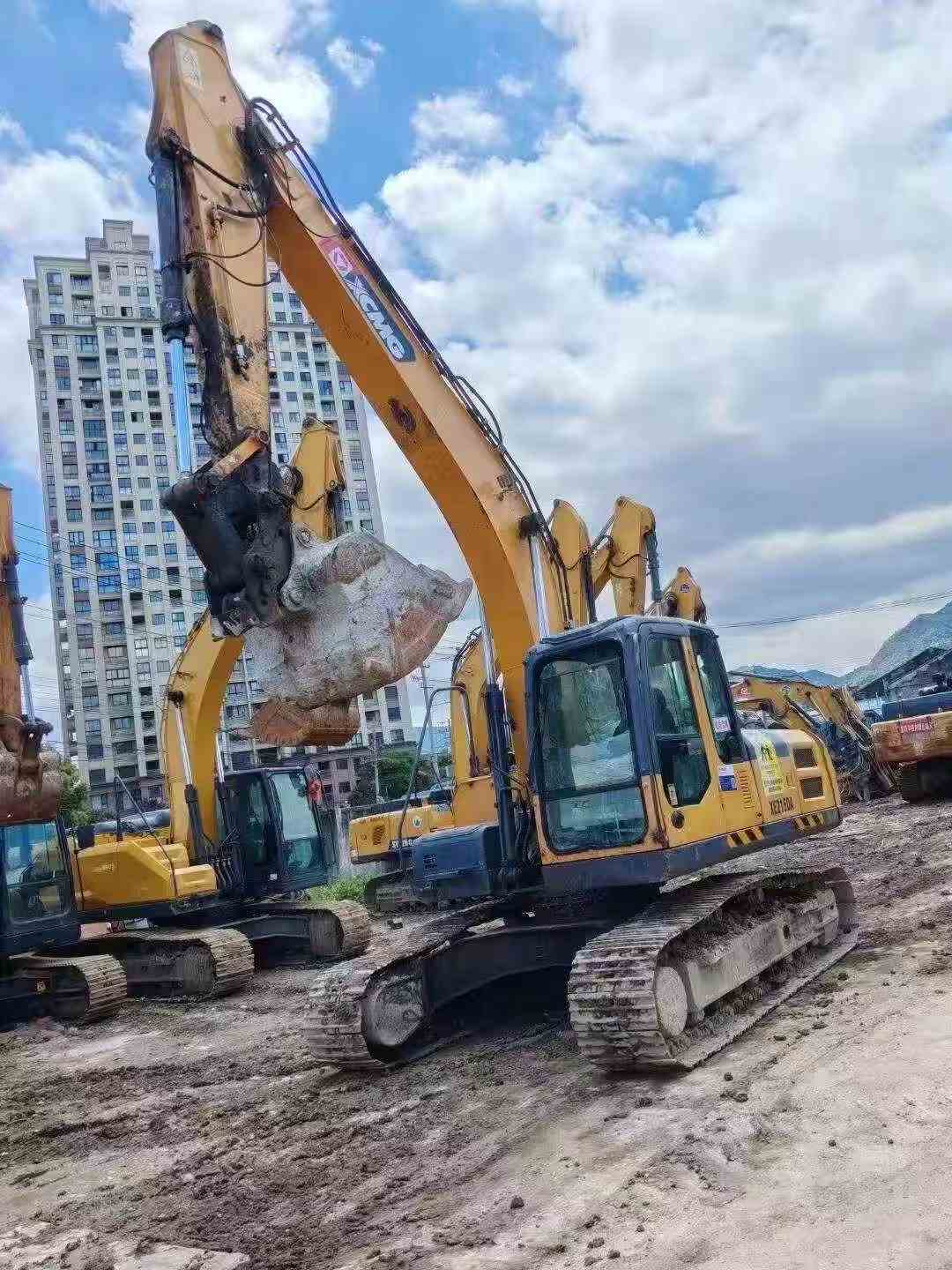

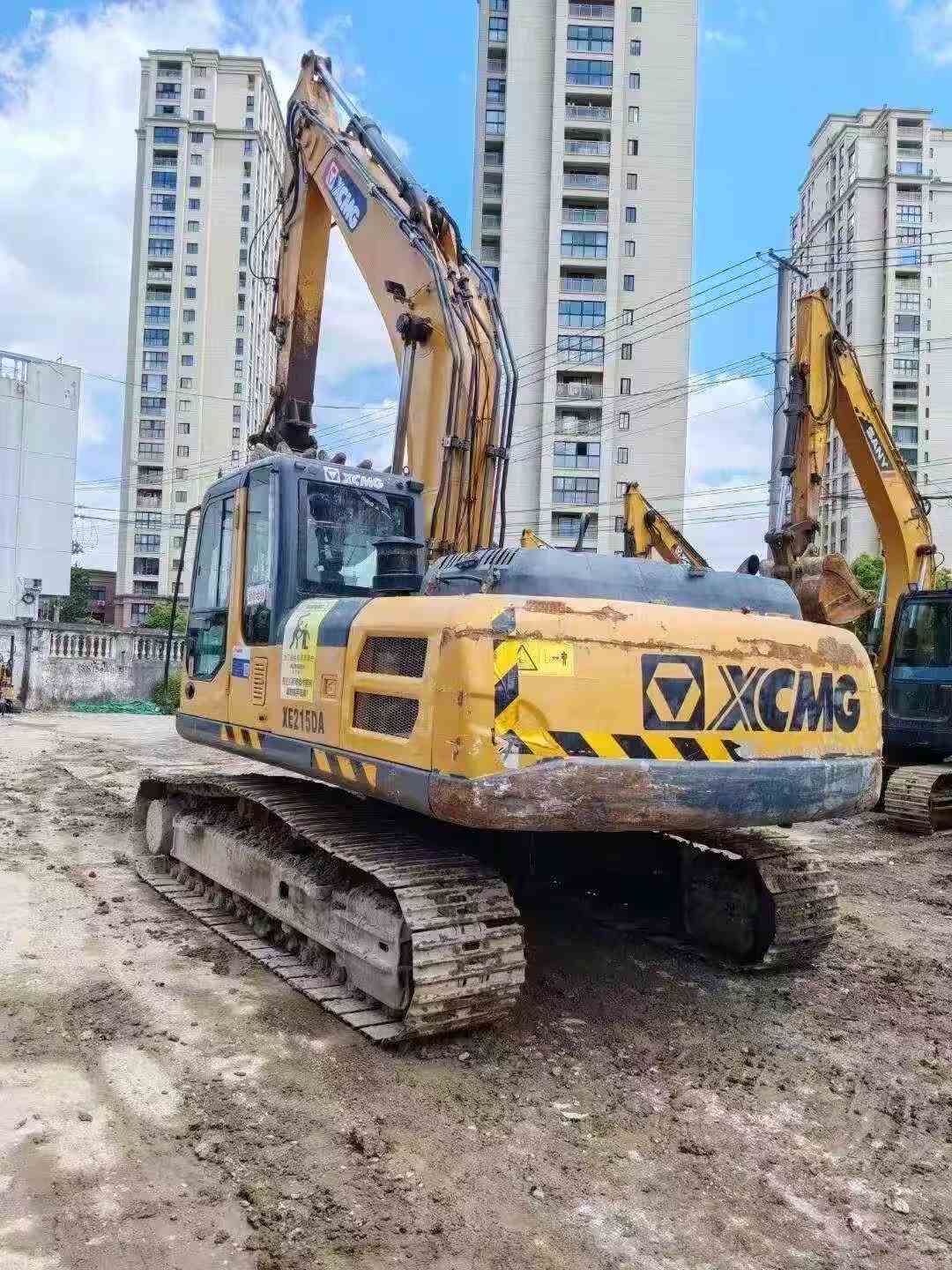

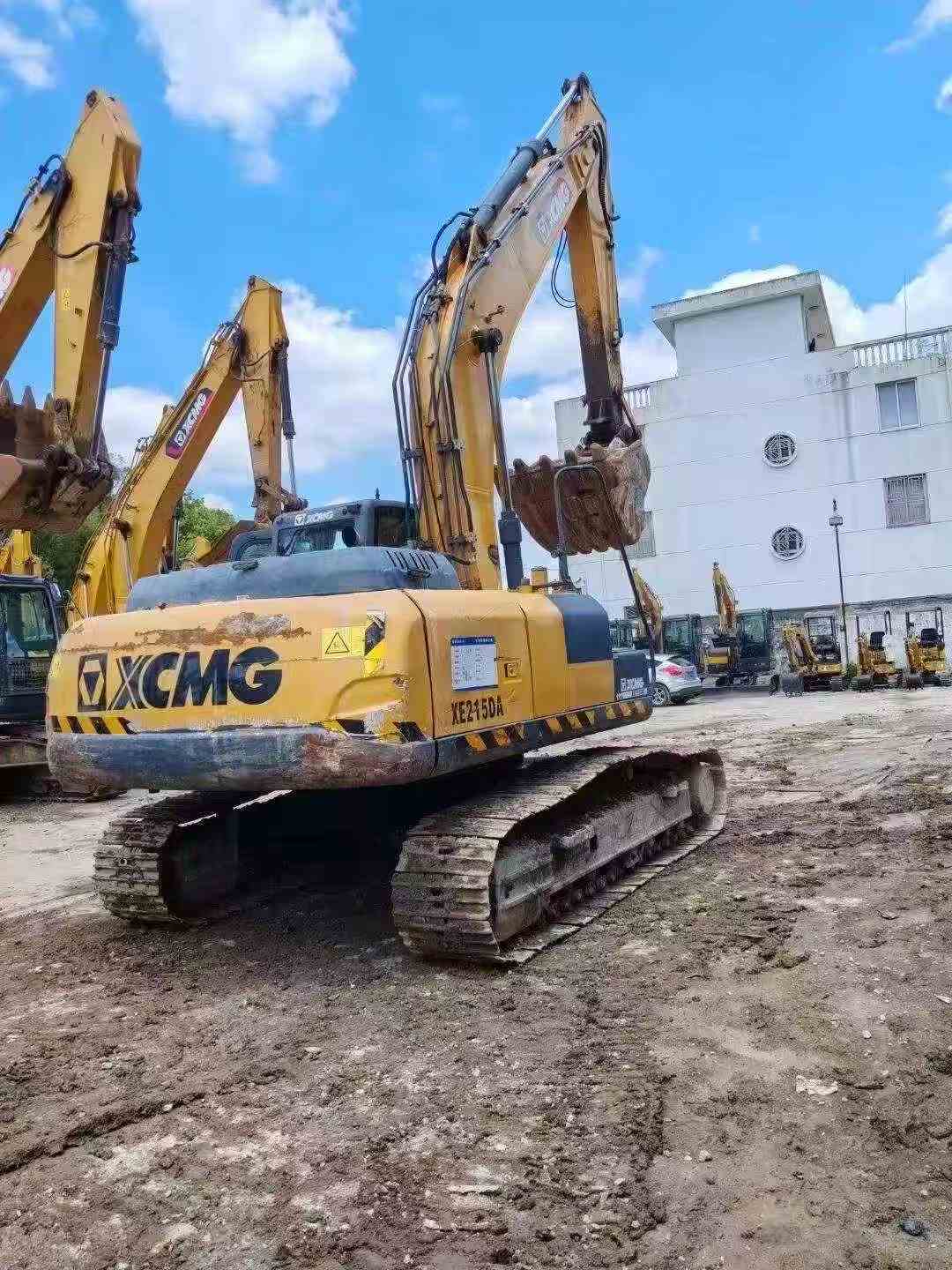

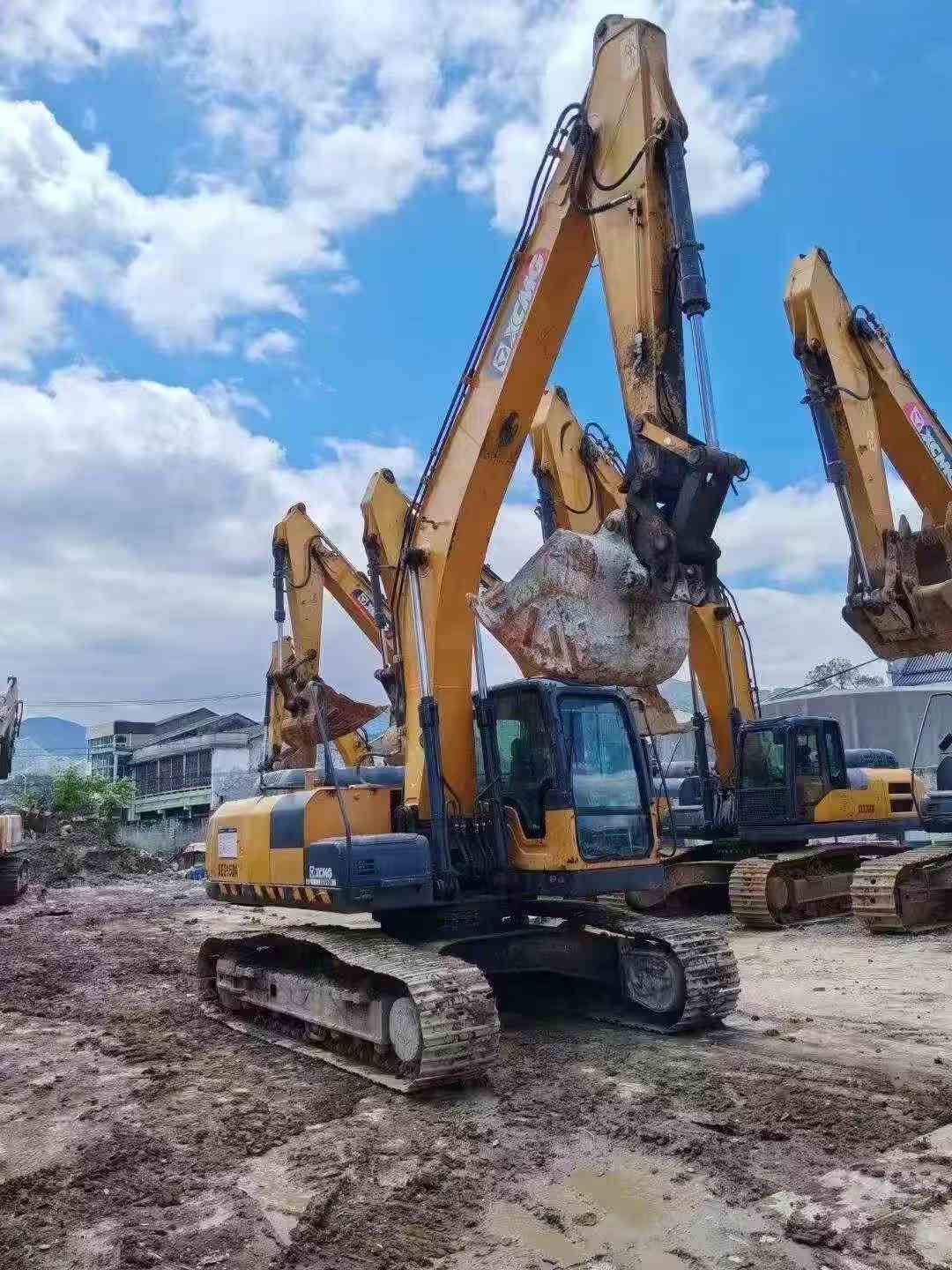

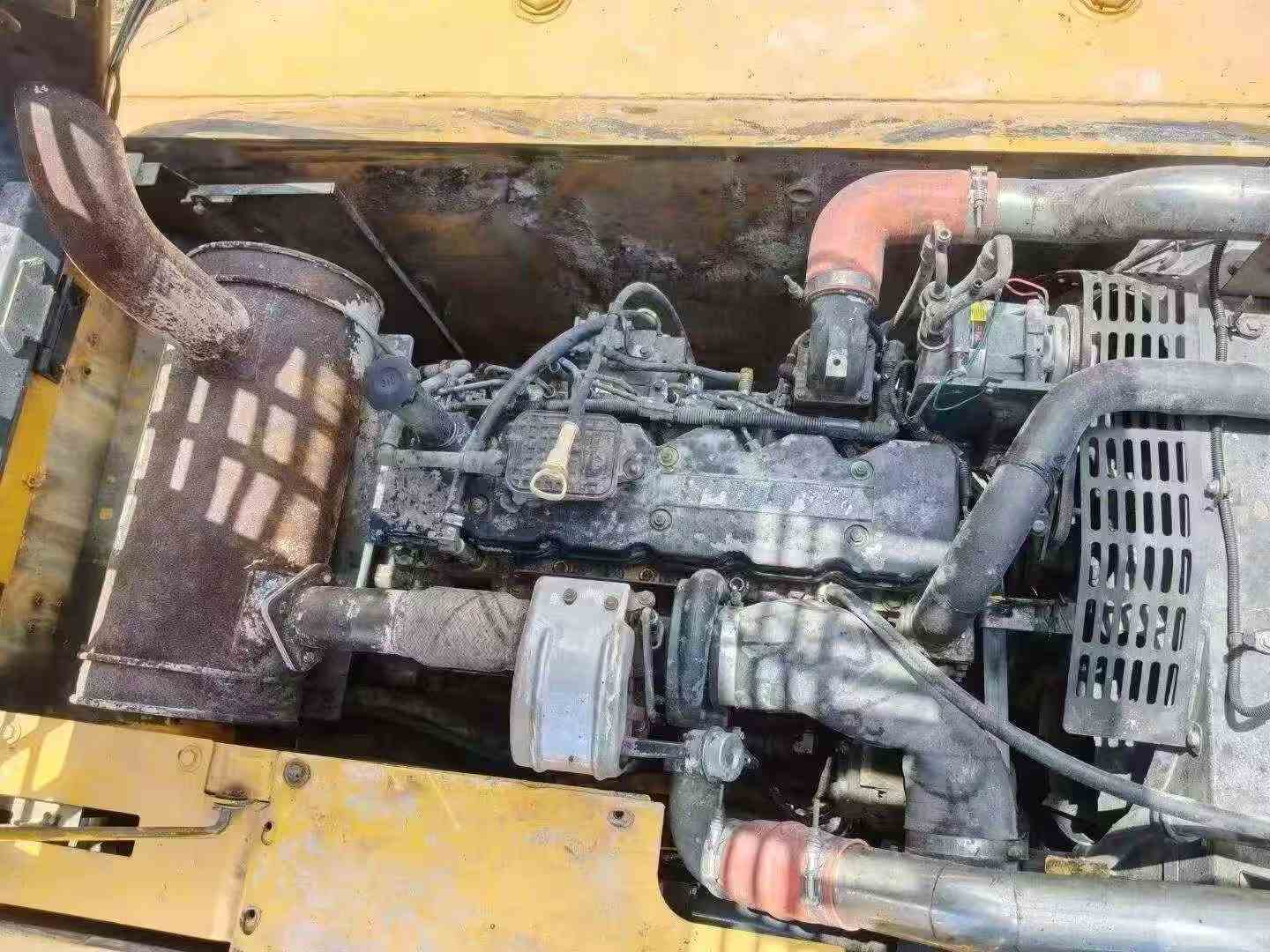

Built for serious work, the 2018 XCMG XE215D is a 21-ton hydraulic excavator ready to perform on your jobsite from day one. Powered by a Cummins QSB7 6.7L turbocharged, water-cooled engine producing 135 kW at 2,050 RPM, this machine delivers the muscle needed for demanding digging, precision grading, and heavy demolition cycles without compromise.
With a bucket digging force of 149 kN, a maximum digging depth of 6,680 mm, and a digging radius reaching 9,940 mm, this excavator handles deep trench work and wide-area excavation with authority. Dual 225 L/min plunger pumps feed the hydraulic system at 31.5 MPa, keeping cycle times fast and productive across long shifts.
- Engine: Cummins QSB7 | 135 kW / 2,050 RPM | 740 N·m Max Torque
- Operating Weight: 21,900 kg | Ground Pressure: 47.2 kPa
- Bucket Capacity: 0.8–1.3 m³ | Digging Force: 149 kN
- Maximum Digging Depth: 6,680 mm | Digging Radius: 9,940 mm
- Travel Speed: 5.4 / 3.1 km/h | Climbing Ability: 35%
- Fuel Tank: 400 L | Hydraulic Tank: 220 L
- Location: Zhejiang, China — Available for immediate export
Sourced directly from Zhejiang, China, and ready for international shipping, this XE215D is a proven production machine for contractors who need reliable output on grading, bulk earthmoving, and site preparation projects right now.
| Specifications | Value |
|---|---|
| No. | 1056591 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 0.8-1.3 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.4/3.1 |
| Main overflow set pressure (Mpa) | 31.5/34.3 |
| Maximum flow of main pump (l/min) | 2 x 225 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Hydraulic crushing pipeline is standard | no |

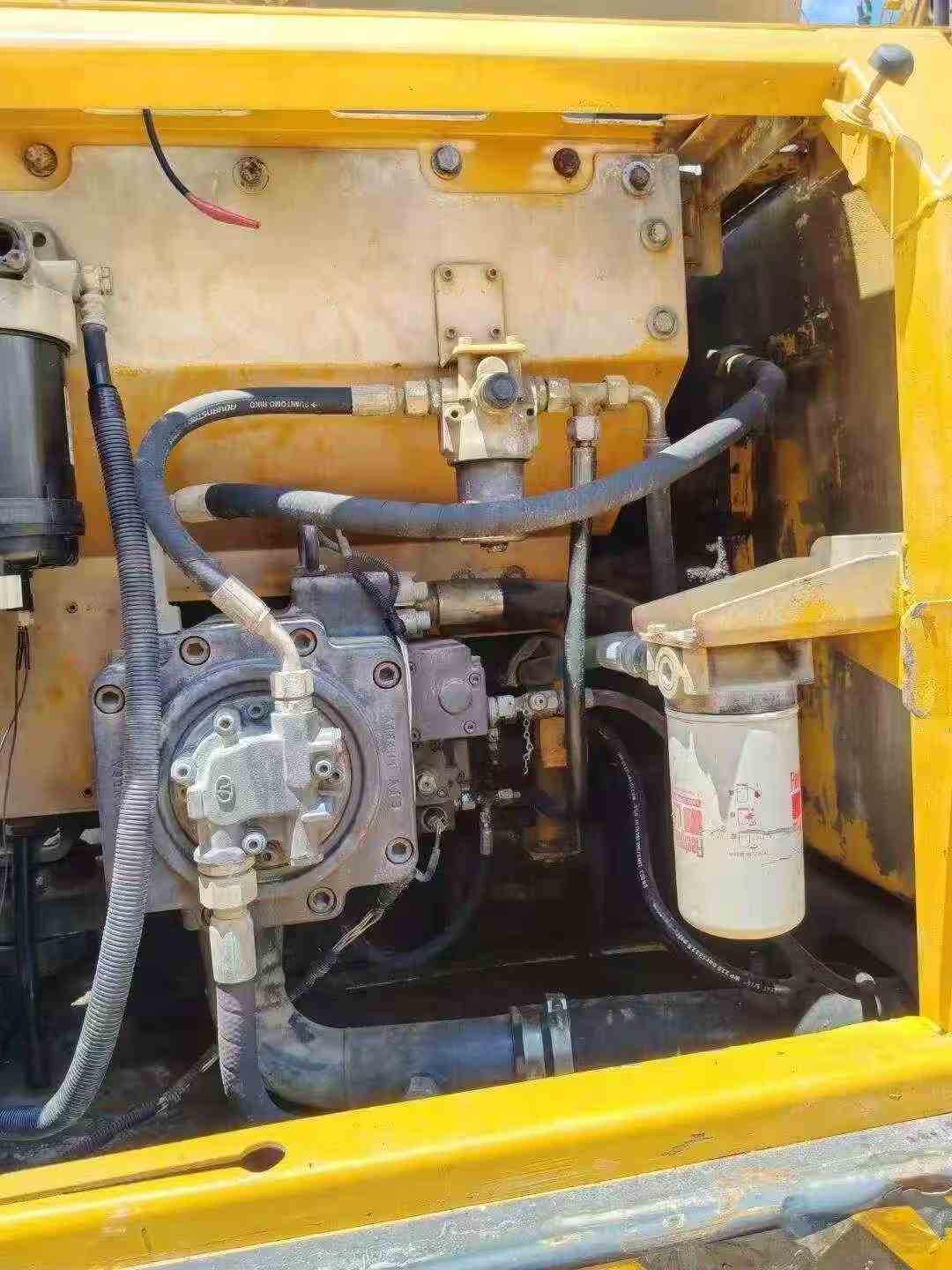

| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 476 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2830 |

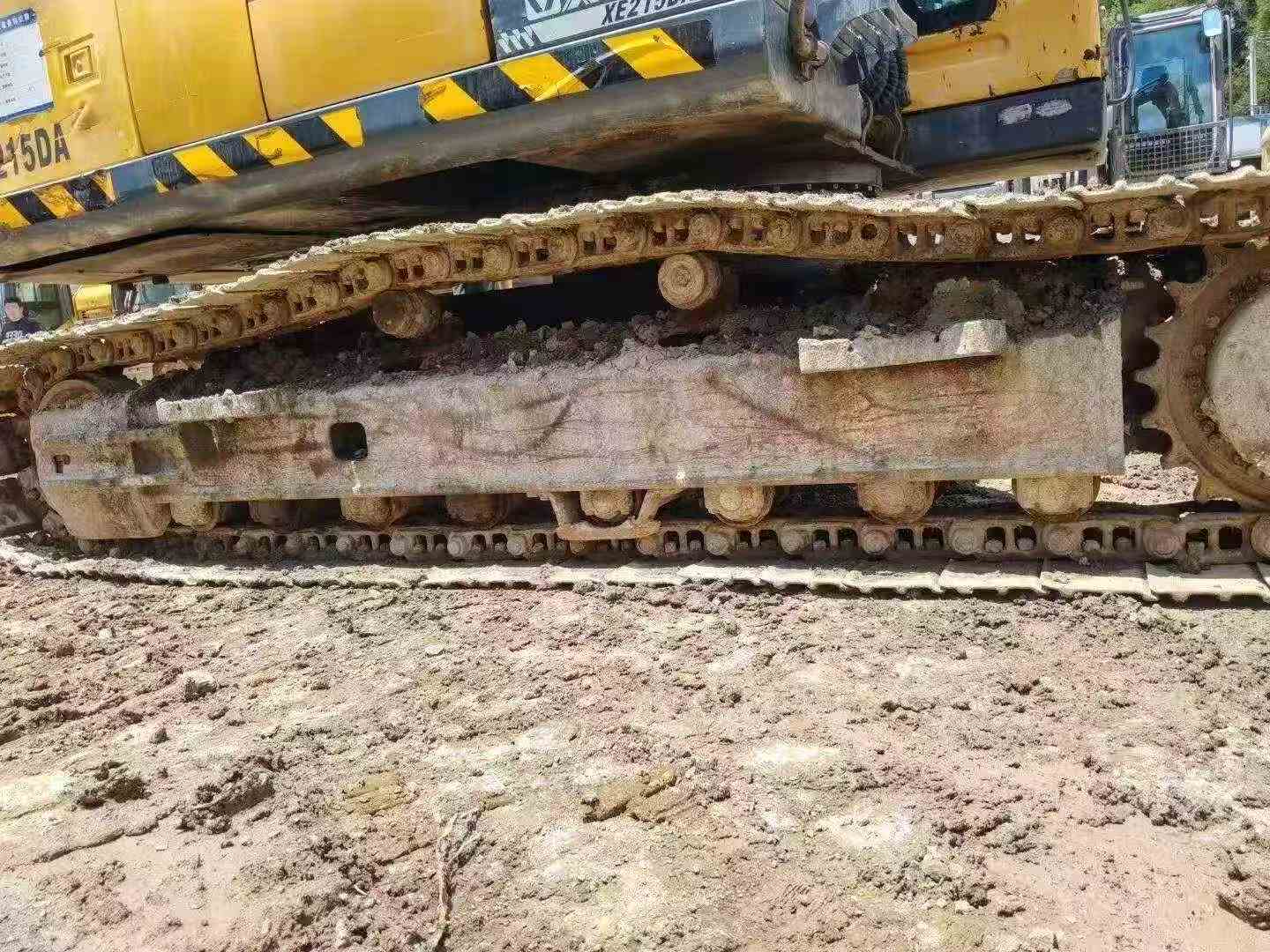

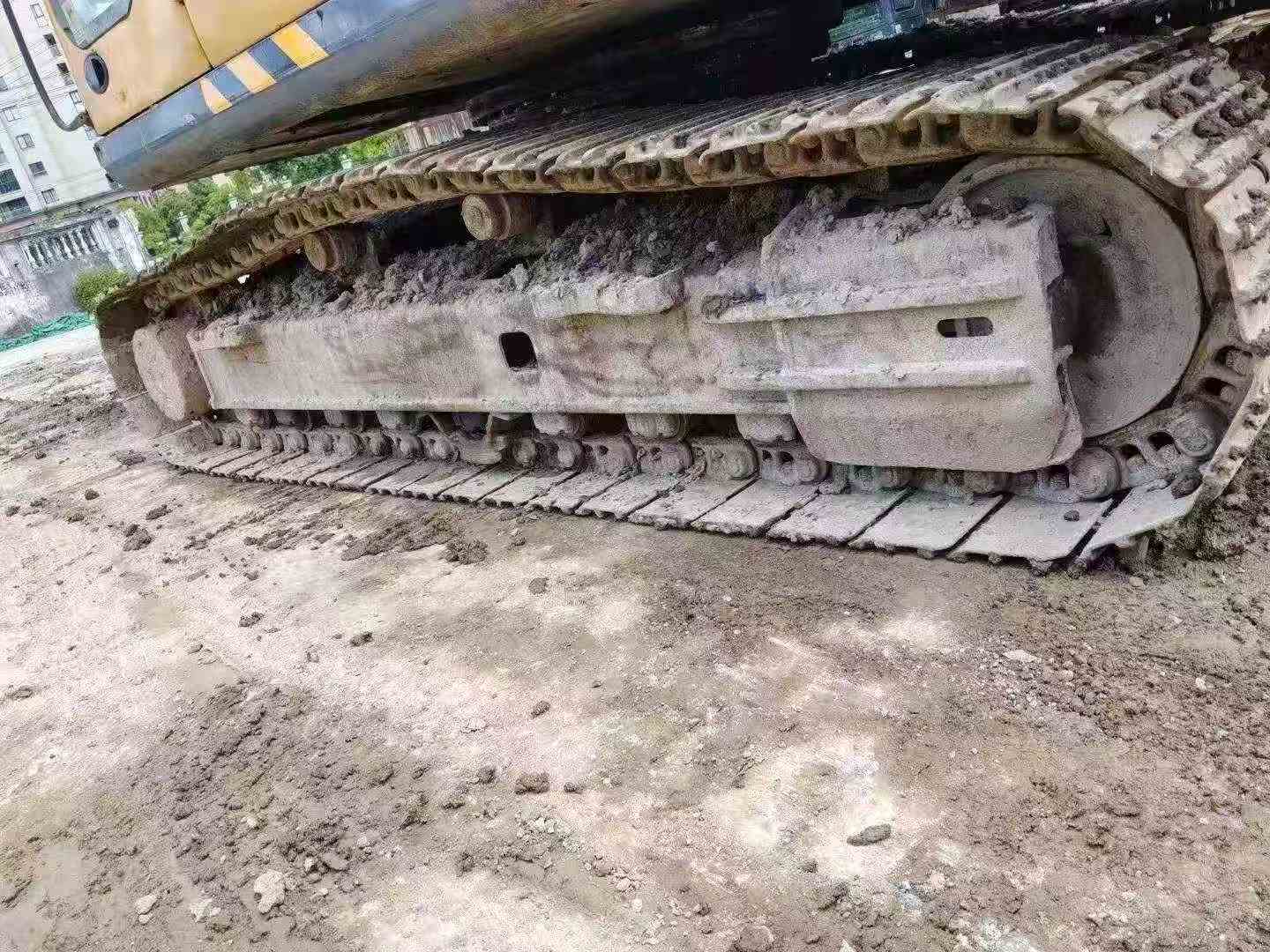

| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3462 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
