Product Description

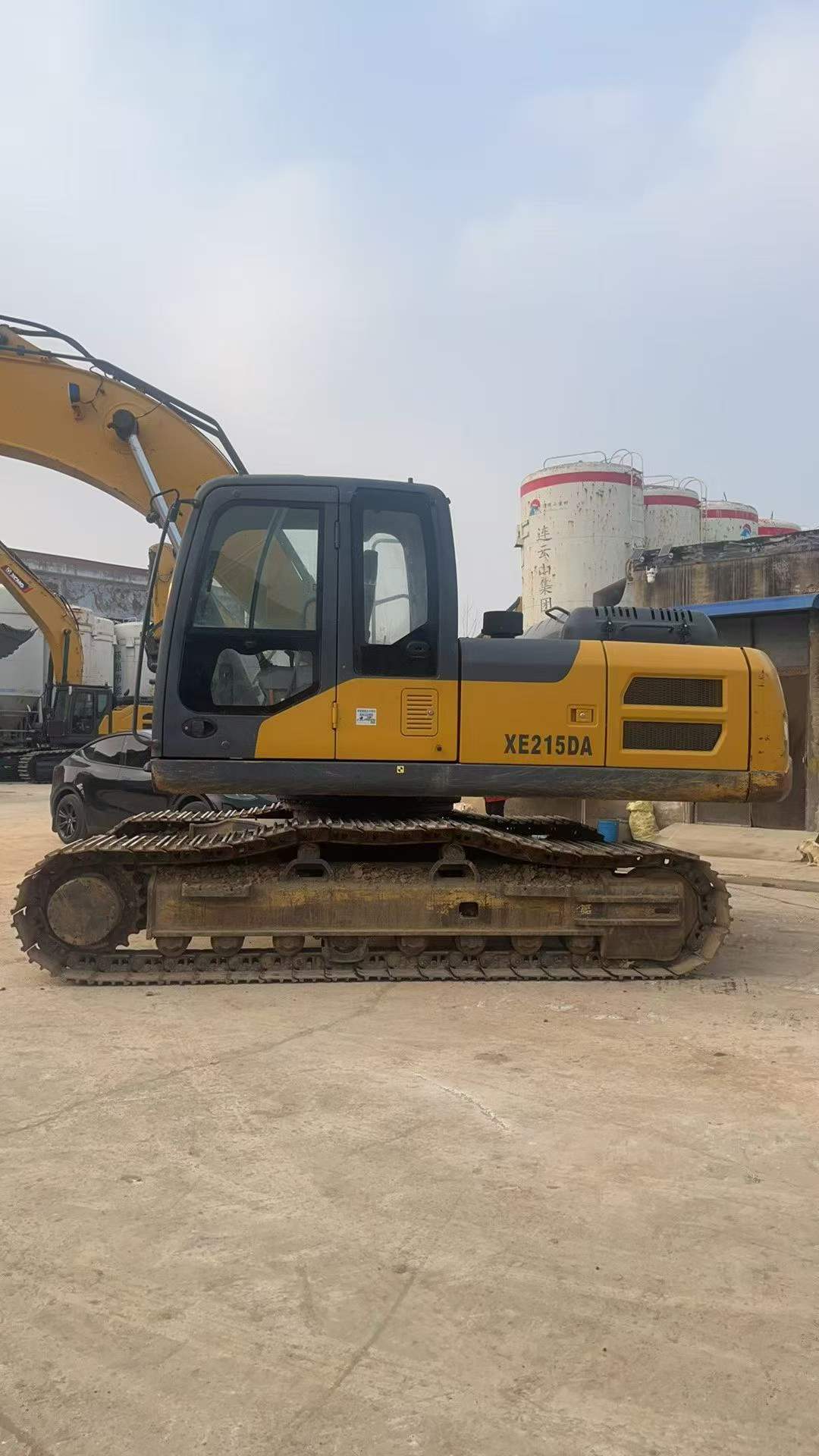

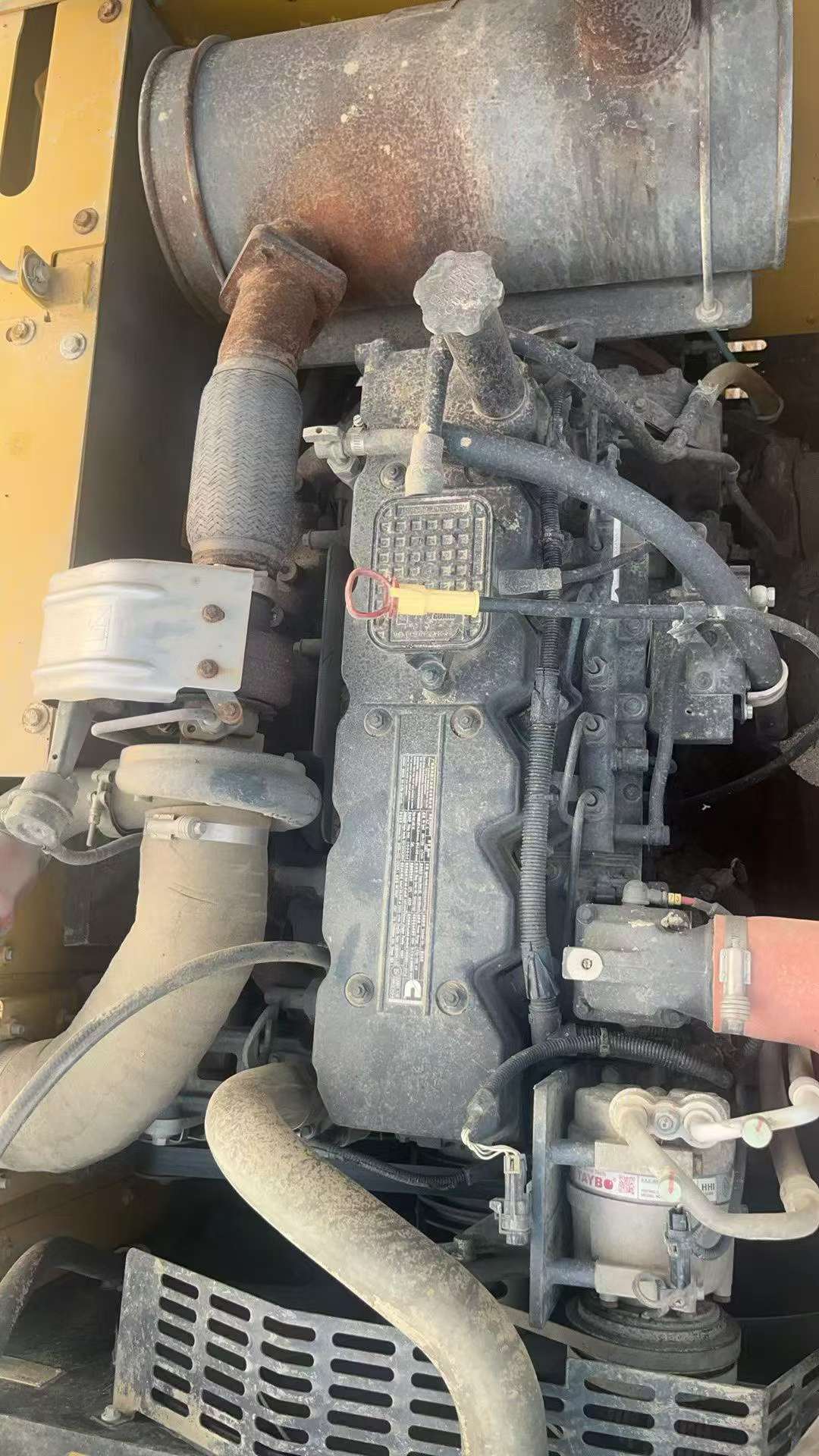

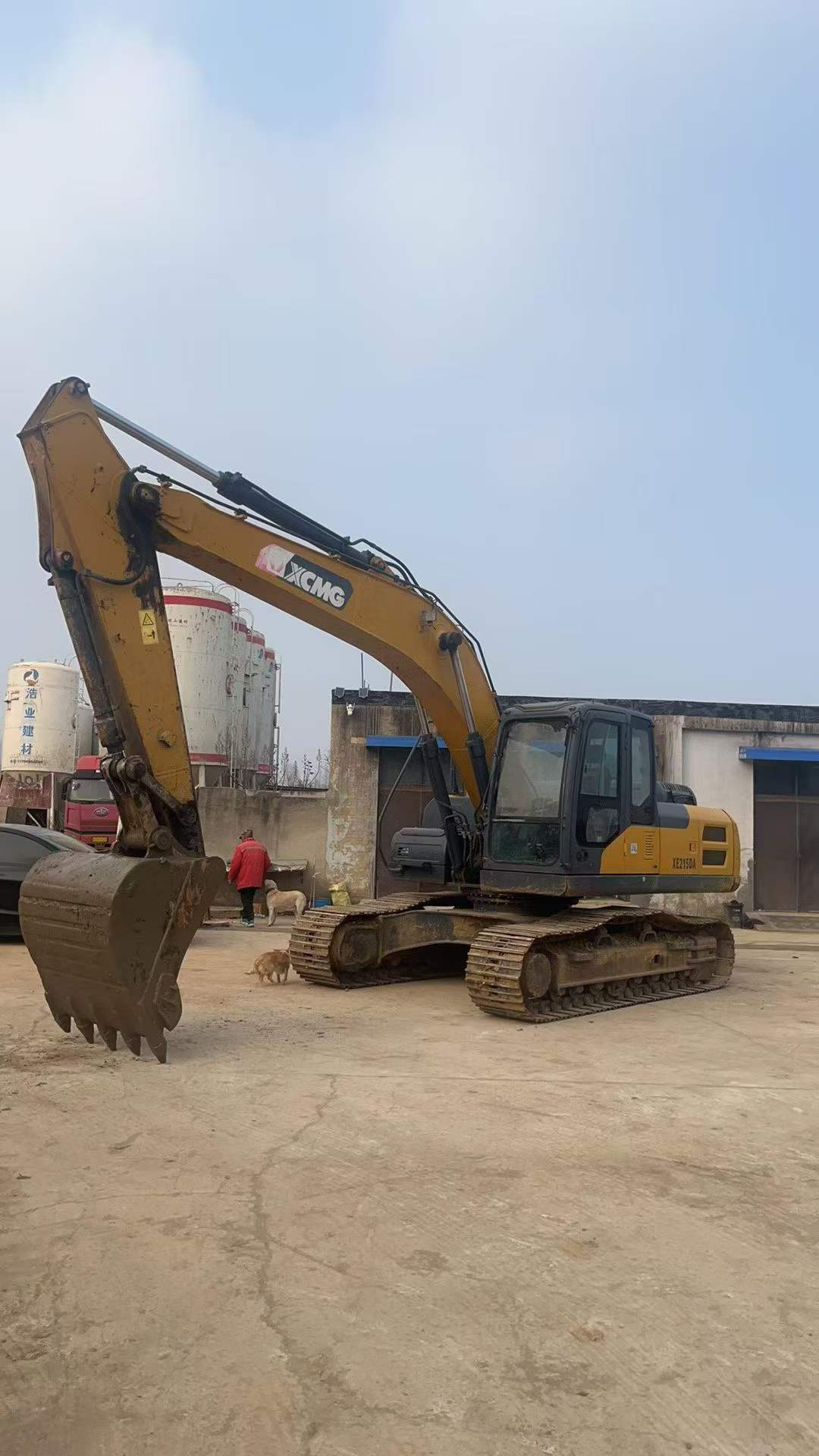

Strengthen your fleet capacity with this 2021 XCMG XE215DA excavator, currently located in Jiangsu and ready for immediate deployment. Built for contractors managing multiple job sites, this 21-ton workhorse delivers consistent performance with its QSB7 engine producing 135kW at 2050 rpm. Water-cooled efficiency and a 6.7L displacement ensure reliable operation during extended shifts, while the 400L fuel tank minimizes downtime for refueling.
Operational versatility defines this machine's value as a fleet addition. With a maximum digging reach of 9,940mm and depth capability of 6,680mm, it handles diverse excavation tasks across residential, commercial, and infrastructure projects. The 1.05m³ bucket capacity and 149kN digging force maintain productivity standards your crews expect.
- Working weight: 21,900kg with optimal 47.2kPa ground pressure

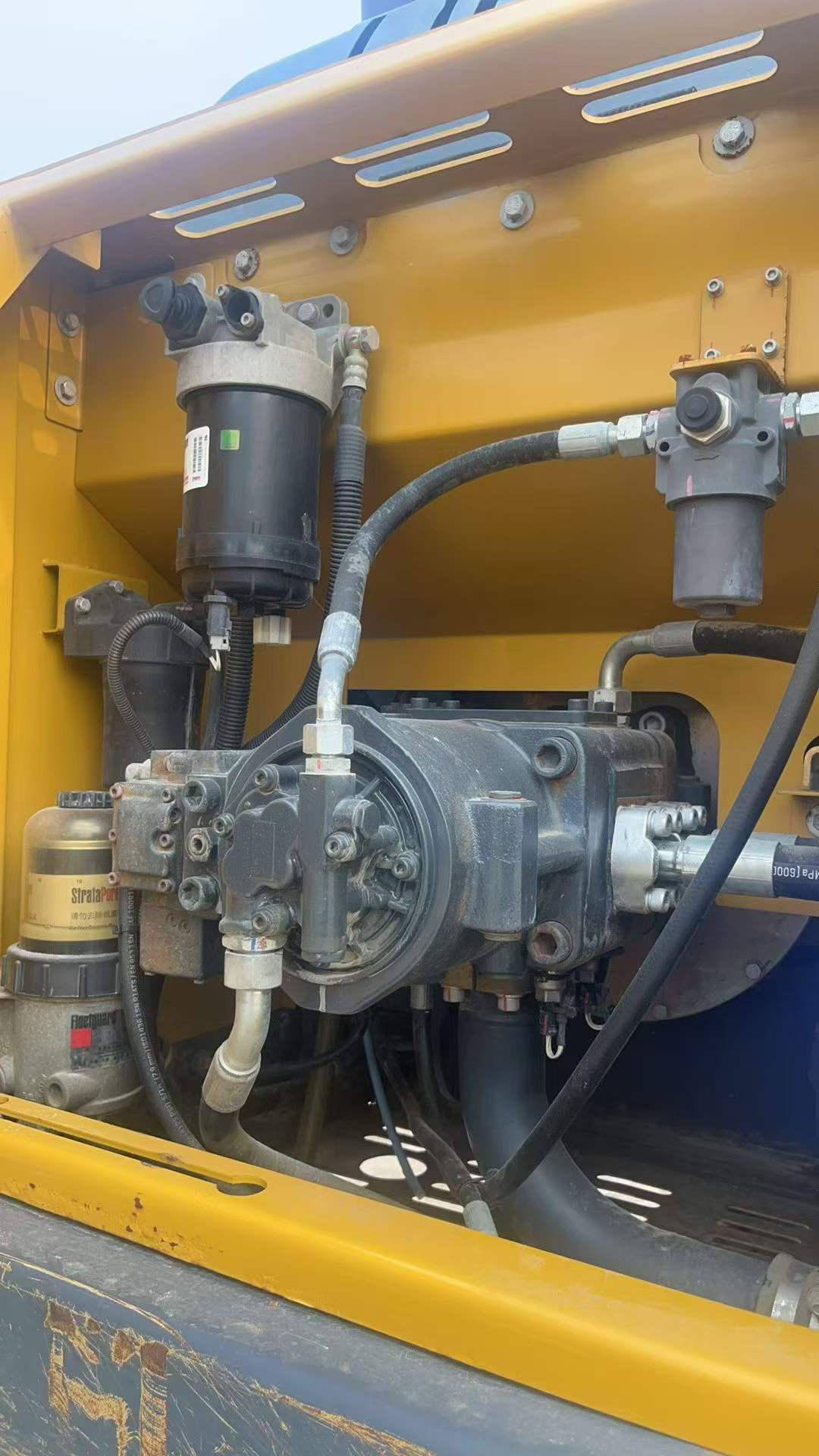

- Dual main pumps: 2×216 L/min hydraulic flow for responsive control
- Transport dimensions: 9,625mm × 2,990mm × 3,100mm for standard hauling
- Climbing ability: 35% grade capability for challenging terrain
- Travel speeds: 5.4/3.1 km/h for efficient site mobility
Expand your operational capacity without compromising on proven XCM
| Specifications | Value |
|---|---|
| No. | 1006527 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.4/3.1 |
| Maximum flow of main pump (l/min) | 2*216 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2844 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
