Product Description

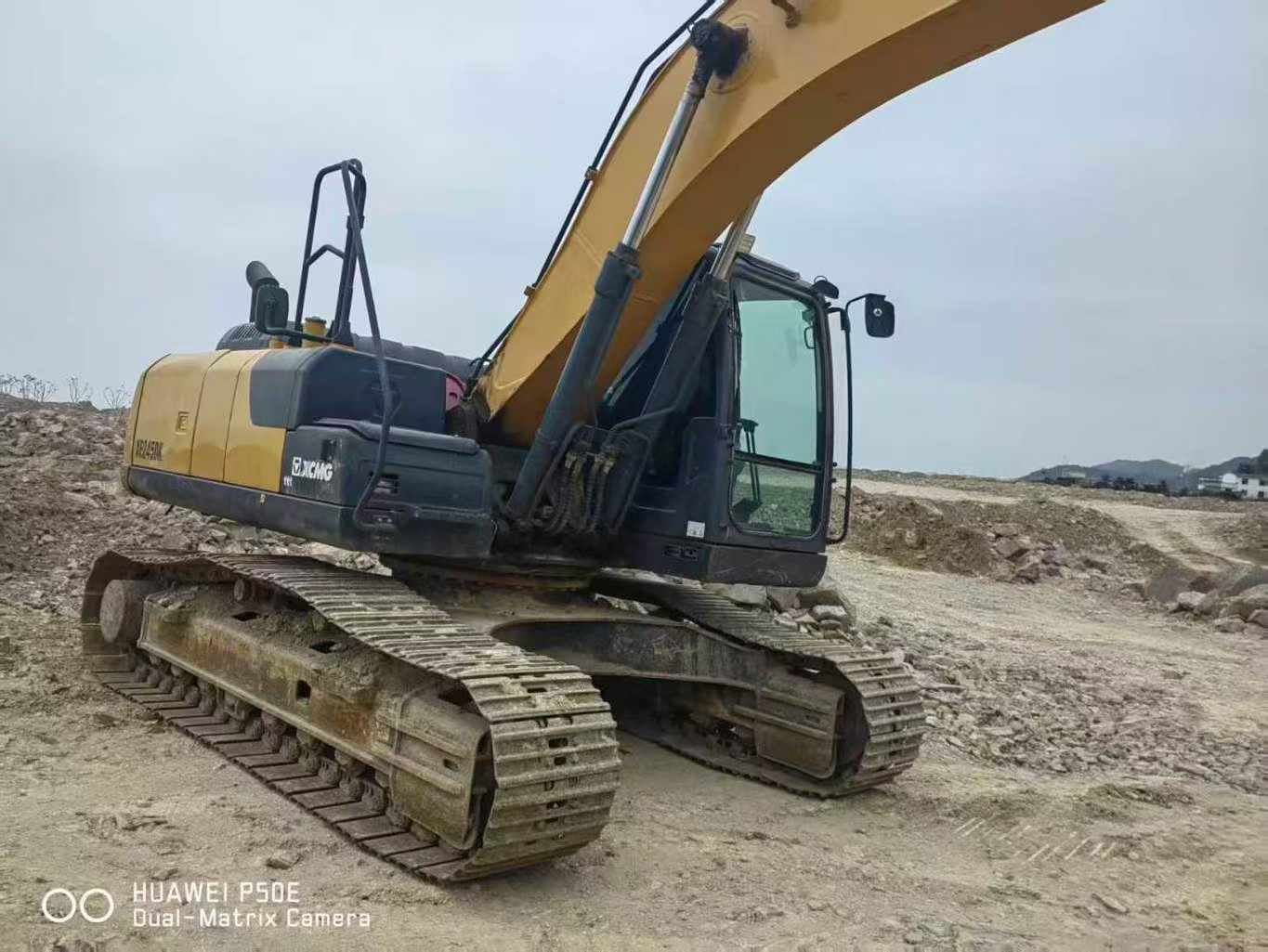

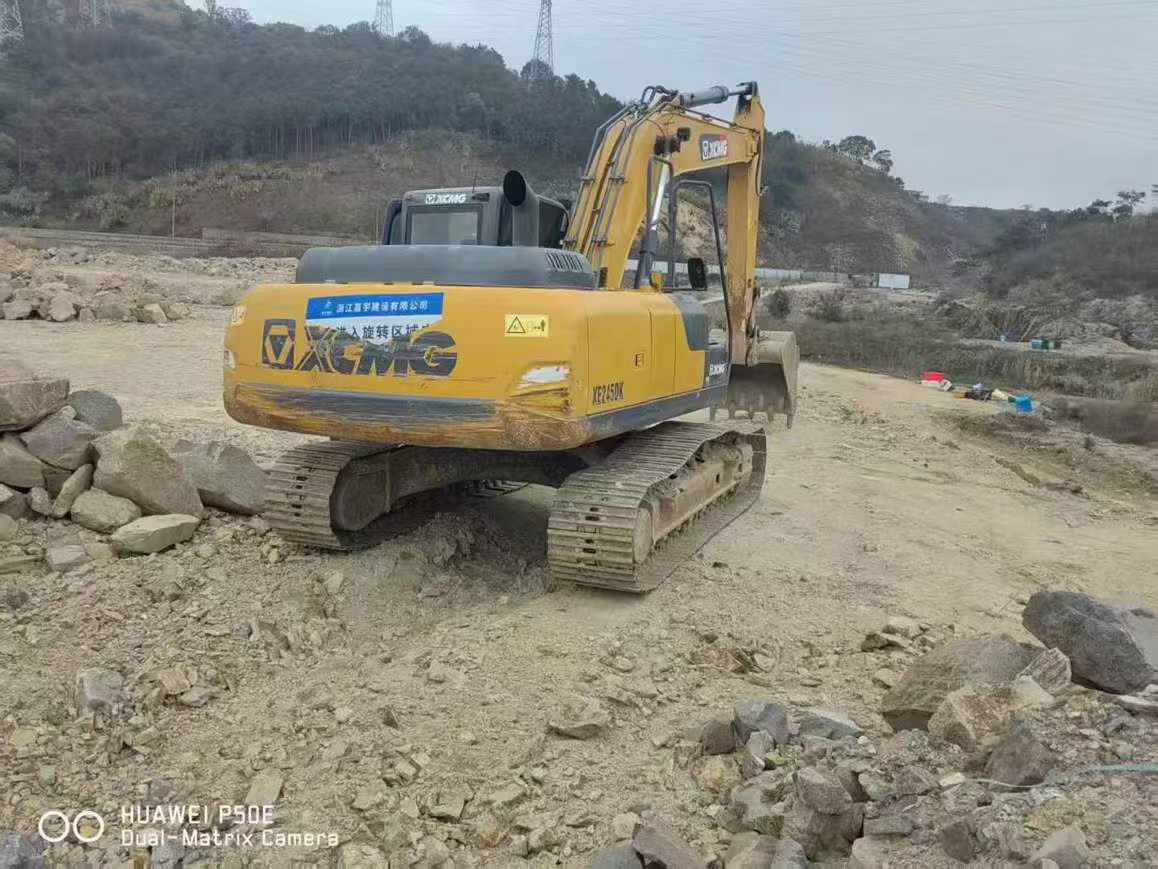

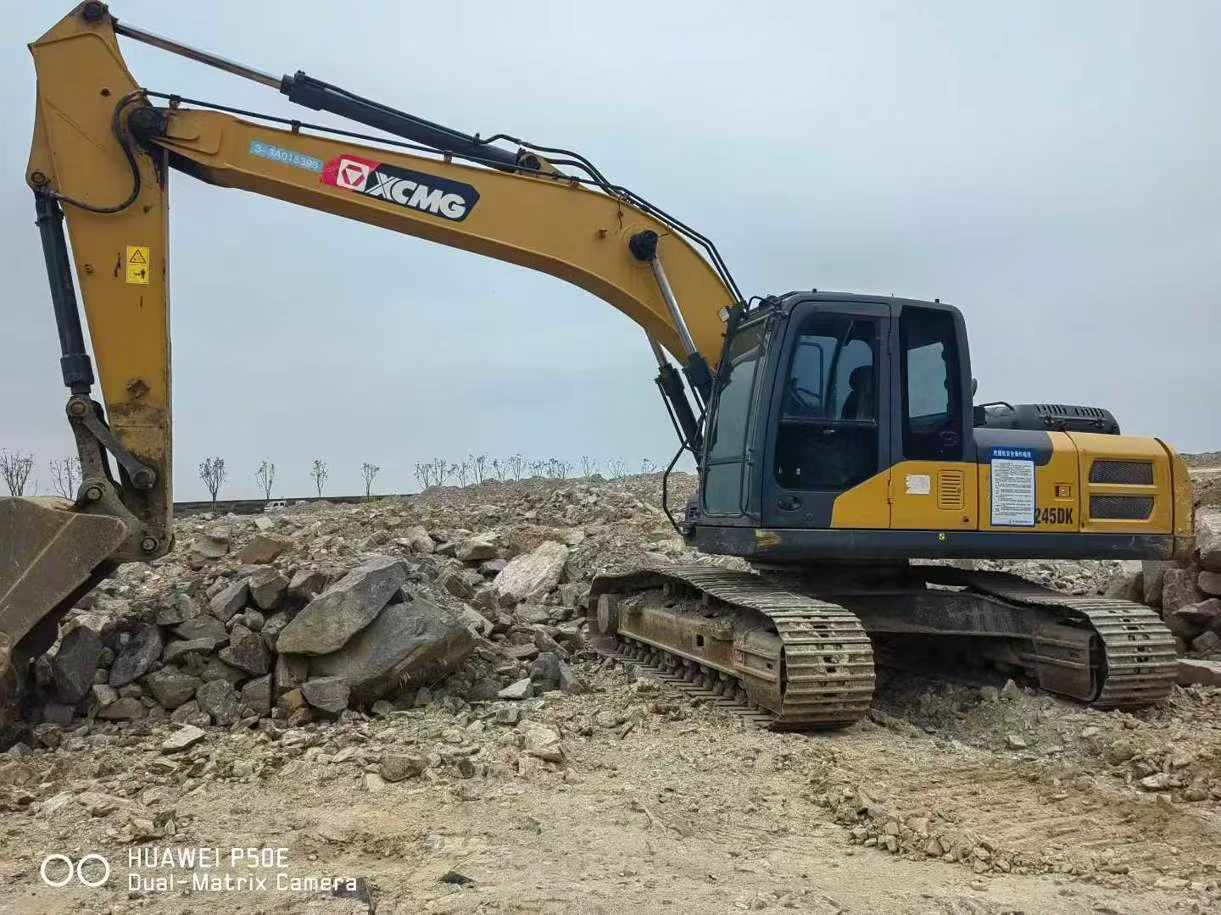

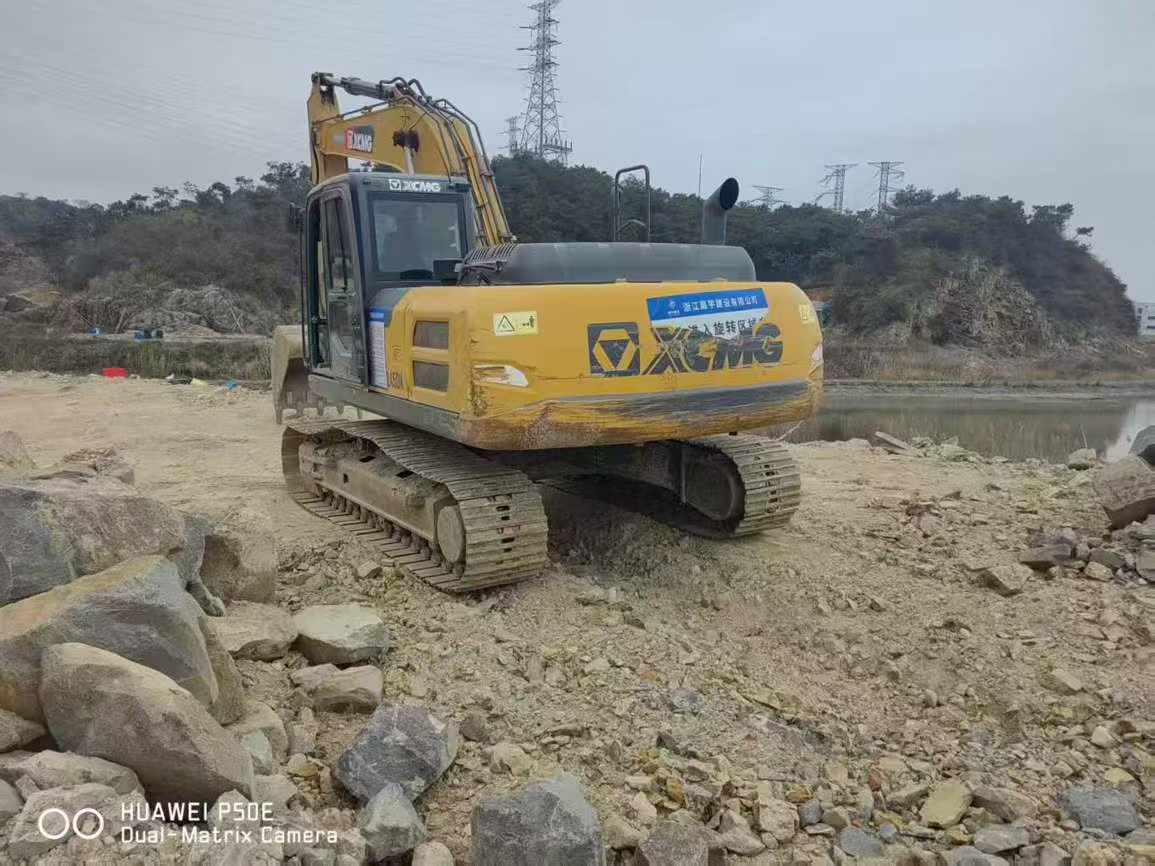

Backed by one of China's most established heavy machinery manufacturers, this 2021 XCMG XE215DA hydraulic excavator delivers proven performance with the security of global parts support. Operating at 21 tons with a robust QSB7 engine producing 135kW at 2050 rpm, this machine combines reliability with the serviceability that keeps your operations running. XCMG's extensive dealer network ensures replacement components remain accessible worldwide, protecting your investment and minimizing downtime risks common with lesser-known brands.
Key specifications include:
- Maximum digging reach: 9,940mm with 6,680mm depth capability
- Bucket capacity: 1.05m³ with 149kN digging force

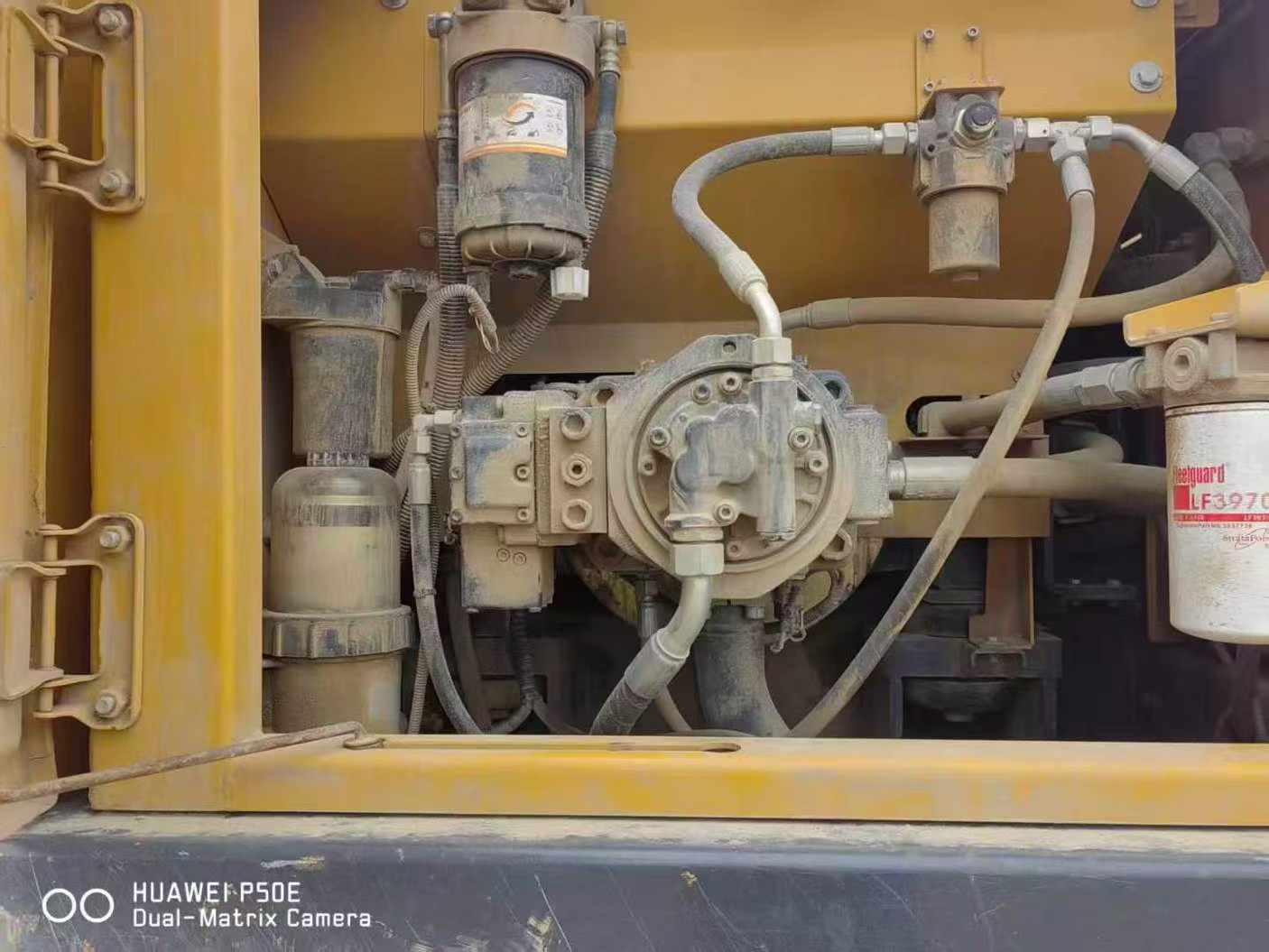

- Dual main pumps: 2×216 L/min for responsive hydraulics
- Water-cooled 6-cylinder engine: 6.7L displacement, turbocharged with air-to-air intercooling
- Travel speeds: 5.4/3.1 km/h with 35% grading ability
- Fuel capacity: 400L for extended operation
Currently located in Wenzhou, Zhejiang, this well-maintained excavator represents smart buying in the used market. XCMG equipment consistently holds resale value due to brand recognition and parts longevity—critical factors when calculating total own
| Specifications | Value |
|---|---|
| No. | 1034367 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.4/3.1 |
| Maximum flow of main pump (l/min) | 2*216 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2844 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
