Product Description

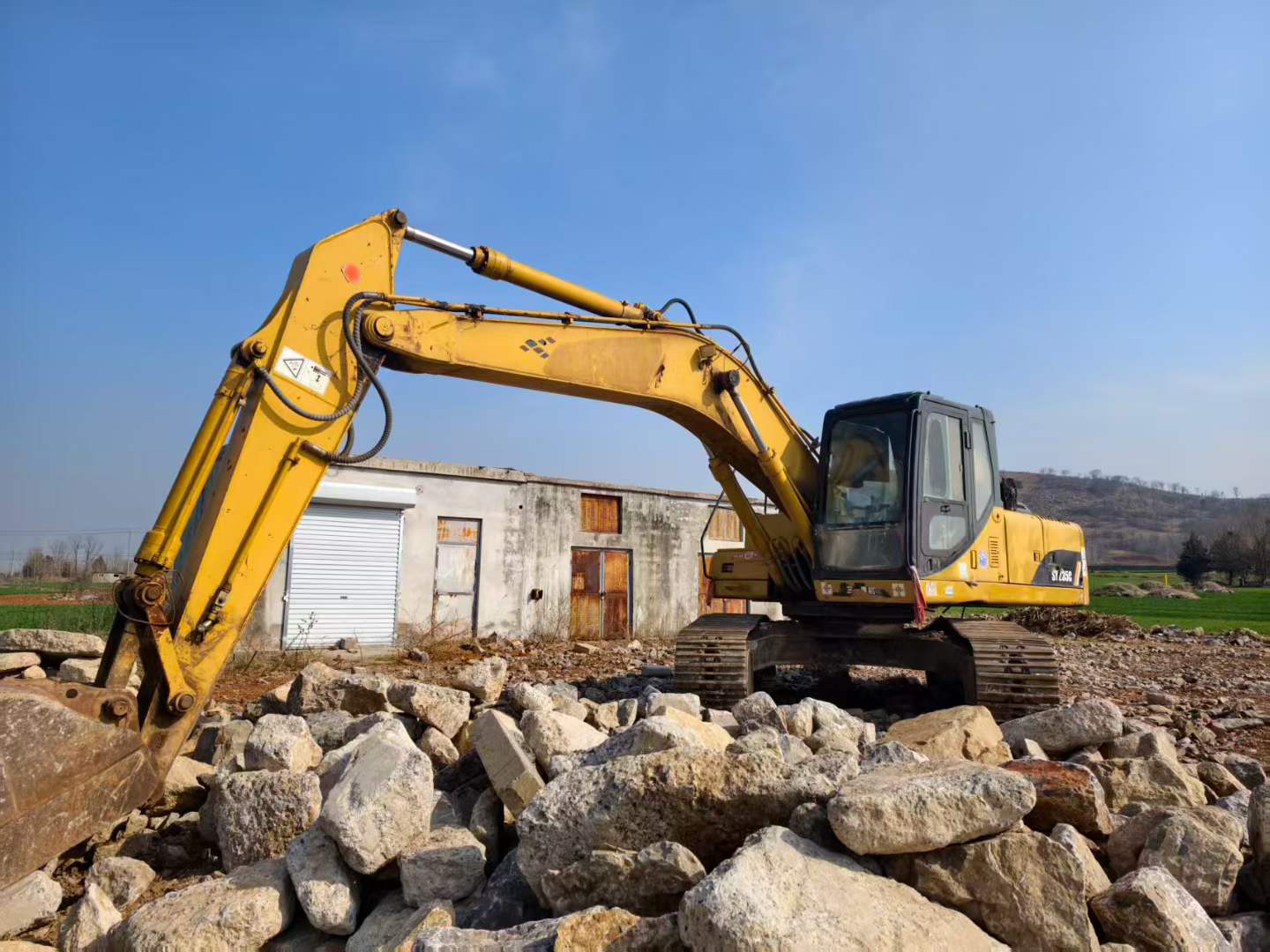

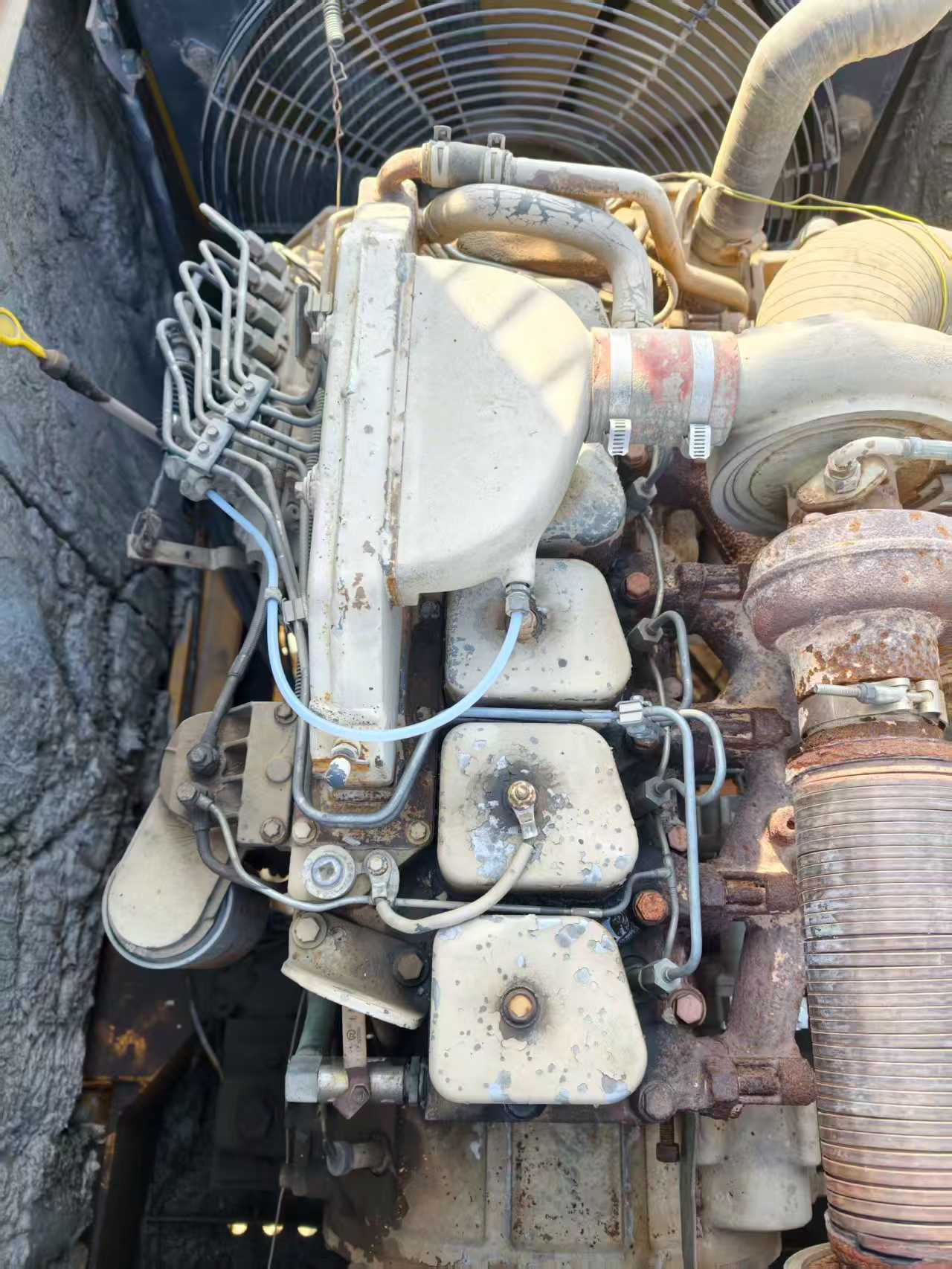

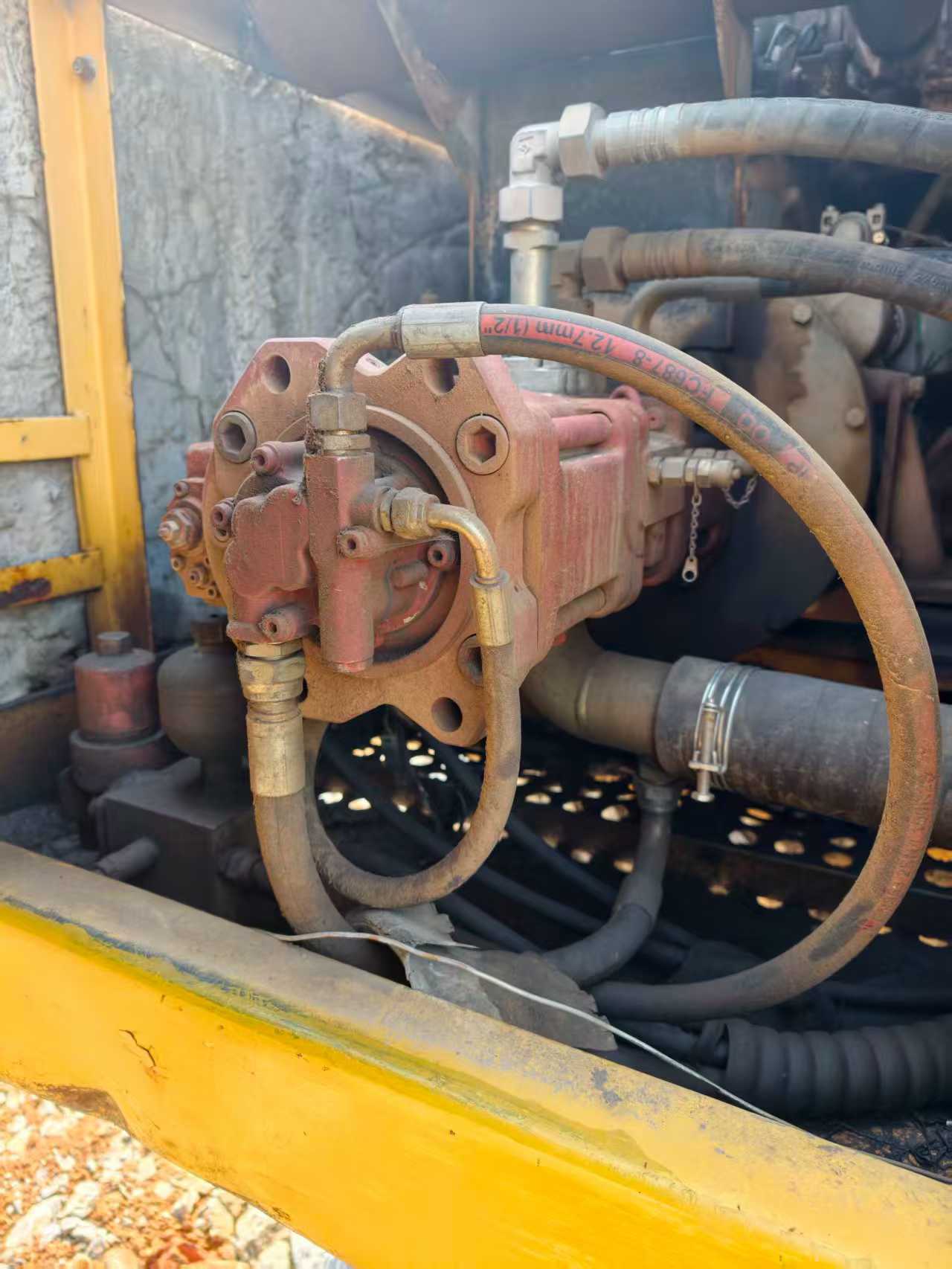

Engineered for demanding excavation work, this 2016 XCMG XE225DK delivers 22 tons of working capacity with proven hydraulic performance. Powered by a robust 4HK1 engine producing 140 kW at 2,000 rpm and 676 N·m maximum torque, this machine combines water-cooled reliability with EFI turbocharged efficiency across its 5.3-liter displacement. The hydraulic system generates 149 kN bucket digging force and 111 kN arm digging force, supported by a 220-liter hydraulic reservoir that maintains consistent performance under load.
Operational specifications demonstrate XCMG's engineering precision: a 9,940 mm maximum digging radius and 6,680 mm digging depth provide extensive working range, while the 5,680 mm boom and 2,910 mm arm deliver optimal reach and breakout force. With 11.8 rpm rotation speed and 35% gradeability, this excavator maintains productivity on challenging terrain. The 400-liter fuel tank supports extended operation cycles. Currently located in Shandong, China, this backhoe-configured unit represents proven Chinese manufacturing standards backed by verifiable technical specifications.
| Specifications | Value |
|---|---|
| No. | 1025960 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22100 |
| Bucket capacity (m³) | 1.0-1.2 (1.14) |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4HK1 |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 676/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.3 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/3.0 |
| Fuel Tank (L) | 400 |
| Engine Oil changes (L) | 19.5 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
