Product Description

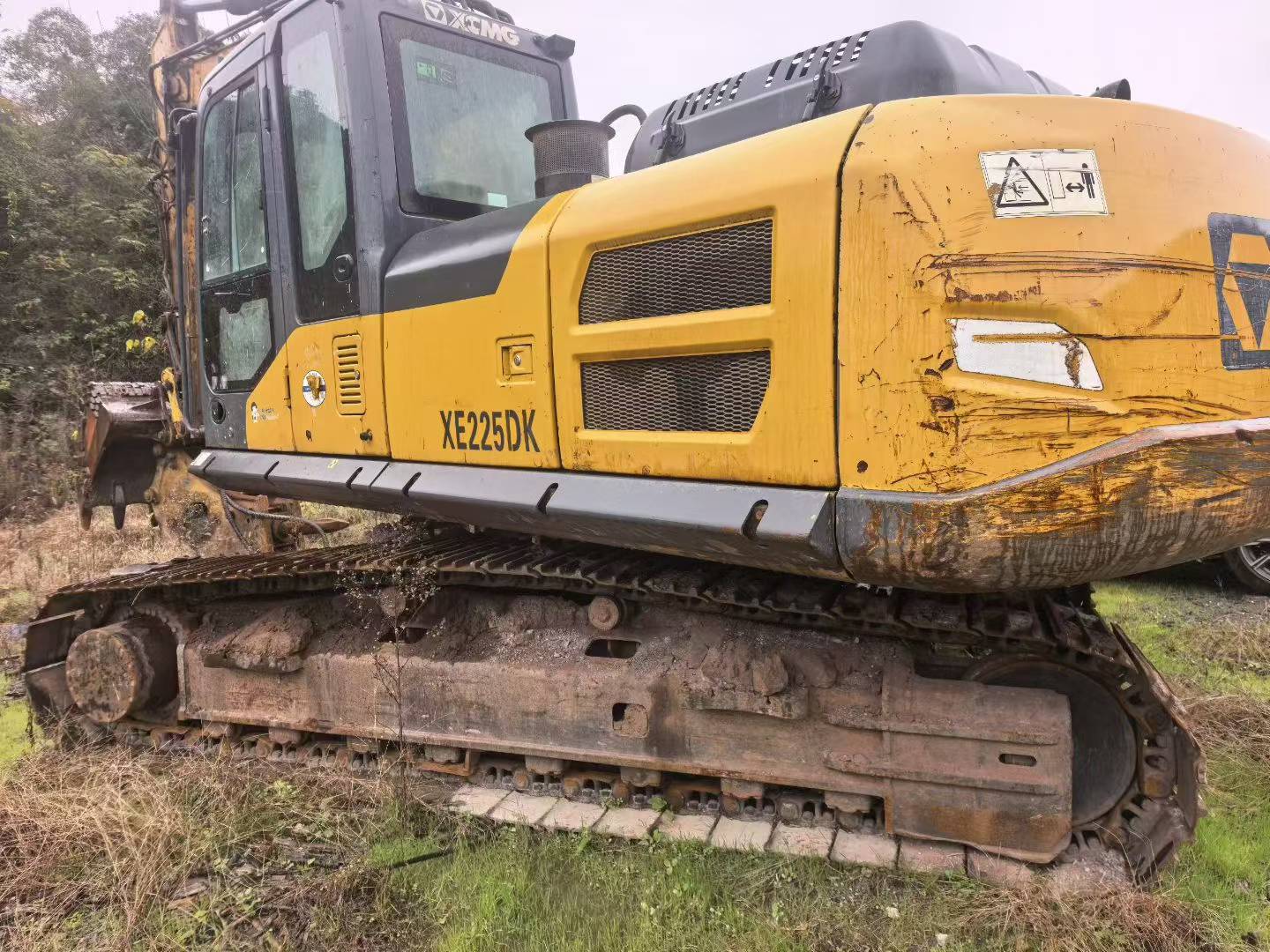

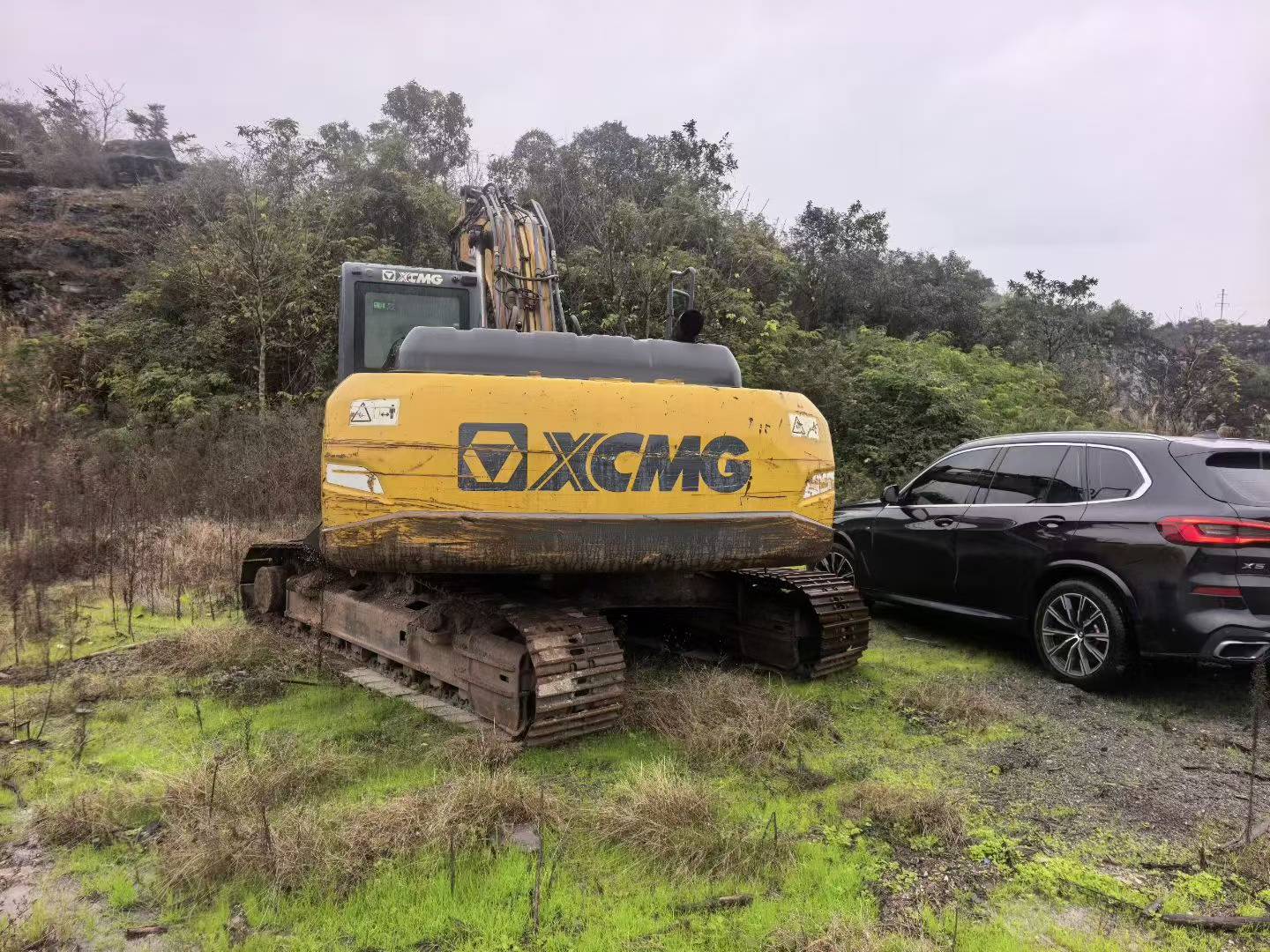

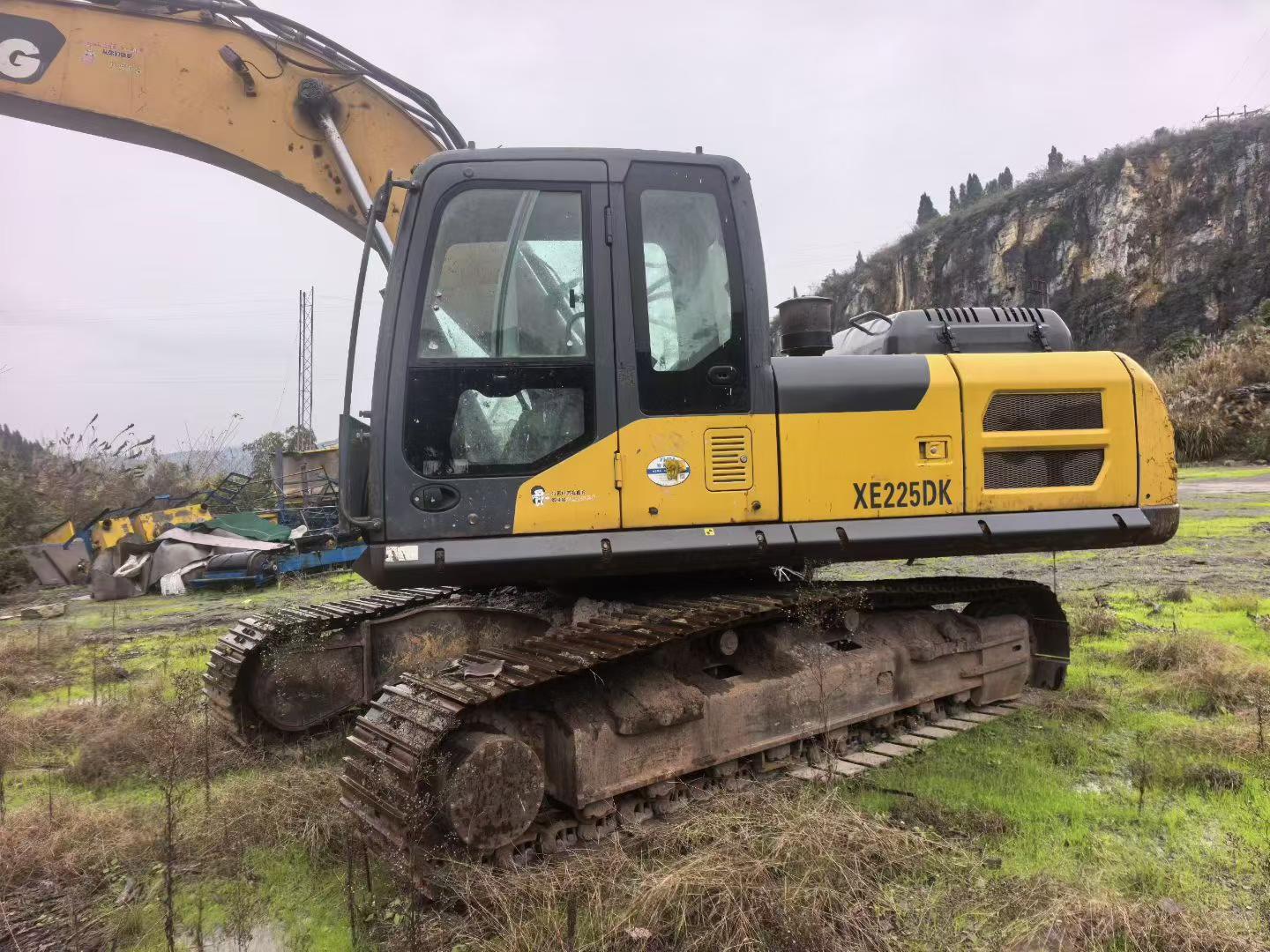

Expand your operational capacity with this 2020 XCMG XE225DK excavator, currently located in Hubei. Powered by a robust 4HK1 engine delivering 140 kW at 2000 rpm, this 22-ton machine provides the reliability and performance busy contractors demand when scaling their fleet. With a maximum digging depth of 6,680 mm and reach extending to 9,940 mm, it handles medium to heavy-duty excavation tasks with consistent efficiency.
- 22,100 kg working weight with 1.0-1.2 m³ bucket capacity
- 149 kN bucket digging force and 111 kN arm digging force
- 400L fuel tank supports extended operation between refills
- Water-cooled turbocharged engine with 676 N·m maximum torque
- Compact transport dimensions: 9,625 mm × 2,990 mm × 3,100 mm
Built with XCMG's proven engineering standards, this unit integrates seamlessly into existing operations as a primary workhorse or strategic backup. Ready to maintain productivity during peak demand periods or equipment rotation schedules.
| Specifications | Value |
|---|---|
| No. | 1034276 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22100 |
| Bucket capacity (m³) | 1.0-1.2 (1.14) |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4HK1 |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 676/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.3 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/3.0 |
| Fuel Tank (L) | 400 |
| Engine Oil changes (L) | 19.5 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
