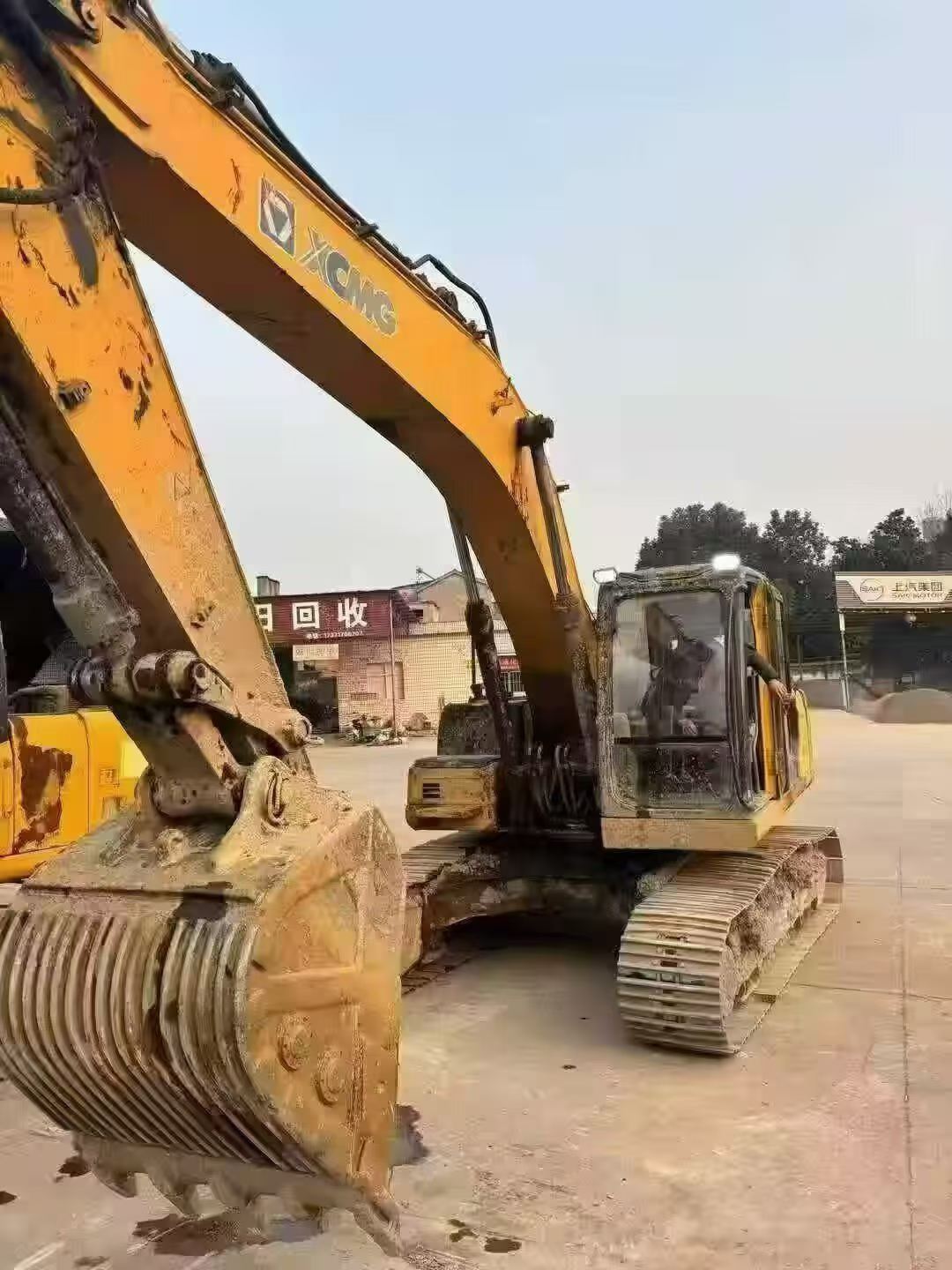

Name: Used Excavators 2016 XCMG XE230
Brand: XCMG
SKU: USED-1041140
Availability: InStock
Rating: 4.4 (01 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

With a robust 23-ton working weight and powered by an ISUZU CC-6BG1TRP engine, this 2016 XCMG XE230 excavator offers reliable performance for demanding construction projects. Located in Hunan, China, this machine features a 1 m³ bucket capacity and a rated power of 125 kW at 2100 rpm, ensuring efficient operation. Equipped with plunger hydraulic motors and two variable pumps, it provides the necessary power for both travel and rotation.
<ul>
 <li>Engine: ISUZU CC-6BG1TRP, 4-cylinder, 6.494 L displacement</li>
 <li>Power: 125 kW at 2100 rpm, water-cooled</li>
 <li>Bucket: 1 m³ backhoe, 163 kN digging force</li>
 <li>Travel speed: 3.5/5.5 km/h, with a maximum digging depth of 6,920 mm</li>
 <li>Fuel Tank: 400 L, Hydraulic Tank: 240 L</li>
</ul>
Choosing XCMG means investing in a brand known for its parts availability and strong resale value, making it a dependable choice for the used machinery market. This excavator's dimensions, including a total transport length of 10,160 mm, ensure it can handle various site conditions effectively.

Engineered for precision work in confined spaces, this 2016 Komatsu PC50MR-2 mini excavator delivers operator-centered performance across demanding jobsites. Powered by a reliable 2.2L four-stroke water-cooled direct injection engine, this 5-ton machine combines joint venture manufacturing quality with practical functionality. Operators benefit from exceptional cabin visibility and intuitive controls that reduce fatigue during extended shifts.

<ul>
<li>Compact Maneuverability: 1935mm total track width navigates tight urban environments while maintaining stability</li>
<li>Responsive Handling: Dual travel speeds (4.3/2.6 km/h) provide precise positioning control</li>
<li>Digging Power: 24.4kN rod digging force with 6070mm maximum reach handles varied excavation tasks</li>
<li>Ground Contact: 2000mm track length and 400mm track plates distribute weight effectively across soft terrain</li>
<li>Location: Currently available in Guangzhou, Guangdong</li>
</ul>

Backed by Komatsu's reputation for durability, this PC50MR-2 represents proven technology ideal for contractors prioritizing operator comfort and machine control in residential, utility, an

Komatsu PC50MR-2

Expand your heavy excavation capacity with this 2020 XCMG XE900D, a 90-ton workhorse engineered for contractors managing multiple jobsites simultaneously. Powered by a robust 399kW engine delivering 480kN of bucket digging force, this Chinese-manufactured excavator integrates seamlessly into existing fleets requiring backup equipment or additional reach during peak demand cycles.

Currently located in Wenzhou, Zhejiang, this backhoe-configured machine offers operational versatility across demolition, mining, and large-scale earthmoving projects. With a maximum digging radius of 12,330mm and depth capacity reaching 7,250mm, it matches the performance envelope of comparable Western units while maintaining lower acquisition costs.

<ul>
<li>Working weight: 89,600kg with 4.1-6.0m³ bucket capacity</li>
<li>Hydraulic performance: 370kN rod digging force, 6.3rpm rotation speed</li>
<li>Mobility: 2.8-4.2km/h travel speed for efficient repositioning</li>
<li>Maximum excavation height: 12,060mm</li>
<li>Traditional diesel power system with proven reliability</li>
</ul>

Ideal for contractors seeking fleet redundancy without capital-intensive new equipment purchases. Ready for immediate deployment on infrastructure or resource ex

XCMG XE900D

Engineered for large-scale excavation projects, this 2021 Sany SY980H delivers industrial-grade performance through precision hydraulics and robust mechanical design. Powered by a 425kW engine generating 945 N·m of maximum torque at 1800 rpm, this 98-ton excavator combines raw power with operational efficiency across demanding jobsites.

Technical specifications demonstrate the model's engineering excellence:

<ul>
<li>Bucket digging force of 495 kN and rod digging force of 446 kN for penetrating compacted materials</li>
<li>Maximum digging reach extends to 12,280mm with excavation depth capability of 6,740mm</li>
<li>5.5–6.5 m³ bucket capacity optimizes loading cycles for high-volume earthmoving</li>
<li>Operating weight of 95,800 kg provides stability while maintaining 132 kPa ground pressure</li>
<li>70% gradeability and 945mm ground clearance enable operation on challenging terrain</li>
</ul>

Currently located in Wenzhou, Zhejiang, this Chinese-manufactured excavator represents Sany's heavy equipment capabilities. Transport dimensions of 13,840mm × 3,700mm × 5,300mm facilitate logistics planning for international buyers seeking proven hydraulic excavator technology.

Sany SY980H

Built for compact jobsites and utility work, this 2023 XCMG XE65D mini excavator delivers 6-ton class performance with proven Yanmar 4TNV94L power. Currently located in Wenzhou, Zhejiang, this machine arrives equipped with standard hydraulic crushing pipeline and a factory backhoe bucket, ready for immediate deployment on trenching, foundation prep, and light demolition projects.

Powered by a 39.8kW Yanmar diesel engine with water-cooling, the XE65D generates 48.3kN bucket digging force and reaches a maximum digging depth of 3,830mm. The Rexley/Ogail main pump system delivers 138-143 L/min flow at 24.5 MPa, ensuring responsive hydraulic performance across all functions. With a 6,130mm maximum digging radius and 3,945mm maximum unloading height, this excavator handles material placement and excavation tasks efficiently in confined spaces.

Key Specifications:
<ul>
<li>Operating weight: 6,200kg with 0.09-0.25m³ bucket capacity range</li>
<li>Travel speed: 4.2/2.2 km/h with 35° climbing ability</li>
<li>Compact transport dimensions: 5,860mm length × 2,000mm width × 2,585mm height</li>
<li>Fuel capacity: 110L tank for extended runtime</li>
<li>Minimum turning radius: 2,460mm (front), 1,660mm (rear)</l

XCMG XE65D

Maximize your equipment budget with this 2016 XCMG LW500F wheel loader from Wenzhou, Zhejiang—delivering proven performance at a fraction of new equipment costs. Powered by a robust 162kW engine and rated for 5,000kg loads, this machine handles demanding material handling operations with professional-grade efficiency. Its 2.5-4.5m³ bucket capacity and 170kN digging force tackle high-volume work while the 16,900kg operating weight ensures stability across challenging terrain.

<ul>
<li>Rated Load: 5,000kg with 170kN digging force</li>
<li>Engine Power: 162kW for reliable productivity</li>
<li>Bucket Capacity: 2.5-4.5m³ variable options</li>
<li>Max Unloading Height: 3,150-3,560mm</li>
<li>Maximum Tractive Force: 156kN</li>
<li>Speed Performance: Up to 38km/h (2nd gear)</li>
<li>Compact Maneuverability: 6,920mm turning radius</li>
</ul>

Investing in quality pre-owned machinery means accessing XCMG's renowned engineering without the depreciation hit of new purchases. This LW500F represents smart capital allocation for contractors, quarries, and material yards requiring dependable loader performance. Currently available for immediate deployment from our Wenzhou facility.

XCMG LW500F

With a robust 21-ton working weight and a powerful QSB7 engine, this 2017 XCMG XE215D excavator is designed for immediate site readiness. Featuring a bucket capacity of 0.8-1.3 m³ and a boom length of 5680 mm, it excels in digging, grading, and demolition tasks. Equipped with a backhoe bucket and delivering a maximum digging force of 149 kN, it handles tough jobs with ease. The machine's turbocharged, water-cooled engine provides a rated power of 135 kW at 2050 rpm, ensuring reliable performance. Its 6-cylinder, 6.7L displacement engine offers a maximum torque of 740 N.m, making it ideal for demanding applications. The XE215D also boasts a travel speed of 5.4/3.1 km/h and a climbing ability of 35%, enhancing its versatility on various terrains. Located in Zhejiang Wenzhou, this excavator is ready to tackle your next project.

XCMG XE215D

Expand your fleet capacity with this 2015 Sany SY365C-8 excavator, currently positioned in Luzhou, Sichuan. Operating at 36 tons with a robust 190.5 kW Isuzu engine, this crawler excavator delivers consistent performance across demanding jobsites. Engineered in China with proven hydraulics, it provides 220 kN bucket digging force and reaches a maximum digging depth of 7,040 mm—specifications that align perfectly with mid-range earthmoving and foundation projects.

<ul>
<li>Power & Performance: 190.5 kW Isuzu diesel engine at 2000 rpm</li>
<li>Digging Capacity: 1.6 m³ bucket, 10,615 mm maximum reach, 7,040 mm depth</li>
<li>Operational Specs: 34,100 kg working weight, 220 kN bucket force, 180 kN arm force</li>
<li>Mobility: 5.5 km/h travel speed, 70% grading ability, 4,370 mm turning radius</li>
<li>Transport Dimensions: 11,015 mm (L) × 3,190 mm (W) × 3,315 mm (H)</li>
</ul>

Ready to supplement your primary equipment during peak workloads or multi-site operations. Contact Fair Trade Machinery for complete inspection reports and competitive export pricing.

Sany SY365C-8

Expand your operational capacity with this 2016 Case CX300B excavator, currently positioned in Luzhou, Sichuan. Built as a joint venture/import model, this 30-ton machine delivers reliable backup power when your primary fleet is deployed across multiple sites. With 154 kW of rated power and a maximum digging depth of 7,020 mm, it matches the performance standards your crews already depend on for medium to heavy-duty applications.

<ul>
<li>Working weight: 30,800 kg—optimal for transport logistics</li>
<li>Bucket capacity: 1.2–1.6 m³ backhoe configuration</li>
<li>Traditional powertrain ensures straightforward maintenance protocols</li>
<li>Proven Case engineering for fleet consistency</li>
</ul>

Contractors running tight schedules need redundancy without compromise. This CX300B integrates seamlessly into existing Case fleets, reducing operator retraining time and parts inventory complexity. Whether covering scheduled maintenance windows or scaling up for overlapping projects, this unit provides the production continuity that keeps your bids competitive and your timelines intact.

Case CX300B

Available now from our Wenzhou, Zhejiang facility, this 2022 XCMG XE600DK MAX delivers 57 tons of hybrid-powered performance without the factory wait. Rated at 336kW at 1800rpm, this Chinese-manufactured excavator combines fuel efficiency with the raw power demanded by large-scale earthmoving, demolition, and infrastructure projects. Skip the 6–12 month lead times typical of new orders—this machine is inspection-ready and can deploy to your site within days, not quarters.

<ul>
 <li>Year: 2022</li>
 <li>Model: XCMG XE600DK MAX</li>
 <li>Operating Weight: 57 tons</li>
 <li>Power System: Hybrid (336kW / 1800rpm)</li>
 <li>Configuration: Backhoe bucket</li>
 <li>Origin: Made in China</li>
 <li>Current Location: Wenzhou, Zhejiang</li>
</ul>

Fast-track your project timeline with immediate availability. Contact Fair Trade Machinery today to arrange inspection or coordinate logistics from Wenzhou port to your operational site worldwide.

XCMG XE600DK MAX

Proven over a decade of demanding service, this 2014 Caterpillar 320D excavator delivers the reliability contractors depend on daily. Operating at 20 tons with a robust 103kW Caterpillar C6.4 ACERT engine, this machine combines serious digging force—140.1kN bucket and 106.4kN stick—with the efficiency needed for sustained productivity. Built in Xuzhou under Caterpillar's rigorous joint-venture standards, it represents the brand's commitment to durability that withstands real-world conditions.

<ul>
 <li>Maximum digging reach: 9,850mm with 6,710mm depth capability</li>
 <li>Hydraulic system: 205 L/min main pump flow at 35 MPa working pressure</li>
 <li>Boom/stick configuration: 5,700mm/2,900mm for versatile applications</li>
 <li>Travel speed: Up to 5.7 km/h with 70% grading ability</li>
 <li>Water-cooled 6-cylinder engine: 6.37L displacement for consistent power</li>
 <li>Currently located in Hunan, ready for inspection</li>
</ul>

With ten years of field-tested performance behind it, this 320D represents the workhorse mentality that built Caterpillar's reputation. Comprehensive specifications and maintenance records available upon request.

Caterpillar 320D

Engineered with a robust V2607-DI-T-ET06e water-cooled engine delivering 45.4 kW at 2400 rpm, this 2021 Sany SY70C compact excavator combines precision hydraulics with reliable performance for demanding jobsites. Operating at 6,800 kg working weight, the machine generates an impressive 51 kN bucket digging force and 36 kN arm digging force, ensuring efficient material handling across excavation, trenching, and grading applications.

Built on proven Sany engineering standards, this 7-ton excavator features a 0.28 m³ backhoe bucket capacity and reaches a maximum digging depth of 4,065 mm with a maximum digging height of 7,010 mm. The 400 mm track width distributes ground pressure to just 33 kPa, minimizing surface disturbance while maintaining a 70% climbing ability on challenging terrain. Dual travel speeds of 4.2/2.4 km/h provide operational flexibility, while the 150L fuel tank and 120L hydraulic reservoir support extended work cycles. Currently located in Hunan, China, this unit represents quality Chinese manufacturing with comprehensive technical capabilities for contractors requiring dependable compact excavation equipment.

Sany SY70C

Available now in Hunan, this 2016 Caterpillar M318 wheeled excavator eliminates factory lead times and delivers immediate operational capacity to your worksite. Built for contractors who demand mobility and performance, this 18-ton machine combines robust hydraulic power with rapid deployment capabilities across diverse terrain.

<ul>
<li>Operating Weight: 19,500 kg with superior stability</li>
<li>Engine: Caterpillar 3116T delivering 104.4 kW rated power</li>
<li>Travel Speed: 34 km/h for fast site-to-site transitions</li>
<li>Maximum Dig Depth: 5,090 mm</li>
<li>Maximum Reach: 8,490 mm horizontal radius</li>
<li>Hydraulic Pressure: 33 MPa for demanding excavation tasks</li>
<li>Transport Width: 2,950 mm for standard road compliance</li>
</ul>

Skip the months-long wait for new equipment. This joint-venture manufactured unit ships directly from Hunan, cutting procurement time dramatically. With 370L fuel capacity and proven Caterpillar engineering, expect sustained productivity from day one. Fast deployment means faster project starts and quicker returns on your equipment investment.

Caterpillar M318

Powered by the robust C6.4 ACERT engine delivering 110 kW at 2000 rpm, this 2010 Caterpillar 323DL combines proven hydraulic architecture with field-tested durability. Operating at a main pump flow of 205 l/min and system pressure of 35 MPa, the machine generates exceptional bucket digging force of 140 kN and rod digging force of 106 kN—critical metrics for demanding excavation cycles in construction and earthmoving applications.

Built to 23-ton class specifications, this mid-size excavator features:
<ul>
<li>Water-cooled 6-cylinder engine with 6.4L displacement and advanced ACERT emissions technology</li>
<li>Maximum digging reach of 9850 mm with 6710 mm digging depth capability</li>
<li>1.2 m³ backhoe bucket capacity optimized for mass excavation</li>
<li>Hydraulic system capacity of 260L ensuring sustained performance under load</li>
<li>70% gradeability (35°) for challenging terrain access</li>
</ul>

Currently positioned in Fujian, this joint-venture manufactured unit maintains Caterpillar's engineering standards for hydraulic efficiency and component longevity. Working weight range of 22,300-23,100 kg provides stability without sacrificing transportability across regulated roadways.

Caterpillar 323DL

Engineered for the long haul, this 2022 XCMG XE380K excavator demonstrates proven reliability with minimal operational hours since commissioning. Operating at 38 tons with a robust 38,500 kg working weight, this fuel-powered workhorse delivers consistent performance across demanding excavation projects. Its 254 kW rated power at 1900 rpm combines with an impressive 292 kN bucket digging force to handle the toughest ground conditions without compromise.

Built to Chinese manufacturing standards with quality components throughout, this machine features a generous 1.9-2.1 m³ backhoe bucket capacity and extends to a maximum digging radius of 10,968 mm. Currently located in Hubei, China, this XE380K represents excellent value for operators seeking dependable productivity. With barely two years in service, it offers the durability of XCMG's construction-grade engineering at a fraction of new equipment costs.

<ul>
<li>Working Weight: 38,500 kg</li>
<li>Rated Power: 254 kW @ 1900 rpm</li>
<li>Bucket Digging Force: 292 kN</li>
<li>Maximum Digging Radius: 10,968 mm</li>
<li>Bucket Capacity: 1.9-2.1 m³</li>
</ul>

XCMG XE380K

Available now in Guangxi, this 2021 XCMG XE75C mini excavator is ready for immediate deployment to your site. Skip the factory lead times and put this 7-ton workhorse into operation within days, not months. Powered by a reliable V2607 engine delivering 43 kW at 2000 rpm, this machine combines proven performance with the logistics advantage of regional availability.

Key specifications include:
<ul>
<li>Operating weight: 7,450 kg with 0.30 m³ bucket capacity</li>
<li>Maximum digging reach: 6,260 mm; digging depth: 4,020 mm</li>
<li>Bucket digging force: 57 kN; arm digging force: 38 kN</li>
<li>Hydraulic flow: 160 L/min for responsive cycle times</li>
<li>Compact transport dimensions: 6,150 × 2,230 × 2,685 mm</li>
<li>Fuel capacity: 130 L for extended run times</li>
</ul>

Positioned in Guangxi for fast logistics coordination, this excavator eliminates procurement delays. Ideal for contractors requiring immediate equipment mobilization, utility work, or site development projects demanding quick turnaround. Inspection and shipping can be arranged promptly to minimize your project downtime.

XCMG XE75C

Strengthen your fleet capacity with this 2016 Caterpillar 336E hydraulic excavator, engineered for contractors managing multiple jobsites simultaneously. Operating at 36 tons with a robust 35,500 kg working weight, this machine delivers reliable performance when your primary units are deployed elsewhere. Powered by the proven CAT C9 ACERT engine producing 236 kw at 1800 rpm, it meets European Stage IIIB and Tier 4 emission standards while maintaining fuel efficiency across extended shifts.

<ul>
<li>Maximum digging radius of 11,040 mm handles large-scale excavation tasks</li>
<li>Water-cooled engine ensures consistent operation in demanding conditions</li>
<li>Backhoe configuration provides versatility for trenching and foundation work</li>
<li>Joint venture/import manufacturing guarantees OEM-grade component quality</li>
<li>Currently located in Guangxi, available for immediate inspection</li>
</ul>

Built for fleet operators requiring dependable backup capacity, this 336E integrates seamlessly with existing Caterpillar equipment. Your maintenance teams already know the platform, reducing training time and parts inventory complexity. Add proven productivity without operational disruption.

Specifications	Value
No.	1041140
Tonnage (tons)	23
Working weight (kg)	23520
Bucket capacity (m³)	1
Country of origin	Xuzhou
power	Traditional power
manufacturer	Made in China
bucket	backhoe

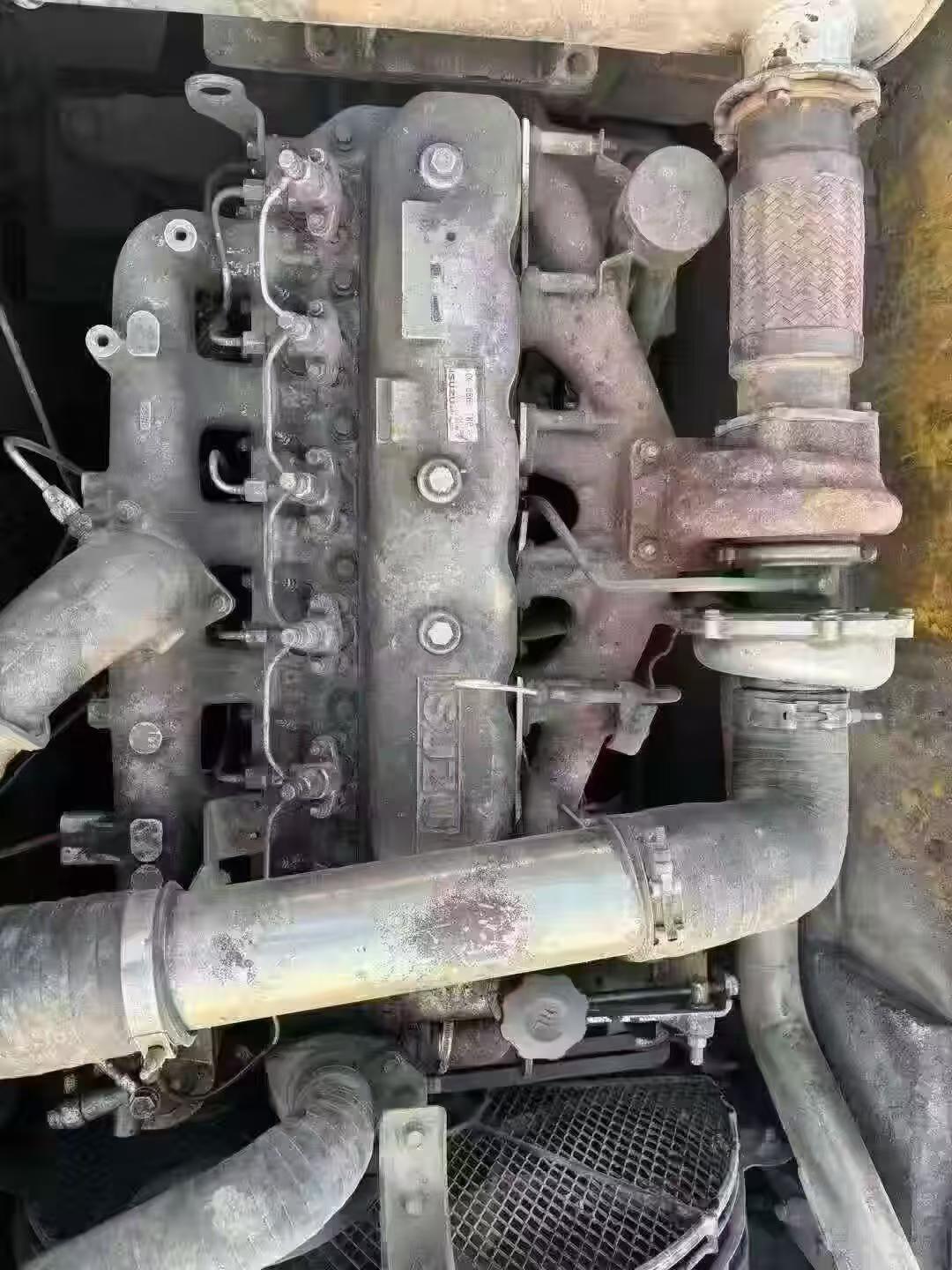

Engine type	ISUZU CC-6BG1TRP
Rated power (kw/rpm)	125/2100
Cooling mode	water-cooling
Number of cylinders (PCS)	4
Displacement (L)	6.494
Rotation speed (rpm)	12.1
Climbing ability (%)	70/35 °
Bucket digging force (kN)	163
Travel speed (km/h)	3.5/5.5

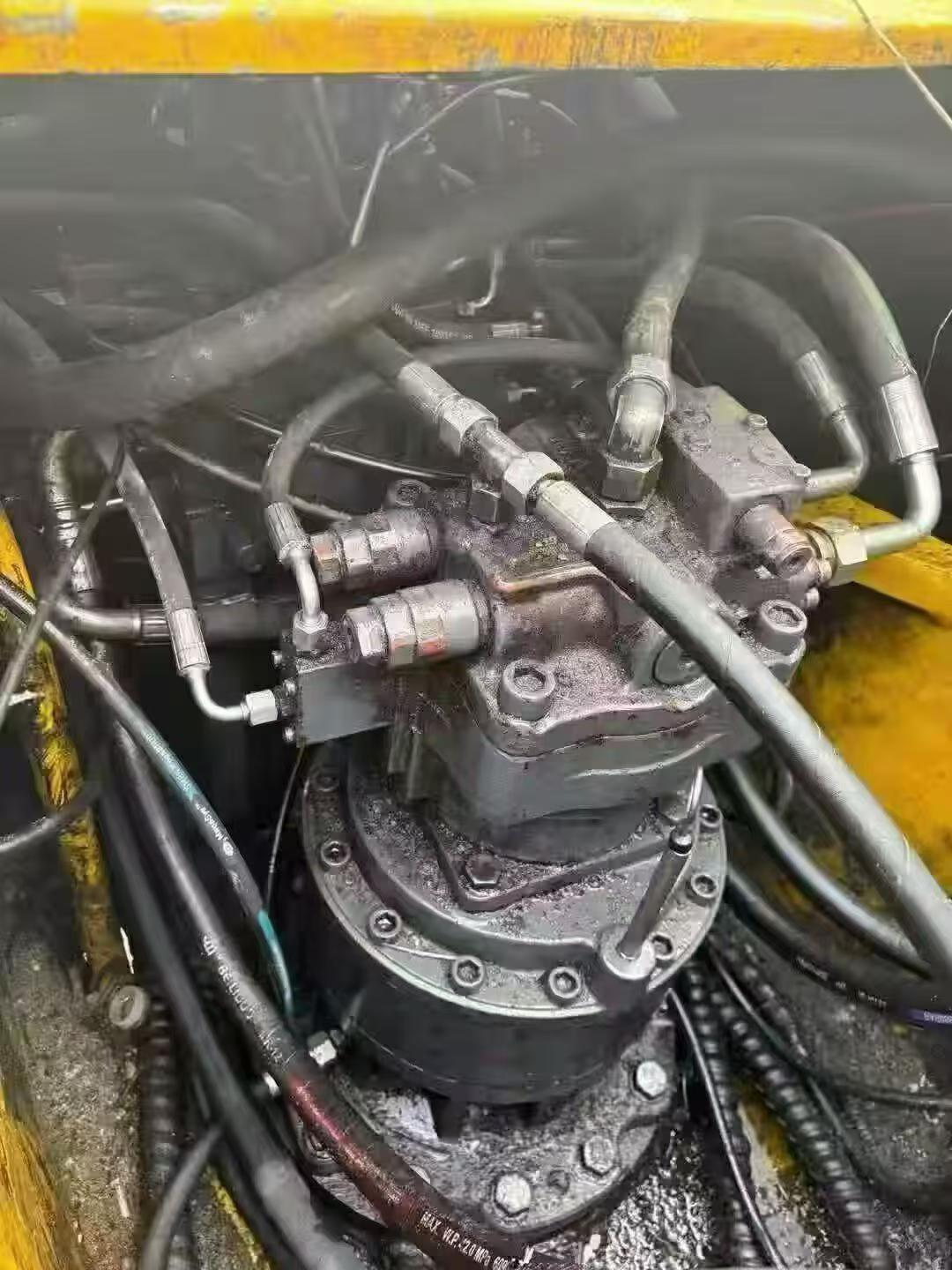

Rotary hydraulic motor type	Plunger hydraulic motor
Type of walking hydraulic motor	Plunger hydraulic motor

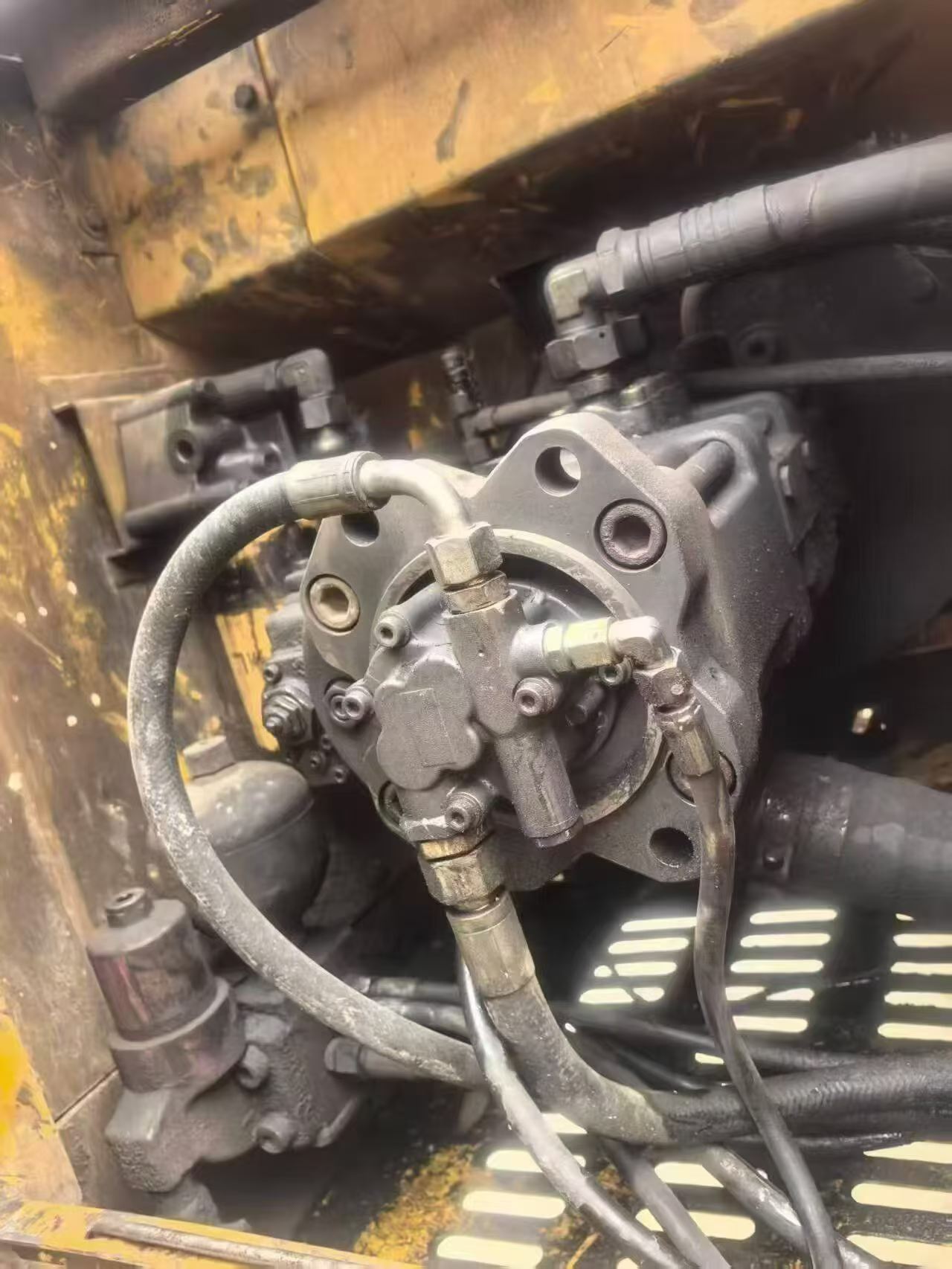

Main pump type	Variable pump ×2
Fuel Tank (L)	400
Hydraulic Tank (L)	240
Total transport length (mm)	10,160
Total transport width (mm)	2,990
Total transport height (mm)	3,050
Back end turning radius (mm)	2,940
Total track length (mm)	4,255
Track gauge (mm)	2,390
Track plate width (mm)	600
Track ground length (mm)	3,462
Maximum digging radius (mm)	10,270
Maximum digging depth (mm)	6,920
Maximum excavation height (mm)	9,670
Maximum unloading height (mm)	6,795
Maximum vertical digging depth (mm)	6,165
Bulldozer lift or depth (mm)	No bulldozer
Dodging plate width × height (mm)	No bulldozer

2016 XCMG XE230
