Product Description

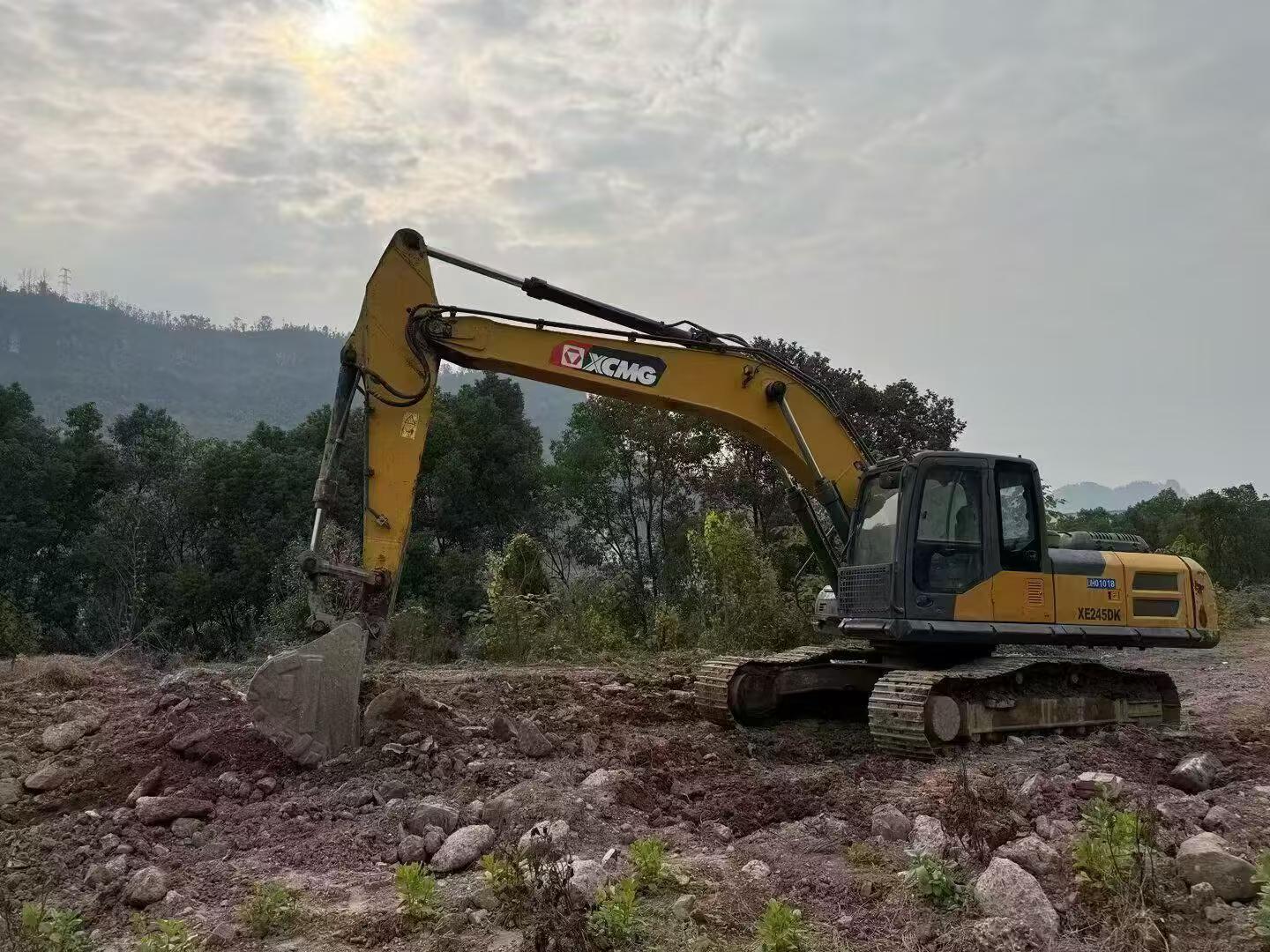

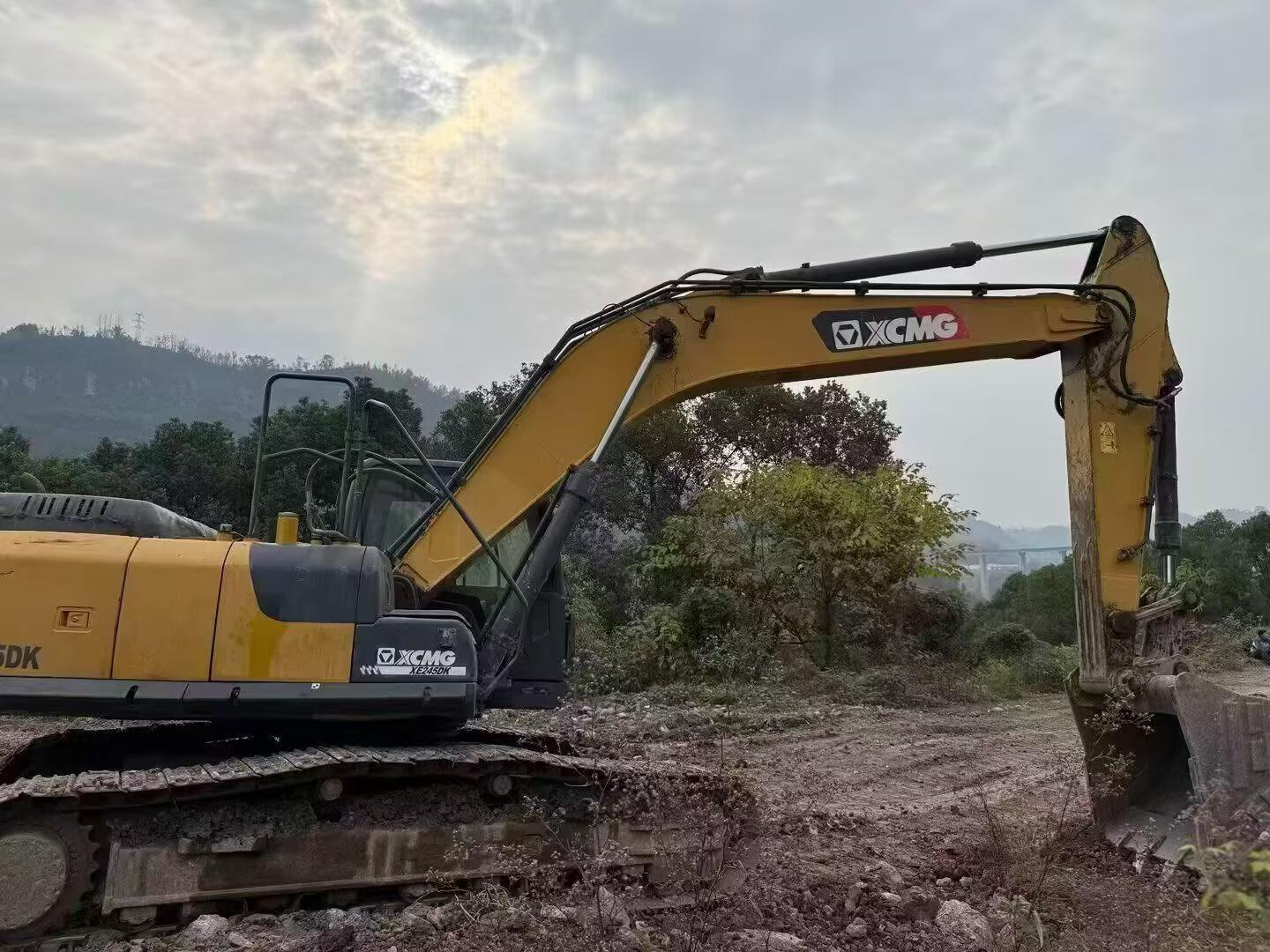

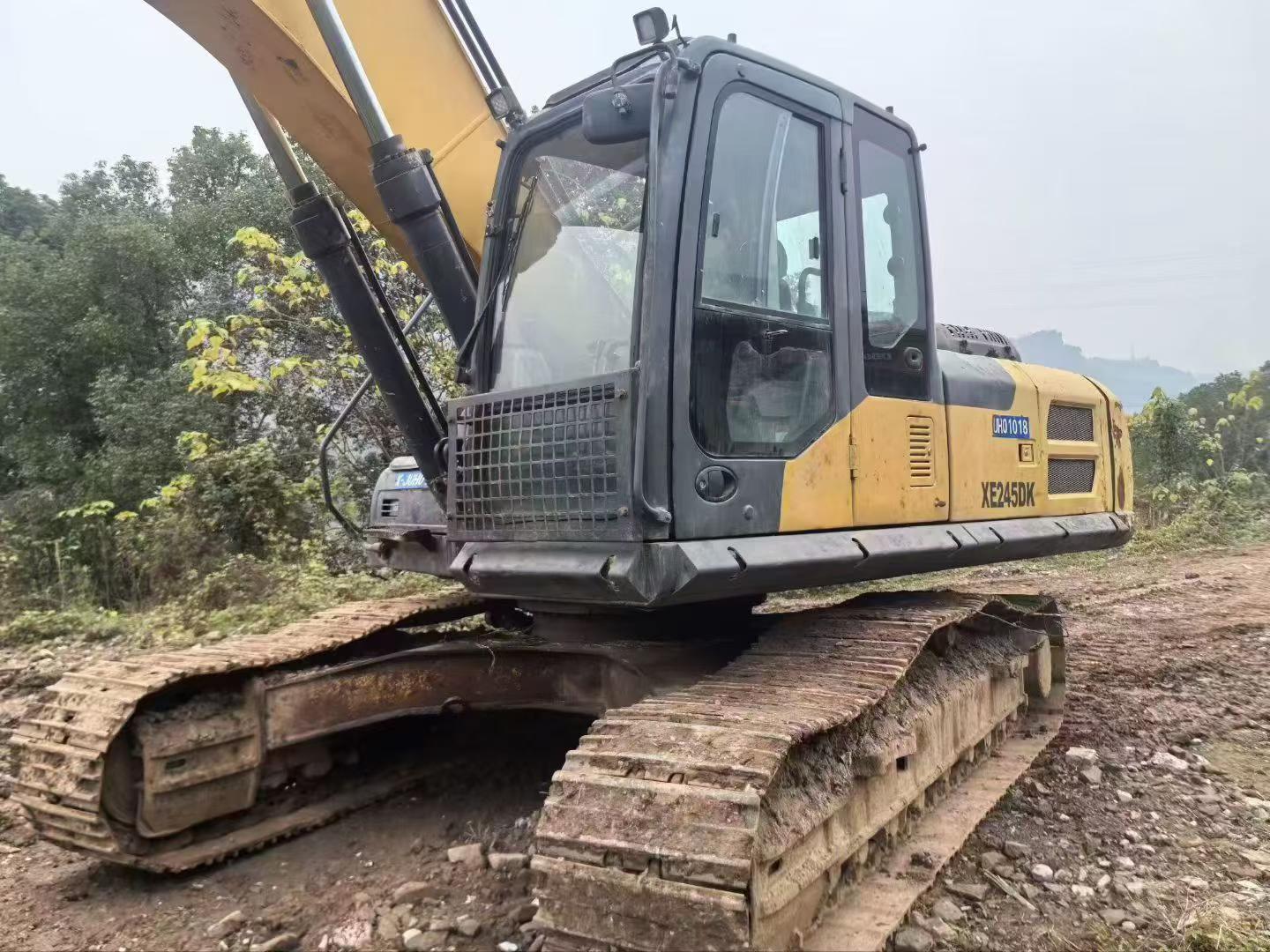

Expand your operational capacity with this 2020 XCMG XE245DK excavator, currently available from our Hunan location. Built for contractors managing multiple job sites, this 24-ton workhorse delivers 150kW of proven QSB7 power through a turbocharged, air-to-air cooled 6-cylinder engine. With a 10,240mm maximum digging radius and 6,972mm maximum depth, this machine handles everything from foundation work to large-scale earthmoving without compromising your primary fleet schedule.
- Fleet-Ready Performance: 185kN bucket digging force and 129kN arm force tackle demanding materials efficiently
- Extended Range: 400L fuel tank minimizes downtime on remote sites
- Versatile Bucket Capacity: 0.9-1.4m³ range adapts to varying project requirements
- Reliable Mobility: 35% grading ability and 5.3km/h travel speed ensure rapid repositioning
- Proven Specifications: 6,000mm boom and 2,964mm arm configuration optimized for production work
Manufactured in China with traditional power architecture, this XE245DK provides the redundancy busy contractors need when primary equipment is committed elsewhere. Add depe
| Specifications | Value |
|---|---|
| No. | 1024617 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 0.9-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 56.7 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 199 |
| Travel speed (km/h) | 5.3/3.6 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1062 |
| Minimum ground clearance (mm) | 1062 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6972 |
| Maximum excavation height (mm) | 10048 |
| Maximum unloading height (mm) | 7123 |
| Maximum vertical digging depth (mm) | 5567 |
