Product Description

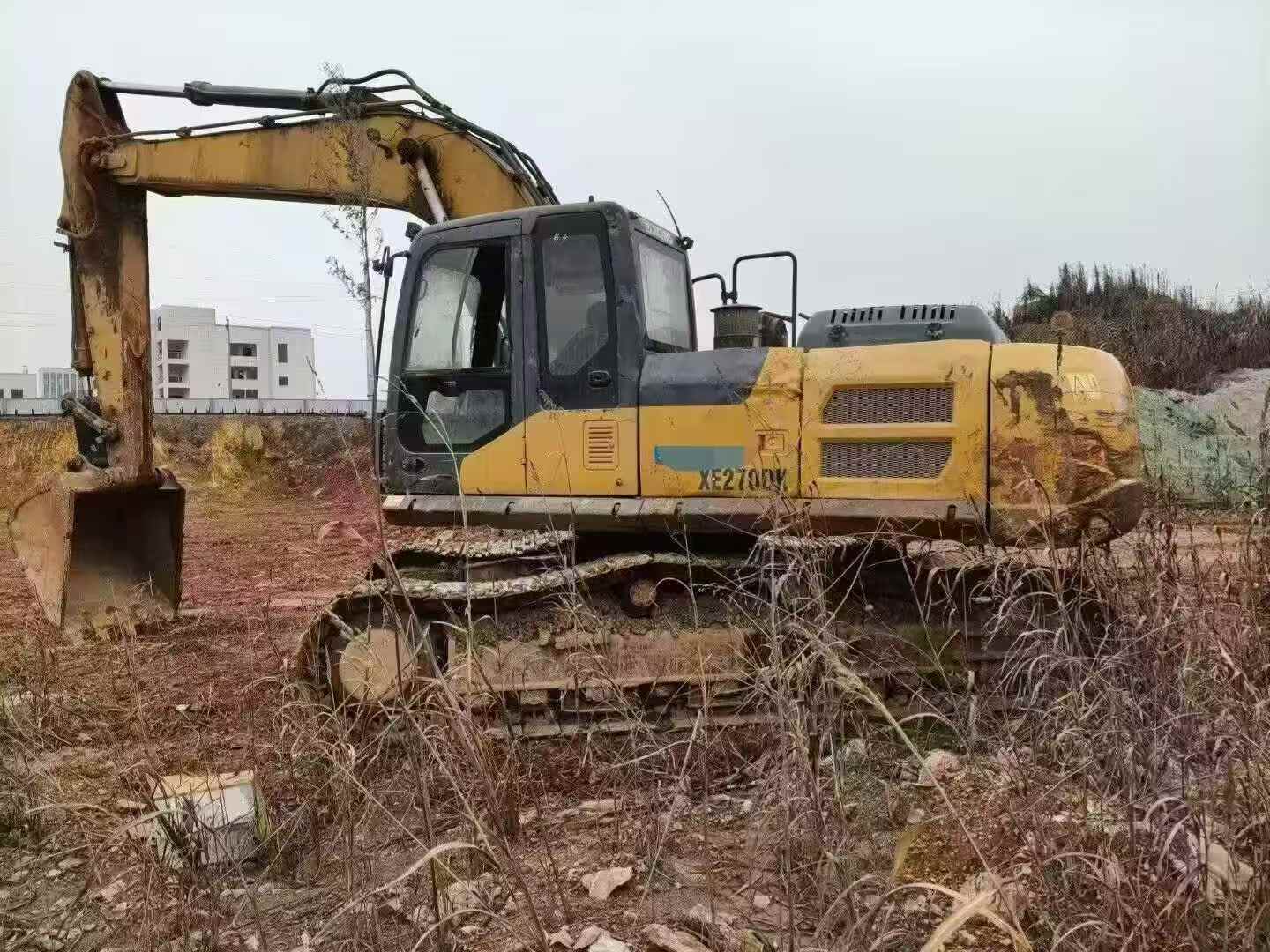

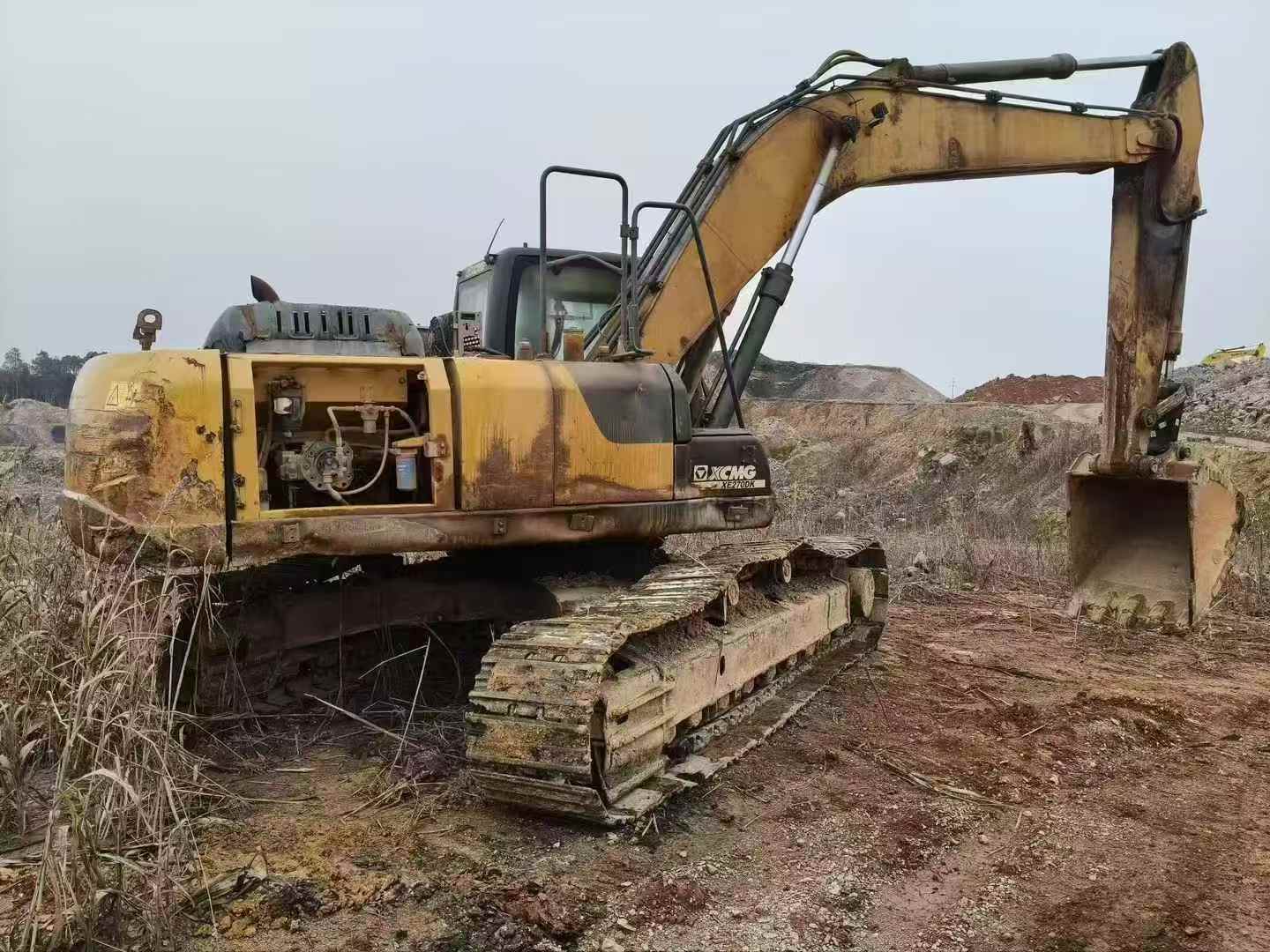

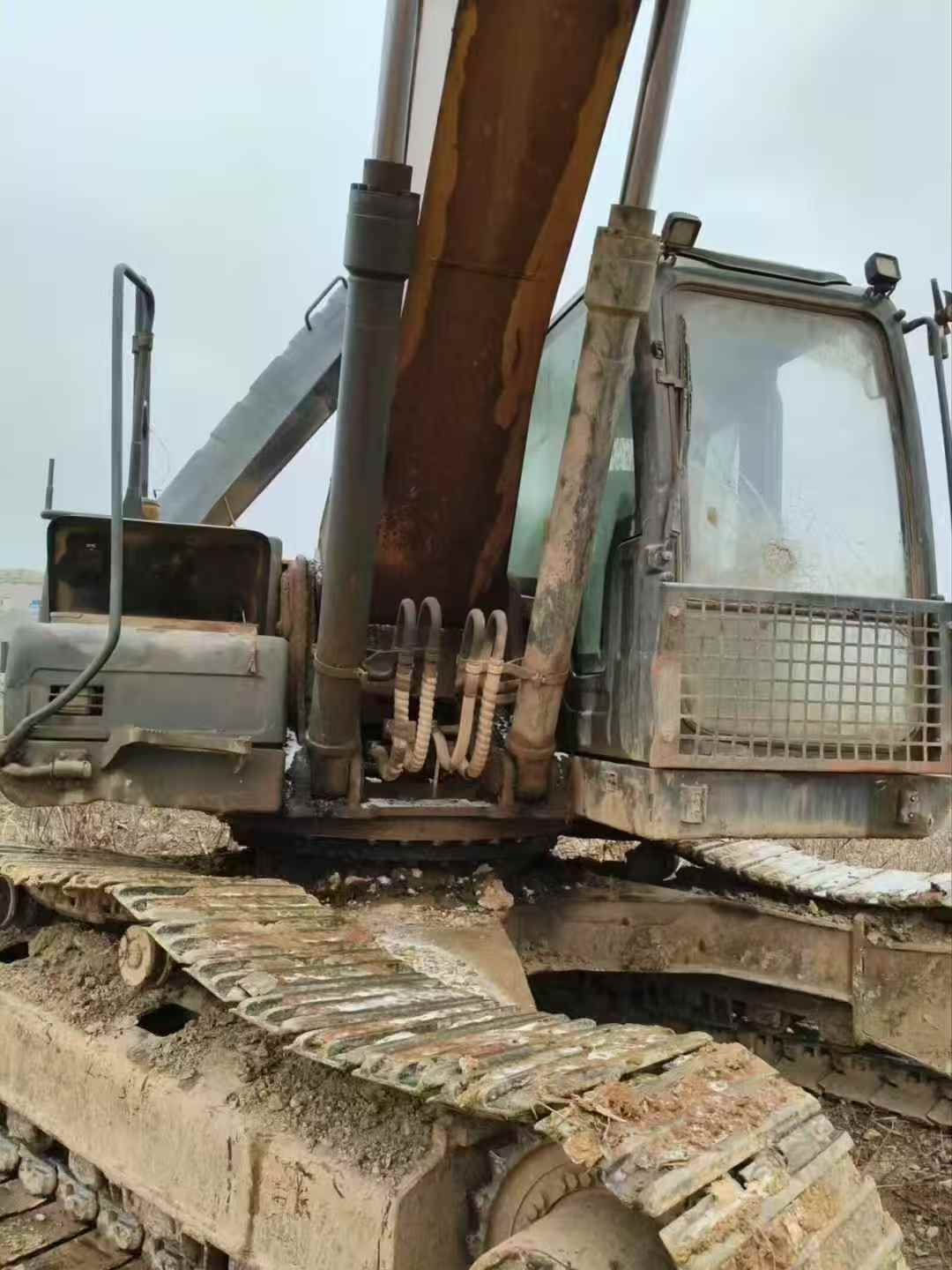

Built to endure the toughest conditions, this 2019 XCMG XE270DK excavator represents proven engineering excellence from one of China's leading manufacturers. Operating at 27 tons with a robust 26,500 kg working weight, this machine delivers consistent performance backed by five years of field-tested reliability. Powered by a QSB7 engine generating 150 kW at 2050 rpm, it combines substantial digging force—185 kN bucket and 129 kN arm—with impressive reach capabilities extending to 10,240 mm maximum radius and 6,925 mm digging depth.
- Proven workhorse with durable 6-cylinder turbocharged engine (6.7L displacement)
- Maximum torque of 825 N.m ensures reliable power delivery
- Dual hydraulic pumps (2×259 L/min) for responsive operation
- 1.1-1.4 m³ bucket capacity handles substantial material volumes
- 35% climbing ability tackles challenging terrain
- 400L fuel tank supports extended work cycles
- Currently located in Guizhou, ready for deployment
Designed for longevity, this excavator demonstrates XCMG's commitment to manufacturing equipment that withstands demanding applications while maintaining operational efficiency year after year.
| Specifications | Value |
|---|---|
| No. | 1005370 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
