Product Description

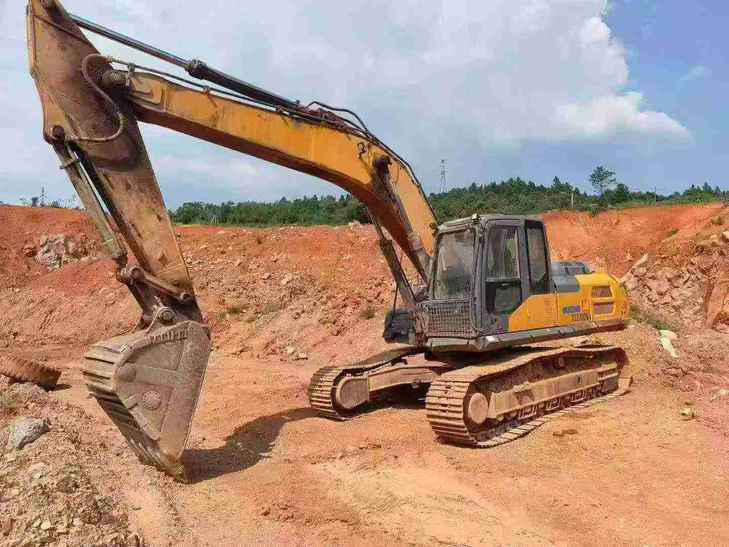

With a powerful QSB7 engine delivering 150 kW at 2050 rpm, the XCMG XE270DK is designed for immediate deployment in demanding construction environments. Built in 2019 and currently located in 四川泸州, this 27-ton excavator excels in digging, grading, and demolition tasks. Its 1.1-1.4 m³ bucket capacity and robust 26,500 kg working weight ensure high productivity and efficiency on any job site.
- Boasts a maximum digging force of 185 kN and a rod digging force of 129 kN, ideal for tough excavation jobs.
- Equipped with a 6000 mm boom and 2964 mm rod, providing a maximum digging depth of 6925 mm and a maximum digging radius of 10240 mm.
- Features a 4-stroke, turbocharged, air-to-air cooled engine, ensuring reliable performance and fuel efficiency.
- Offers a travel speed of up to 6.1 km/h and a climbing ability of 35%, making it versatile for various terrains.
- Includes a 400 L fuel tank and 220 L hydraulic tank, minimizing downtime and maximizing operational hours.
This XCMG XE270DK is ready to tackle your next project with precision and power, ensuring that your site is prepared efficiently and effectively.
| Specifications | Value |
|---|---|
| No. | 1020441 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
