Product Description

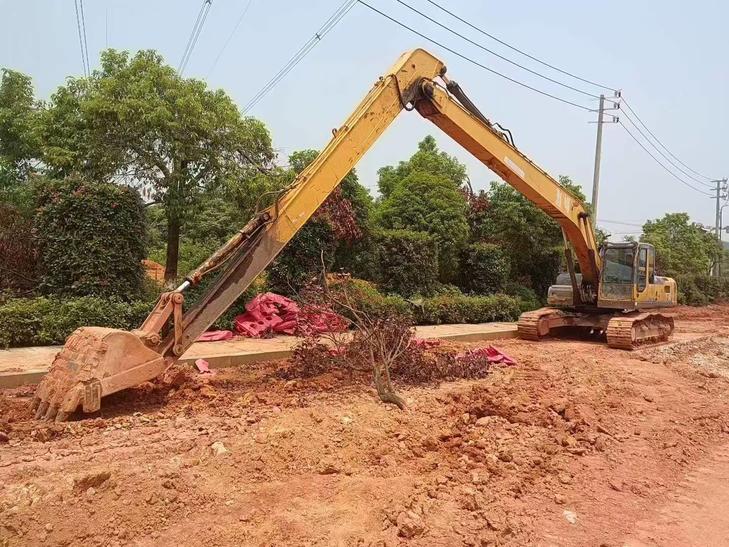

This 2019 XCMG XE270DK hydraulic excavator offers proven performance for demanding jobsites. Factory-equipped with an 18-meter extended reach boom, this machine delivers exceptional digging depth and horizontal reach for specialized applications including deep foundation work, slope grading, and material handling.
The XE270DK combines XCMG's reliable hydraulic system with a robust undercarriage designed for stability during extended boom operations. Currently located in Hunan, China, this unit is available for inspection and immediate deployment.
- Year: 2019
- Model: XCMG XE270DK
- Configuration: 18-meter extended reach boom
- Location: Hunan Province, China
- Condition: Used, operational
Ideal for contractors requiring extended reach capabilities without investing in new equipment. Contact us for detailed specifications, current hours, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1083626 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
