Product Description

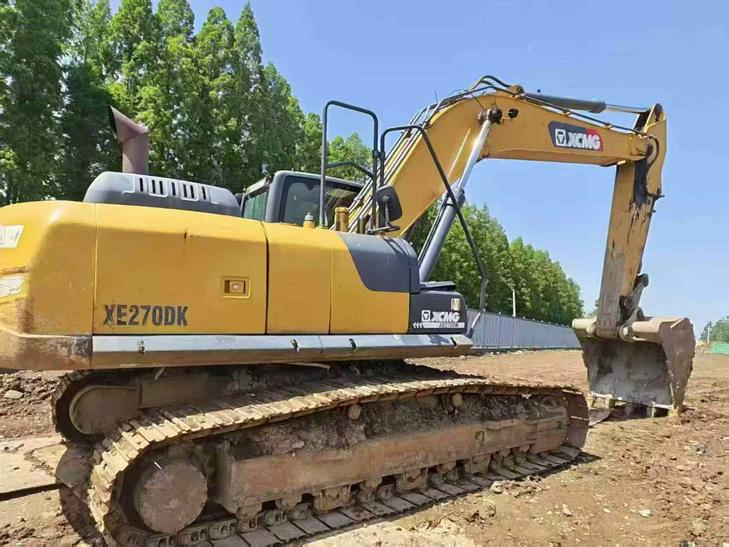

This 2020 XCMG XE270DK hydraulic excavator is a proven workhorse available from Zhejiang, China. With documented operational history, this machine has been actively deployed in field applications and maintained in working condition throughout its service life.
The XE270DK represents XCMG's mid-range excavator platform, engineered for versatility across earthmoving, trenching, and material handling operations. This unit comes with comprehensive visual documentation including detailed photographs and operational video footage, allowing prospective buyers to assess machine condition remotely.
- Year of Manufacture: 2020
- Manufacturer: XCMG
- Model: XE270DK
- Current Location: Zhejiang Province, China
- Status: Operational, actively used equipment
- Documentation: Detailed imagery and video available
Suitable for contractors and operators seeking reliable mid-sized excavation equipment with transparent service history. Inspection and technical verification recommended prior to purchase.
| Specifications | Value |
|---|---|
| No. | 1073424 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
