Product Description
This 2020 XCMG XE270DK hydraulic excavator represents a compelling opportunity for operations requiring robust mid-size earthmoving capacity. Manufactured by XCMG, one of China's leading construction equipment producers, this unit delivers dependable performance in a proven platform. Currently located in Sichuan, China, the machine is available at an attractive price point of approximately 200,000 RMB, offering excellent value for contractors and equipment dealers seeking quality used machinery.
The XE270DK series is engineered for versatility across excavation, trenching, and material handling applications. Key features include:
- 27-ton operating class suitable for medium to heavy-duty tasks
- Fuel-efficient engine design for reduced operating costs
- Durable undercarriage and hydraulic system

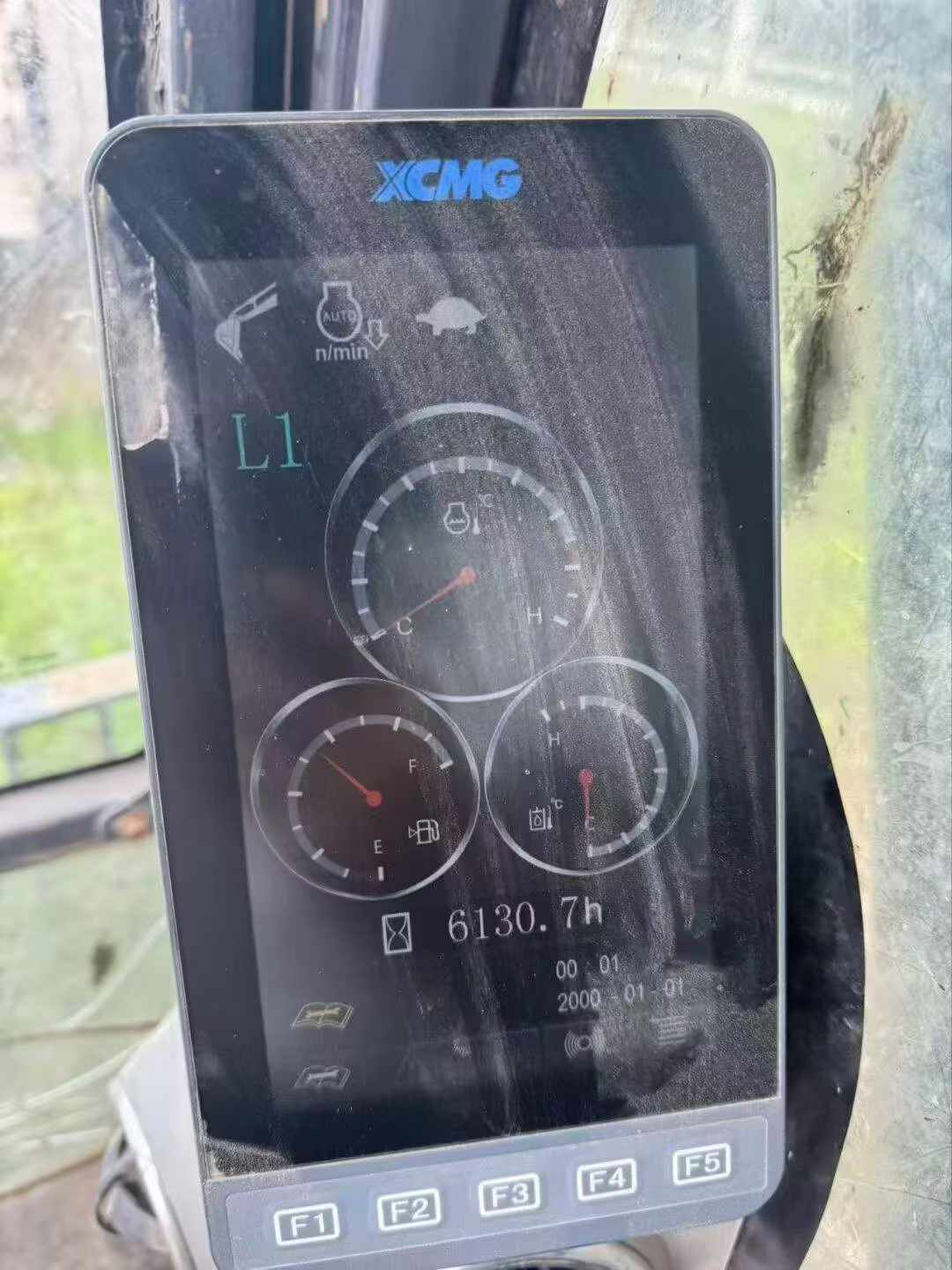

- Well-maintained condition with low operational hours
- Available for immediate inspection in Sichuan province
Ideal for construction, mining, and infrastructure projects requiring reliable excavation performance. International shipping and export documentation can be arranged.
| Specifications | Value |
|---|---|
| No. | 1088948 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

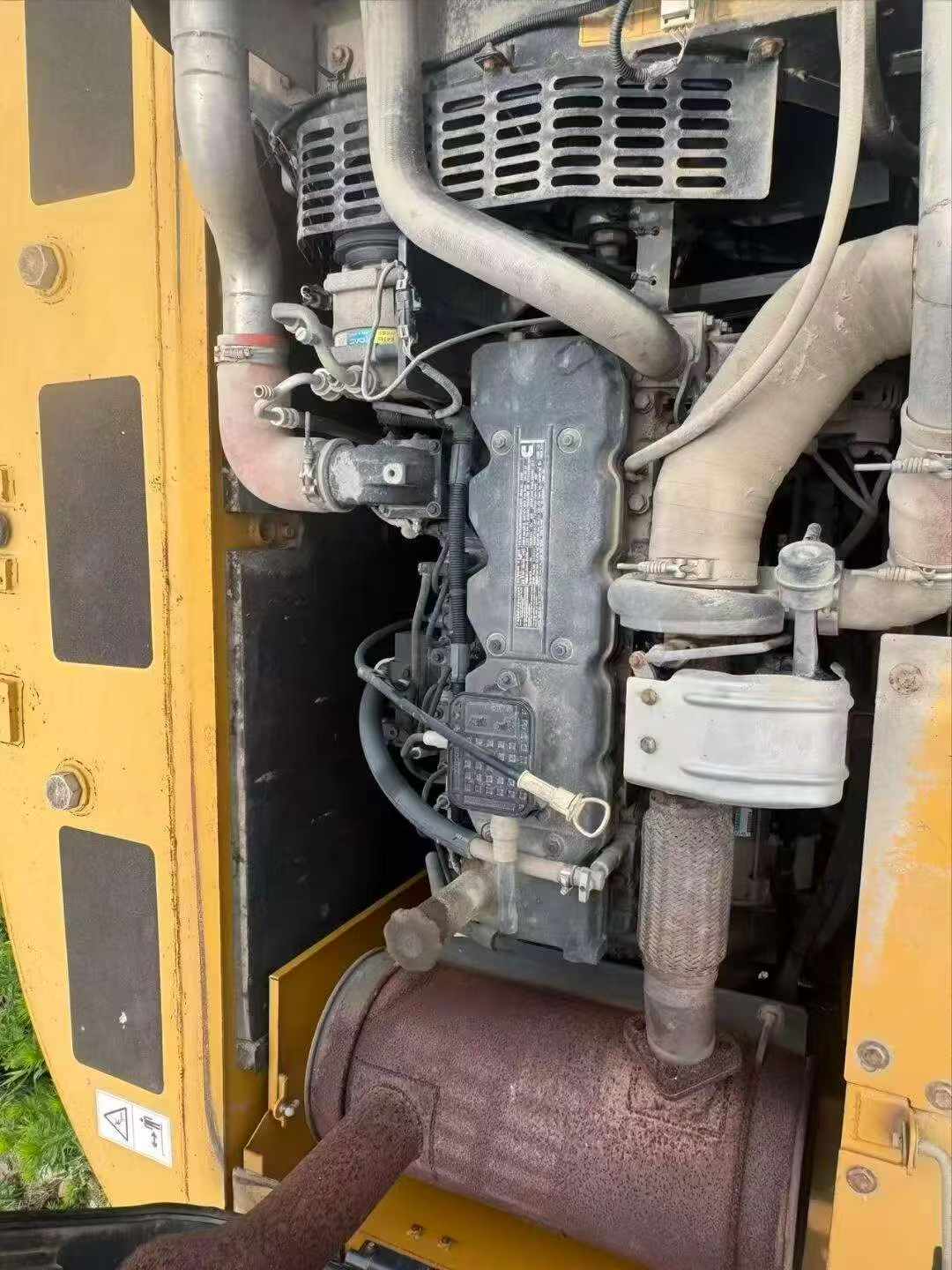

| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
