2021 XCMG XE270DK

1/9

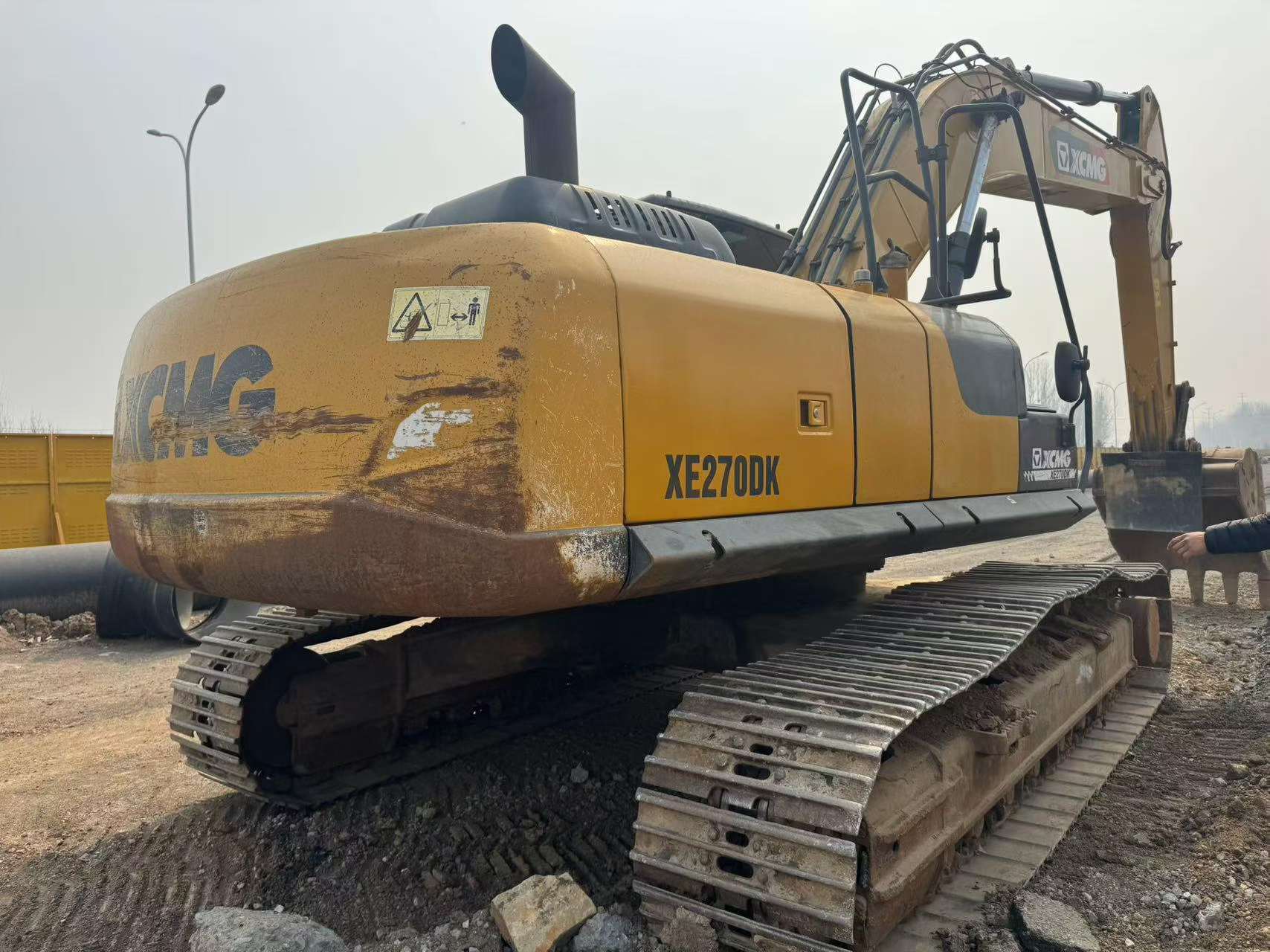

Buy XCMG XE270DK Used Excavator / 1

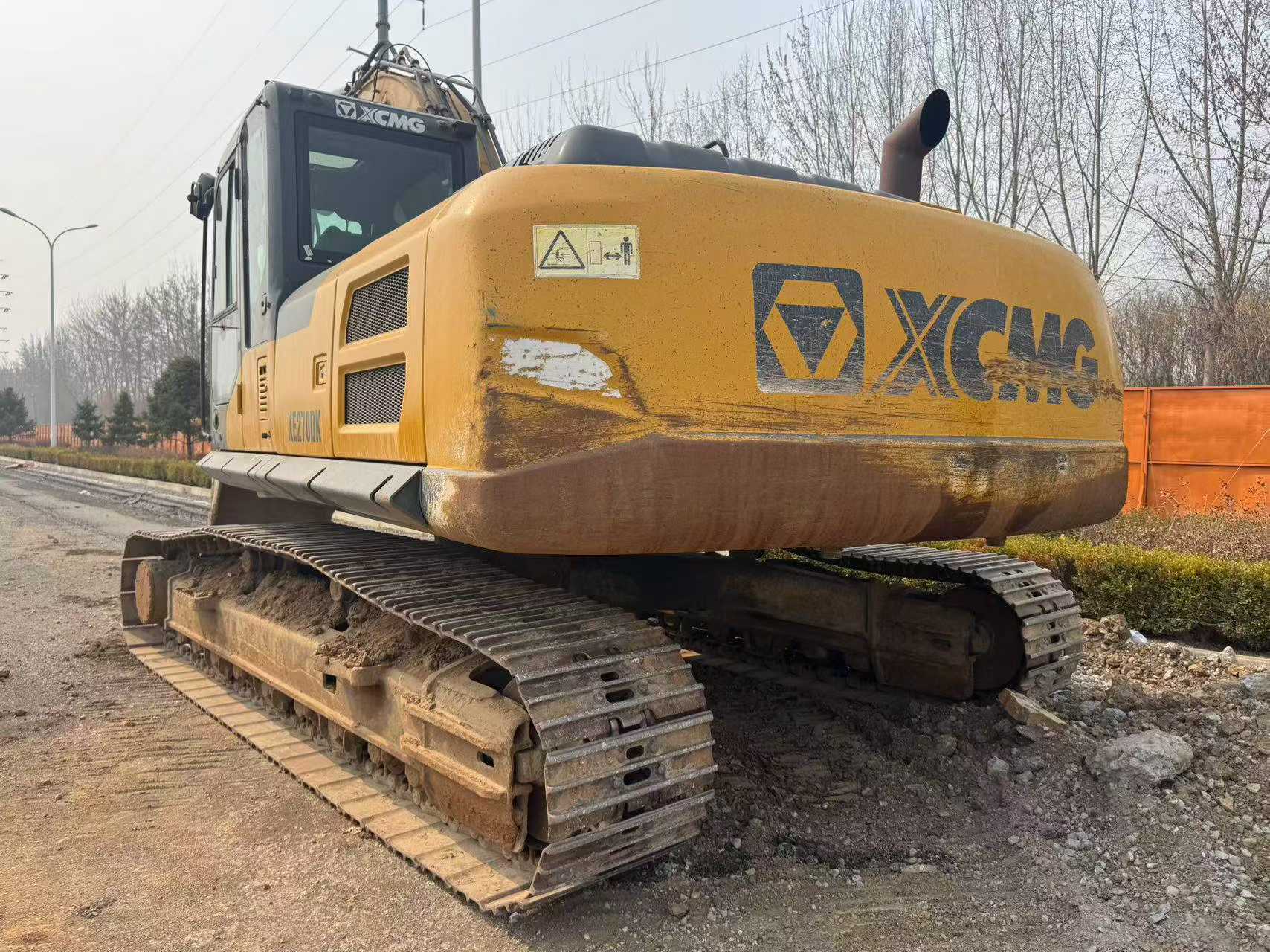

Buy XCMG XE270DK Used Excavator / 2

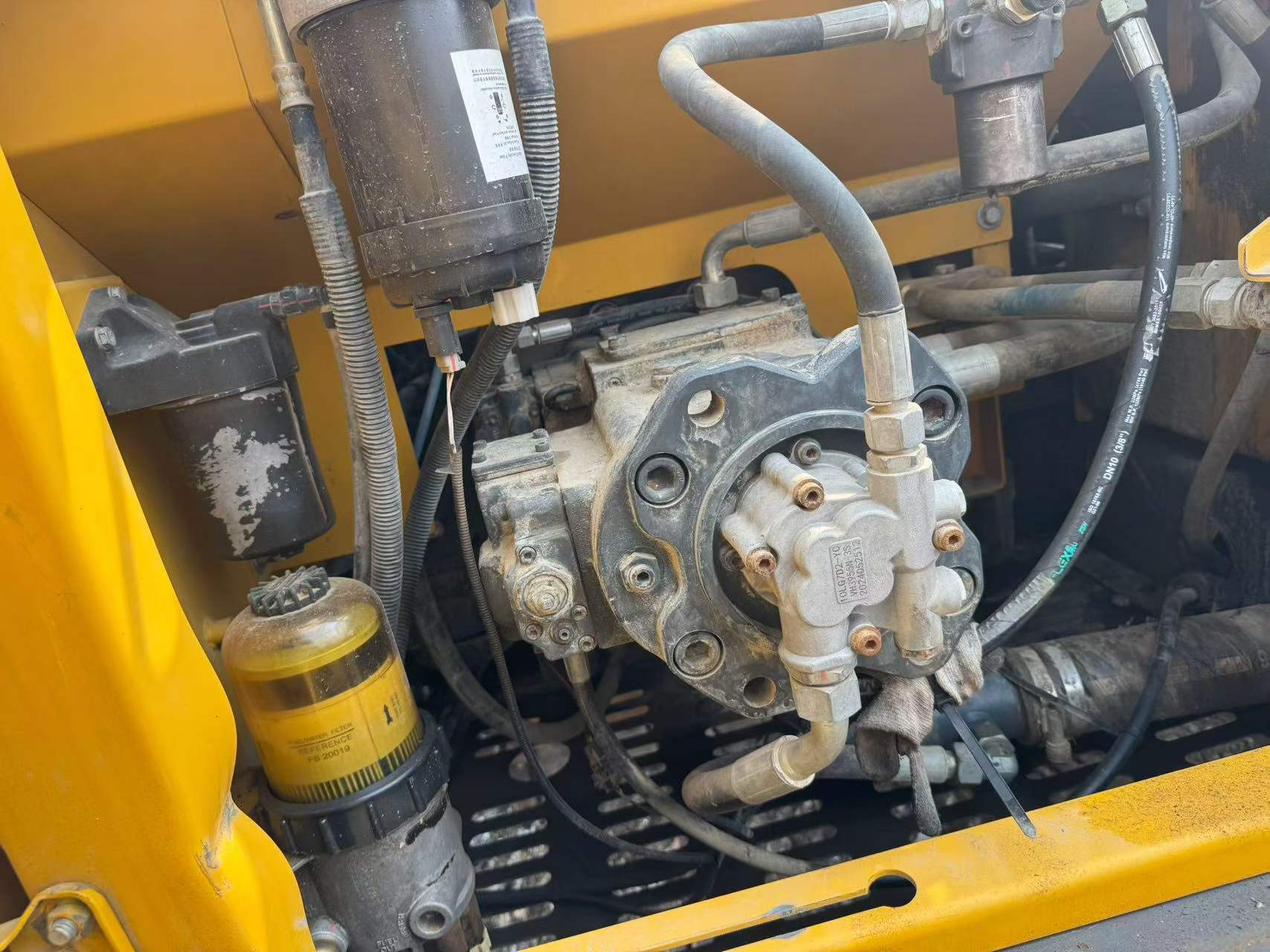

Buy XCMG XE270DK Used Excavator / 3

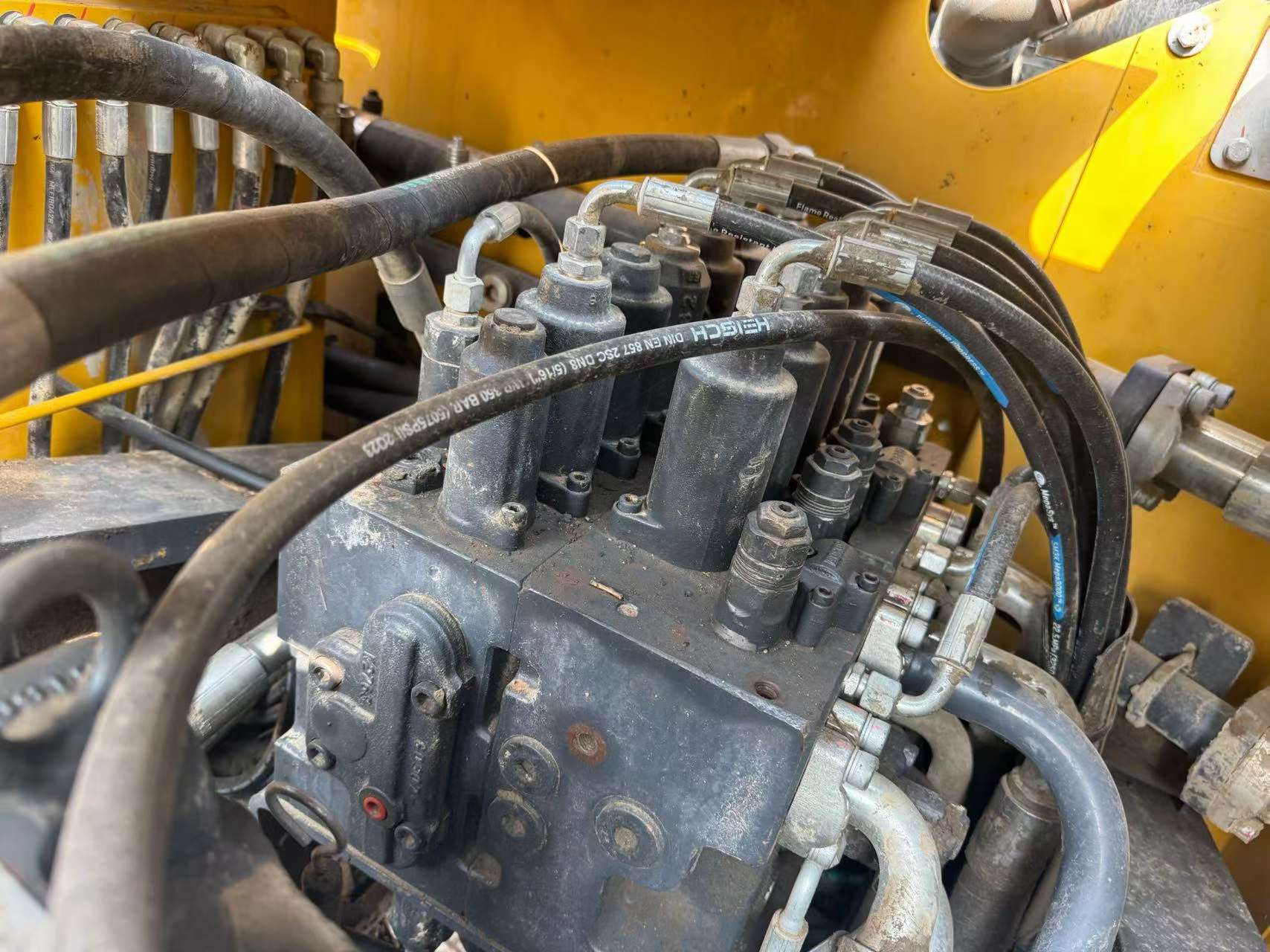

Buy XCMG XE270DK Used Excavator / 4

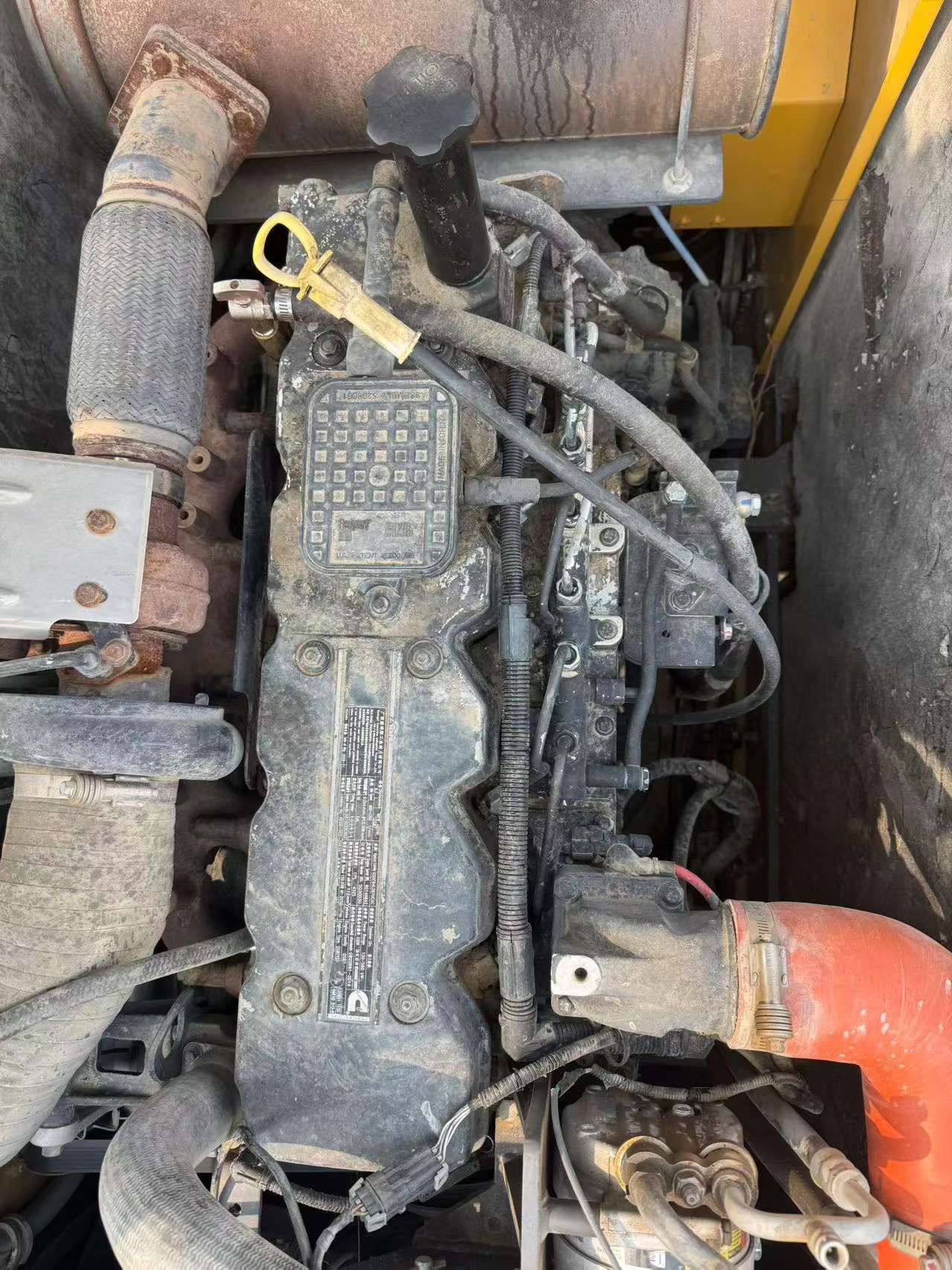

Buy XCMG XE270DK Used Excavator / 5
Buy XCMG XE270DK Used Excavator / 6

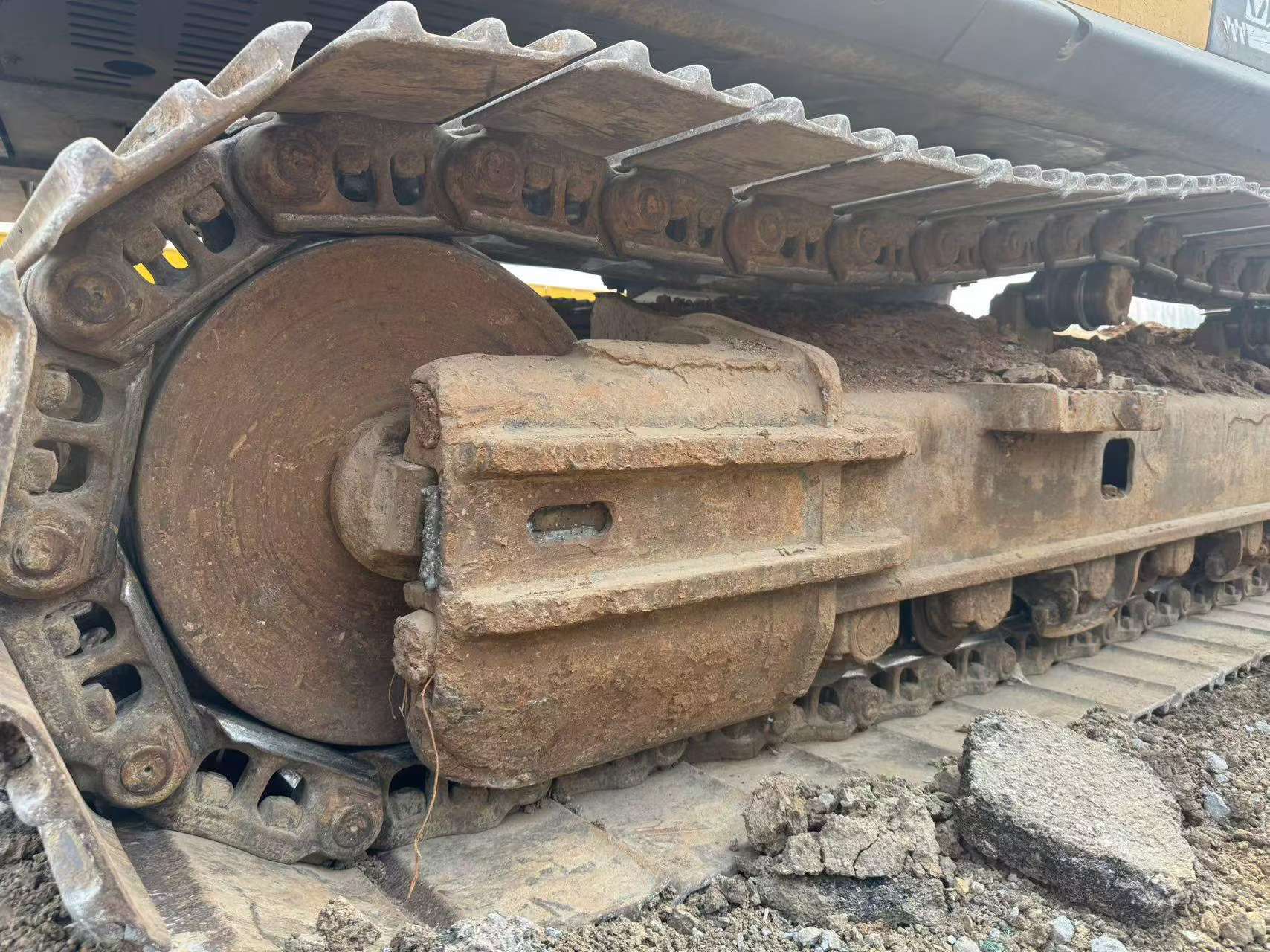

Buy XCMG XE270DK Used Excavator / 7

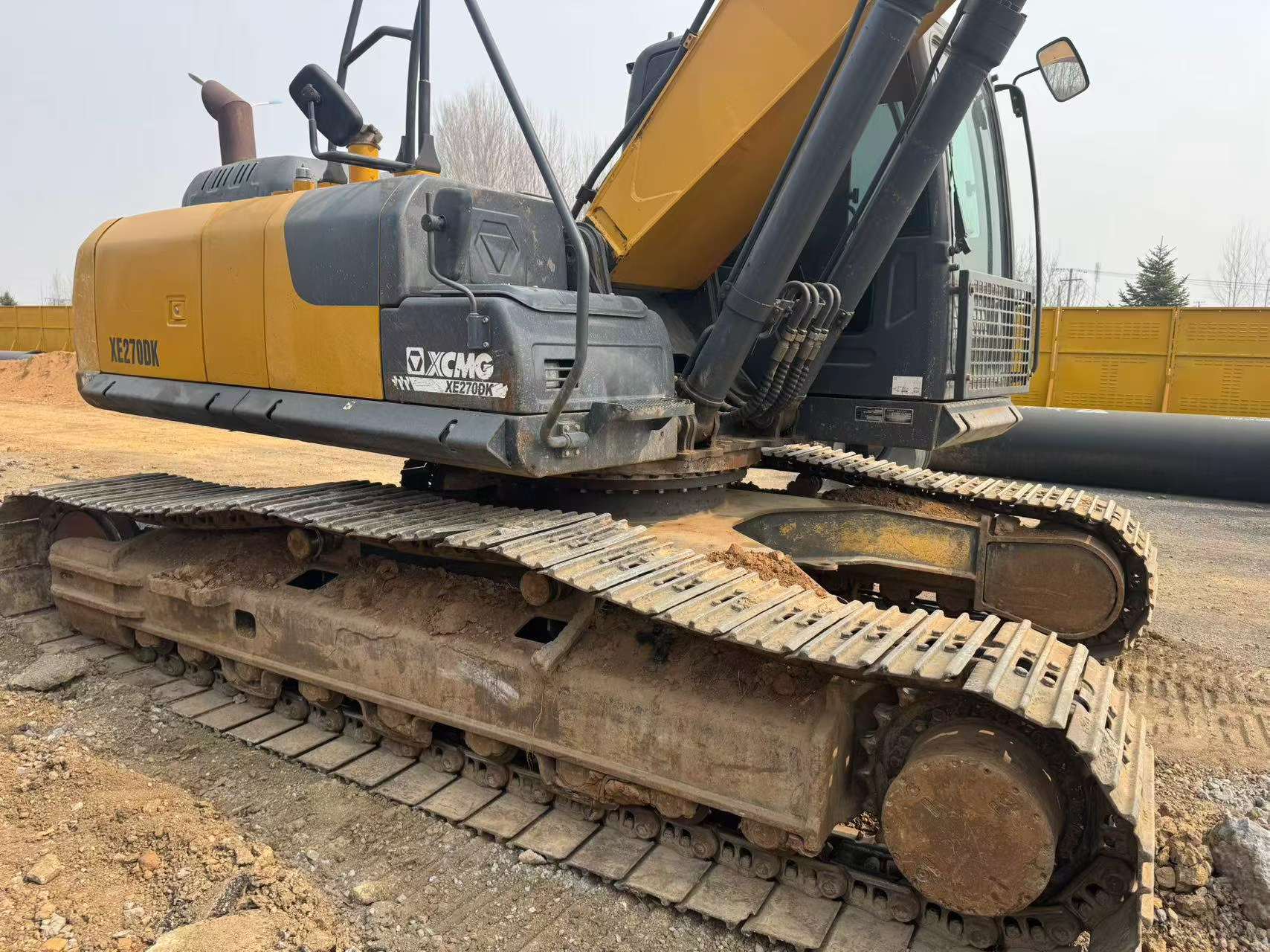

Buy XCMG XE270DK Used Excavator / 8

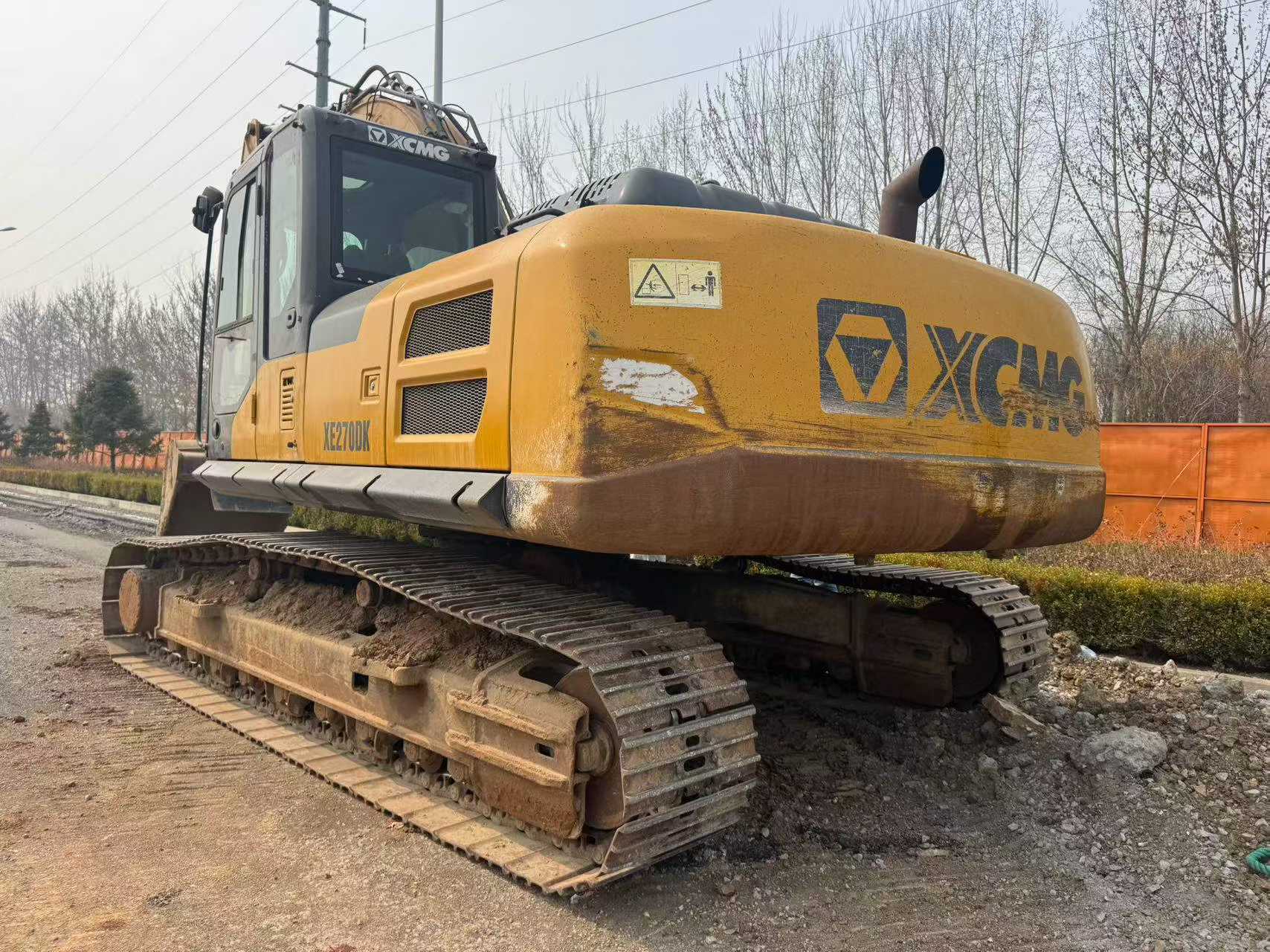

Buy XCMG XE270DK Used Excavator / 9

Product Description

Built for endurance and engineered to perform, this 2021 XCMG XE270DK excavator represents proven Chinese manufacturing excellence with minimal operational hours. Operating at 27 tons with a robust 150kW QSB7 engine delivering 825 N.m of maximum torque, this machine combines raw power with exceptional fuel efficiency across demanding jobsites. Its 6000mm boom and 2964mm arm provide a maximum digging reach of 10240mm and depth of 6925mm, while the 1.1-1.4m³ backhoe bucket tackles high-volume earthmoving with 185kN of digging force.

Designed as a workhorse for construction and excavation professionals, this XE270DK features dual main pumps flowing 2×259 L/min for responsive hydraulic performance and an 11.4 rpm rotation speed ensuring swift cycle times. The 6-cylinder turbocharged engine with air-to-air intercooler maintains consistent power delivery, backed by a generous 400L fuel tank for extended operation. Currently located in Lishui, Zhejiang, this proven performer offers reliability that only comes from XCMG's construction-grade engineering and quality control standards.

  • 27-ton working weight with 220kN maximum tractive force
  • 10240mm digging radius, 6925mm maximum depth
  • 150kW QSB7 engine w
SpecificationsValue
No.1051142
Tonnage (tons)27
Working weight (kg)26500
Bucket capacity (m³)1.1-1.4
Boom length (mm)6000
Rod length (mm)2964
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSB7
Rated power (kw/rpm)150/2050
Maximum torque (N.m)825/1250
Number of cylinders (PCS)6
Displacement (L)6.7
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)52.1
Rotation speed (rpm)11.4
Climbing ability (%)35
Bucket digging force (kN)185
Rod digging force (kN)129
Maximum tractive force (kN)220
Travel speed (km/h)6.1/3.8
Maximum flow of main pump (l/min)2*259
Fuel Tank (L)400
Hydraulic Tank (L)220
Engine Oil changes (L)19.5
Total transport length (mm)10170
Total transport width (mm)3190
Total transport height (mm)3175
Counterweight ground clearance (mm)1090
Minimum ground clearance (mm)495
Minimum turning radius of front working device (mm)3510
Back end turning radius (mm)2955
Total track length (mm)4640
Track gauge (mm)2590
Total track width (mm)600
Maximum digging radius (mm)10240
Maximum digging depth (mm)6925
Maximum excavation height (mm)10095
Maximum unloading height (mm)7170
Maximum vertical digging depth (mm)5620
see more

Overview

No.1051142

Brand Name:

XCMG

Model Number:

XE270DK

Year:

2021

Location:

Zhejiang China
