Product Description

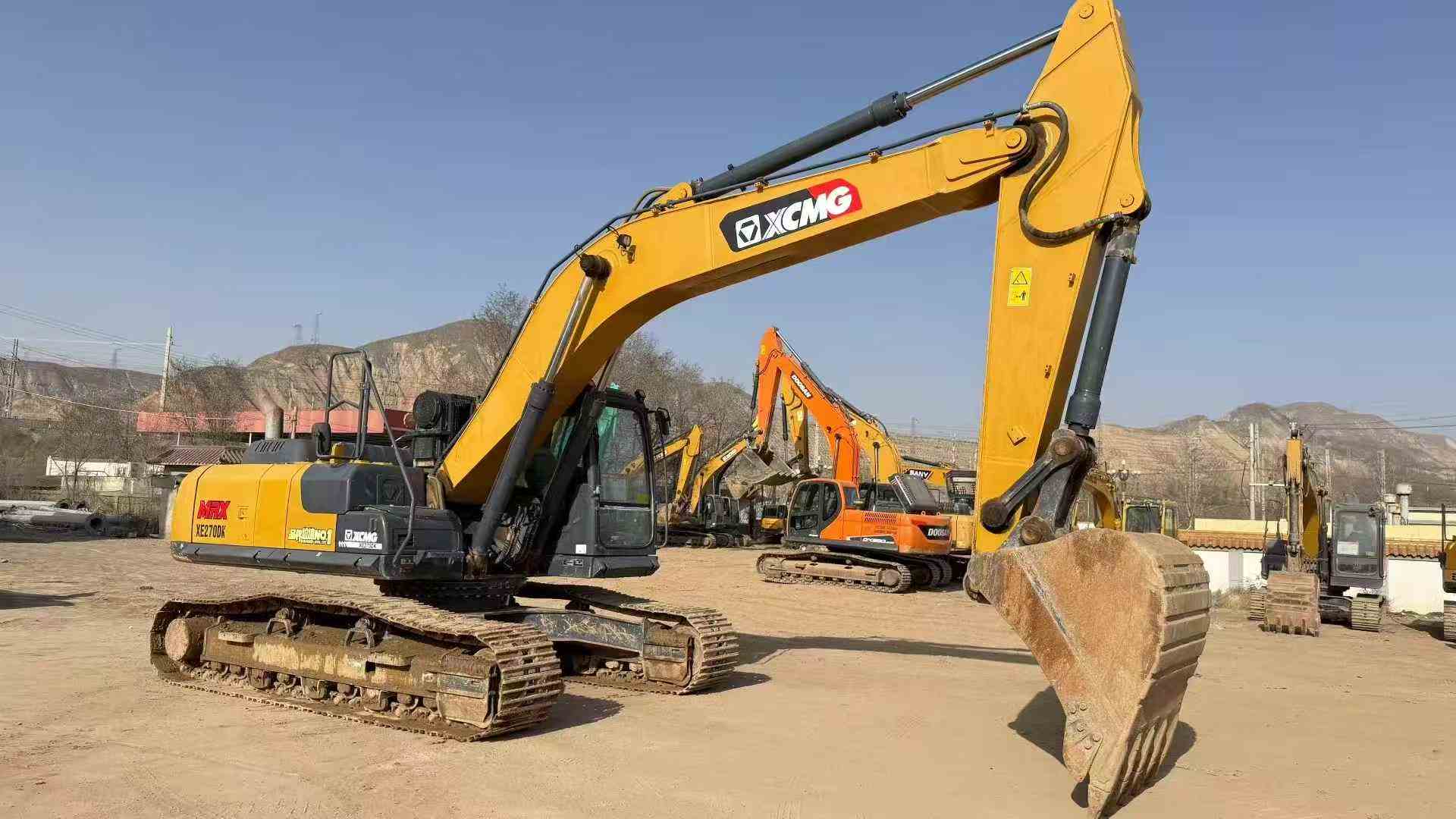

Engineered with a robust 6.7L QSB7 turbocharged engine delivering 150kW at 2050 rpm and 825 N·m of torque, this 2022 XCMG XE270DK excavator represents precision-grade construction machinery built for demanding jobsites. Operating at 26,500 kg working weight with dual main pumps flowing 2×259 L/min, the hydraulic system powers exceptional digging forces: 185 kN bucket force and 129 kN rod force backed by 220 kN maximum tractive effort.
Core Technical Specifications:
- Maximum digging reach: 10,240 mm with 6,925 mm depth capability
- 6,000 mm boom and 2,964 mm rod configuration optimized for versatility
- 1.1-1.4 m³ bucket capacity with electronic fuel injection 4-stroke engine
- 11.4 rpm rotation speed and 35% climbing ability on challenging terrain
- Ground specific pressure of 52.1 kPa minimizes surface disturbance
- 400L fuel capacity and 220L hydraulic tank for extended operation cycles
Currently positioned in Gansu Province, this Chinese-manufactured model combines proven XCMG engineering with comprehensive technical capabilities for earthmoving, trenching, and material handling applications worldwide.
| Specifications | Value |
|---|---|
| No. | 1032073 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
