Product Description

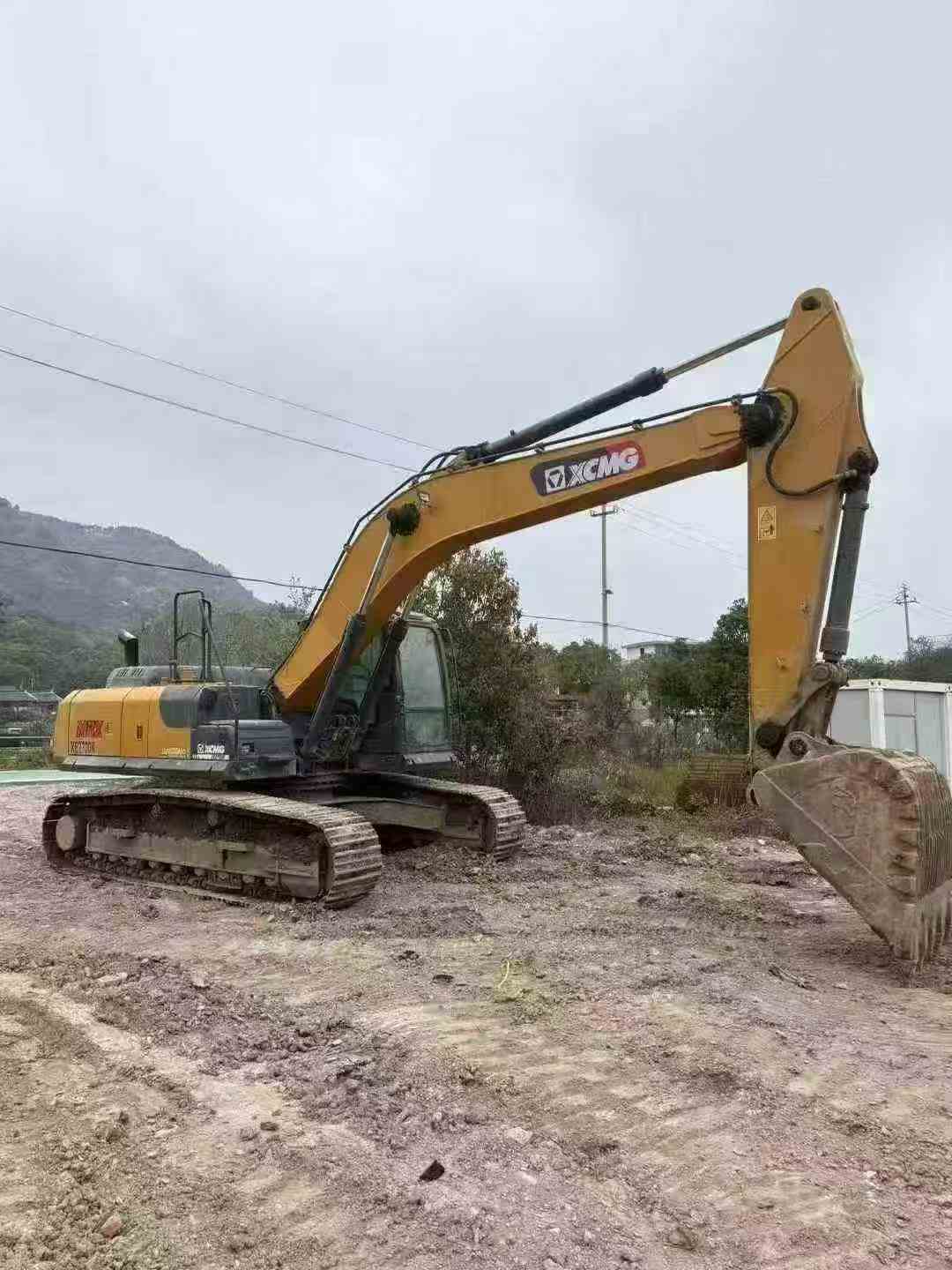

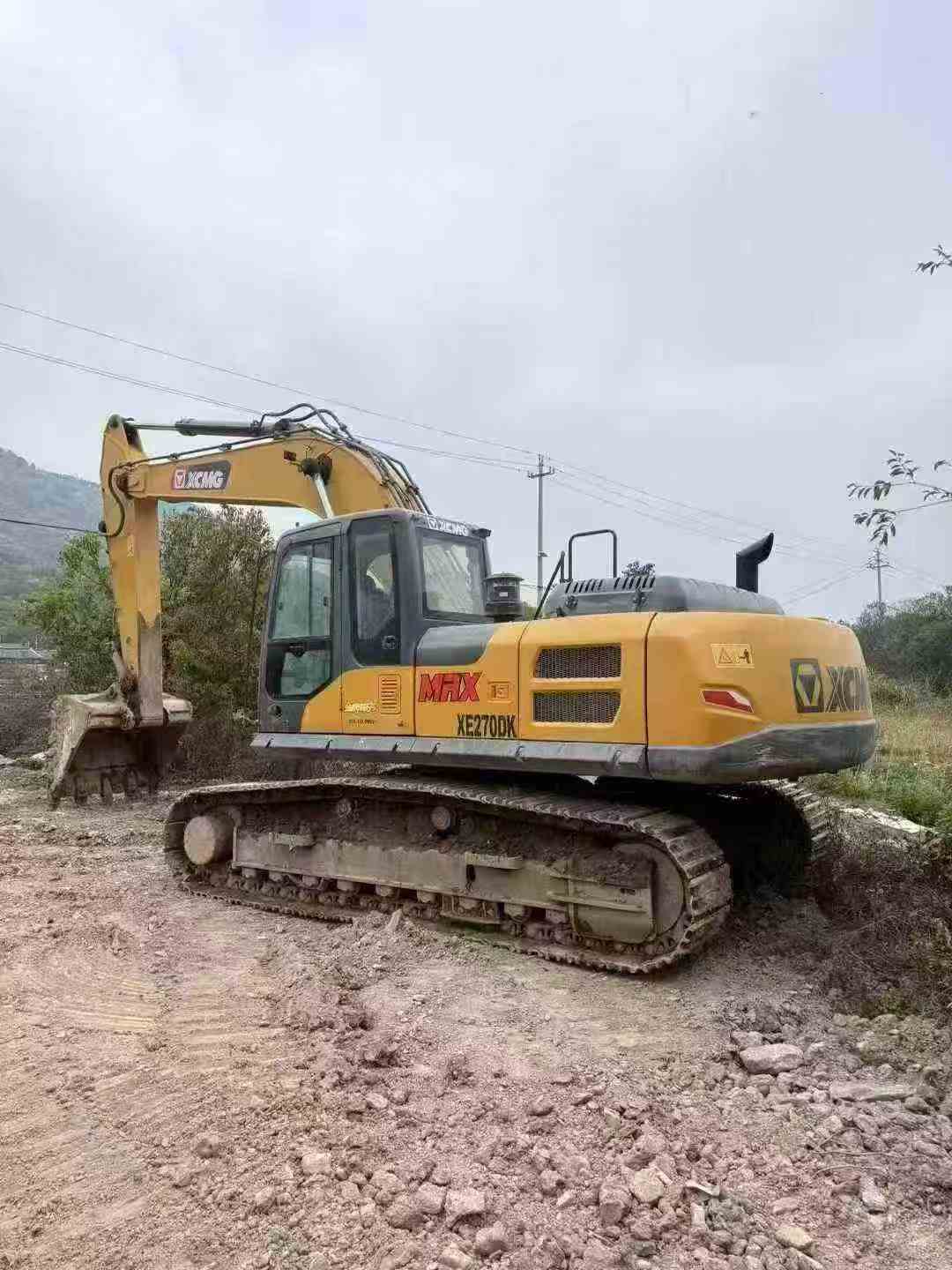

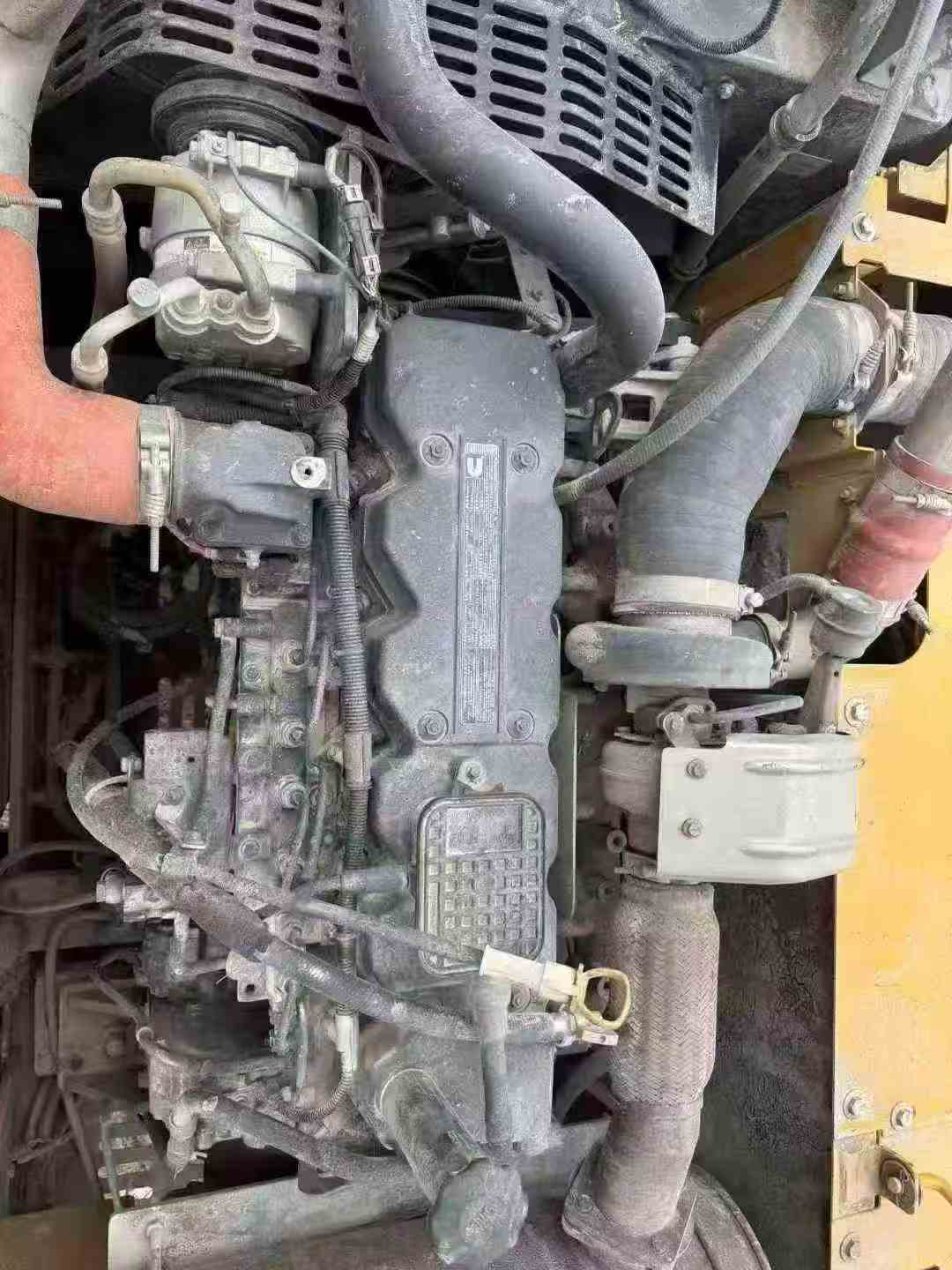

With a working weight of 26,500 kg and a bucket capacity ranging from 1.1 to 1.4 m³, the XCMG XE270DK excavator, manufactured in 2022, offers robust performance and reliability. Located in Zhejiang Wenzhou, this machine is equipped with a QSB7 engine, delivering 150 kW at 2050 rpm and a maximum torque of 825 N.m at 1250 rpm. The 6-cylinder, 6.7 L displacement engine ensures efficient power output, supported by an advanced EFI, 4-stroke, turbocharged, air-to-air cold system.
- Boasting a boom length of 6000 mm and rod length of 2964 mm, it provides extensive reach and versatility on the job site.
- The cabin is designed for optimal visibility, enhancing operator safety and precision during operations.
- Stability is a key feature, with a ground specific pressure of 52.1 Kpa, ensuring firm footing even on challenging terrains.
- Travel speed options of 6.1 km/h and 3.8 km/h, combined with a maximum tractive force of 220 kN, offer both speed and control.
| Specifications | Value |
|---|---|
| No. | 1033859 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |

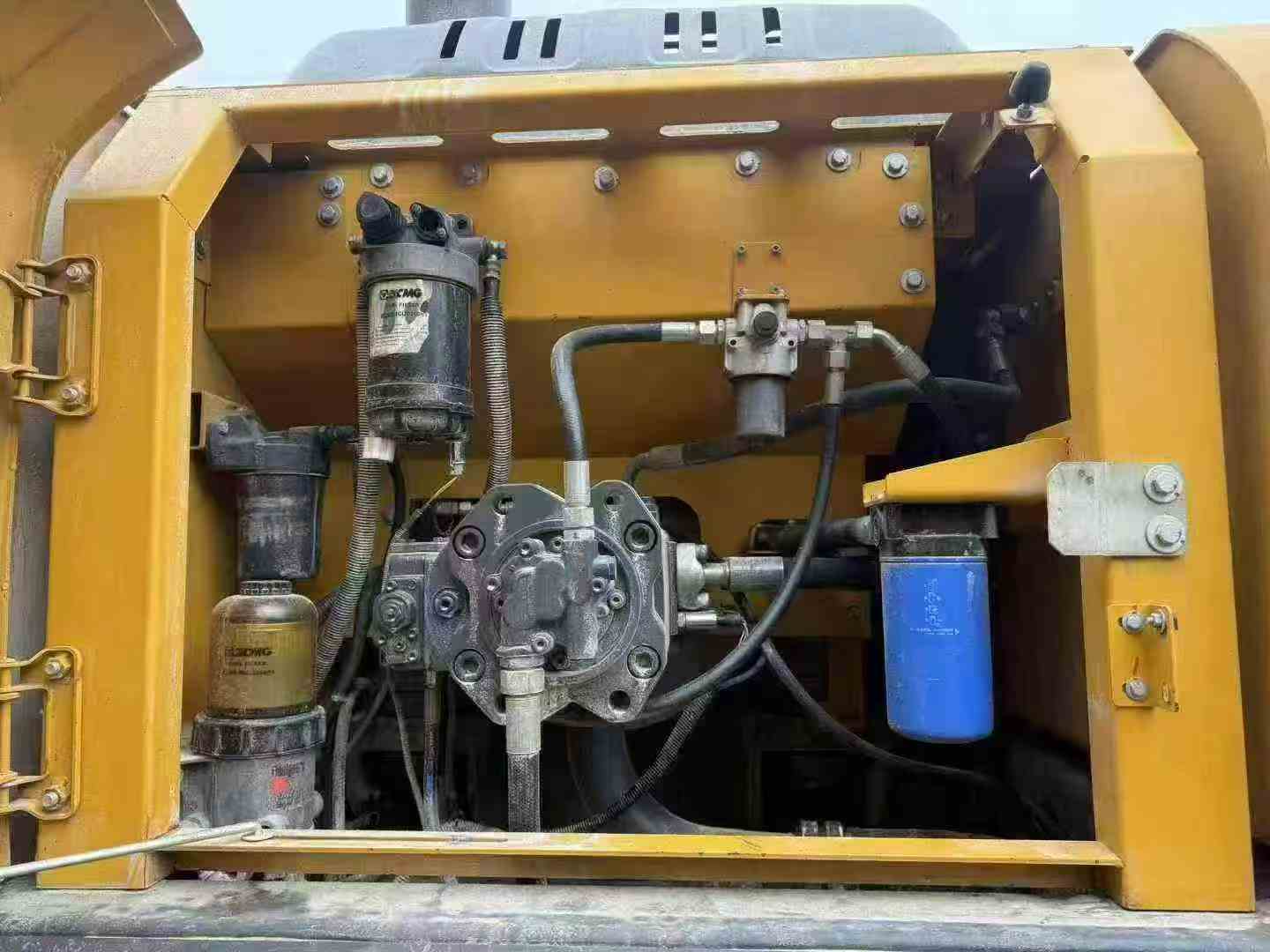

| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
