Product Description

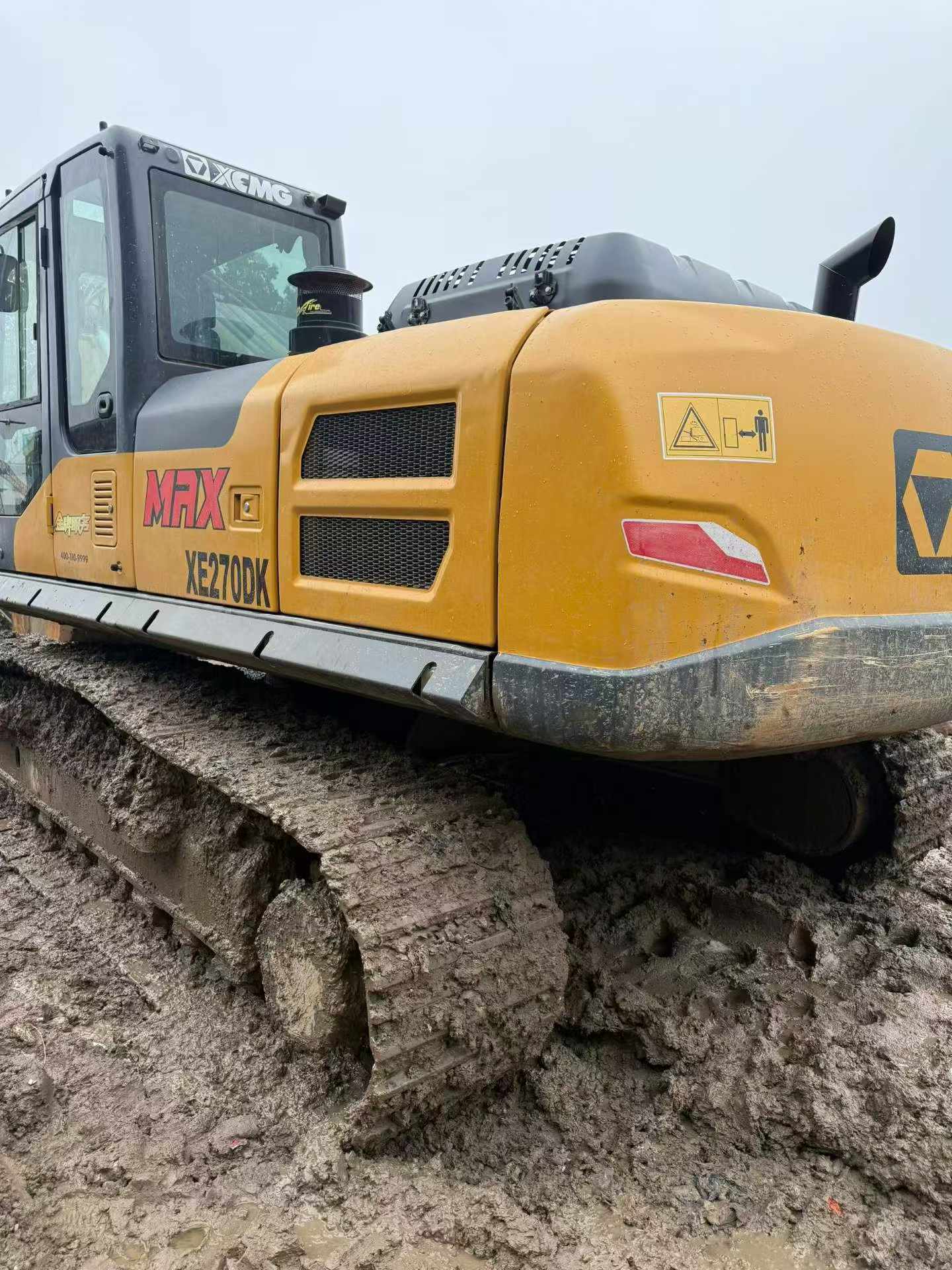

Proven performance meets long-term value in this 2022 XCMG XE270DK excavator, currently located in Zhejiang. With 27 tons of working weight and a robust 150kW QSB7 engine delivering 825 N·m of torque, this machine handles demanding excavation tasks with consistent reliability. The 10,240mm maximum digging radius and 6,925mm digging depth provide exceptional reach for mid-sized construction and earthmoving operations.
XCMG's global parts network ensures minimal downtime and straightforward maintenance scheduling—critical advantages in the used equipment market. The brand's strong resale value protects your investment, backed by widespread dealer support across Asia, Africa, and beyond. Key specifications include:
- Bucket capacity: 1.1-1.4 m³ with 185kN digging force
- Fuel efficiency: 400L tank with electronic fuel injection

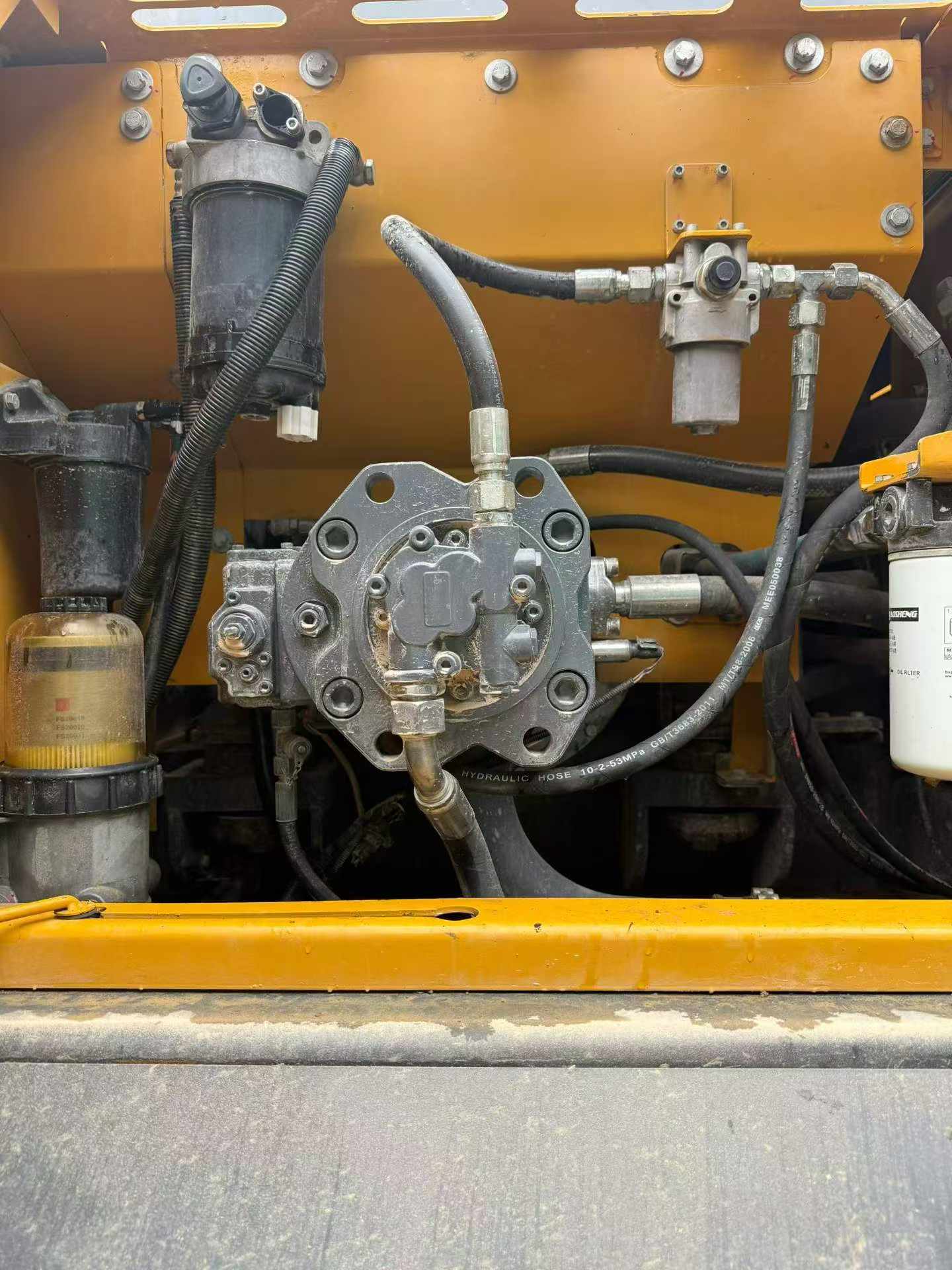

- Dual hydraulic pumps: 2×259 L/min flow rate
- Transport dimensions: 10,170×3,190×3,175mm
- Operational versatility: 35% climbing ability, 11.4 rpm rotation speed
Backed by China's largest construction machinery manufacturer, this XE270DK combines proven engineering with readily available OEM and aftermarket components, ensuring operational continui
| Specifications | Value |
|---|---|
| No. | 1050480 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

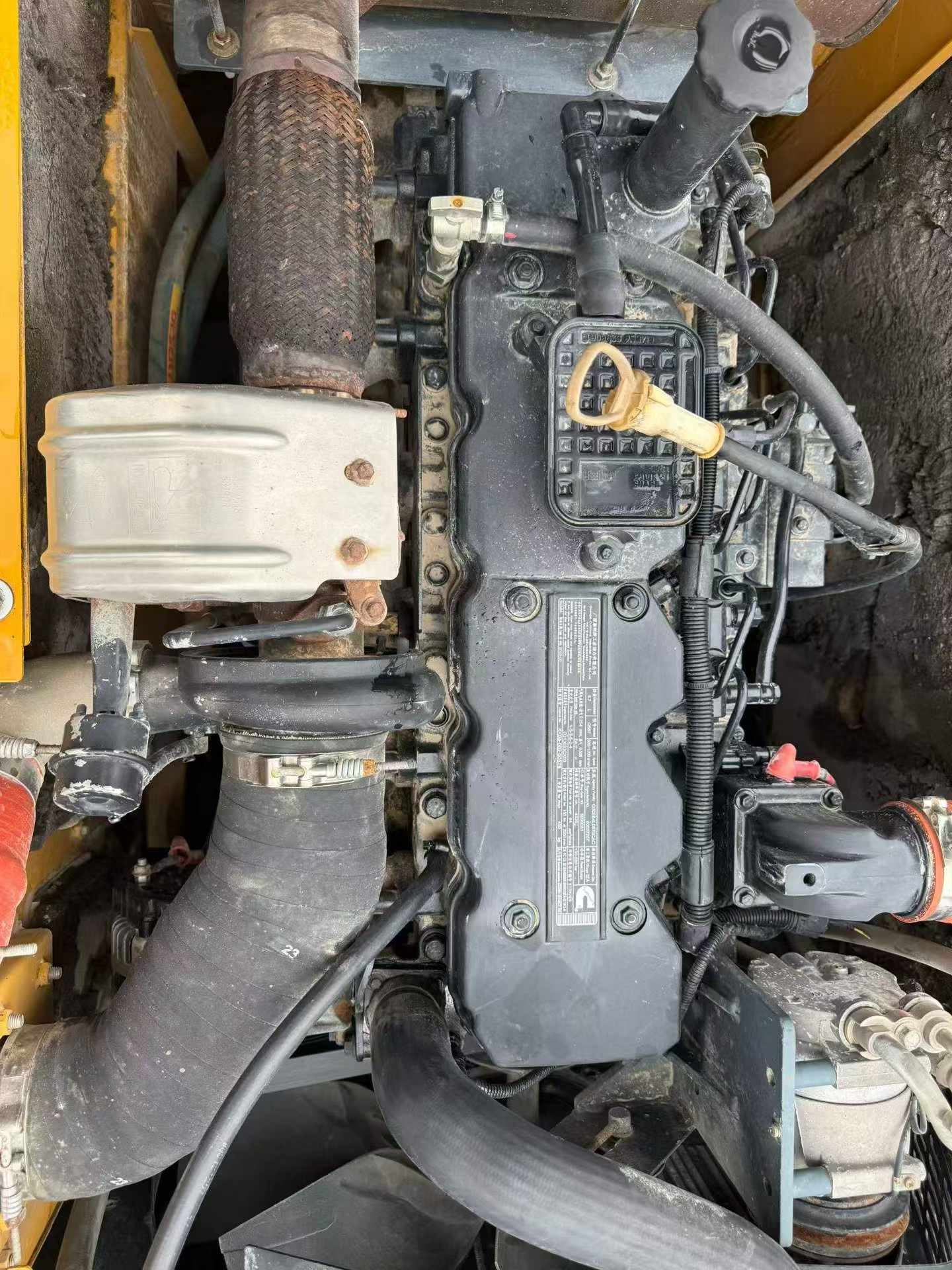

| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
