Product Description

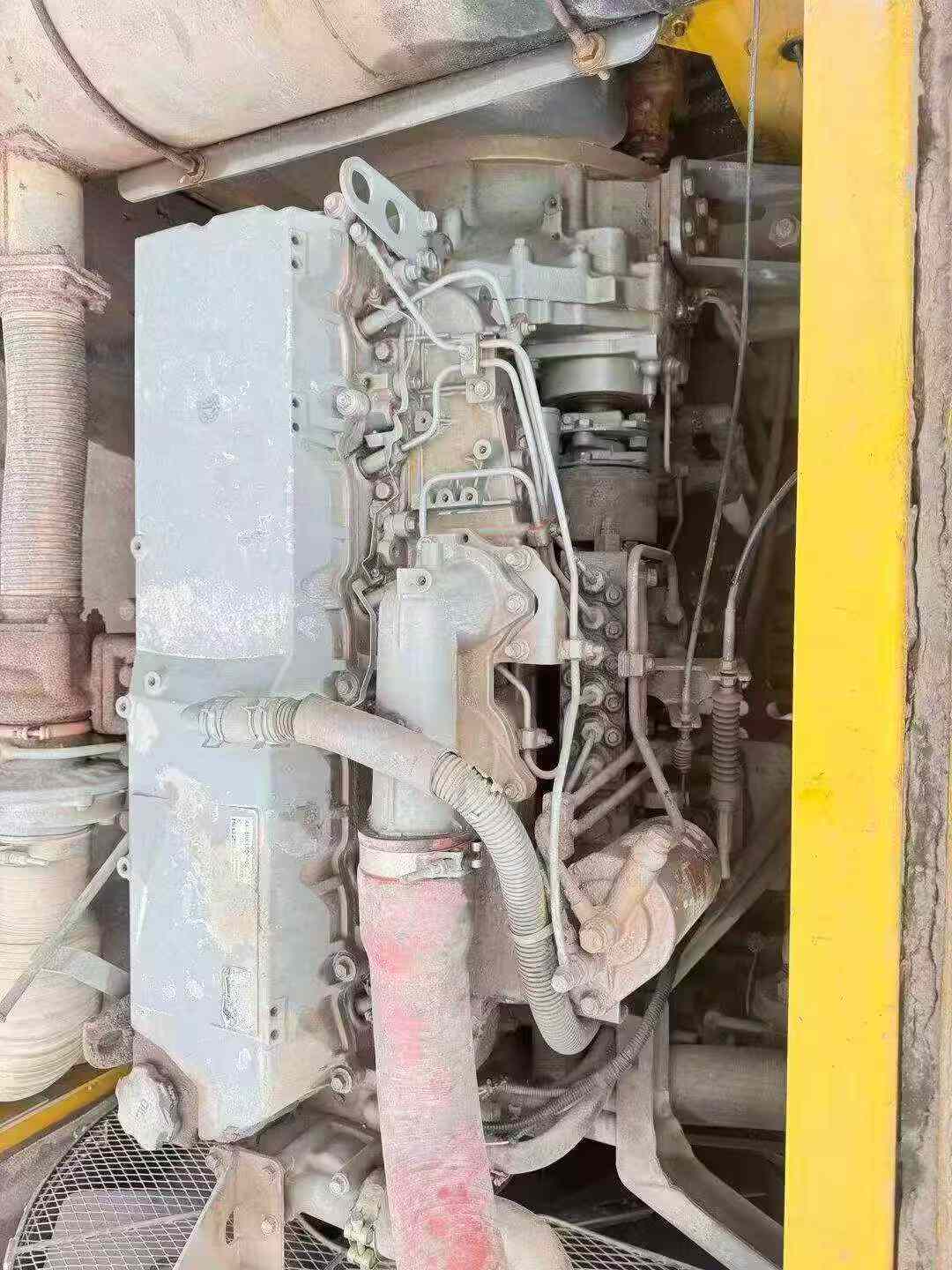

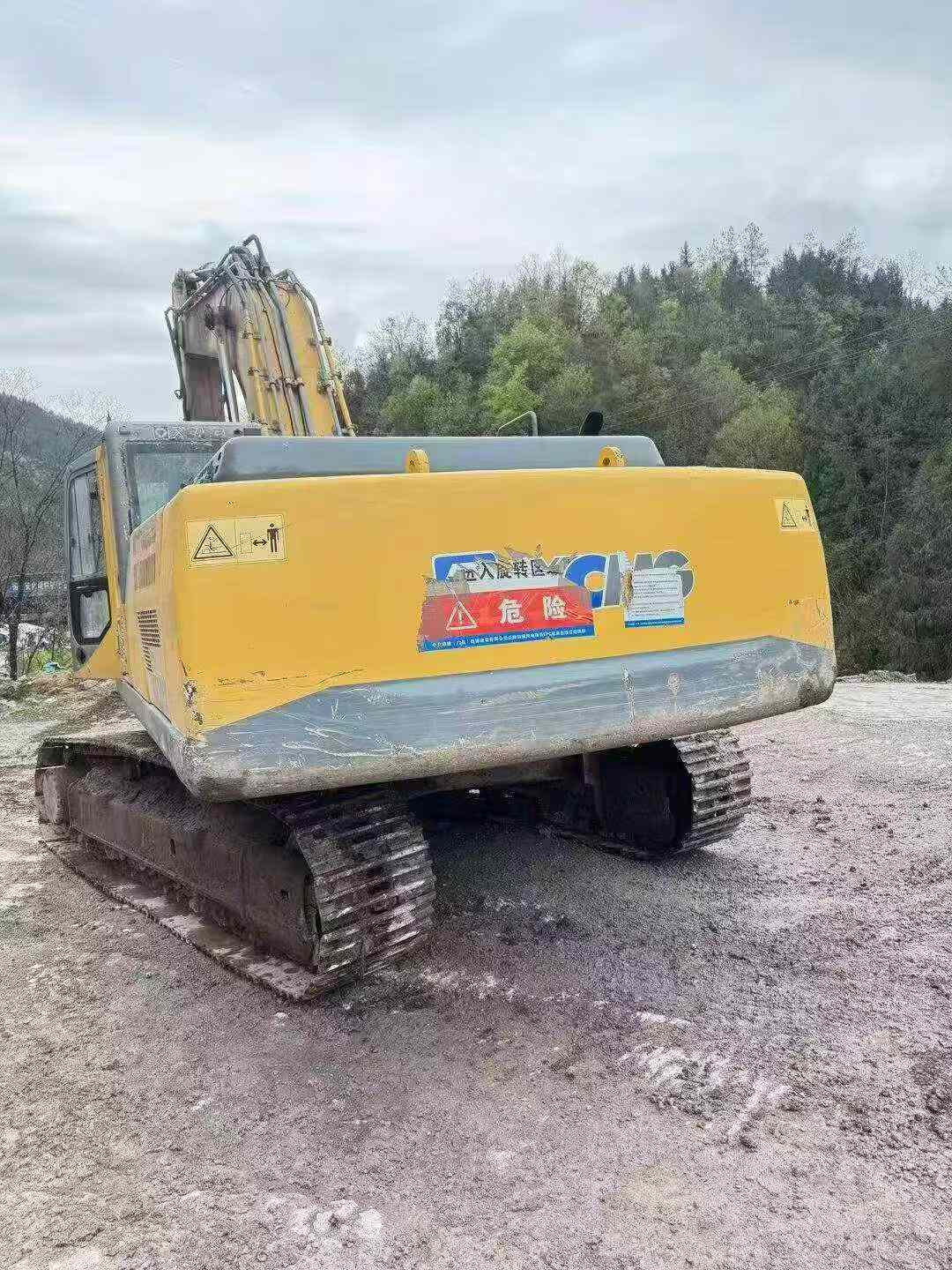

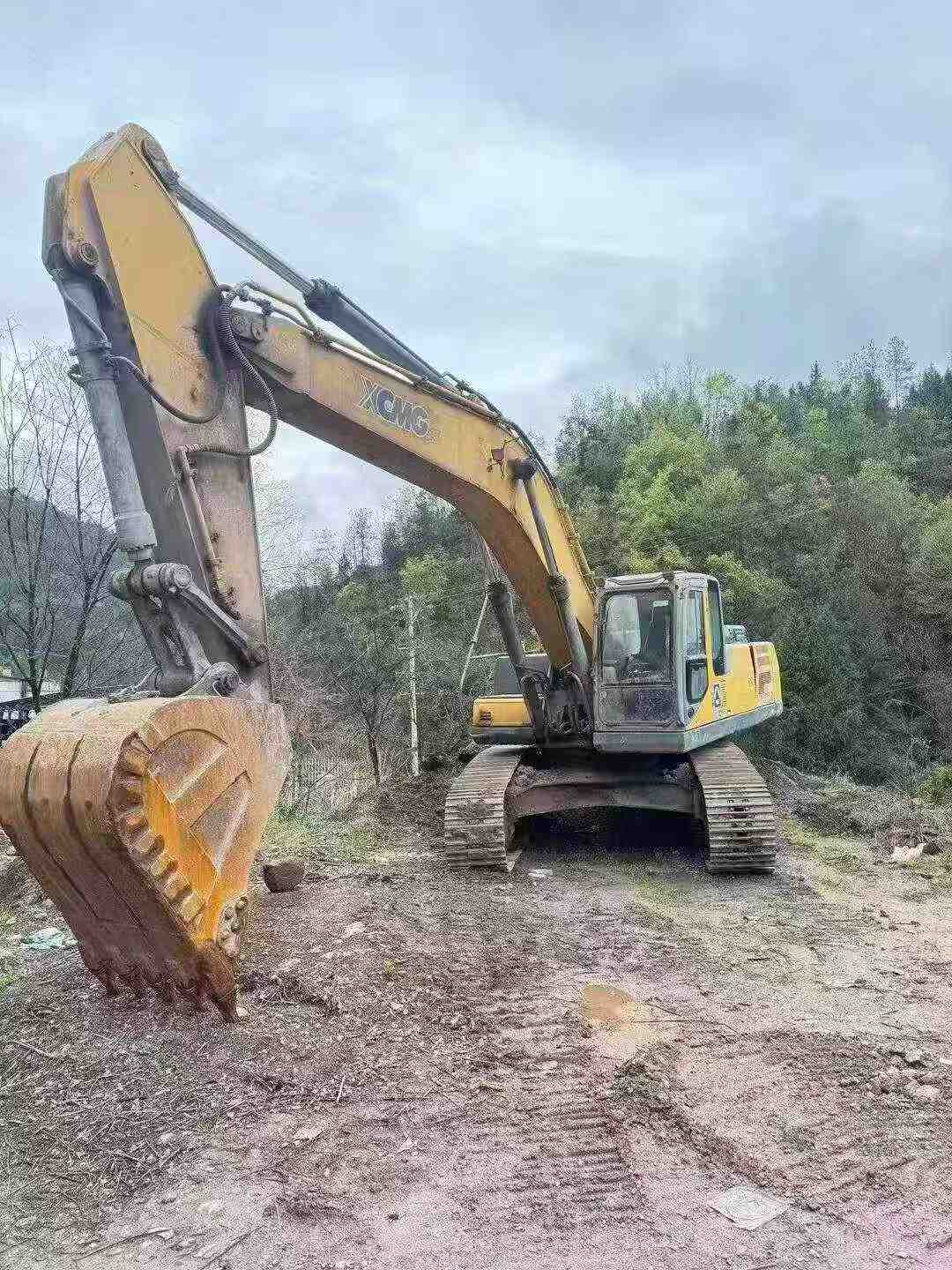

With a robust 33-ton working weight and a powerful ISUZU engine, this 2016 XCMG XE335C excavator is primed for immediate deployment in your most demanding projects. Located in 四川泸州, it excels in digging, grading, and demolition tasks, offering a bucket capacity of 1.4-1.6 m³ and a maximum digging depth of 6912 mm. Its 6-cylinder, 7.79L displacement engine delivers 184 kW at 2000 rpm, ensuring reliable performance under various conditions. Equipped with a 630L fuel tank and a 320L hydraulic tank, the XE335C can handle long hours on the job site without frequent refueling. The machine's ground specific pressure of 66 Kpa and a climbing ability of 35° make it versatile for challenging terrains. Ready to work, this excavator provides the power and precision needed to tackle any construction or excavation project.
| Specifications | Value |
|---|---|
| No. | 1033240 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33800 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | The ISUZU Isuzu |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 66 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 263 |
| Rod digging force (kN) | 225 |
| Travel speed (km/h) | 5.5/3.3 |
| Main overflow set pressure (Mpa) | 34.3/37 |
| Maximum flow of main pump (l/min) | 2*280 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot pump flow (L/min) | 3.9 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 320 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11226 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3330 |
| Counterweight ground clearance (mm) | 1170 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 4424 |
| Back end turning radius (mm) | 3450 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3183 |
| Maximum digging radius (mm) | 10720 |
| Maximum digging depth (mm) | 6912 |
| Maximum excavation height (mm) | 10360 |
| Maximum unloading height (mm) | 7134 |
| Maximum vertical digging depth (mm) | 6480 |
