Product Description

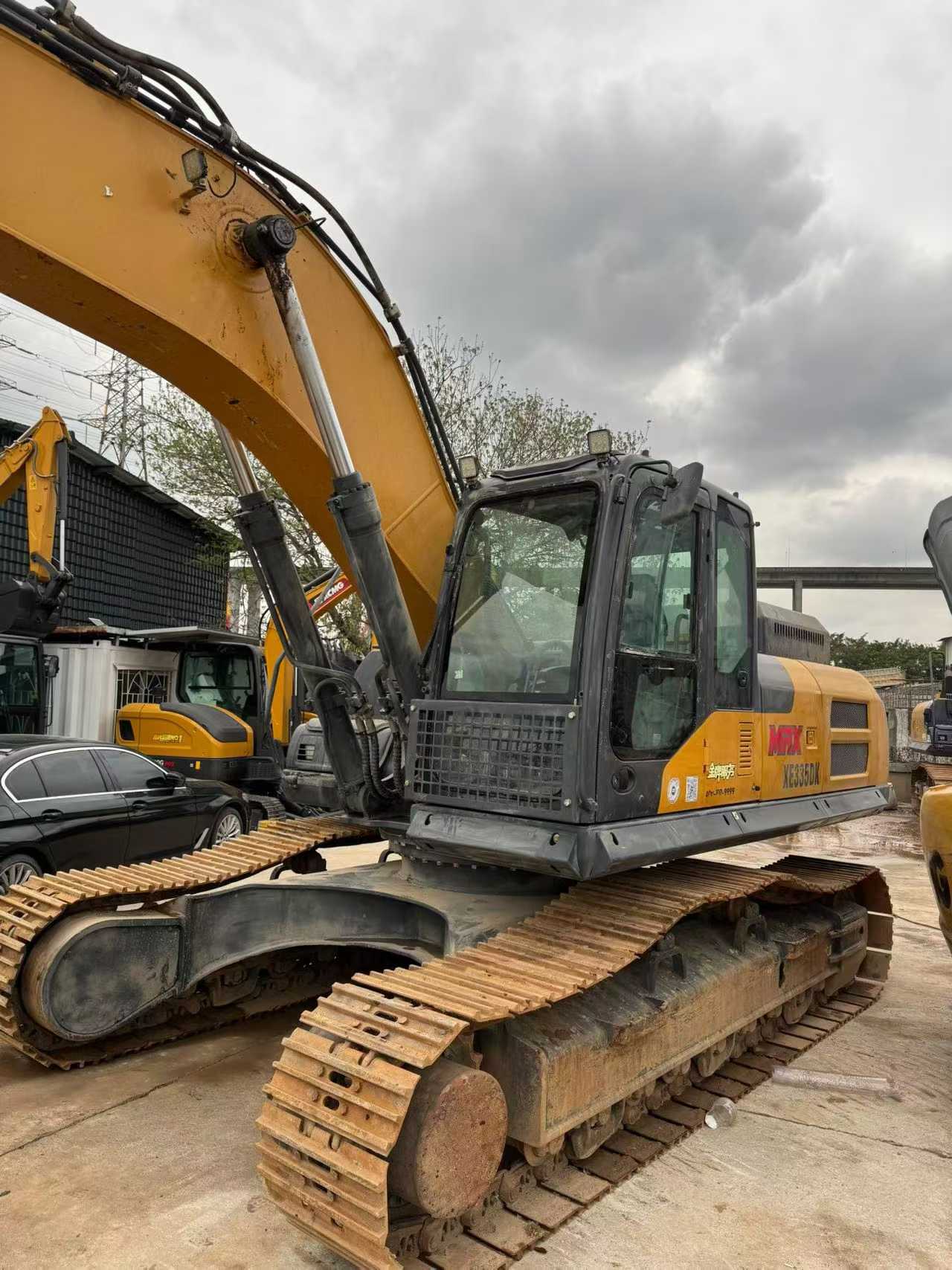

Commanding a 33-ton operational platform, this 2022 XE335C delivers precision handling through dual plunger pumps supplying 2×280 L/min flow capacity. Operators benefit from enhanced stability across uneven terrain, backed by 66 kPa ground-specific pressure and a robust 3,183mm track ground length. The ISUZU 6-cylinder engine generates 184 kW at 2,000 rpm, providing consistent power for demanding excavation cycles.

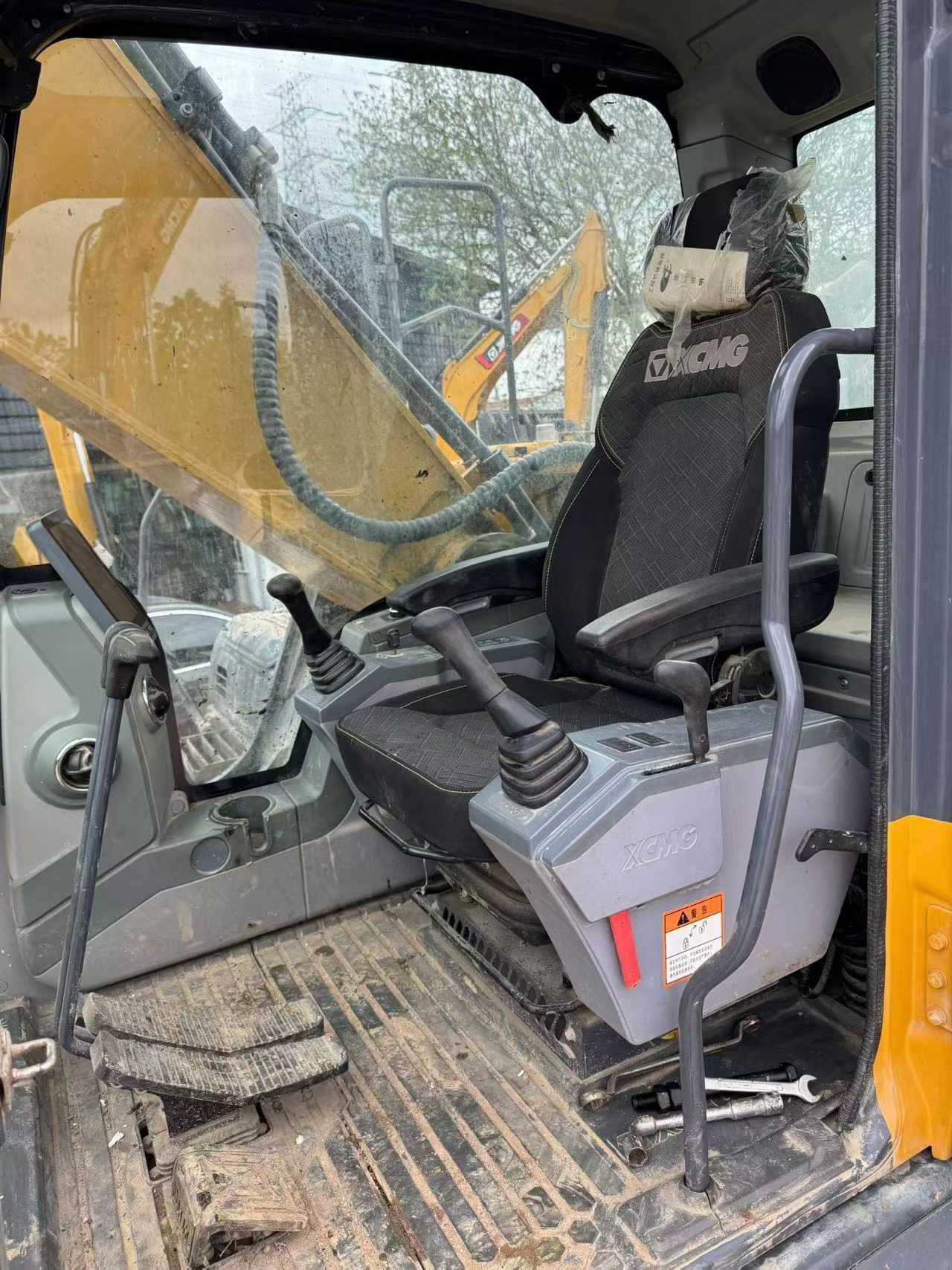

Cabin visibility supports confident operation with clear sightlines to the 1.4-1.6 m³ backhoe bucket and surrounding work zones. Hydraulic responsiveness remains sharp through dedicated circuits—34.3 MPa for travel functions and 26.5 MPa for rotation—enabling smooth multi-axis control. The 9.7 rpm swing speed and 4,424mm front turning radius facilitate productive positioning in confined sites.
- Maximum digging reach: 10,720mm with 6,912mm depth capability
- Digging forces: 263 kN (bucket) / 225 kN (rod)
- Dual-speed travel: 5.5/3.3 km/h for transport flexibility
- Located in Guangzhou, Guangdong—ready for deployment
| Specifications | Value |
|---|---|
| No. | 1034101 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33800 |

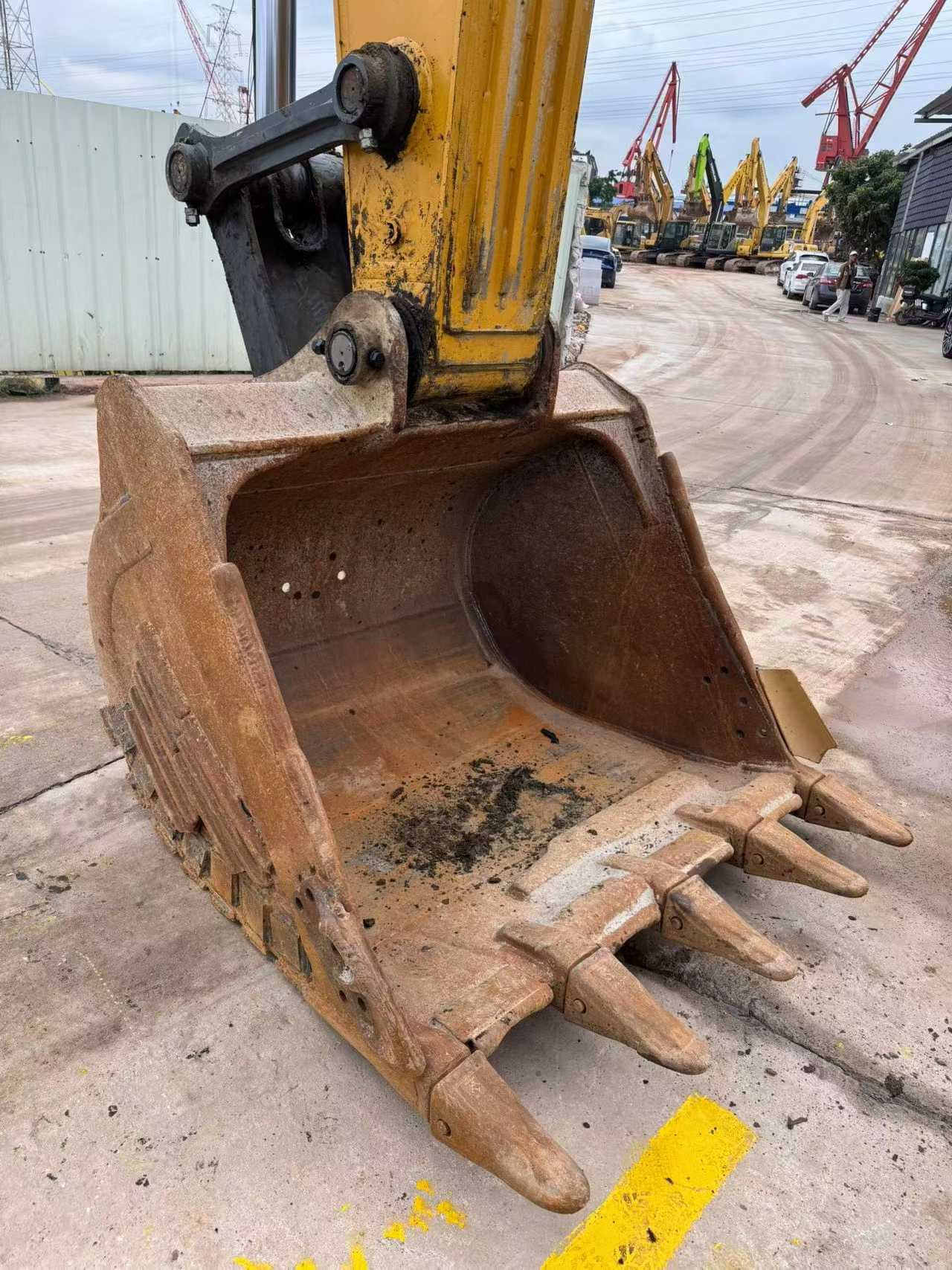

| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | The ISUZU Isuzu |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 66 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 263 |
| Rod digging force (kN) | 225 |
| Travel speed (km/h) | 5.5/3.3 |
| Main overflow set pressure (Mpa) | 34.3/37 |
| Maximum flow of main pump (l/min) | 2*280 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Hydraulic crushing pipeline is standard | no |

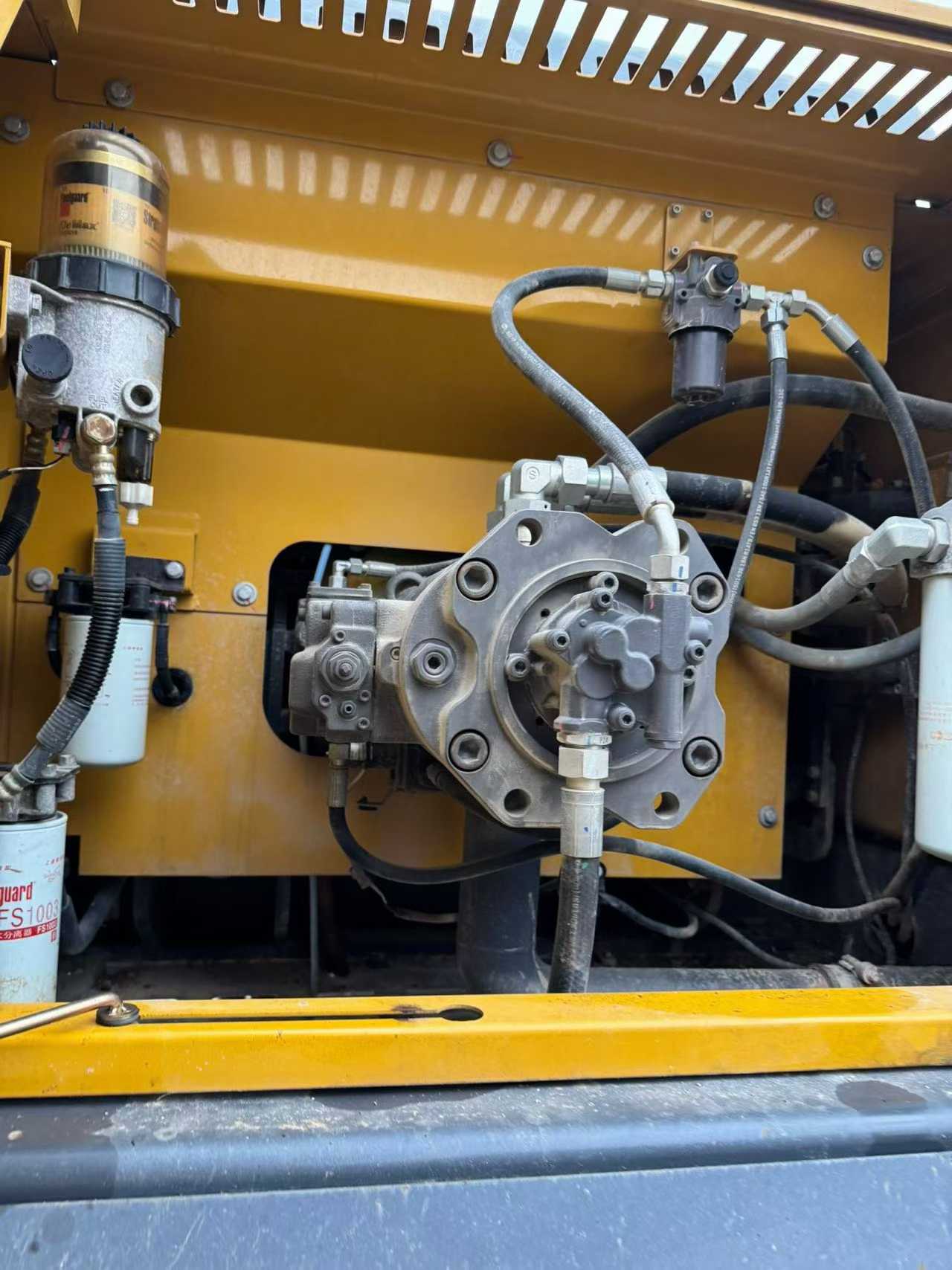

| Main pump type | Two plunger pumps |
| Pilot pump flow (L/min) | 3.9 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 320 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11226 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3330 |
| Counterweight ground clearance (mm) | 1170 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 4424 |
| Back end turning radius (mm) | 3450 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3183 |
| Maximum digging radius (mm) | 10720 |
| Maximum digging depth (mm) | 6912 |
| Maximum excavation height (mm) | 10360 |
| Maximum unloading height (mm) | 7134 |
| Maximum vertical digging depth (mm) | 6480 |
