HOME>>XCMG>>XCMG XE335DK

2021 XCMG XE335DK

1/4

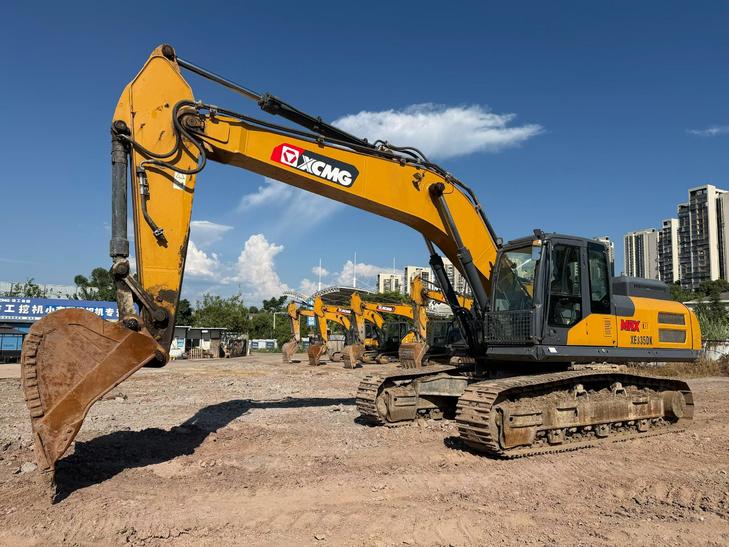

Buy XCMG XE335DK Used Excavator / 1
Buy XCMG XE335DK Used Excavator / 2
Buy XCMG XE335DK Used Excavator / 3
Buy XCMG XE335DK Used Excavator / 4

Product Description

2021 XCMG XE335DK hydraulic excavator available from Chongqing, China. This 35-ton class machine features XCMG's proven powertrain, hydraulic system, and structural components in solid working condition. The XE335DK combines reliable performance with the fuel efficiency and serviceability expected from XCMG's DK series.

Key features:

  • 2021 model year with low operational hours
  • 35-ton operating weight suitable for earthmoving, demolition, and general construction
  • XCMG hydraulic system delivering consistent bucket and arm performance
  • Available for purchase or lease with financing options
  • Currently located in Chongqing, China

This excavator is ready for deployment on medium to heavy-duty construction and excavation projects. Inspection reports and service history available upon request.

SpecificationsValue
No.1141572
Tonnage (tons)33
Working weight (kg)33500
Bucket capacity (m³)1.6-2.0
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSL9
Rated power (kw/rpm)202/2100
Displacement (L)8.9
Ground specific pressure (Kpa)61.4
Rotation speed (rpm)10.5
Climbing ability (%)70
Bucket digging force (kN)206
Rod digging force (kN)160
Maximum tractive force (kN)260
Travel speed (km/h)5.3/3.2
Maximum flow of main pump (l/min)2*272
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)30
Fuel Tank (L)520
Hydraulic Tank (L)270
Engine Oil changes (L)30
Total transport length (mm)10790
Total transport width (mm)3200
Total transport height (mm)3640
Counterweight ground clearance (mm)1198
Minimum ground clearance (mm)538
Minimum turning radius of front working device (mm)4125
Back end turning radius (mm)3360
Total track length (mm)4944
Track gauge (mm)2590
Track plate width (mm)600
Maximum digging radius (mm)10680
Maximum digging depth (mm)6735
Maximum excavation height (mm)10265
Maximum unloading height (mm)7110
Maximum vertical digging depth (mm)5010
see more

Overview

No.1141572

Brand Name:

XCMG

Model Number:

XE335DK

Year:

2021

Location:

Chongqing China

Pub Date
