2022 XCMG XE335DK

1/4
Buy XCMG XE335DK Used Excavator / 1

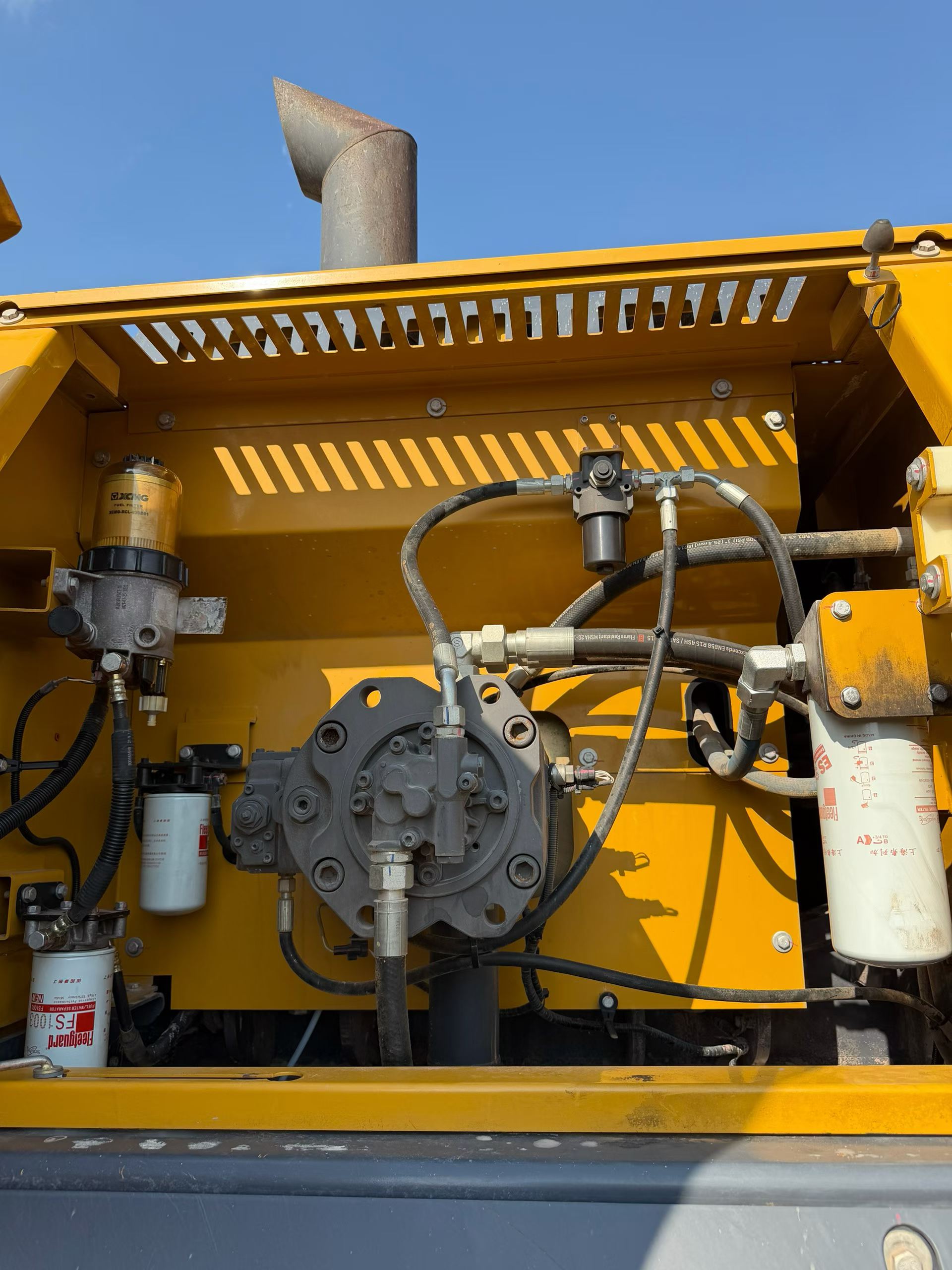

Buy XCMG XE335DK Used Excavator / 2

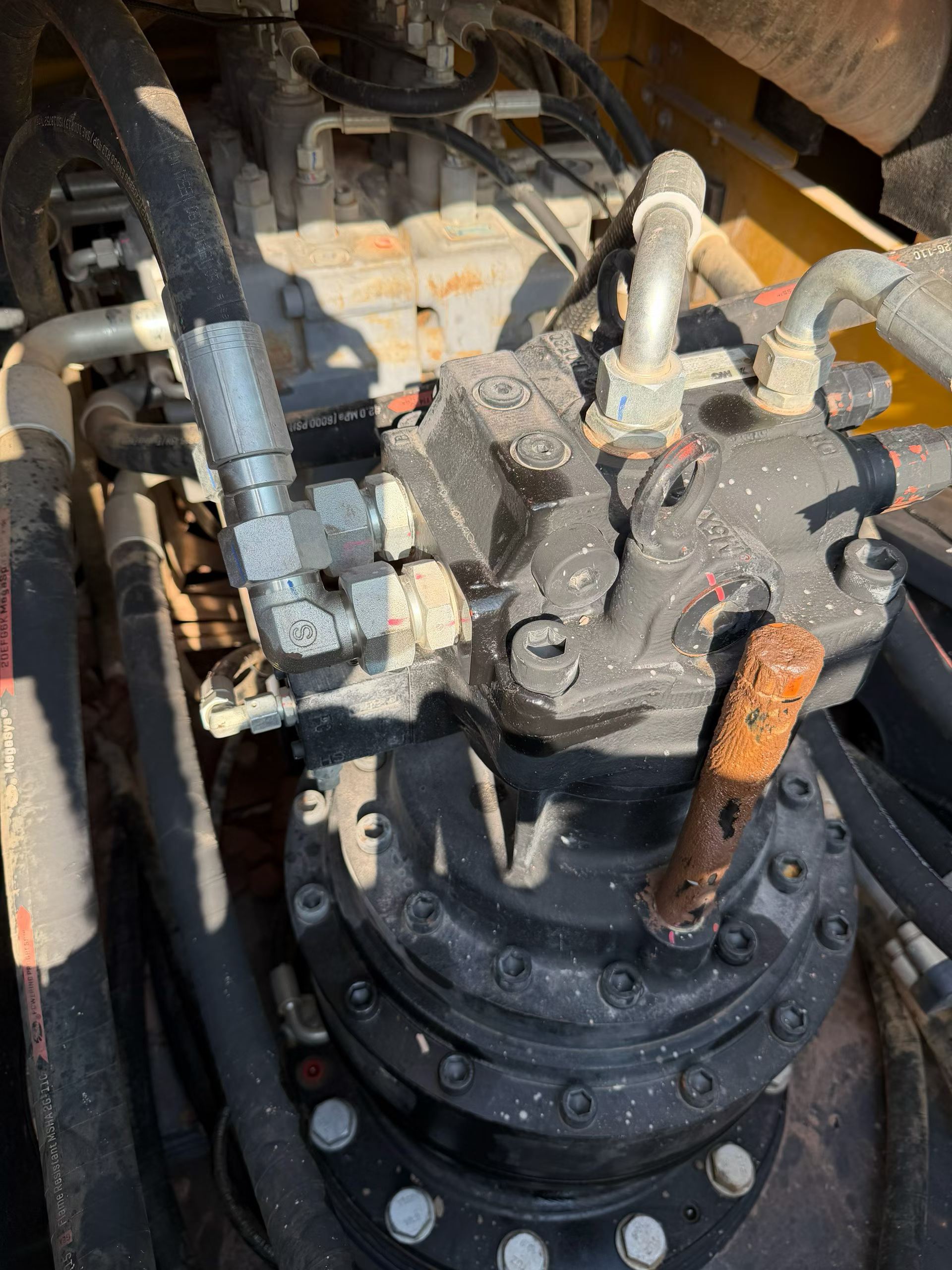

Buy XCMG XE335DK Used Excavator / 3

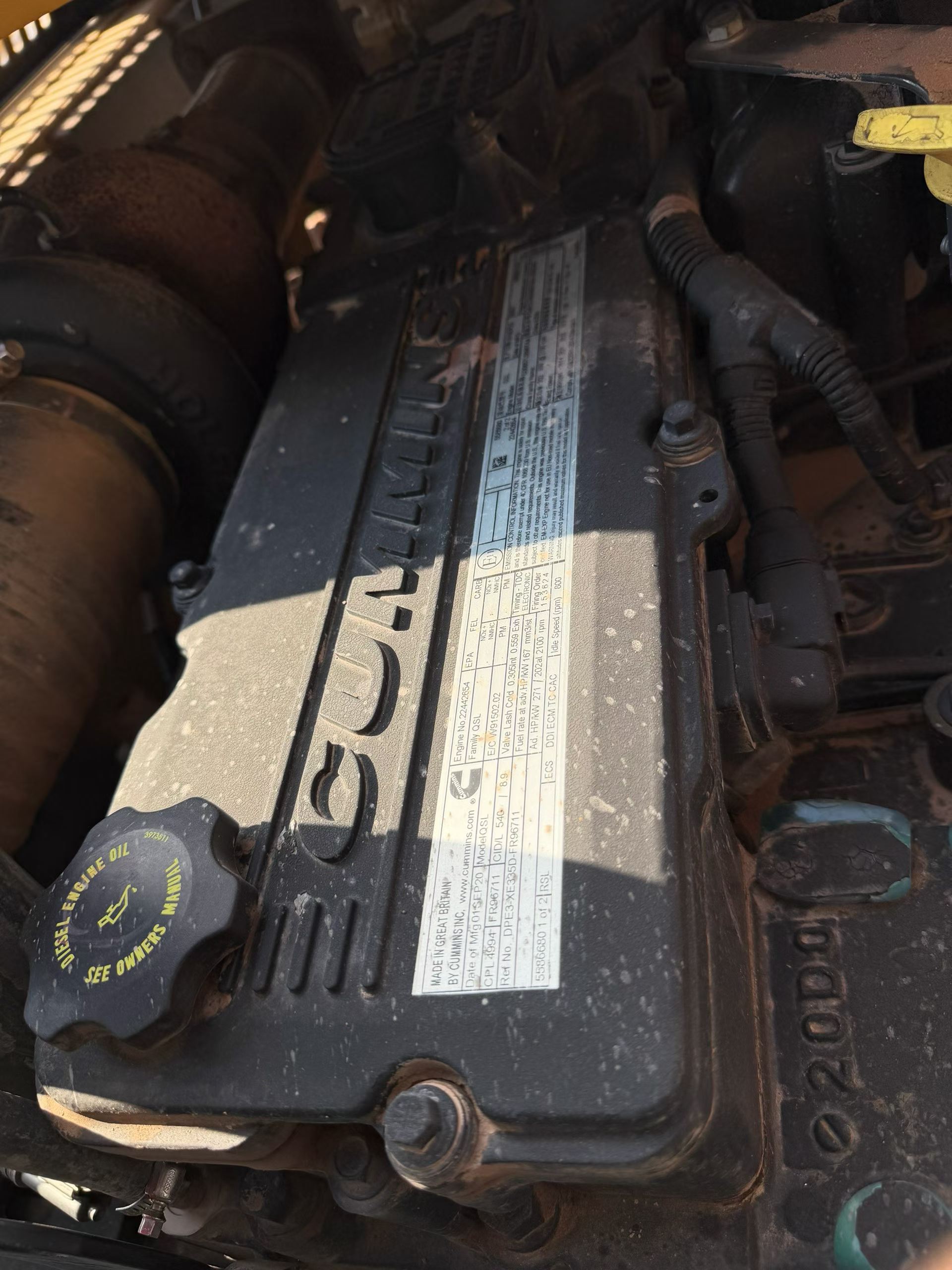

Buy XCMG XE335DK Used Excavator / 4

Product Description

This 2022 XCMG XE335DK excavator represents exceptional value in the used heavy equipment market. Located in Chongqing, China, this 35-ton class machine features XCMG's proven hydraulic system, engine, and structural components in excellent working condition. The XE335DK is engineered for demanding earthmoving, mining, and construction applications where reliability and performance are critical.

  • Year: 2022
  • Model: XCMG XE335DK
  • Operating Weight: ~35 tons
  • Location: Chongqing, China
  • Condition: Core components verified and operational
  • Application: Excavation, material handling, site development

This unit is priced competitively for immediate sale. XCMG's global service network ensures parts availability and technical support. Suitable for contractors and fleet operators seeking proven Chinese-manufactured equipment at reduced capital cost. Inspection welcome by appointment.

SpecificationsValue
No.1072457
Tonnage (tons)33
Working weight (kg)33500
Bucket capacity (m³)1.6-2.0
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSL9
Rated power (kw/rpm)202/2100
Displacement (L)8.9
Ground specific pressure (Kpa)61.4
Rotation speed (rpm)10.5
Climbing ability (%)70
Bucket digging force (kN)206
Rod digging force (kN)160
Maximum tractive force (kN)260
Travel speed (km/h)5.3/3.2
Maximum flow of main pump (l/min)2*272
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)30
Fuel Tank (L)520
Hydraulic Tank (L)270
Engine Oil changes (L)30
Total transport length (mm)10790
Total transport width (mm)3200
Total transport height (mm)3640
Counterweight ground clearance (mm)1198
Minimum ground clearance (mm)538
Minimum turning radius of front working device (mm)4125
Back end turning radius (mm)3360
Total track length (mm)4944
Track gauge (mm)2590
Track plate width (mm)600
Maximum digging radius (mm)10680
Maximum digging depth (mm)6735
Maximum excavation height (mm)10265
Maximum unloading height (mm)7110
Maximum vertical digging depth (mm)5010
see more

Overview

No.1072457

Brand Name:

XCMG

Model Number:

XE335DK

Year:

2022

Location:

Chongqing China

Pub Date
