Product Description

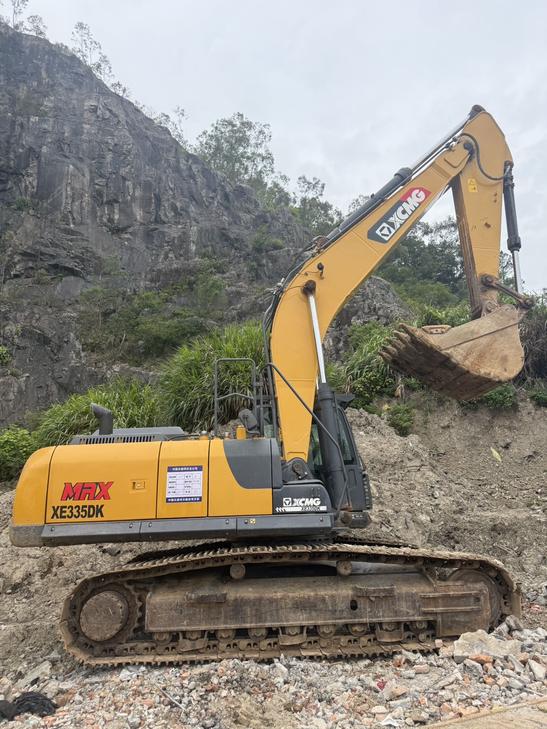

This 2022 XCMG XE335DK excavator represents exceptional value in the used heavy equipment market. Located in Zhejiang, China, this machine features original undercarriage components including all four wheels and track assembly. The chassis retains most of its factory paint, indicating careful operation primarily in earthmoving applications.
Key highlights include:
- Low operating hours with major components eligible for warranty coverage
- High-specification configuration delivering productivity comparable to larger XE370 and XE380 models
- Industry-leading fuel efficiency in its class
- Well-maintained condition with original parts throughout
The XE335DK is recognized for balancing power and fuel economy, making it suitable for contractors seeking reliable performance in excavation and earthmoving operations. Available for inspection in Zhejiang province.
| Specifications | Value |
|---|---|
| No. | 1075724 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33500 |
| Bucket capacity (m³) | 1.6-2.0 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 202/2100 |
| Displacement (L) | 8.9 |
| Ground specific pressure (Kpa) | 61.4 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 206 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 260 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 2*272 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 10790 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1198 |
| Minimum ground clearance (mm) | 538 |
| Minimum turning radius of front working device (mm) | 4125 |
| Back end turning radius (mm) | 3360 |
| Total track length (mm) | 4944 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10680 |
| Maximum digging depth (mm) | 6735 |
| Maximum excavation height (mm) | 10265 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5010 |
