Product Description

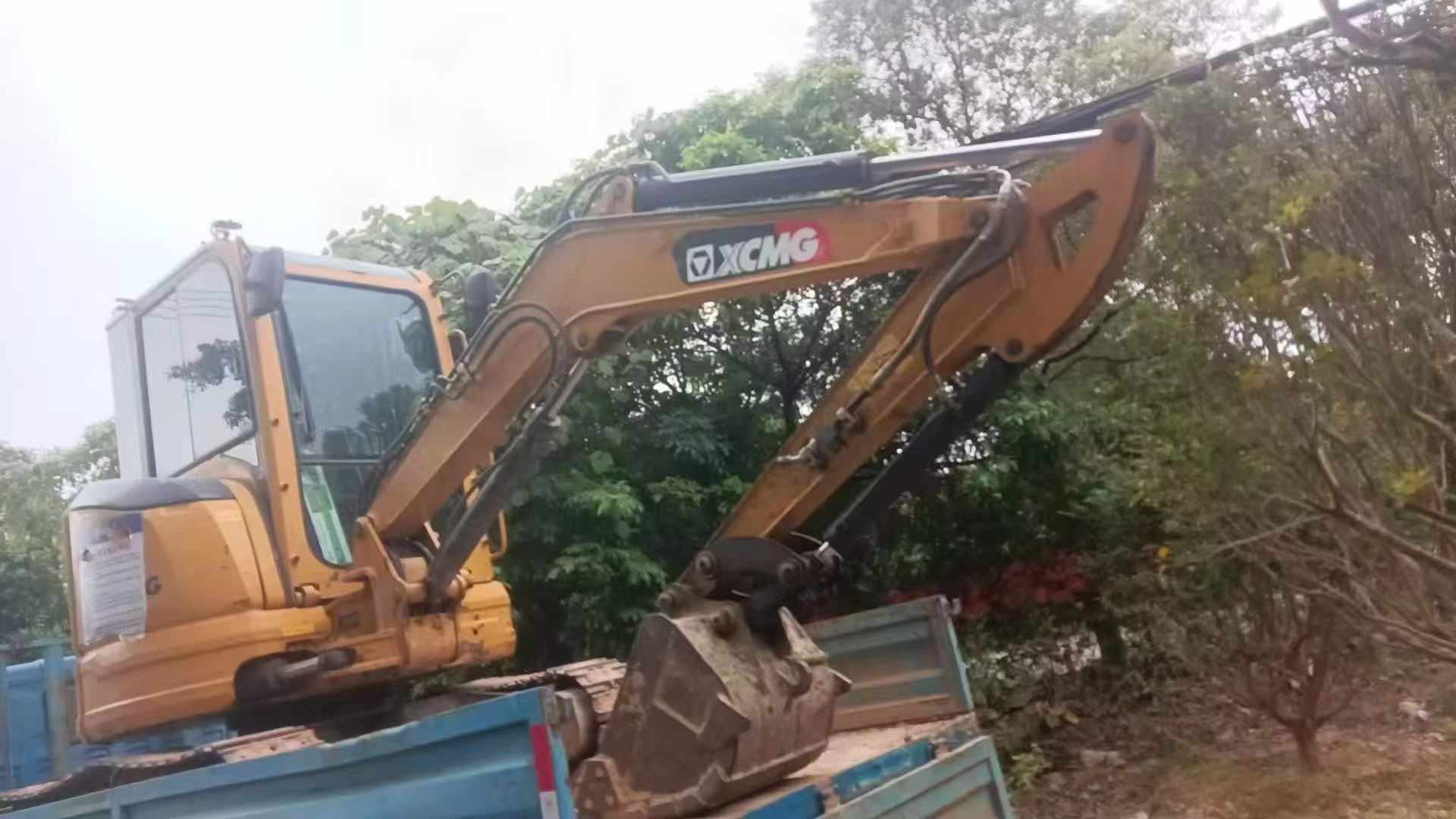

With a robust 22.2 kW engine and a working weight of 4,200 kg, the XCMG XE35U is designed for demanding tasks. Located in 浙江杭州, this 2016 model is site-ready, equipped with a 0.12 m³ bucket and a powerful 28.6 kN digging force, making it ideal for excavation and grading. Its 2560 mm boom and 1350 mm rod enable efficient digging depths up to 3060 mm and maximum digging heights of 5000 mm. The machine's 3TNV88-B engine, featuring water-cooling and direct injection, ensures reliable performance. With a travel speed of 3.6/2.2 km/h and a maximum tractive force of 31.6 kN, it handles challenging terrains effortlessly. The XE35U is also equipped with a 40 L fuel tank and a 45 L hydraulic tank, ensuring long operational hours without frequent refueling. Ready to tackle your next project, this excavator is a dependable choice for construction and demolition tasks.
| Specifications | Value |
|---|---|
| No. | 1003865 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

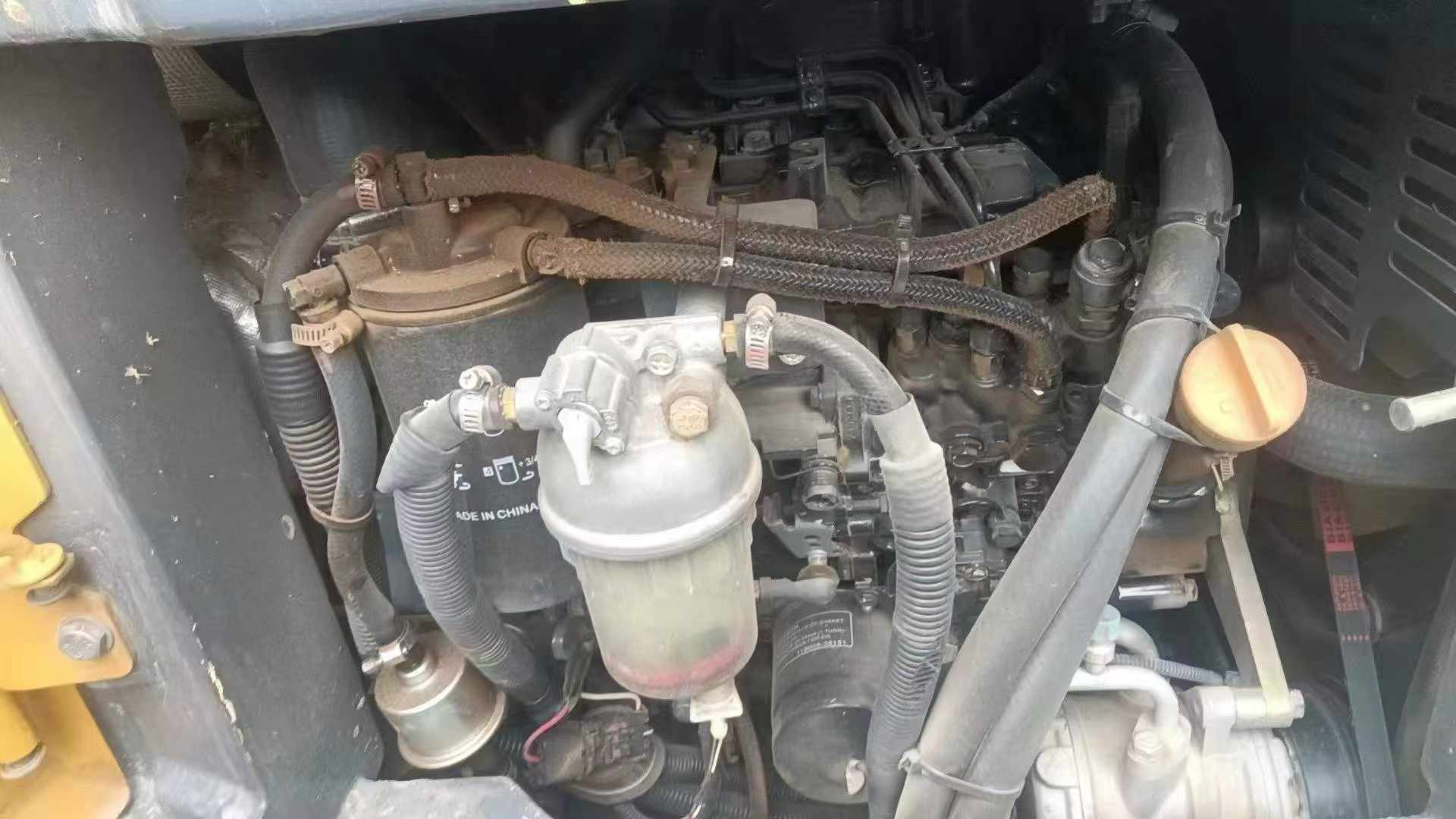

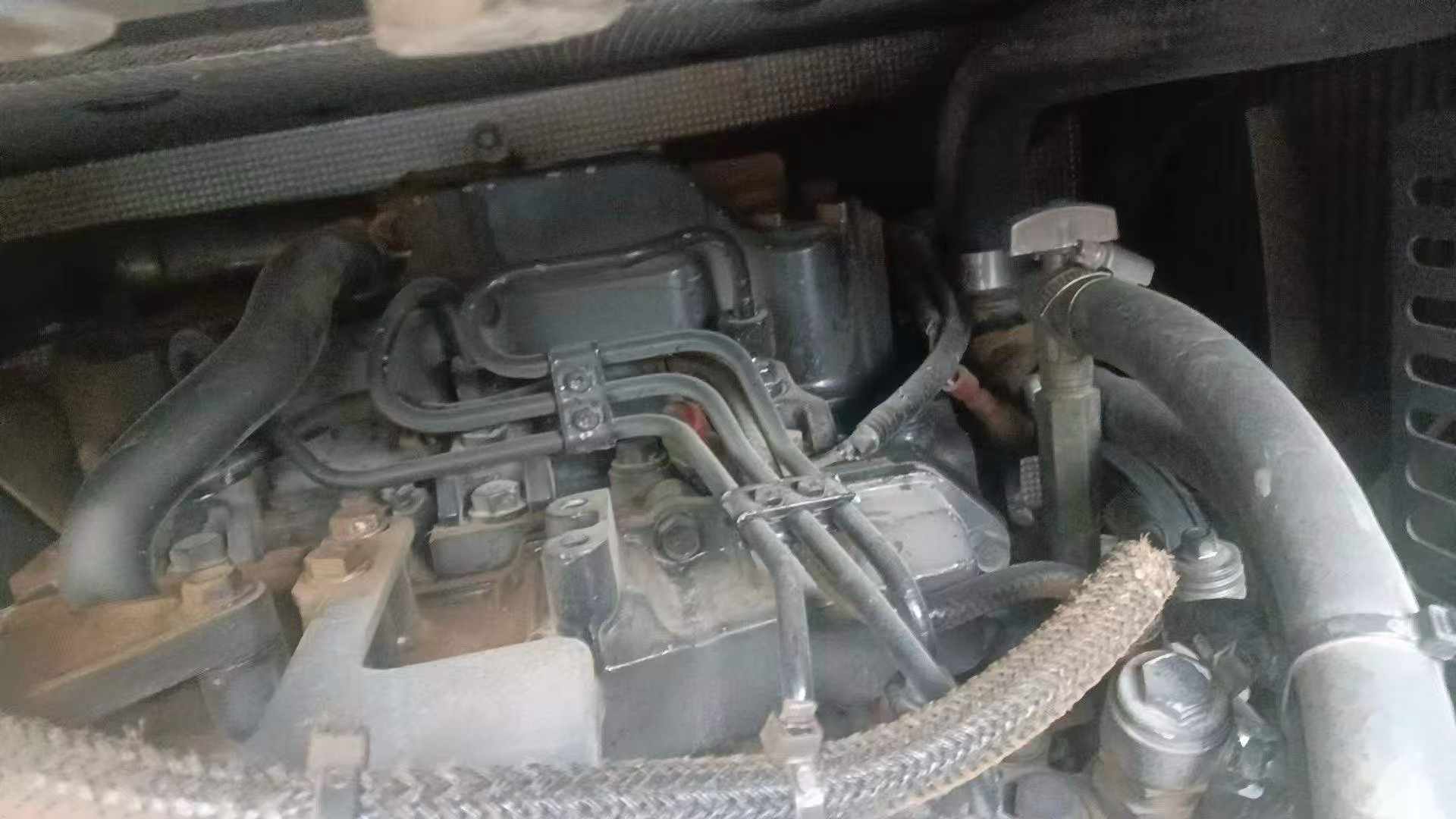

| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
