Product Description

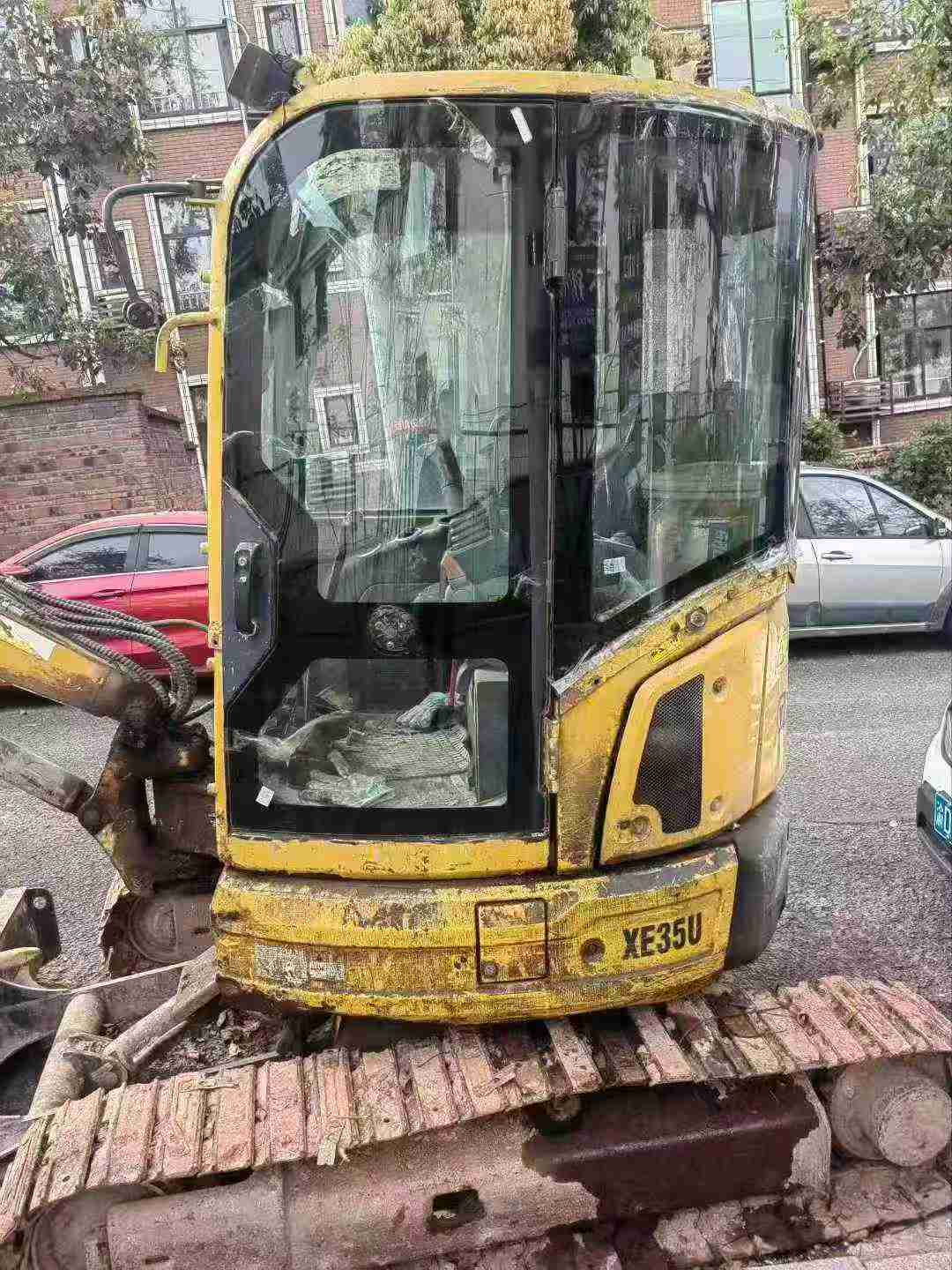

Expand your operational capacity with this 2019 XCMG XE35U compact excavator, a proven 4-ton workhorse engineered for contractors managing multiple jobsites simultaneously. Powered by a reliable 3TNV88-B engine delivering 22.2 kW at 2400 rpm, this Sichuan-based unit integrates seamlessly into existing fleets requiring consistent performance across utility work, landscaping, and urban construction projects.
Built for versatility, this machine combines a 2560mm boom with a 1350mm rod to achieve a 5300mm maximum digging radius and 3060mm depth—specifications that match demanding project requirements without oversizing your equipment roster. With a compact transport footprint of 4970mm × 1740mm × 2535mm and 9 rpm rotation speed, operators transition efficiently between confined spaces and open terrain.
- Working weight: 4200 kg with optimal 36.6 kPa ground pressure
- Hydraulic performance: 108 l/min main pump flow, 28.6 kN bucket digging force
- Dual travel speeds (3.6/2.2 km/h) for varied site conditions
- Water-cooled 1.642L displacement engine with 40L fuel capacity
- 30% climbing ability for challenging gradients
Currently located in Luzhou, Sichuan, this direct-injectio
| Specifications | Value |
|---|---|
| No. | 1029934 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
