Product Description

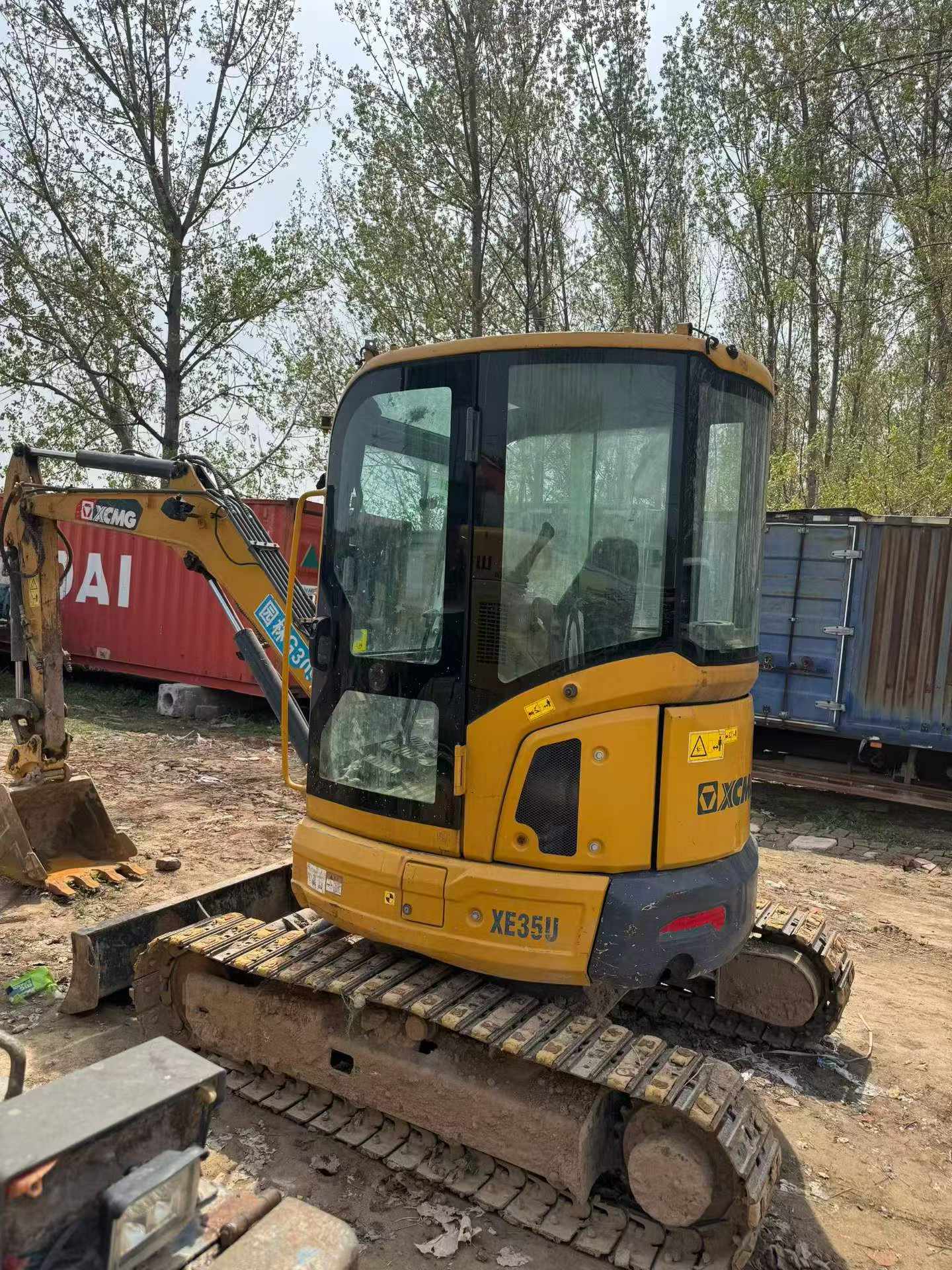

Maximize your budget without compromising capability with this 2020 XCMG XE35U mini excavator from Hangzhou, Zhejiang. Engineered for precision work in confined spaces, this 4-ton compact machine delivers exceptional performance at a fraction of new equipment cost. Powered by a robust 3TNV88-B engine producing 22.2 kW, it combines reliable water-cooled operation with impressive digging force—28.6 kN bucket force and 20.3 kN arm force—enabling efficient material handling across construction, landscaping, and utility projects.
- Maximum digging depth of 3,060 mm and reach of 5,300 mm for versatile jobsite applications
- Compact dimensions (4,970 mm length × 1,740 mm width) ensure easy transport and maneuverability
- 108 l/min hydraulic flow and 9 rpm rotation speed boost productivity
- 0.12 m³ bucket capacity optimized for small to medium-scale earthmoving
- 30% grading ability and 31.6 kN tractive force for challenging terrain
- Low operating costs with proven Chinese manufacturing quality
Currently available in Hangzhou with minimal operational hours since 2020 production. Invest smart—acquire near-new performance and comprehensive specifications while preserving capital
| Specifications | Value |
|---|---|
| No. | 1047811 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

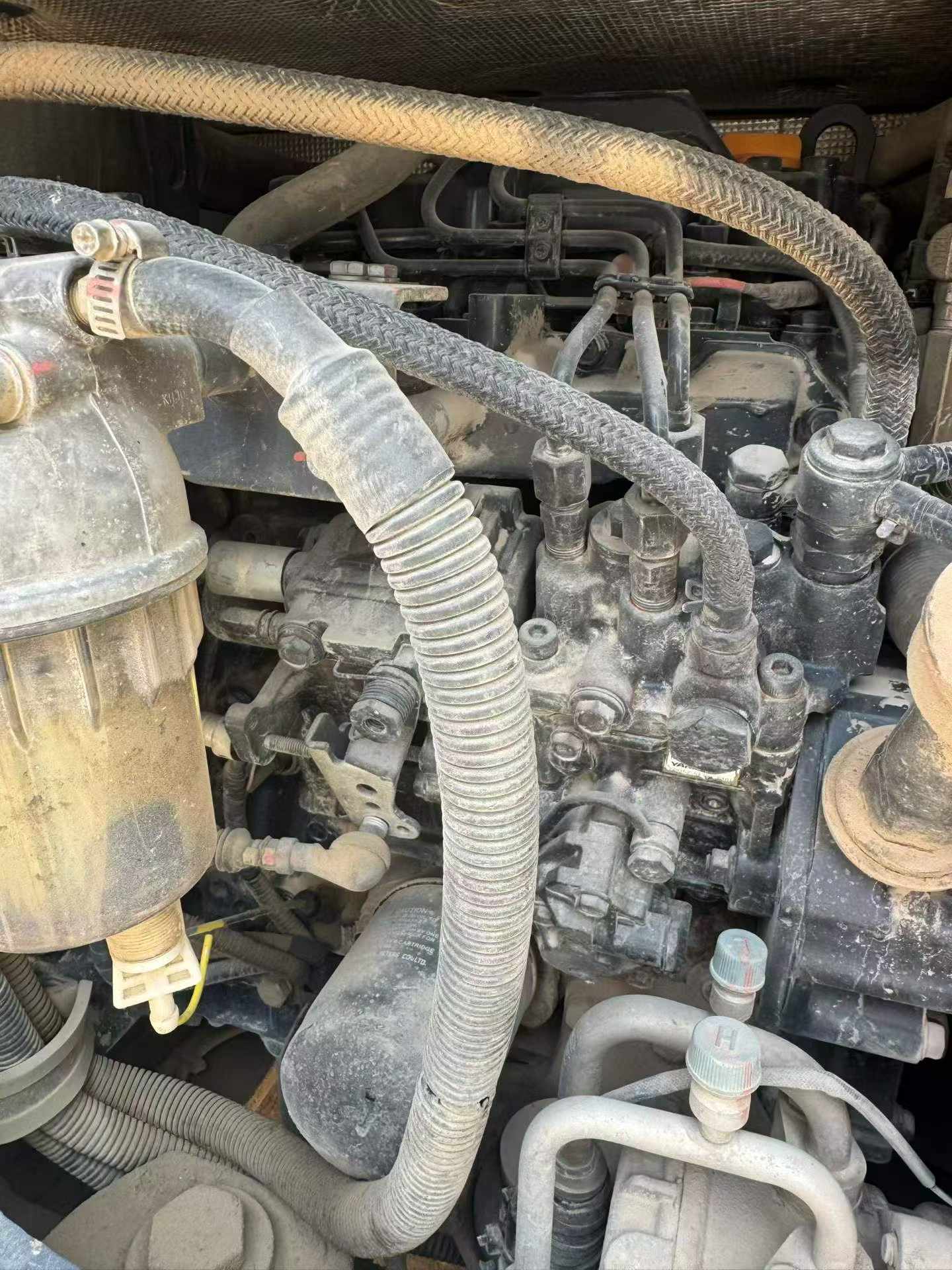

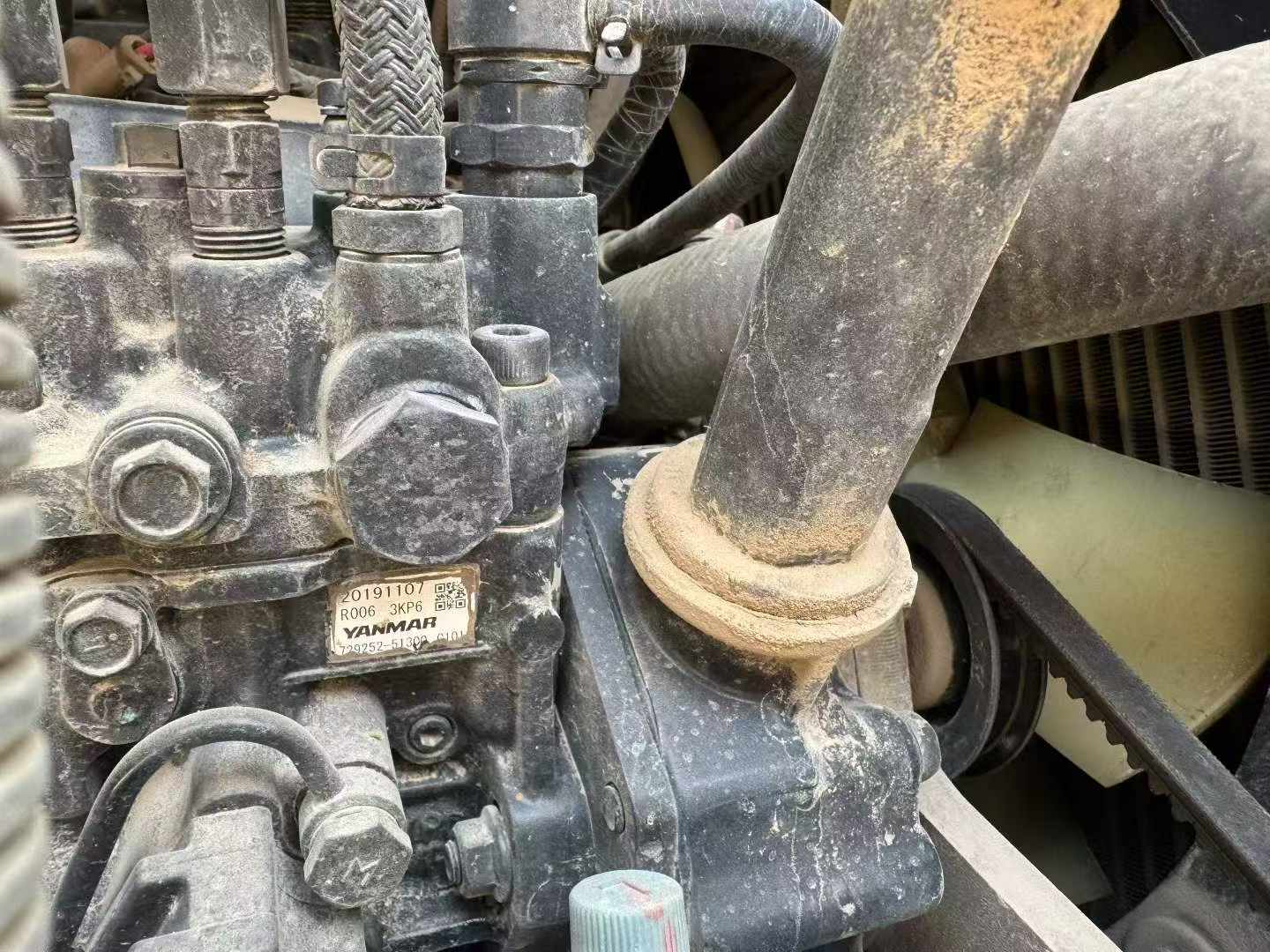

| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |

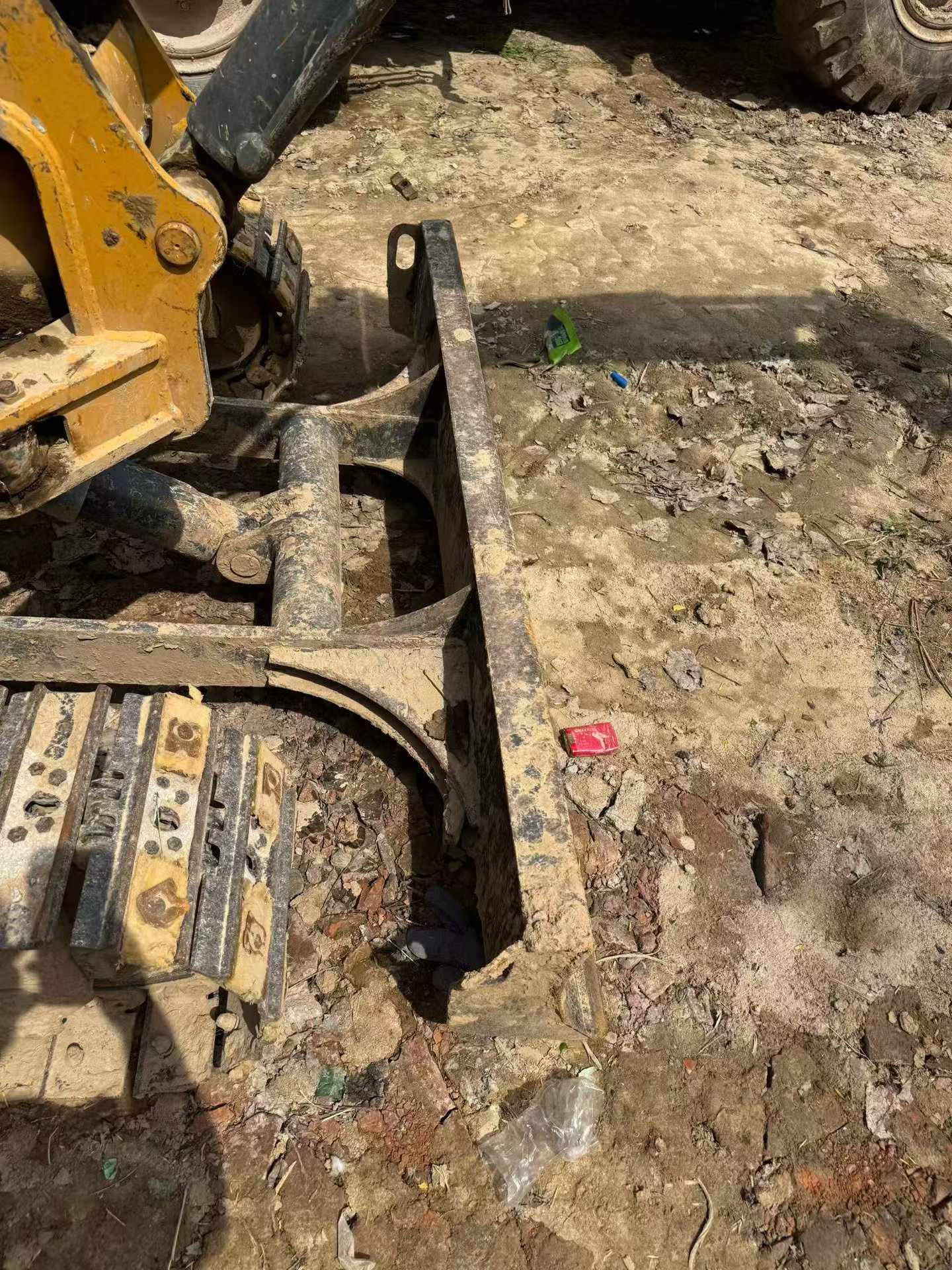

| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
