Product Description

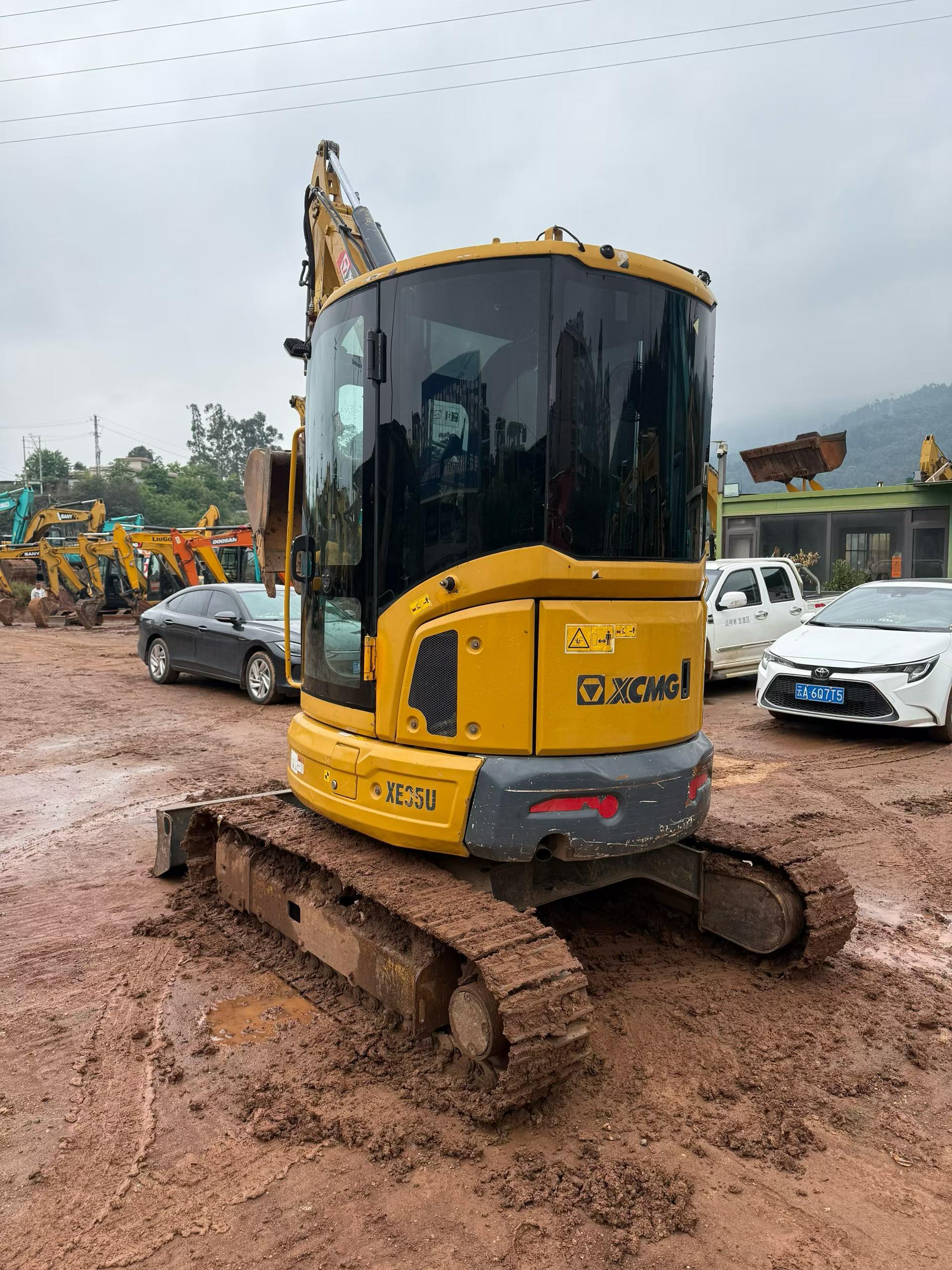

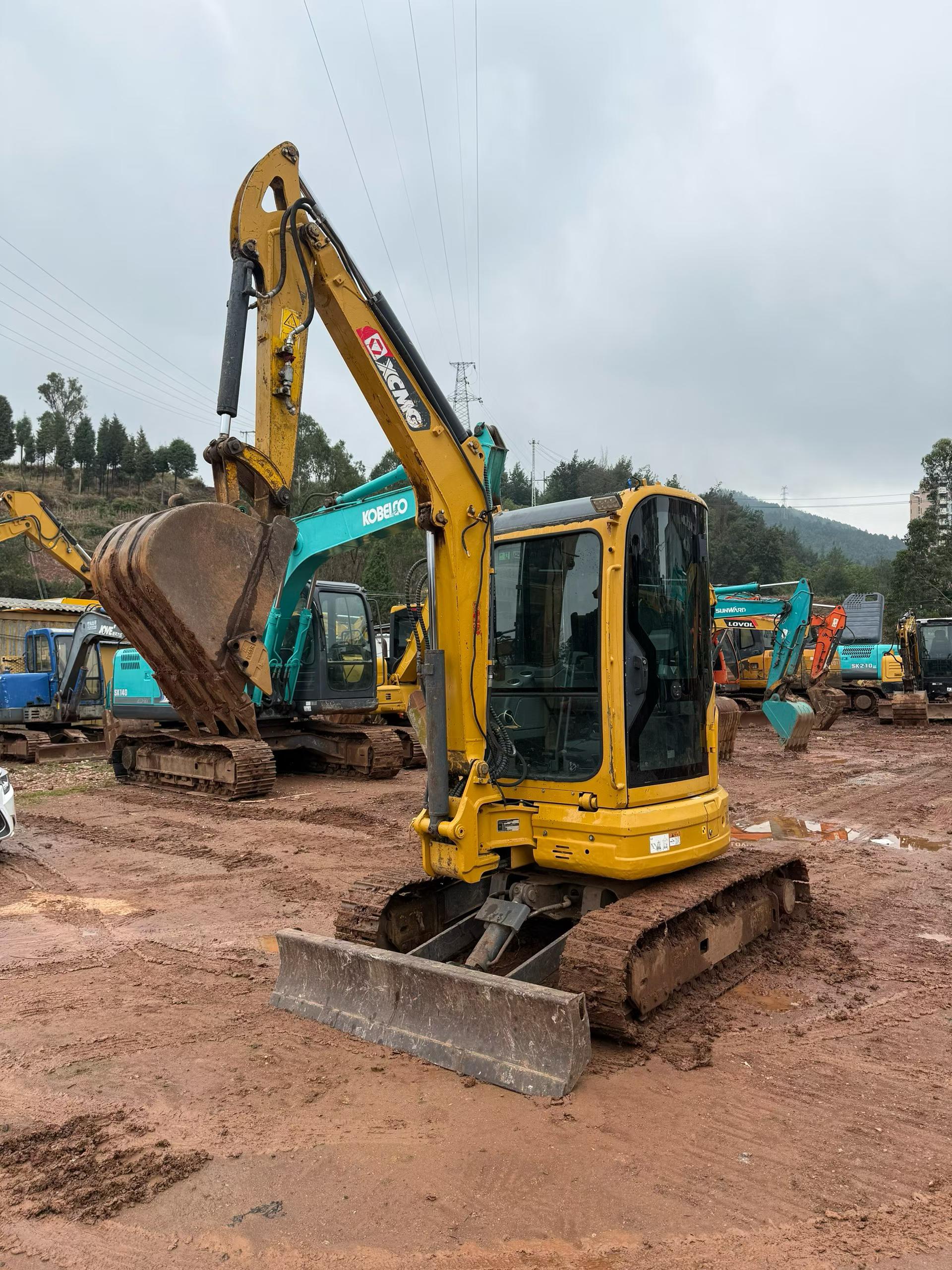

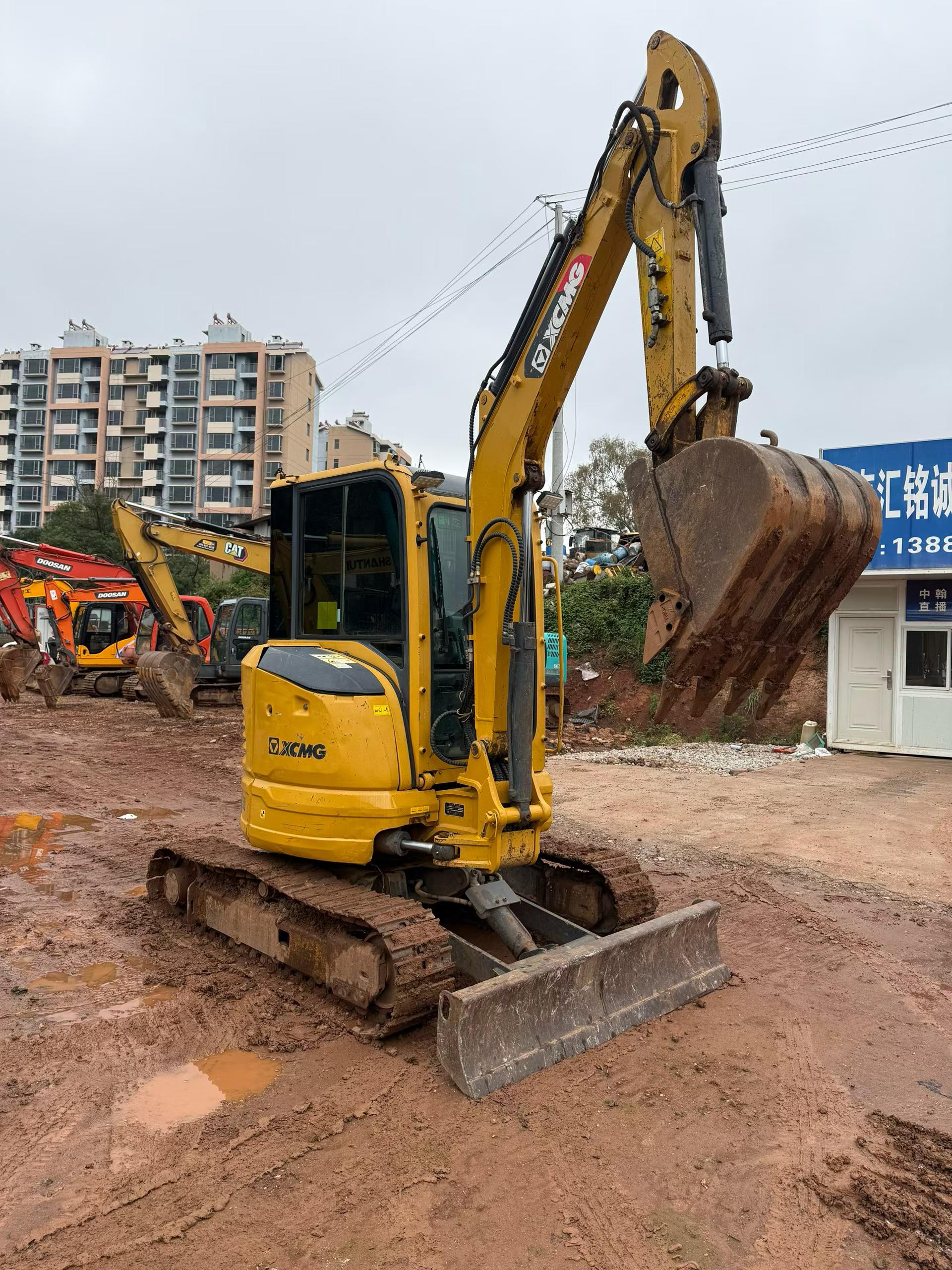

This 2020 XCMG XE35U mini excavator represents a reliable solution for compact earthmoving operations. Currently located in Yunnan, China, this unit demonstrates the robust engineering standards XCMG is recognized for in the construction equipment sector. The XE35U model is designed for confined job sites requiring maneuverability without compromising operational efficiency.
Key features of this unit include:
- Operating weight class suitable for urban construction and landscaping applications
- Compact dimensions enabling access to restricted work areas
- Hydraulic system engineered for responsive digging and lifting performance
- Low operational hours consistent with 2020 manufacture date
- Available for inspection in Kunming, Yunnan Province
This excavator offers international buyers an opportunity to acquire recent-vintage equipment from a tier-one Chinese manufacturer. Suitable for contractors seeking dependable compact excavation capabilities for infrastructure projects, utility work, and general construction applications.
| Specifications | Value |
|---|---|
| No. | 1078696 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

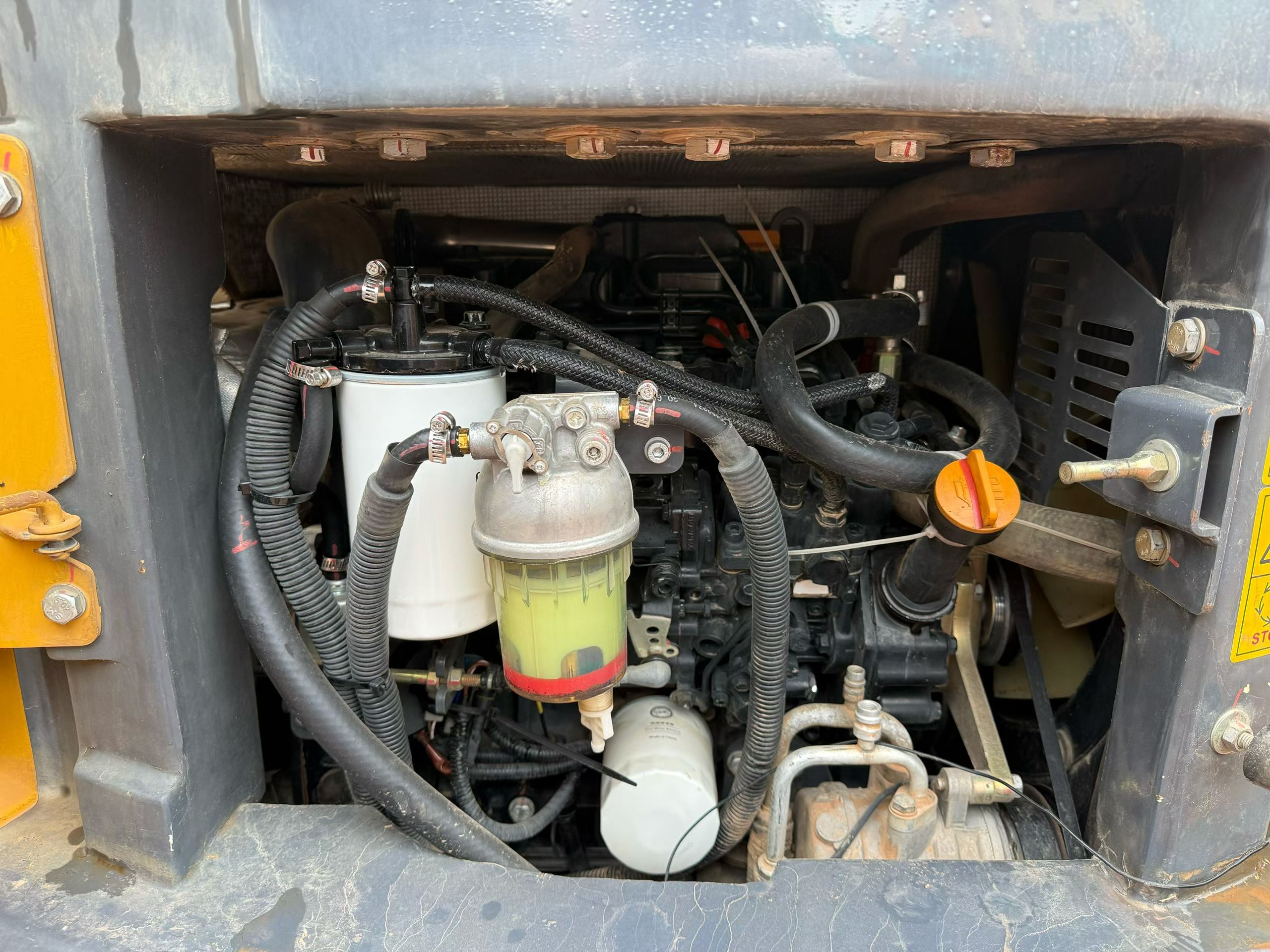

| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
