Product Description

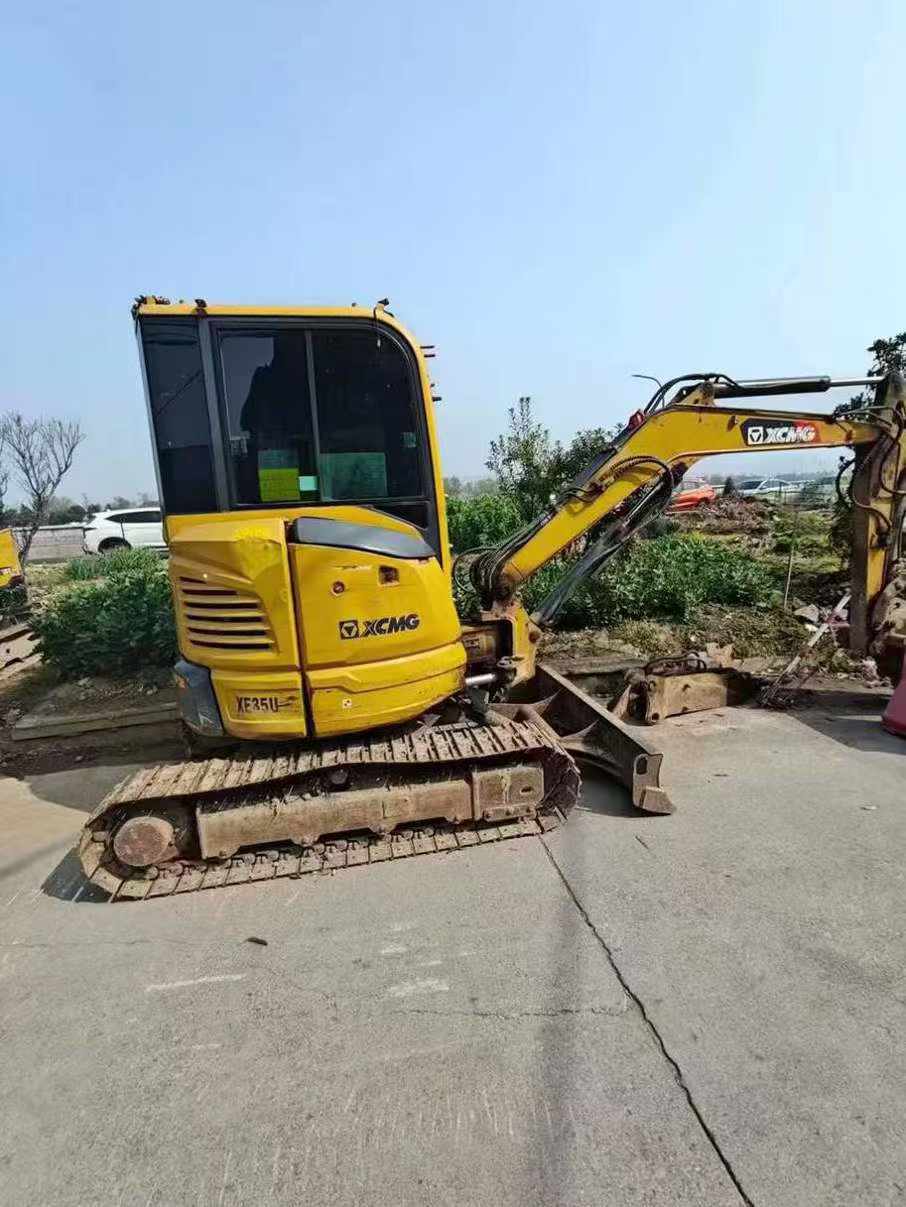

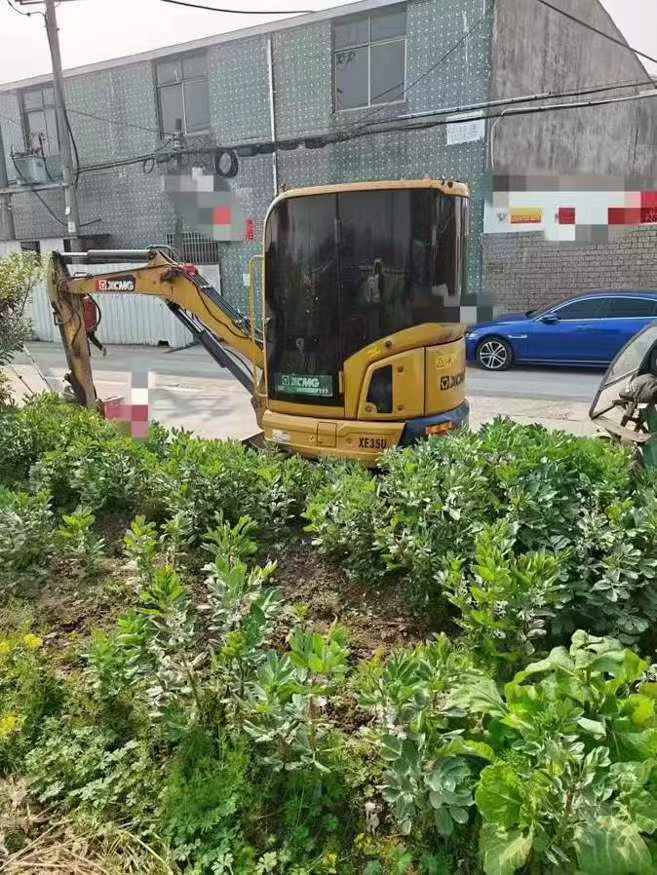

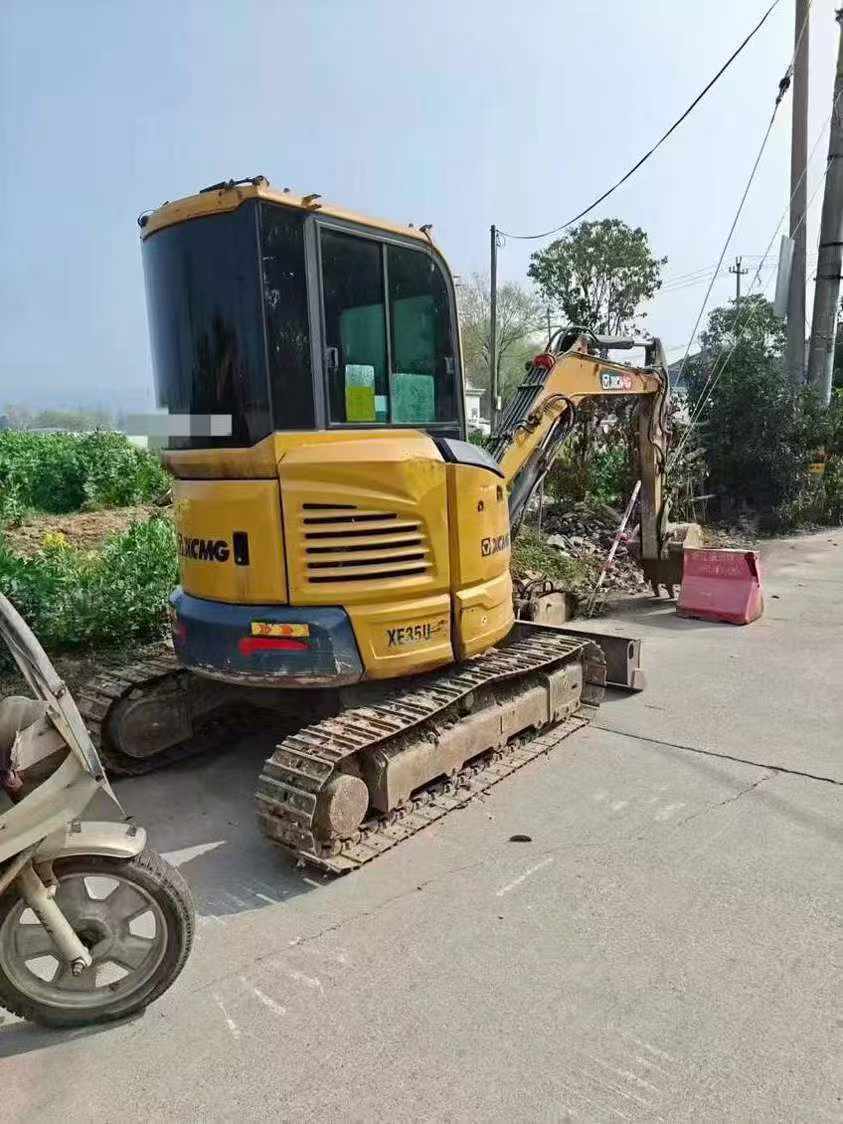

Available now in Zhejiang Lishui, this 2021 XCMG XE35U mini excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Weighing 4,100 kg with a compact 4-ton operating class, this Chinese-manufactured machine combines a 22.2 kW Yanmar 3TNV88-B water-cooled engine with responsive hydraulic performance—108 L/min main pump flow drives 28.6 kN bucket digging force and 20.3 kN arm breakout force. Reach extends to 5,300 mm maximum digging radius and 3,060 mm depth, while the 0.12 m³ backhoe bucket handles trenching, foundation prep, and utility work with precision.
- Fast Deployment: Skip lead times—ship directly from Lishui to your site
- Compact Footprint: 4,970 mm transport length, 1,740 mm width for confined-space access

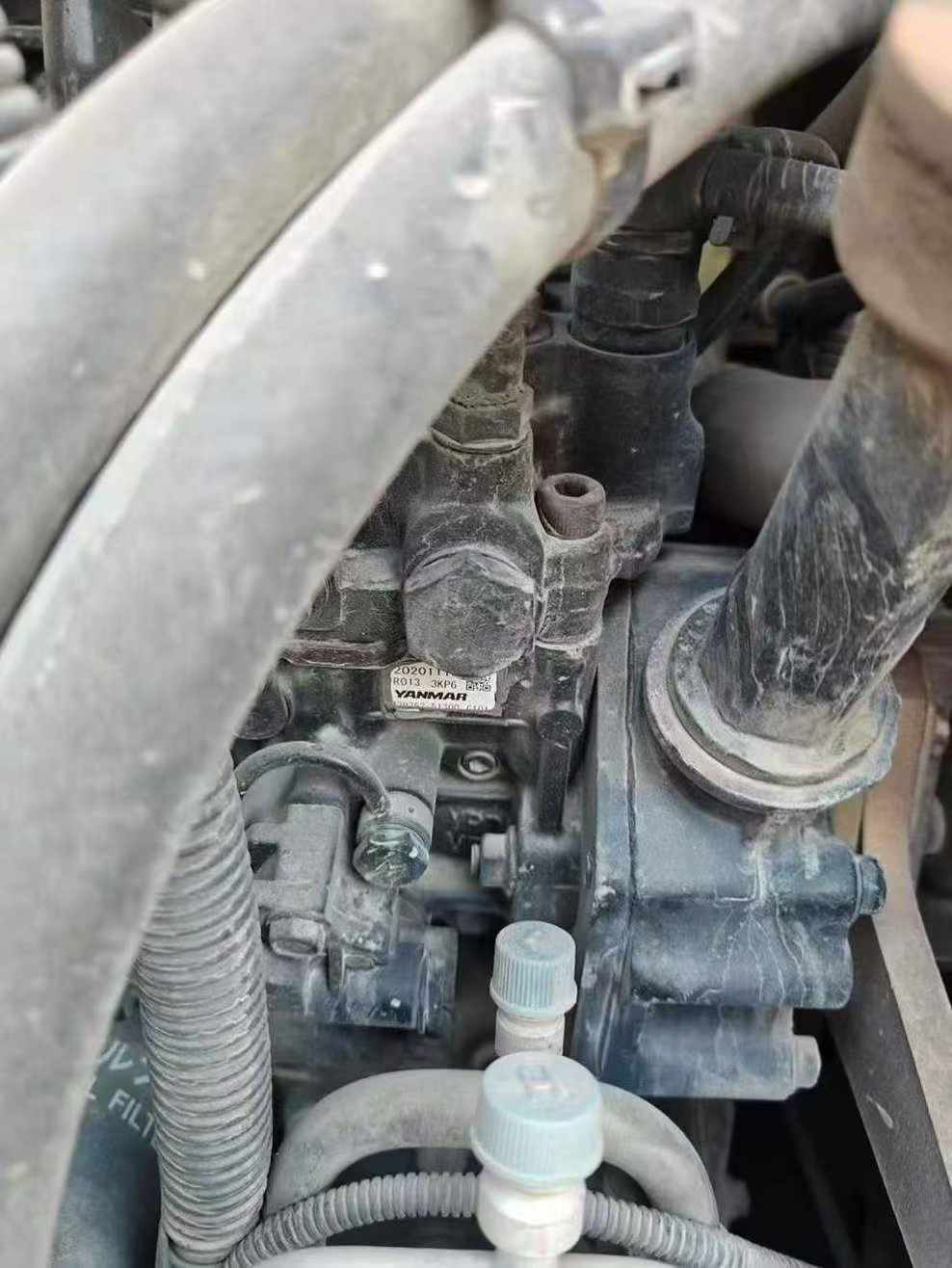

- Proven Power: 3TNV88-B diesel engine delivers reliable torque at 2,400 rpm
- Hydraulic Capacity: 22 MPa travel circuit, 16.7 MPa swing circuit for smooth operation
- Dozer Blade: 1,740 mm width with 305 mm lift / 360 mm depth for grading tasks
Ready for immediate export. Secure this 2021-vintage excavator and accelerate your project timeline tod
| Specifications | Value |
|---|---|
| No. | 1041391 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
