Product Description

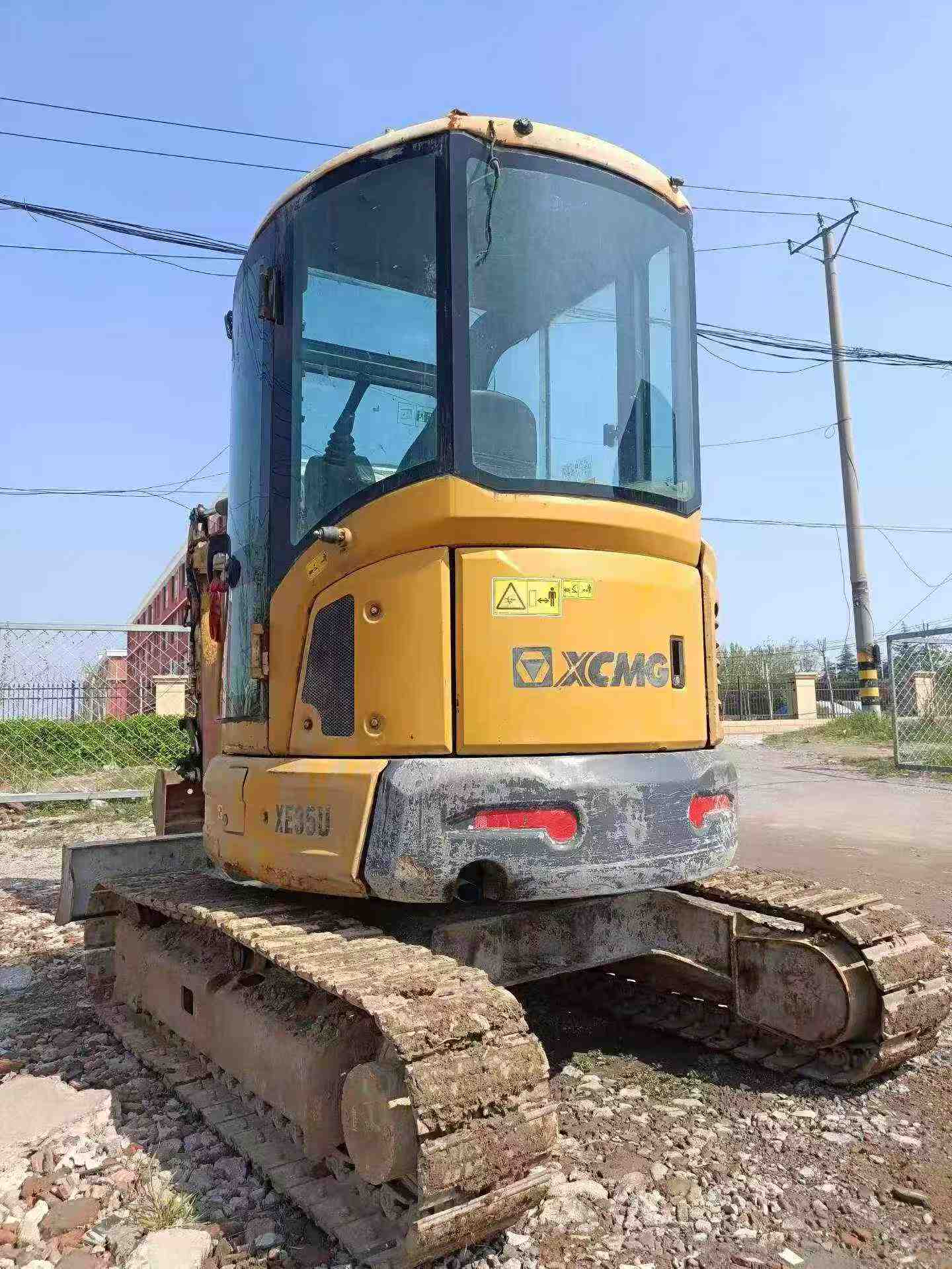

Built for contractors who need reliable backup capacity without compromising performance, this 2021 XCMG XE35U mini excavator delivers 4-ton capability from a compact, job-site-ready platform. Currently located in Shandong, China, it's available for immediate fleet integration.

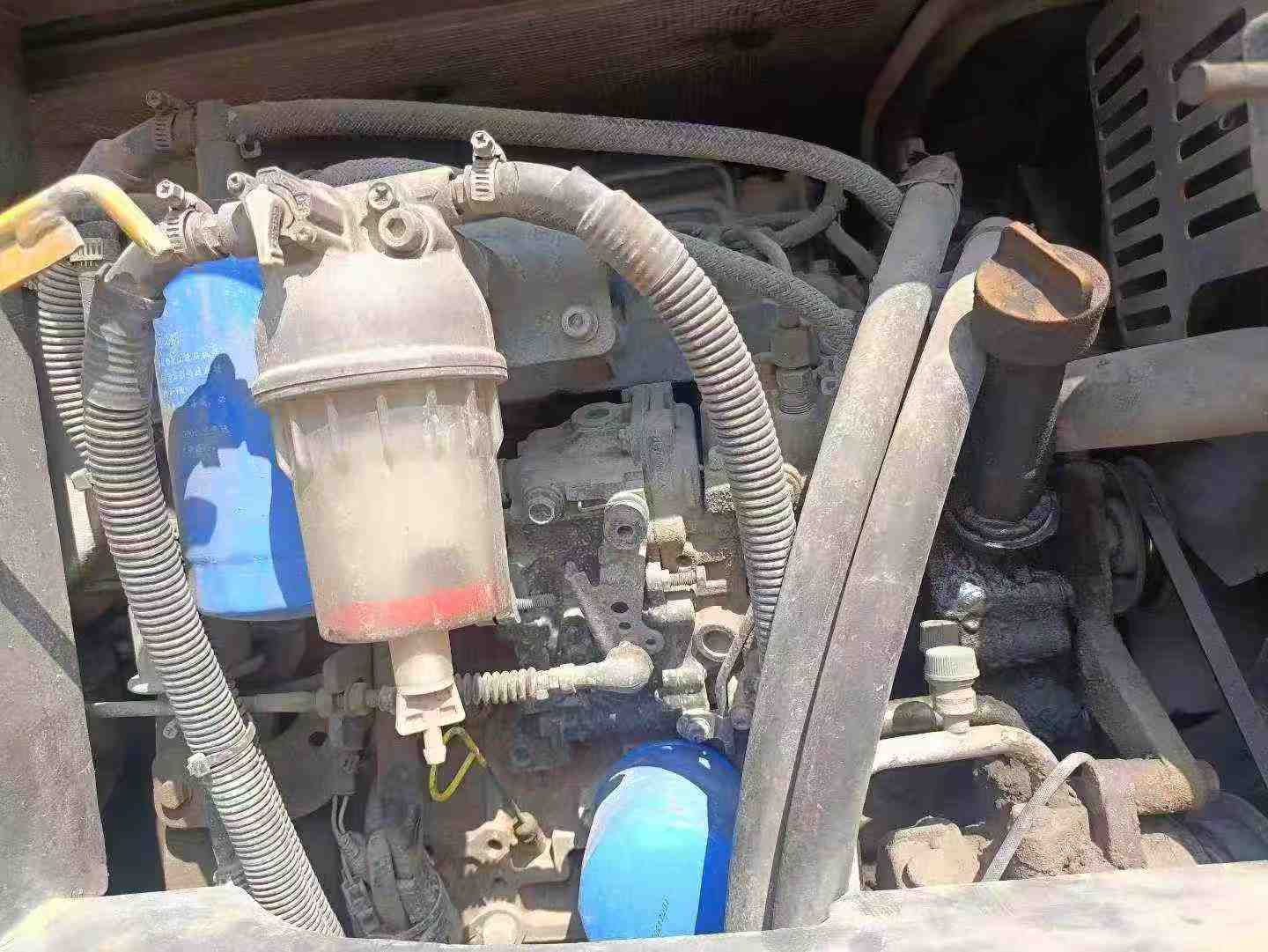

Powered by a Yanmar 3TNV88-B water-cooled diesel engine producing 22.2 kW at 2,400 rpm, this unit handles tight-access excavation with a 5,300 mm maximum digging radius and 3,060 mm digging depth — solid numbers for a machine in its class.
- Operating weight: 4,200 kg | Bucket capacity: 0.12 m³
- Bucket digging force: 28.6 kN | Rod digging force: 20.3 kN
- Maximum digging depth: 3,060 mm | Maximum digging radius: 5,300 mm
- Travel speed: 3.6 / 2.2 km/h | Climbing ability: 30%
- Transport dimensions: 4,970 × 1,740 × 2,535 mm
- Fuel tank: 40 L | Hydraulic tank: 45 L
Compact enough for urban and residential sites yet capable enough to keep pace with larger fleet operations, the XE35U is a practical addition for contractors managing multiple simultaneous projects.
| Specifications | Value |
|---|---|
| No. | 1058955 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |

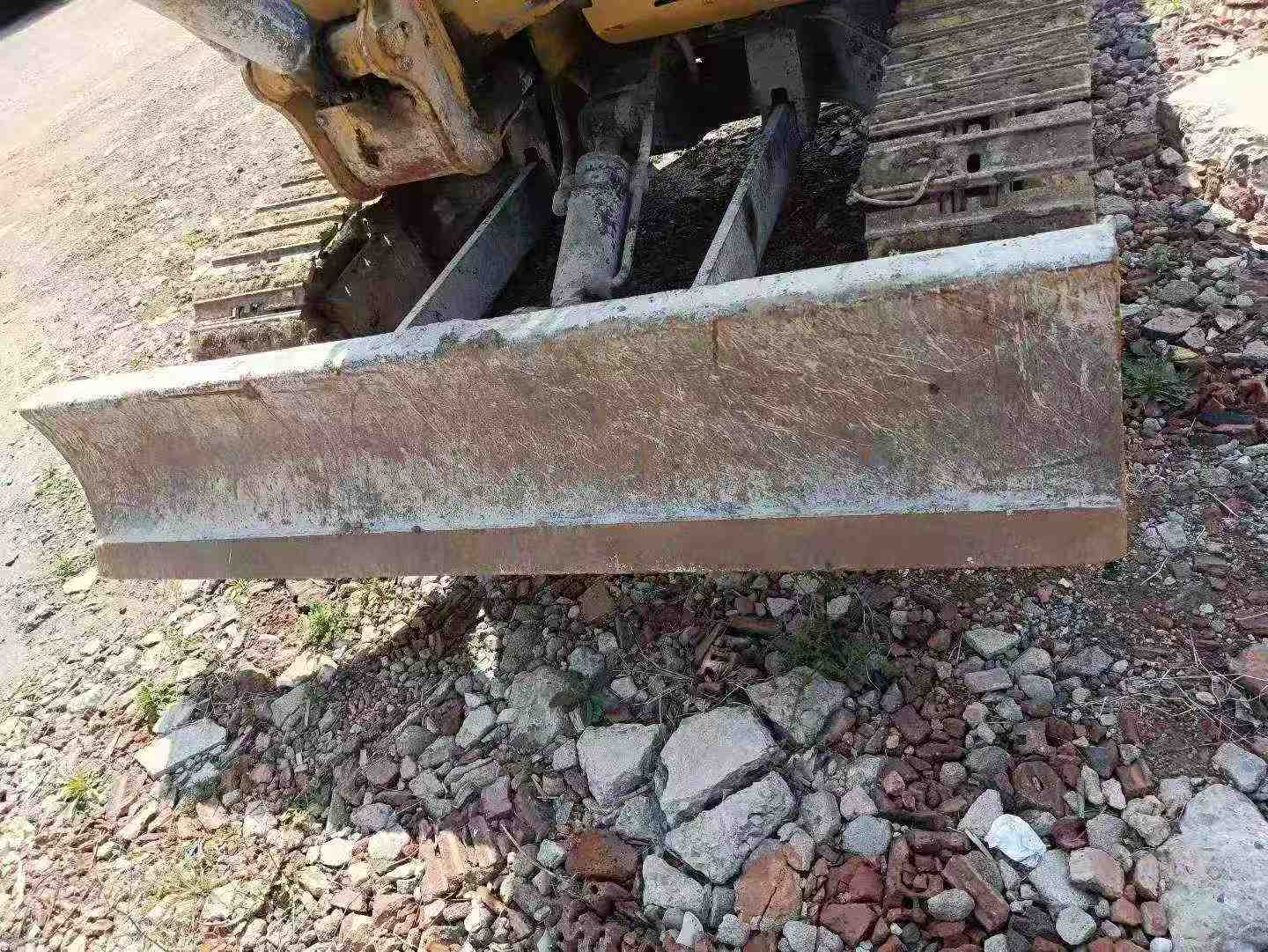

| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
