Product Description

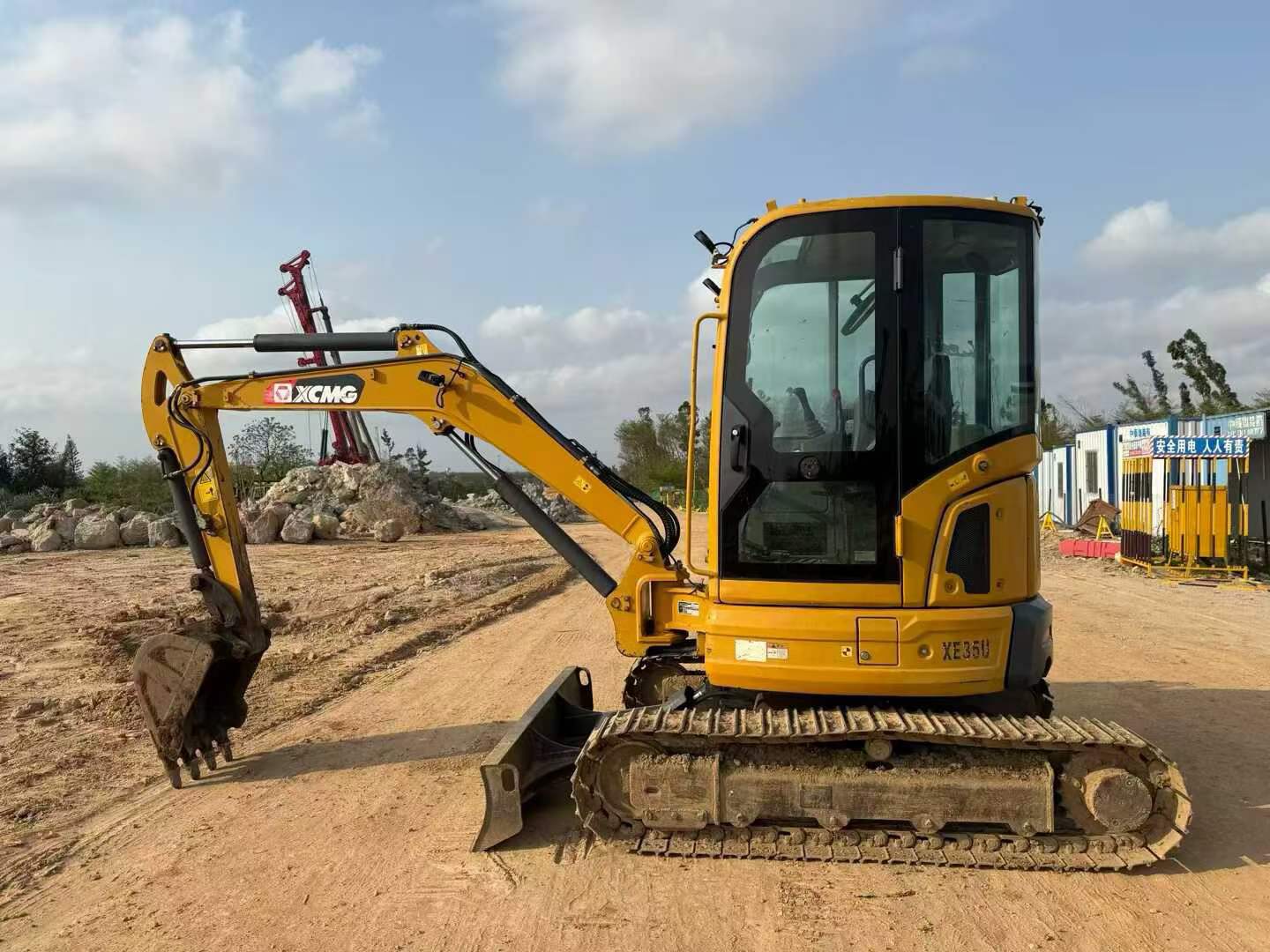

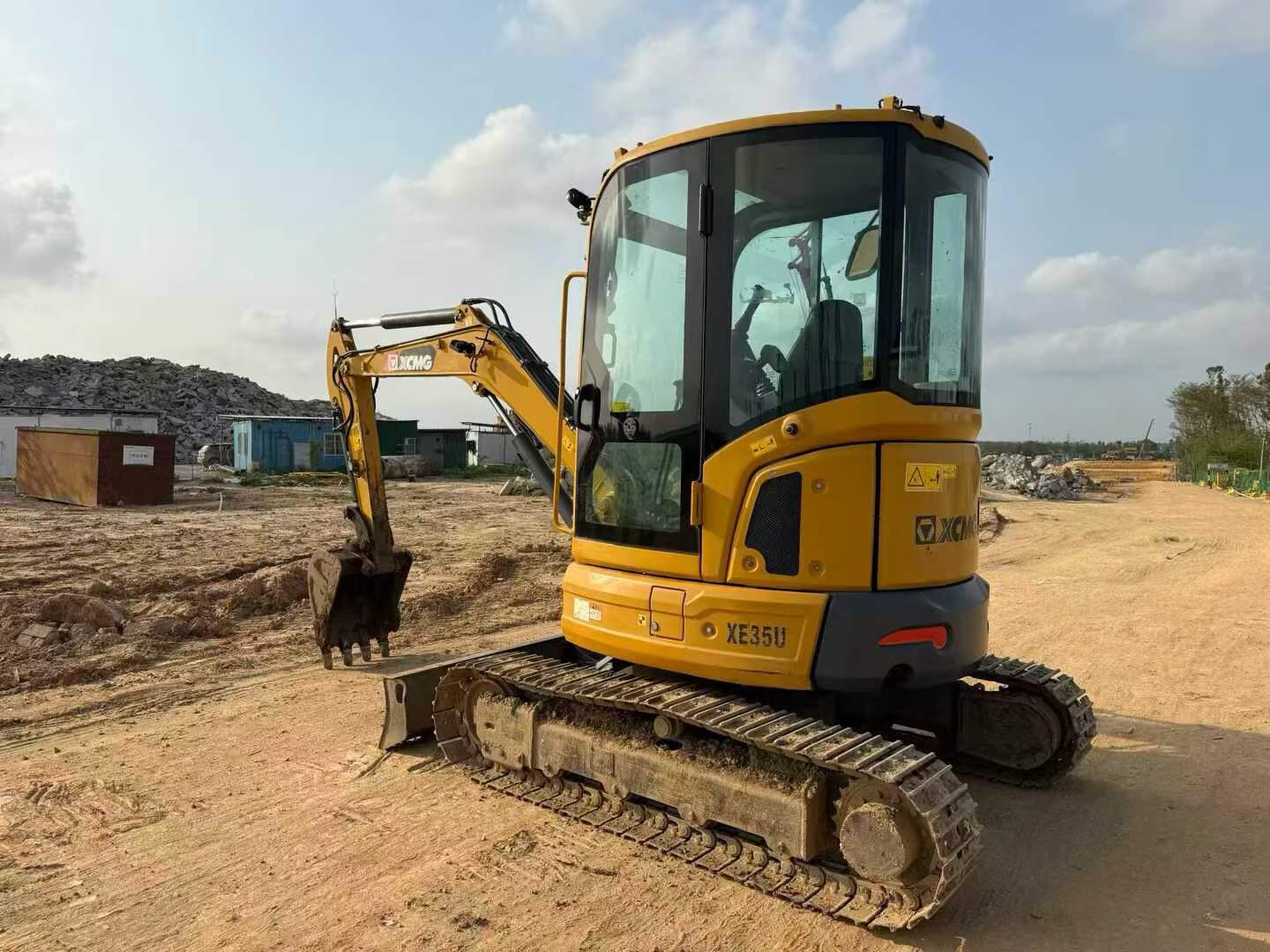

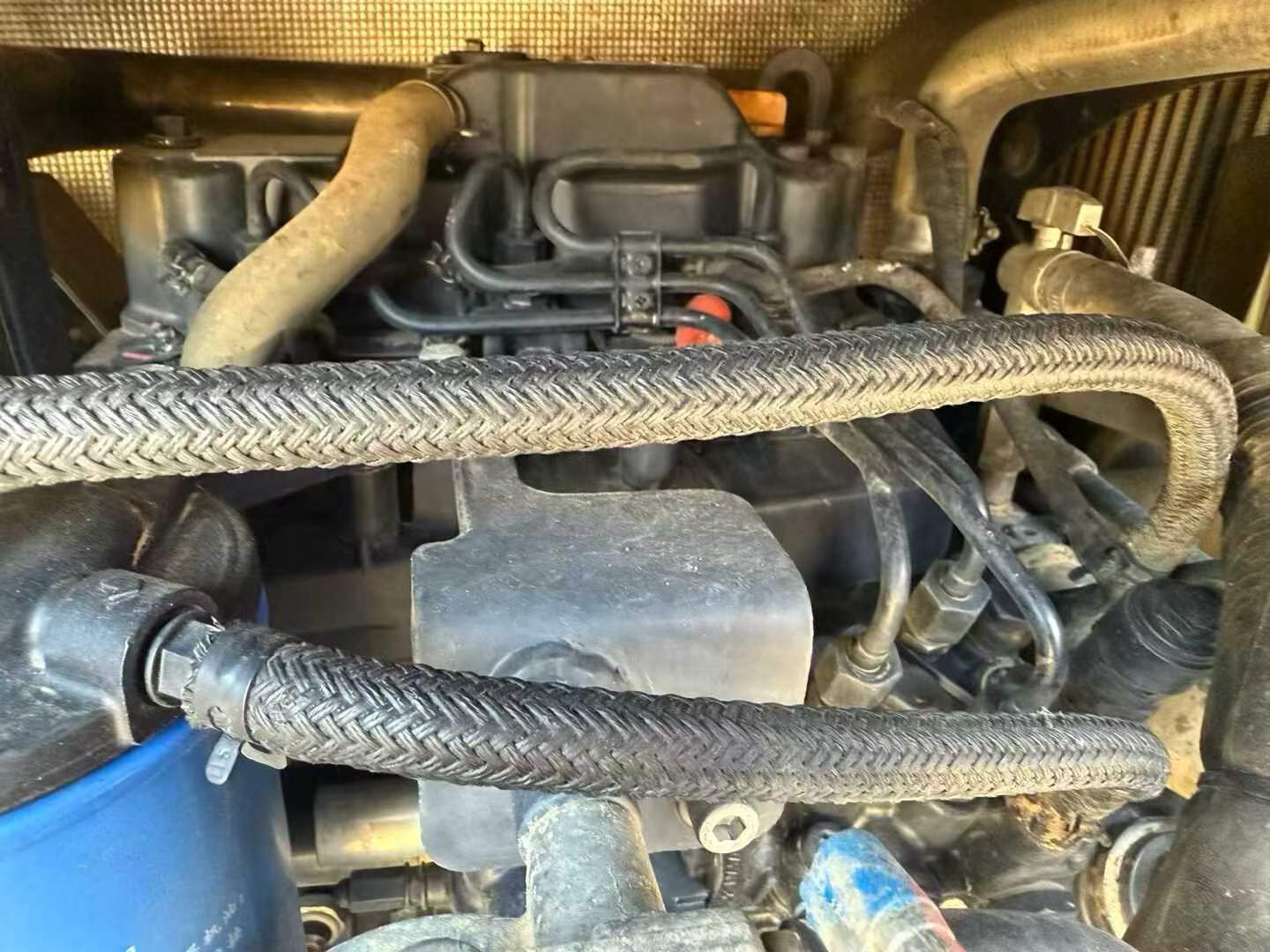

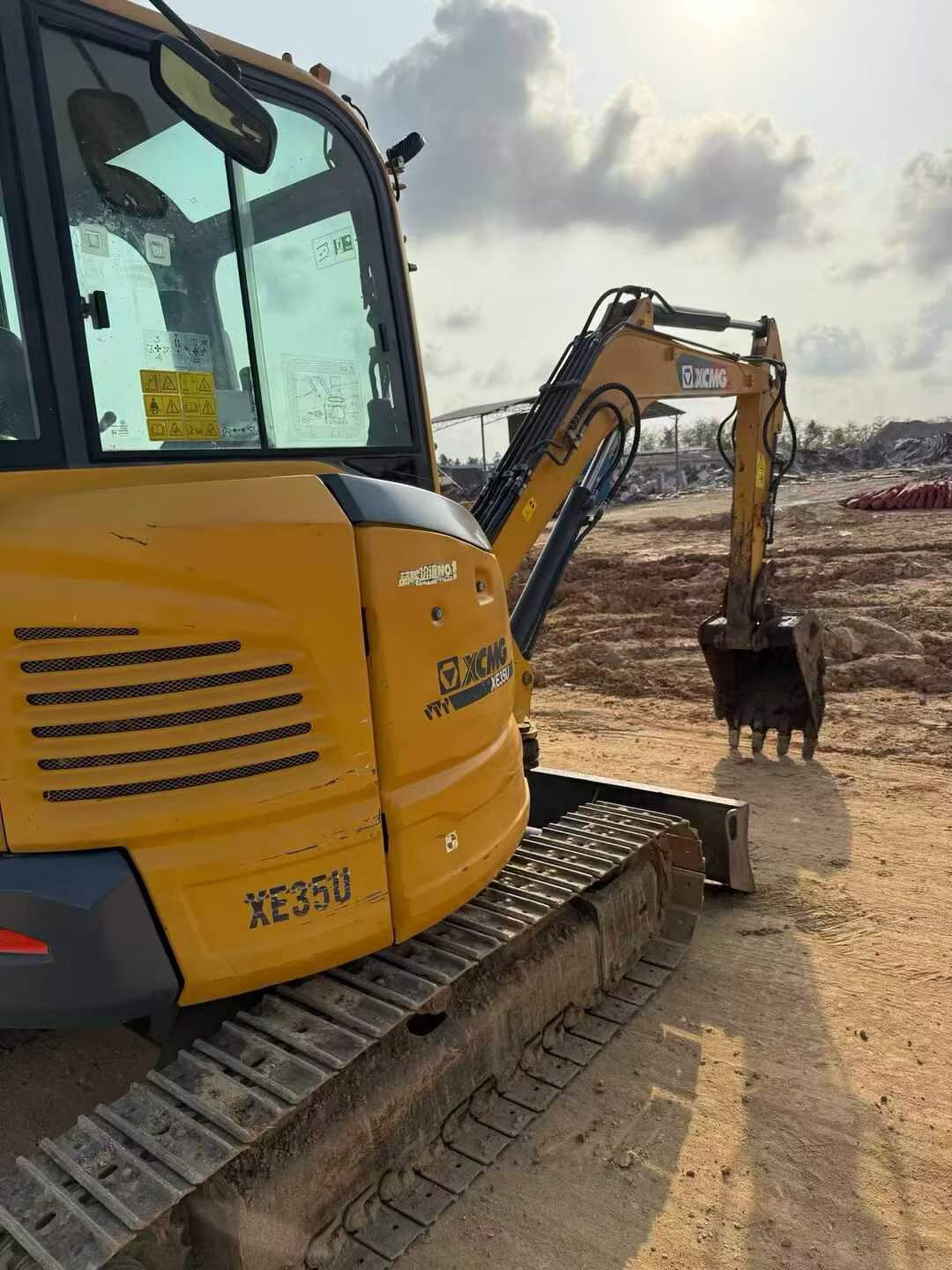

Expand your operational capacity with this 2022 XCMG XE35U compact excavator, currently available in Zhanjiang, Guangdong. Built for contractors requiring reliable fleet reinforcement, this 4-ton machine delivers consistent performance across residential, utility, and light commercial applications. Powered by a robust 3TNV88-B engine producing 22.2 kW at 2400 rpm, the XE35U maintains productivity throughout extended shifts without compromising fuel efficiency from its 40L tank.
Operational specifications include:
- Working weight of 4,200 kg with 0.12 m³ bucket capacity for optimal material handling
- Maximum digging depth of 3,060 mm and reach of 5,300 mm covering standard excavation requirements
- Bucket digging force of 28.6 kN and rod force of 20.3 kN ensuring consistent breakout power
- Compact transport dimensions (4,970 × 1,740 × 2,535 mm) facilitating easy mobilization between job sites
- Water-cooled direct injection system with 108 L/min hydraulic flow supporting responsive cycle times
Perfect for contractors seeking dependable backup equipment or scaling operations, this Chinese-manufactured unit integrates seamlessly into existing XCMG fleets while maintaining
| Specifications | Value |
|---|---|
| No. | 1034142 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
