Product Description

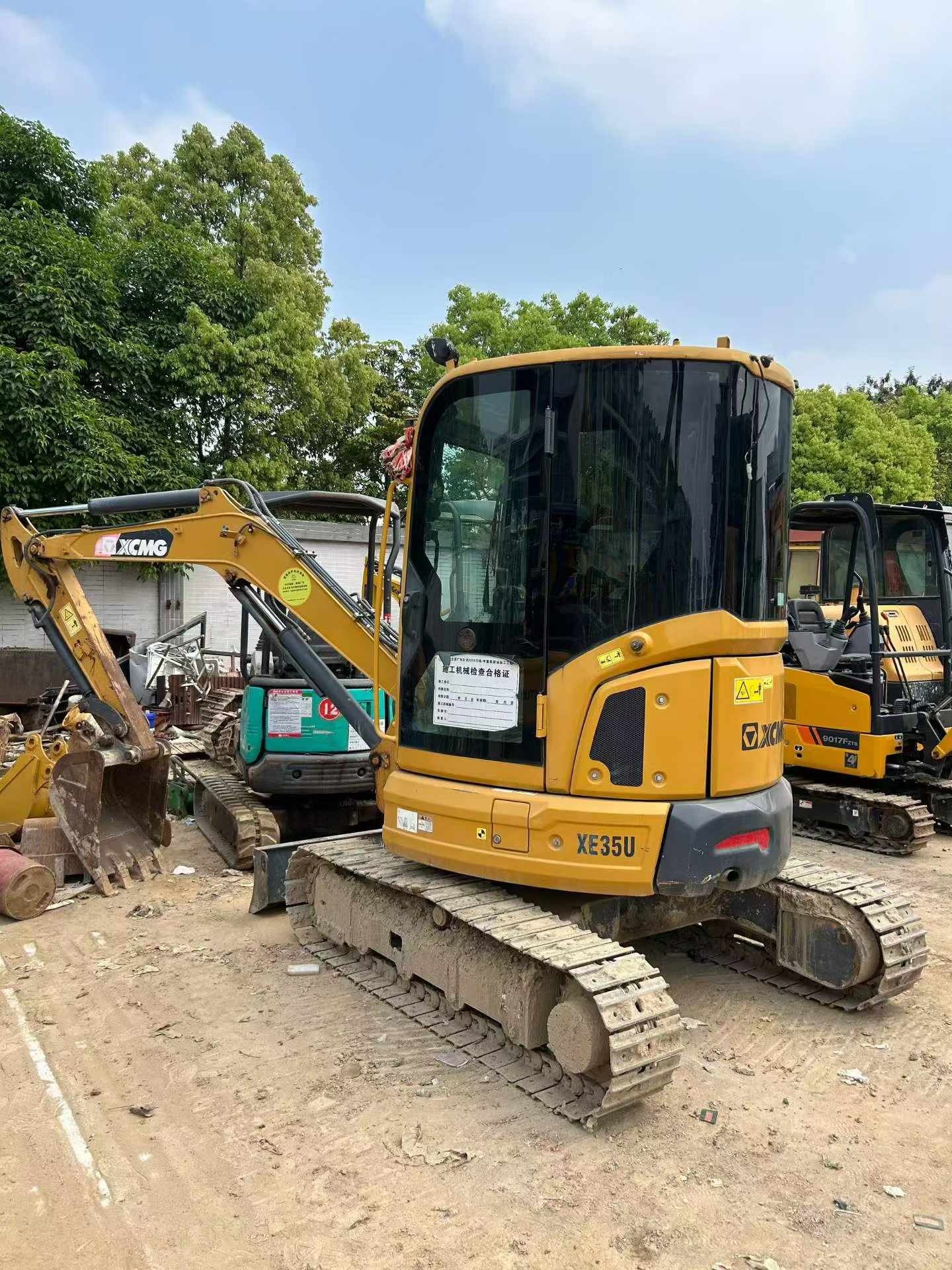

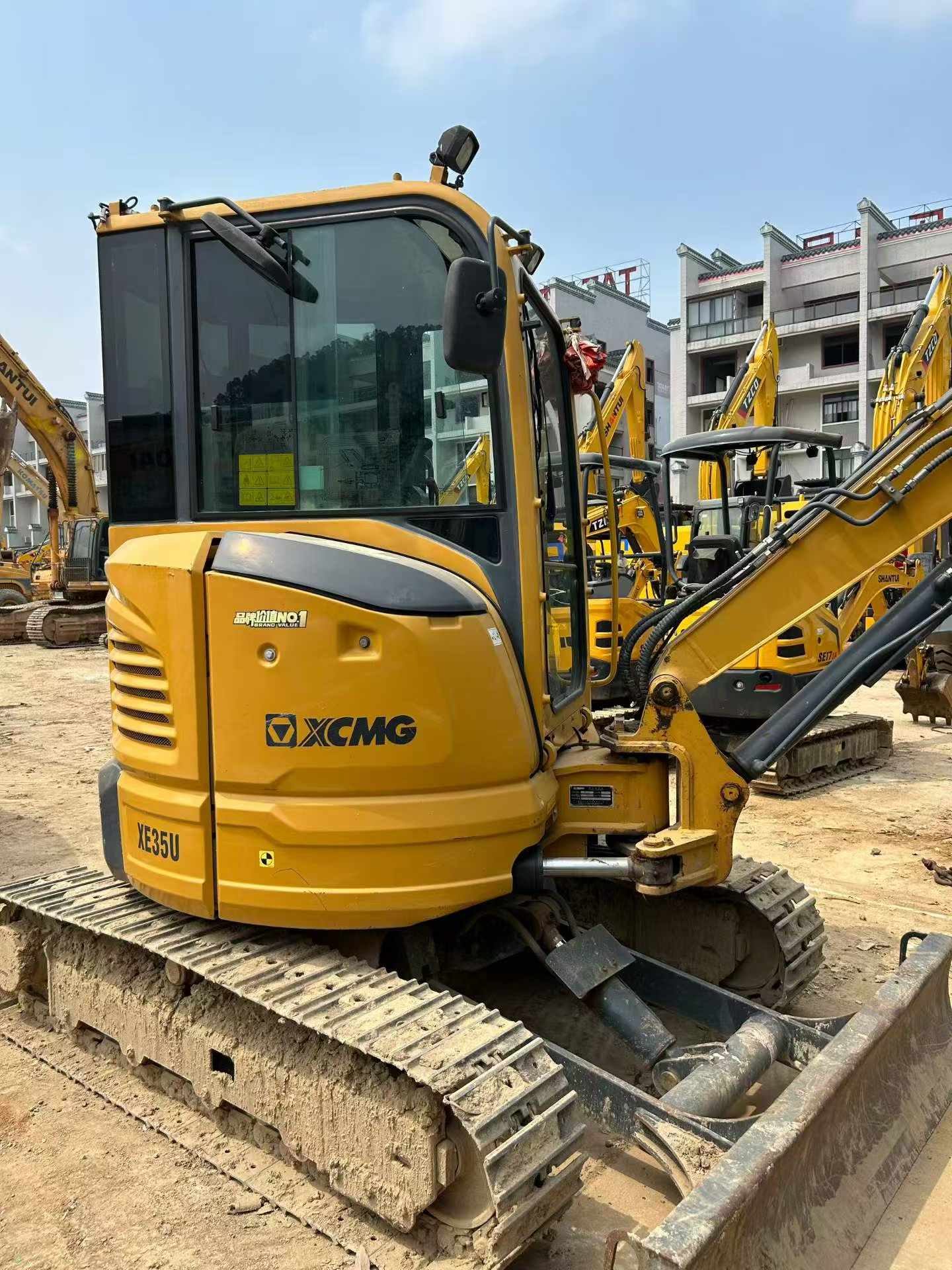

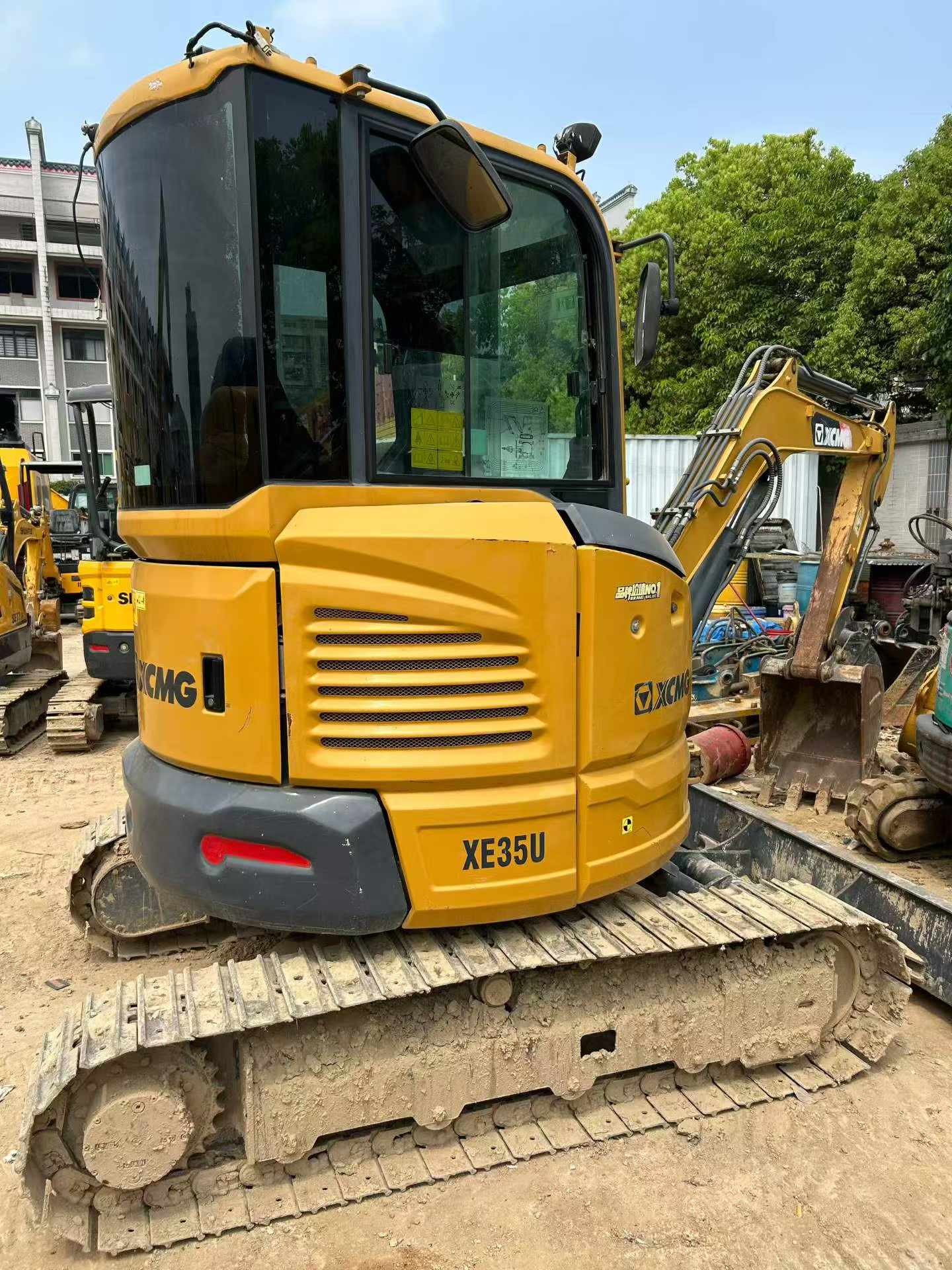

Backed by one of China's most established construction equipment manufacturers, this 2022 XCMG XE35U mini excavator delivers proven reliability for contractors seeking dependable performance in the used market. Operating at 4 tons with a robust 22.2kW Yanmar 3TNV88-B engine, this compact machine combines power with precision across residential, landscaping, and utility applications. XCMG's extensive global dealer network ensures parts availability and service support remain accessible long after purchase, protecting your investment with superior resale value compared to lesser-known brands.
- Maximum Digging Depth: 3,060mm with 5,300mm reach
- Hydraulic Performance: 108 L/min main pump flow, 28.6kN bucket digging force
- Compact Dimensions: 4,970mm length × 1,740mm width for tight-access worksites
- Fuel Efficiency: 1.642L displacement water-cooled engine with 40L fuel capacity
- Mobility: 30% climbing ability, 870mm minimum turning radius
- Location:揭阳, Guangdong Province
XCMG's reputation for durable construction and widespread parts compatibility makes this XE35U a str
| Specifications | Value |
|---|---|
| No. | 1039123 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |

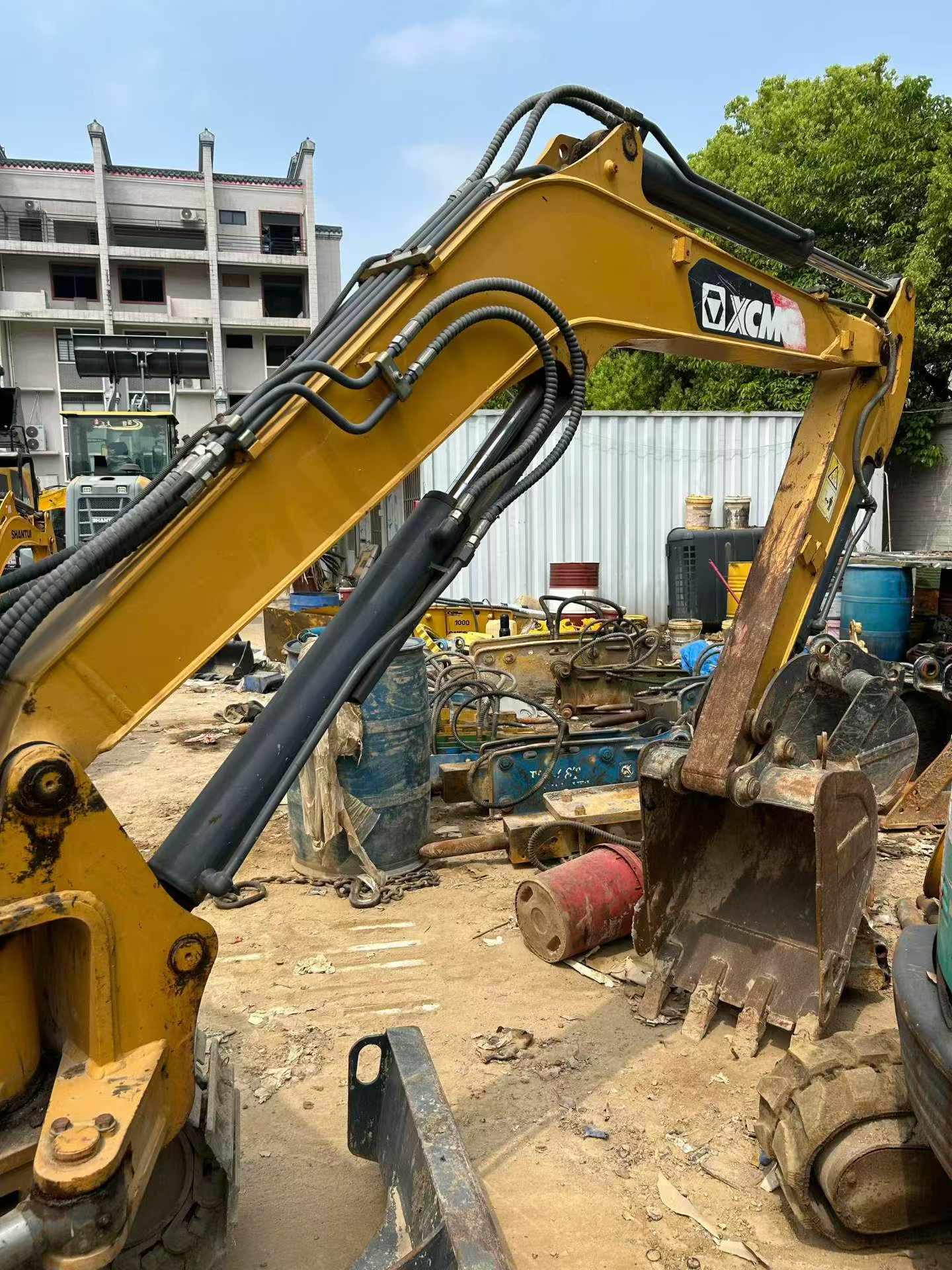

| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

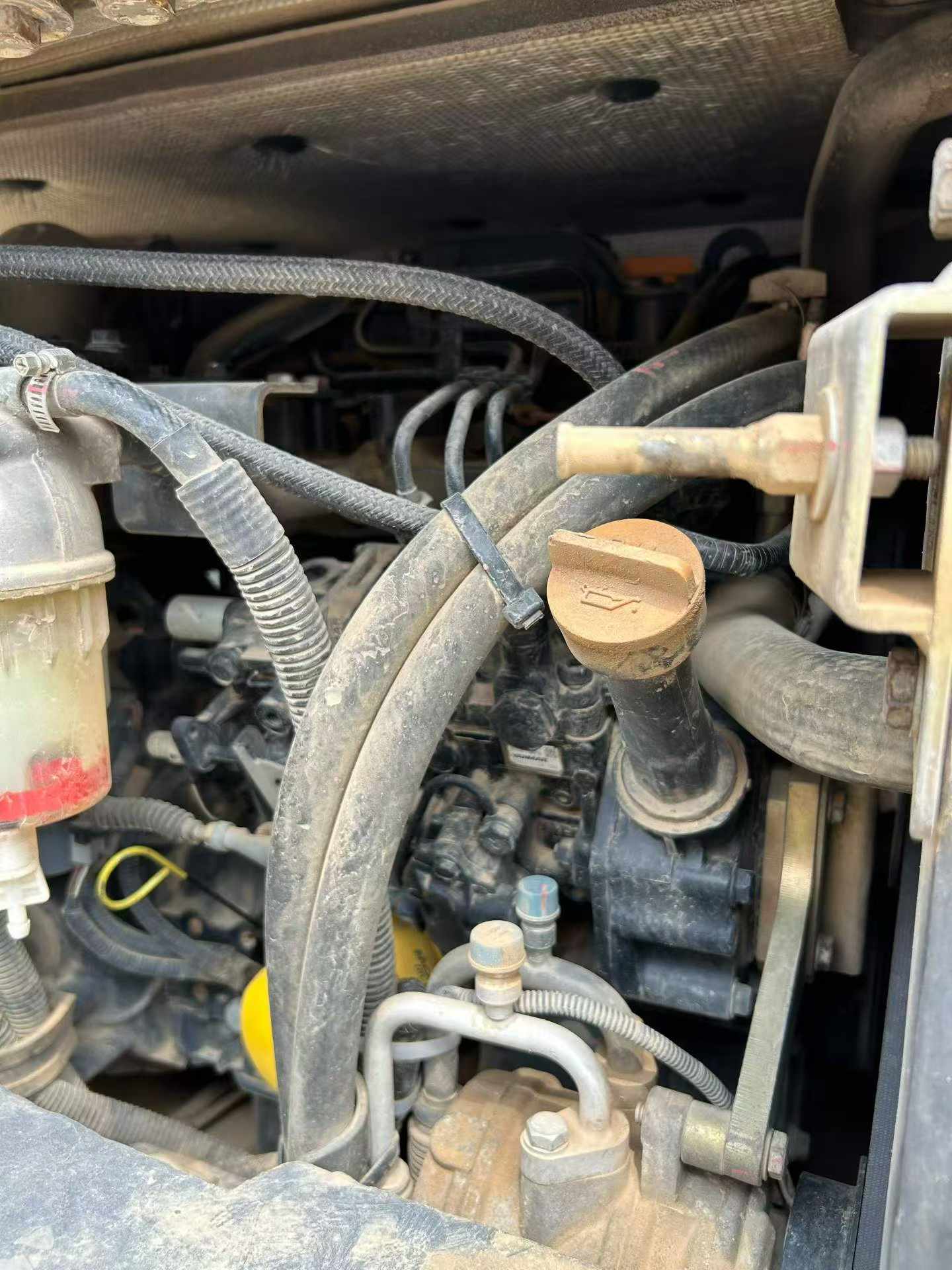

| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |

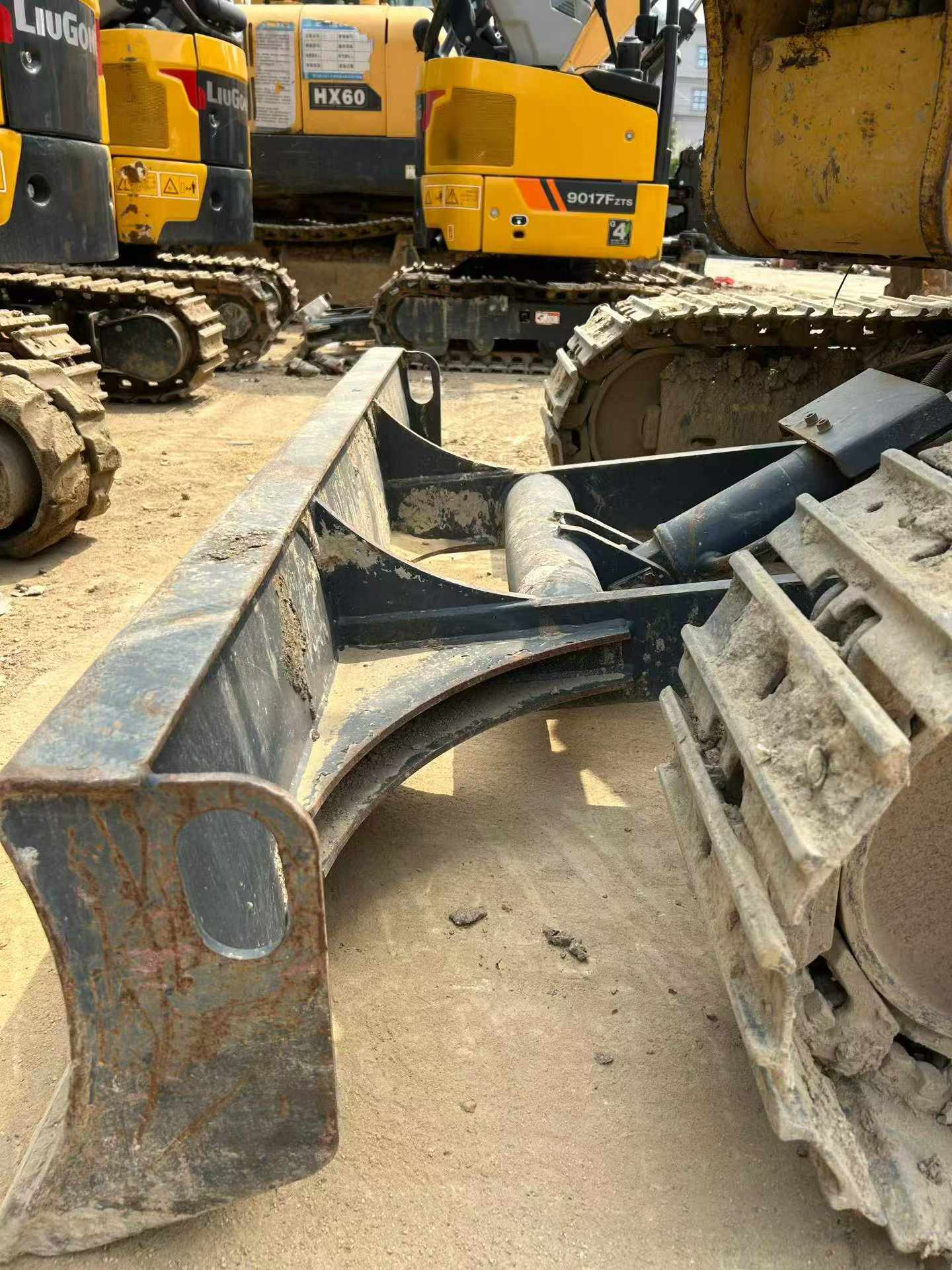

| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
