Product Description

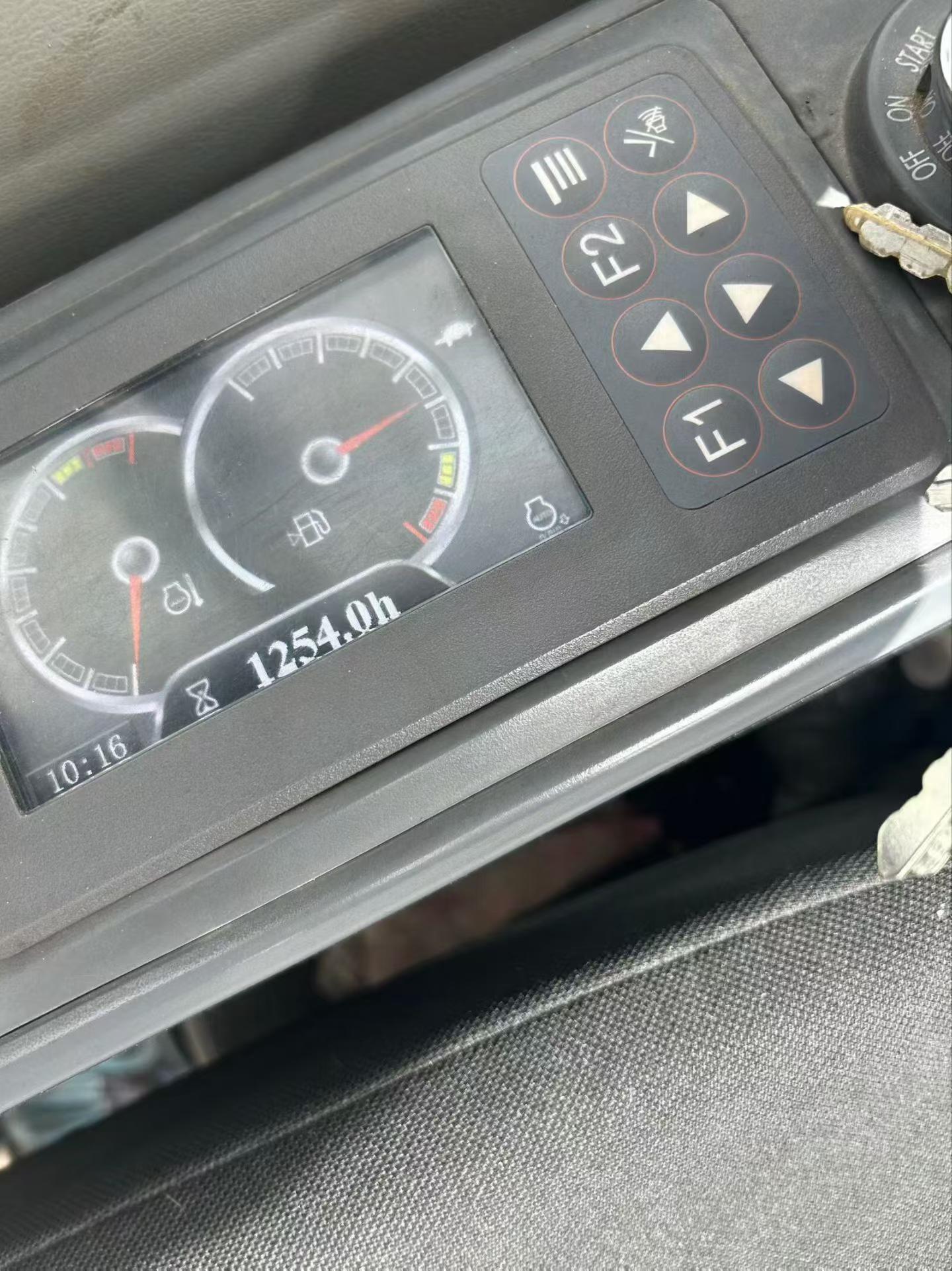

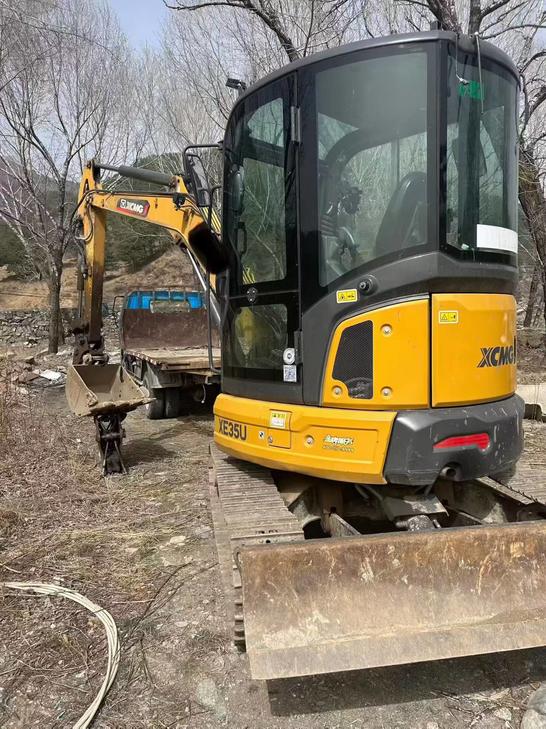

Built to endure demanding job sites, this 2023 XCMG XE35U mini excavator stands as proof that compact machines can deliver serious, lasting performance. Sourced directly from Shanxi, China, this 4-ton workhorse carries genuine build quality backed by XCMG's reputation for industrial-grade reliability. With only three years of operational history, it represents a proven platform still well within its productive lifespan.
- Operating Weight: 4,200 kg | Bucket Capacity: 0.12 m³
- Engine: Yanmar 3TNV88-B | 22.2 kW @ 2,400 rpm | Water-Cooled
- Max Digging Depth: 3,060 mm | Max Digging Radius: 5,300 mm
- Bucket Digging Force: 28.6 kN | Rod Digging Force: 20.3 kN
- Travel Speed: 3.6 / 2.2 km/h | Climbing Ability: 30%
- Transport Dimensions: 4,970 × 1,740 × 2,535 mm
- Fuel Tank: 40 L | Hydraulic Tank: 45 L
- Location: Shanxi, China — available for global export
Compact enough for confined workspaces yet durable enough for sustained daily operation, the XE35U is a dependable, no-compromise machine ready to perform from day one on any site worldwide.
| Specifications | Value |
|---|---|
| No. | 1080334 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
