Product Description

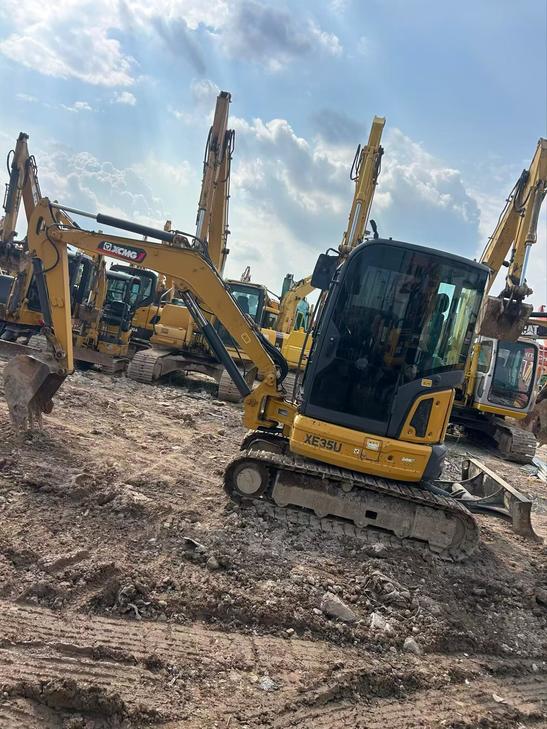

This 2023 XCMG XE35U mini excavator is field-ready and available for immediate deployment. Sourced directly from Guangdong, China, this unit has been operator-maintained and performs without issue — no inspection concerns, no downtime surprises. Priced competitively at approximately CNY 70,000+, it represents solid value for contractors seeking a reliable compact excavator at below-new cost.
- Year: 2023 — low-hour machine with substantial remaining service life
- Brand / Model: XCMG XE35U, a proven 3.5-tonne class mini excavator
- Operating weight: approx. 3,500 kg; suited for urban construction, landscaping, and utility trenching
- Zero-tail-swing design allows operation in confined and space-restricted job sites
- Standard auxiliary hydraulics support a range of attachments including breakers and augers
- Location: Guangdong Province, China — available for domestic delivery or export inspection
- Asking price: CNY 70,000+ (negotiable; contact seller for current offer)
Suitable for buyers seeking a work-ready compact excavator without the lead time or cost of a new unit. On-site inspection welcomed. Contact FairTradeMachinery for full condition details, photos, and logistics support.
| Specifications | Value |
|---|---|
| No. | 1141469 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
