Product Description

Discover the 2025 XCMG XE35U, a robust and reliable used excavator available in Zhejiang, China. This compact machine is designed for versatility and efficiency, making it ideal for a wide range of construction and excavation projects. The XE35U is known for its durable build and ease of operation, ensuring that it can handle tough conditions with minimal downtime.

  • Year: 2025
  • Brand: XCMG
  • Model: XE35U
  • Location: Zhejiang, China
SpecificationsValue
No.1077831
Tonnage (tons)4
Working weight (kg)4200/4100
Bucket capacity (m³)0.12
Boom length (mm)2560
Rod length (mm)1350
powerTraditional power
manufacturerMade in China
bucketbackhoe

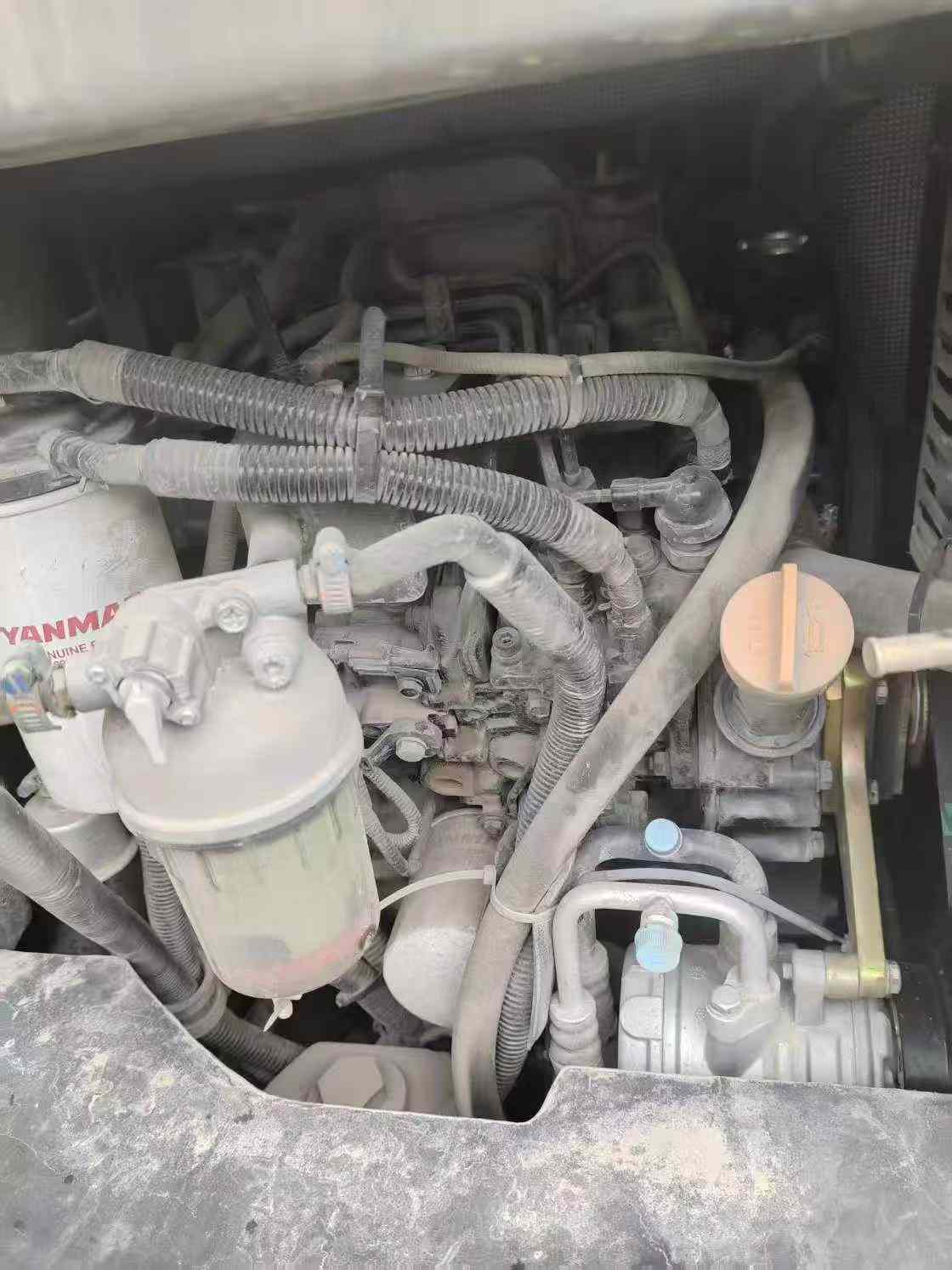

Engine type3TNV88-B
Rated power (kw/rpm)22.2/2400
Cooling modewater-cooling
Displacement (L)1.642
Working formDirect injection, 4 strokes
Ground specific pressure (Kpa)36.6
Rotation speed (rpm)9
Climbing ability (%)30
Bucket digging force (kN)28.6
Rod digging force (kN)20.3
Maximum tractive force (kN)31.6
Travel speed (km/h)3.6/2.2
Maximum flow of main pump (l/min)108
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)16.7
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)40
Hydraulic Tank (L)45
Engine Oil changes (L)7
Total transport length (mm)4970
Total transport width (mm)1740
Total transport height (mm)2535
Counterweight ground clearance (mm)587
Minimum ground clearance (mm)297
Minimum turning radius of front working device (mm)870
Track gauge (mm)1440
Total track width (mm)300
Center distance of support wheel (mm)1721
Maximum digging radius (mm)5300
Maximum digging depth (mm)3060
Maximum excavation height (mm)5000
Maximum unloading height (mm)3600
Maximum vertical digging depth (mm)2260
Bulldozer lift or depth (mm)305/360
Dodging plate width × height (mm)1740*358
