Product Description

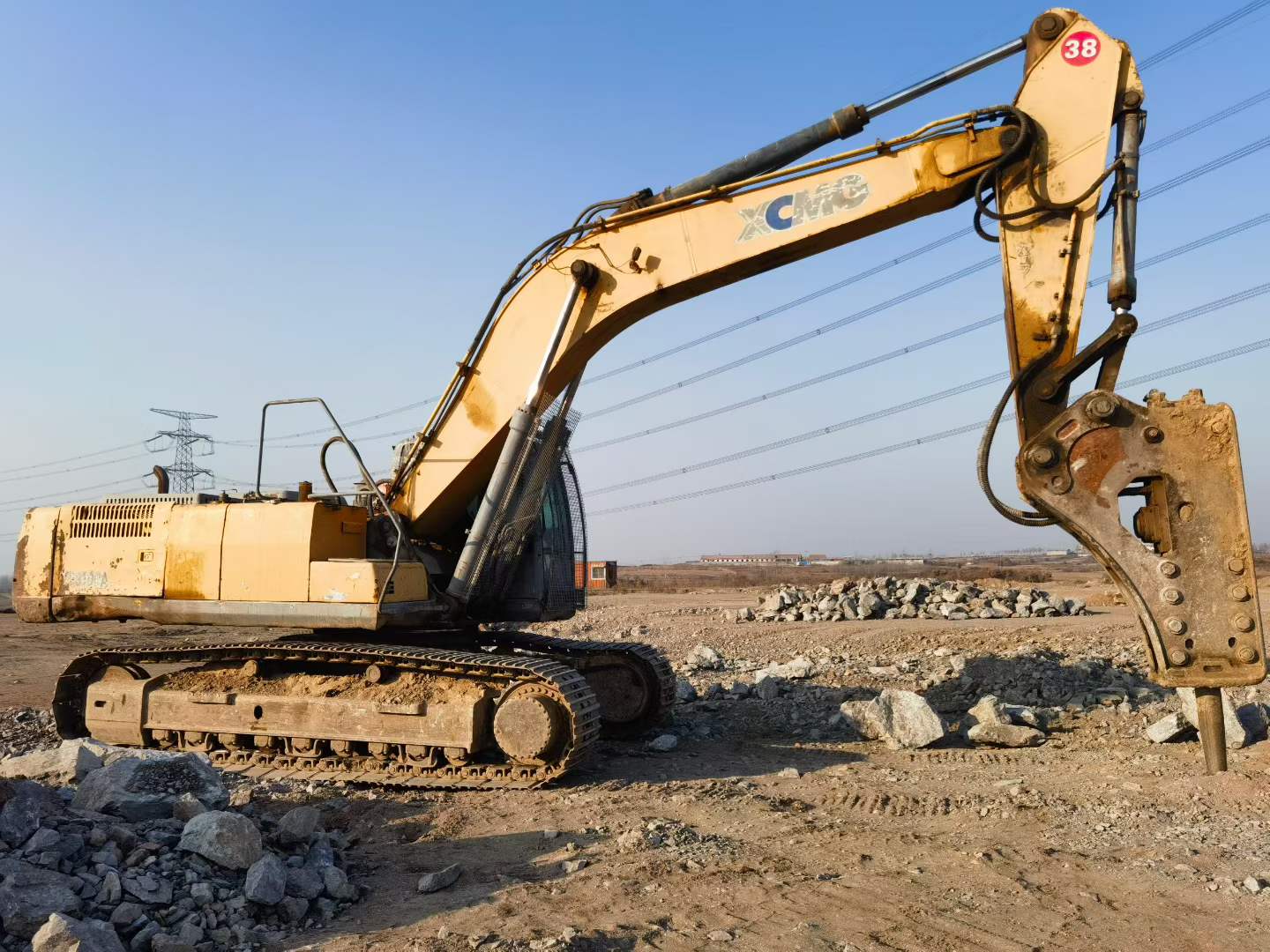

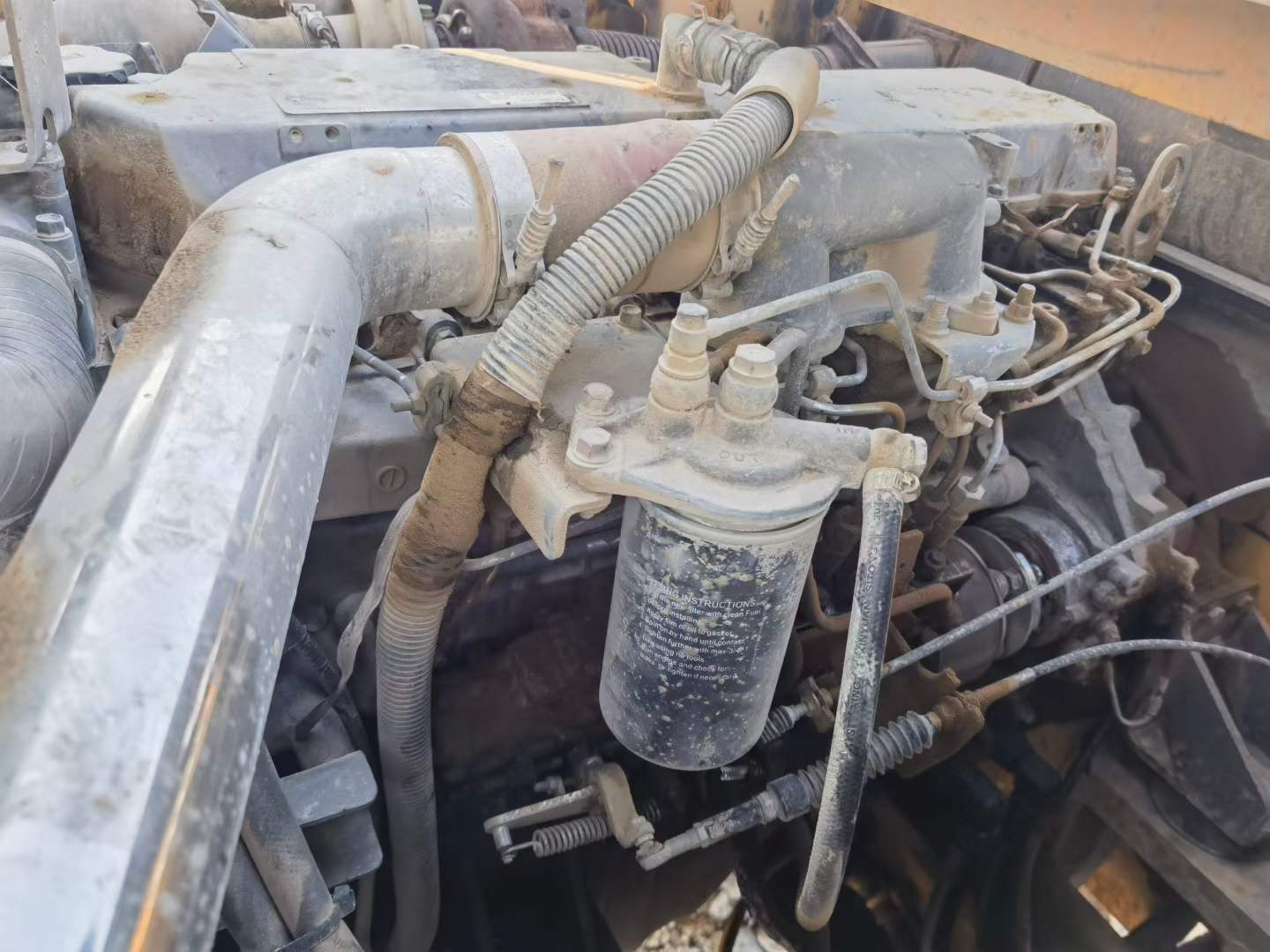

Commanding a 37-ton operating weight, this 2013 XCMG XE370CA excavator delivers robust performance for demanding earthmoving operations in Shandong. Built in Xuzhou with proven ISUZU power—184 kW at 2000 rpm from a 7.79L turbocharged engine—operators benefit from reliable torque delivery and responsive hydraulics across extended shifts.

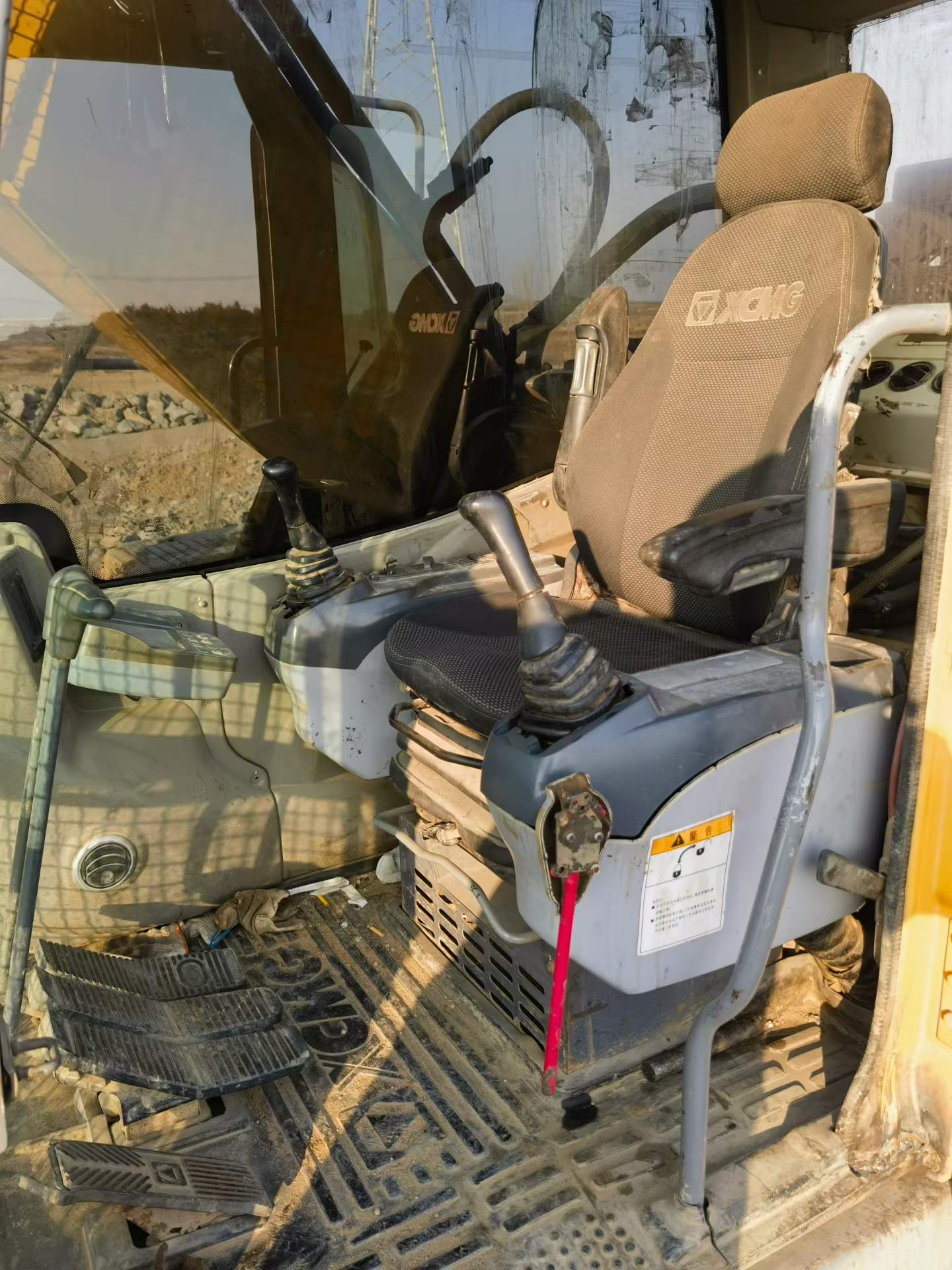

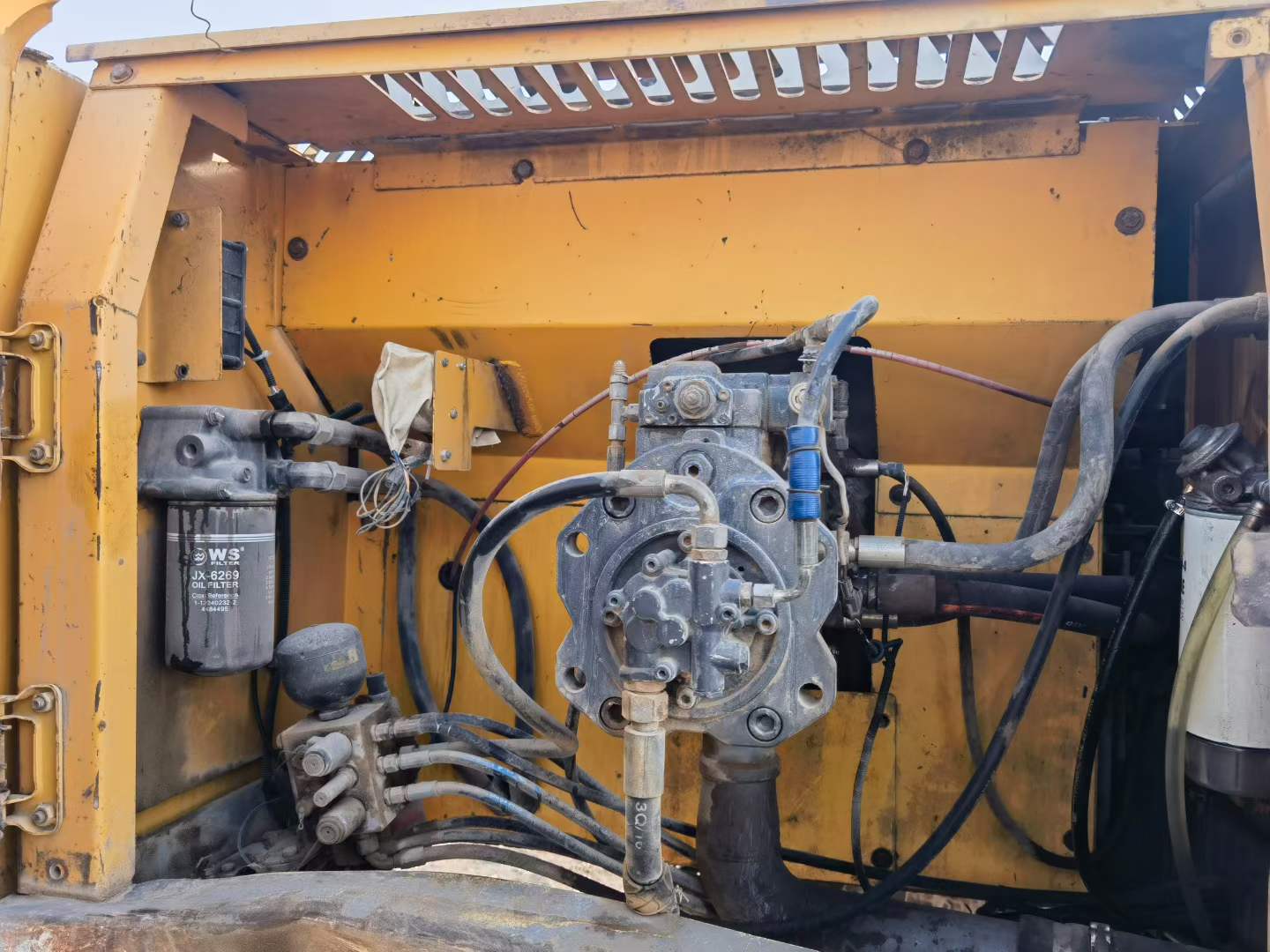

Designed with operator efficiency in mind, the XE370CA features exceptional cabin visibility and intuitive controls that reduce fatigue during precision work. Stability remains paramount with a 66.6 kPa ground pressure distribution and 2590mm track gauge, enabling confident operation on variable terrain. The dual 320 l/min plunger pumps provide smooth, predictable hydraulic response for bucket and arm movements, while 242 kN bucket digging force tackles compacted materials with authority.
- Maximum digging reach: 10,720mm with 6,893mm depth capability
- Enhanced maneuverability: 4,424mm front turning radius
- Generous capacities: 630L fuel tank, 320L hydraulic reservoir
- Proven drivetrain: Water-cooled 6-cylinder configuration
- Operator-focused design: Superior sightlines and ergonomic layout
Positioned for contractors requiring dependa
| Specifications | Value |
|---|---|
| No. | 995974 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.4-1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | The ISUZU Isuzu |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection; 4 strokes; Water cooling; Turbocharging; Air to air cold; Maximum torque 872.8/1700N.m |
| Ground specific pressure (Kpa) | 66.6 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 242 |
| Rod digging force (kN) | 207 |
| Travel speed (km/h) | 5.4/3.2 |
| Main overflow set pressure (Mpa) | 31.5/34.3 |
| Maximum flow of main pump (l/min) | 2*320 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 320 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11226 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3350 |
| Counterweight ground clearance (mm) | 1197 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4424 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 5070 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging radius (mm) | 10720 |
| Maximum digging depth (mm) | 6893 |
| Maximum excavation height (mm) | 10379 |
| Maximum unloading height (mm) | 7153 |
| Maximum vertical digging depth (mm) | 6461 |
