Product Description
Engineered for heavy-duty performance, this 2015 XCMG XE370CA delivers 37-ton capacity backed by proven ISUZU power technology. Operating at 184kW/2000rpm with 872.8 N·m maximum torque, the 6-cylinder turbocharged engine drives dual plunger pumps delivering 2×320 L/min hydraulic flow at 34.3 MPa working pressure. Bucket digging force reaches 242 kN while rod force achieves 207 kN, supported by a 31.5 MPa main relief system designed for consistent productivity in demanding applications.
Xuzhou manufacturing ensures precision-machined components throughout the 36,600 kg chassis. The 6,400mm boom and 2,670mm arm configuration provides 10,720mm maximum reach and 6,893mm dig depth, optimized for quarry and infrastructure projects. Water-cooled hydraulics maintain thermal stability during extended cycles, while the 3.9 MPa pilot circuit enables precise control across all functions.
Key Specifications:
- Bucket capacity: 1.4–1.8 m³ backhoe configuration
- 630L fuel tank / 320L hydraulic reservoir for extended shifts
- Ground pressure: 66.6 kPa on 600mm triple-grouser tracks
- Currently located in Luzhou, Sichuan—ready for inspection
| Specifications | Value |
|---|---|
| No. | 1029911 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.4-1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

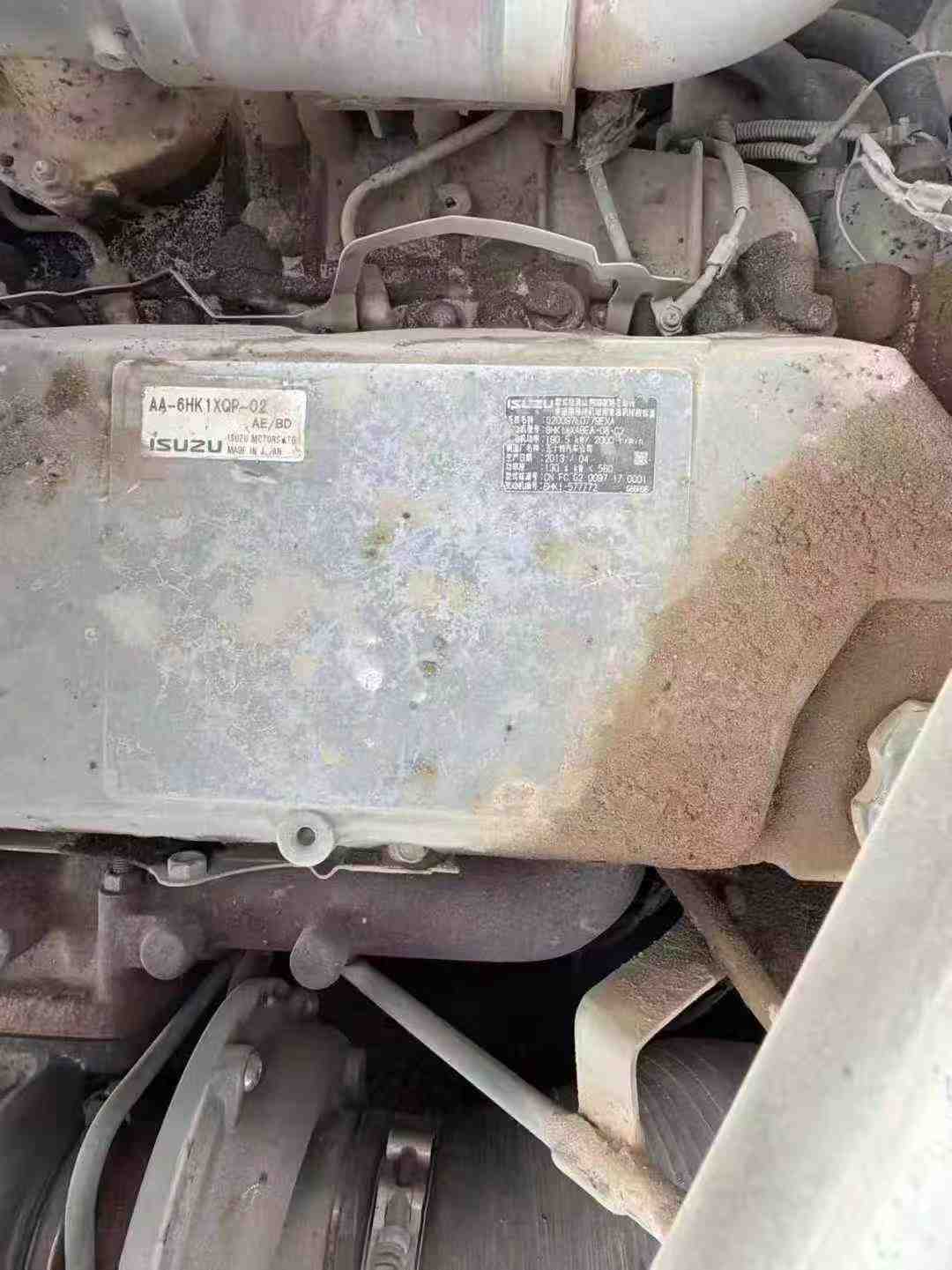

| Engine type | The ISUZU Isuzu |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection; 4 strokes; Water cooling; Turbocharging; Air to air cold; Maximum torque 872.8/1700N.m |
| Ground specific pressure (Kpa) | 66.6 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 242 |
| Rod digging force (kN) | 207 |
| Travel speed (km/h) | 5.4/3.2 |
| Main overflow set pressure (Mpa) | 31.5/34.3 |
| Maximum flow of main pump (l/min) | 2*320 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 320 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11226 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3350 |
| Counterweight ground clearance (mm) | 1197 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4424 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 5070 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging radius (mm) | 10720 |
| Maximum digging depth (mm) | 6893 |
| Maximum excavation height (mm) | 10379 |
| Maximum unloading height (mm) | 7153 |
| Maximum vertical digging depth (mm) | 6461 |
