Product Description
With a working weight of 36,800 kg and a bucket capacity ranging from 1.7 to 1.9 m³, the 2018 XCMG XE370D excavator is built to last. Located in 浙江金华, this proven workhorse offers a robust GH-6HK1XKSC-03 engine, delivering 212 kW at 2000 rpm. Featuring a maximum digging force of 263 kN and a maximum tractive force of 285 kN, it ensures efficient and reliable performance on any job site. The XE370D's durability is further enhanced by its 6-cylinder, 7.79 L displacement engine, providing a steady power output for demanding tasks. Its design includes a 6400 mm boom and a 3200 mm rod, making it versatile for various applications. This machine has a track record of reliability, making it a trusted choice for construction and excavation projects.
- Working weight: 36,800 kg
- Bucket capacity: 1.7-1.9 m³

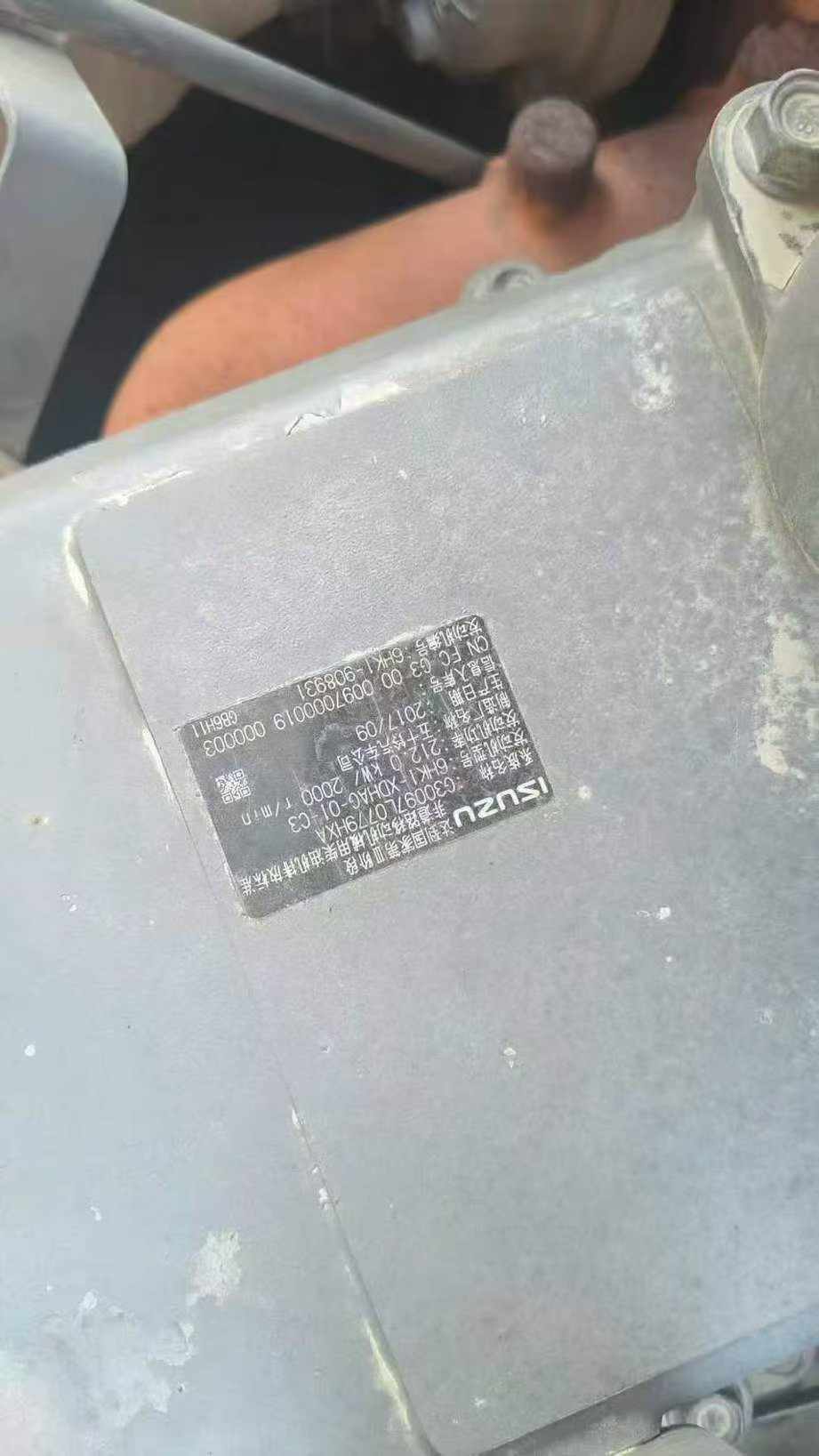

- Engine type: GH-6HK1XKSC-03
- Rated power: 212 kW/2000 rpm
- Maximum torque: 1080 N.m/1500 rpm
- Boom length: 6400 mm
- Rod length: 3200 mm
| Specifications | Value |
|---|---|
| No. | 1002014 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 36800 |
| Bucket capacity (m³) | 1.7-1.9 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC-03 |
| Rated power (kw/rpm) | 212/2000 |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 66.7 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 263 |
| Rod digging force (kN) | 188 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2*296 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11388 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3530 |
| Counterweight ground clearance (mm) | 1197 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4369 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 11114 |
| Maximum digging depth (mm) | 7423 |
| Maximum excavation height (mm) | 10445 |
| Maximum unloading height (mm) | 7287 |
| Maximum vertical digging depth (mm) | 6776 |
