Product Description
Built for high-output excavation work, this 2019 XCMG XE370D delivers 37 tons of working weight and 212 kW of rated power to tackle demanding dig cycles across mining, infrastructure, and demolition projects. Equipped with a 1.7–1.9 m³ bucket capacity and 263 kN bucket digging force, it handles heavy material loading and deep trenching with precision. The 6,400 mm boom and 3,200 mm arm provide an impressive 11,114 mm maximum digging radius and 7,423 mm excavation depth, making it ideal for large-scale earthmoving and foundation work.

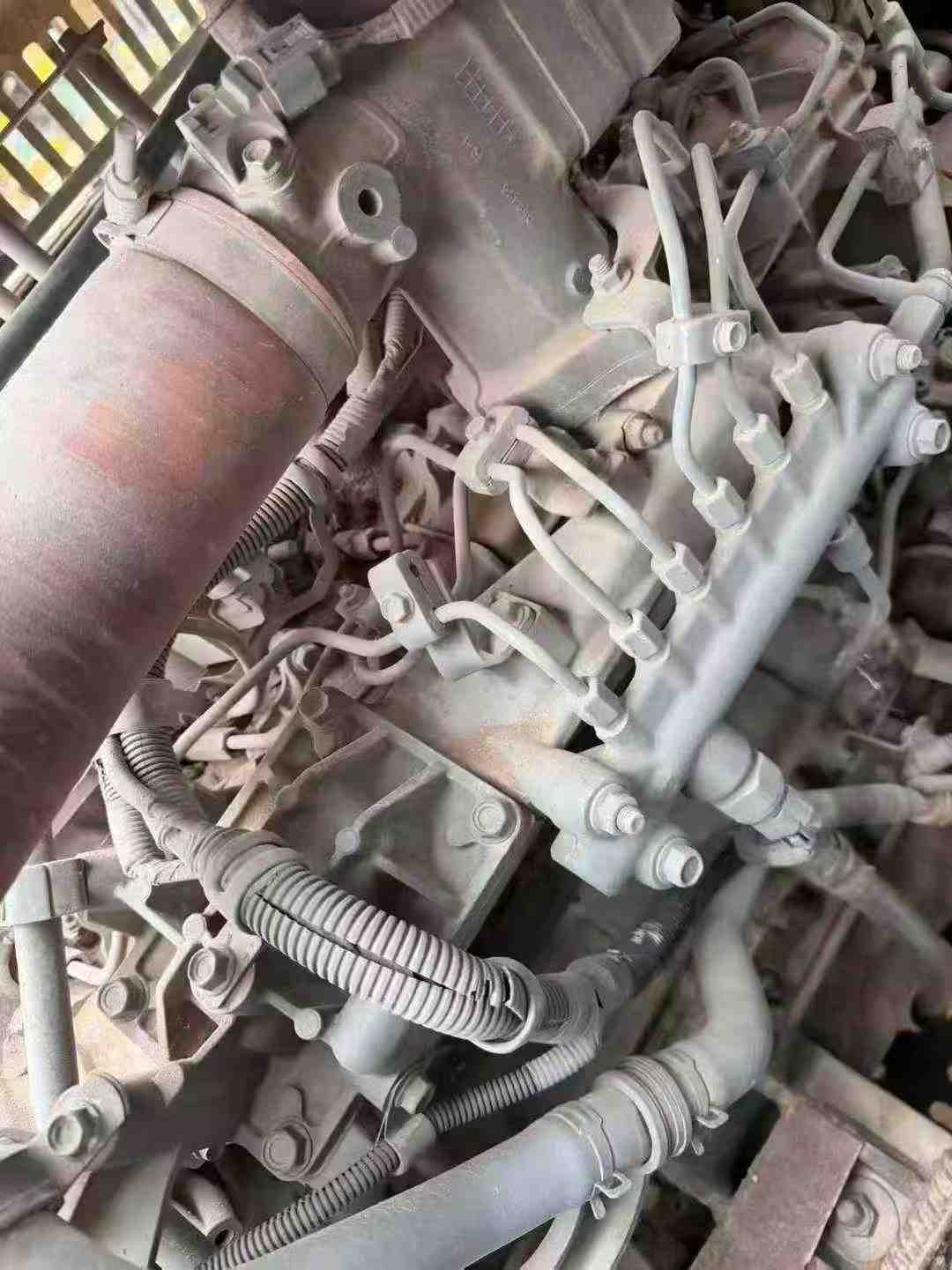

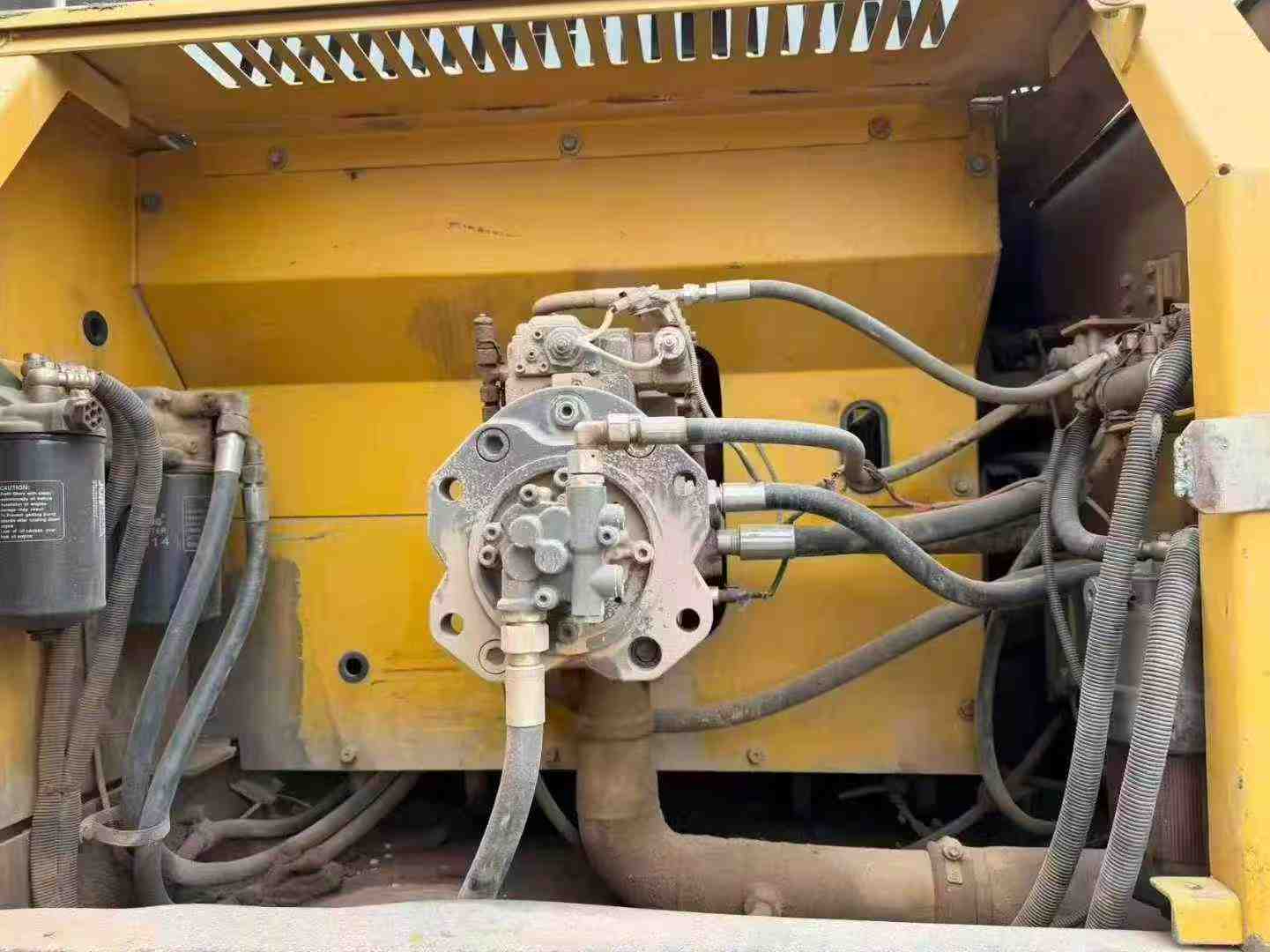

Powered by a GH-6HK1XKSC-03 engine with 1,080 N·m maximum torque, this machine maintains consistent performance under load. Dual main pumps deliver 2×296 L/min hydraulic flow for responsive control during grading and material placement. Currently located in Luzhou, Sichuan, this XE370D is site-ready and available for immediate deployment.
- 37-ton operating weight with 188 kN arm digging force
- 7.79 L displacement, 6-cylinder engine for sustained productivity
- 10,445 mm maximum excavation height for high-reach applications
- 660 L fuel tank capacity for extended operating shifts
- 70% gradeability and 285 kN maximum tractive force
| Specifications | Value |
|---|---|
| No. | 1012764 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 36800 |
| Bucket capacity (m³) | 1.7-1.9 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC-03 |
| Rated power (kw/rpm) | 212/2000 |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 66.7 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 263 |
| Rod digging force (kN) | 188 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2*296 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11388 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3530 |
| Counterweight ground clearance (mm) | 1197 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4369 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 11114 |
| Maximum digging depth (mm) | 7423 |
| Maximum excavation height (mm) | 10445 |
| Maximum unloading height (mm) | 7287 |
| Maximum vertical digging depth (mm) | 6776 |
