Product Description

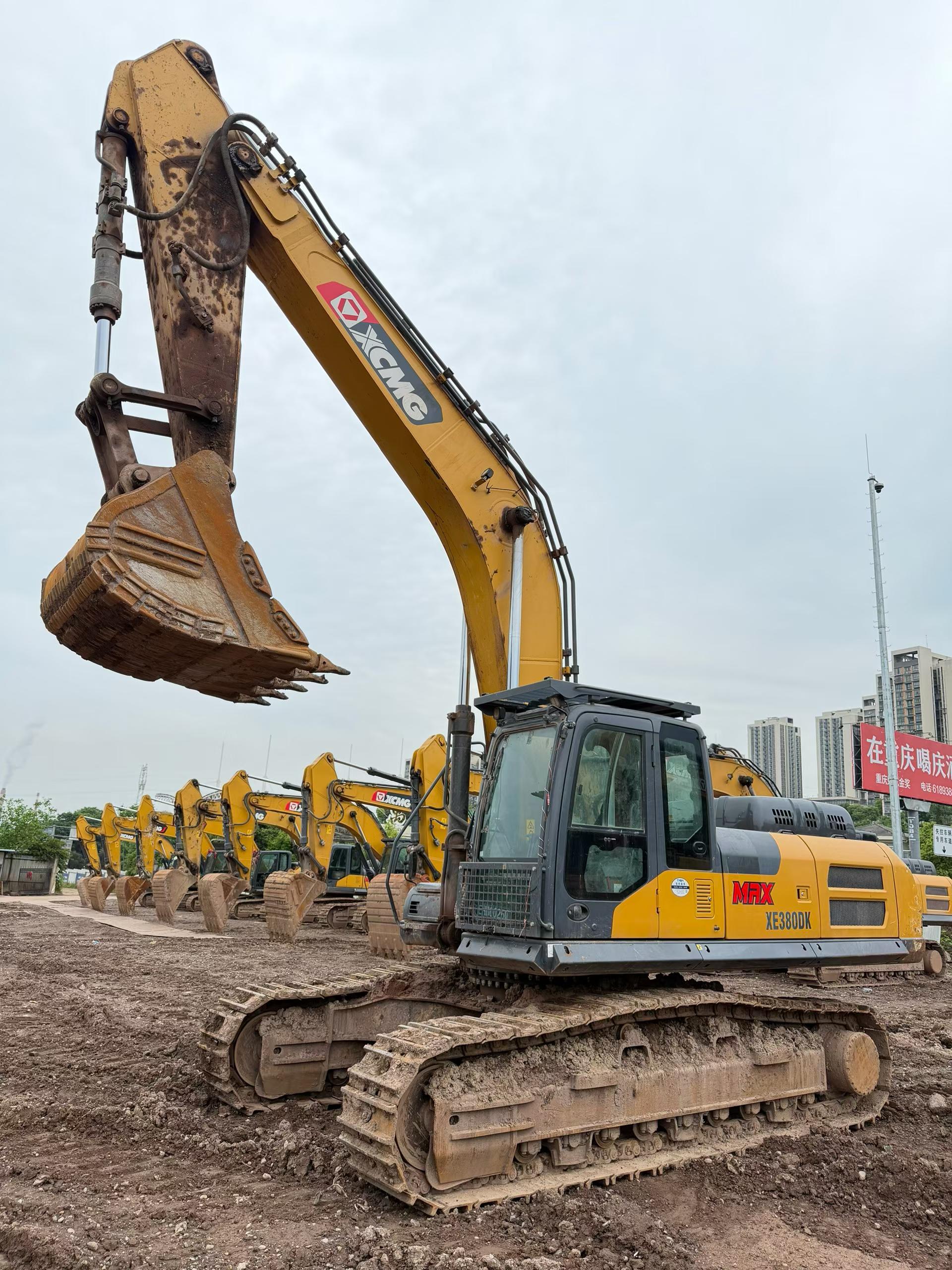

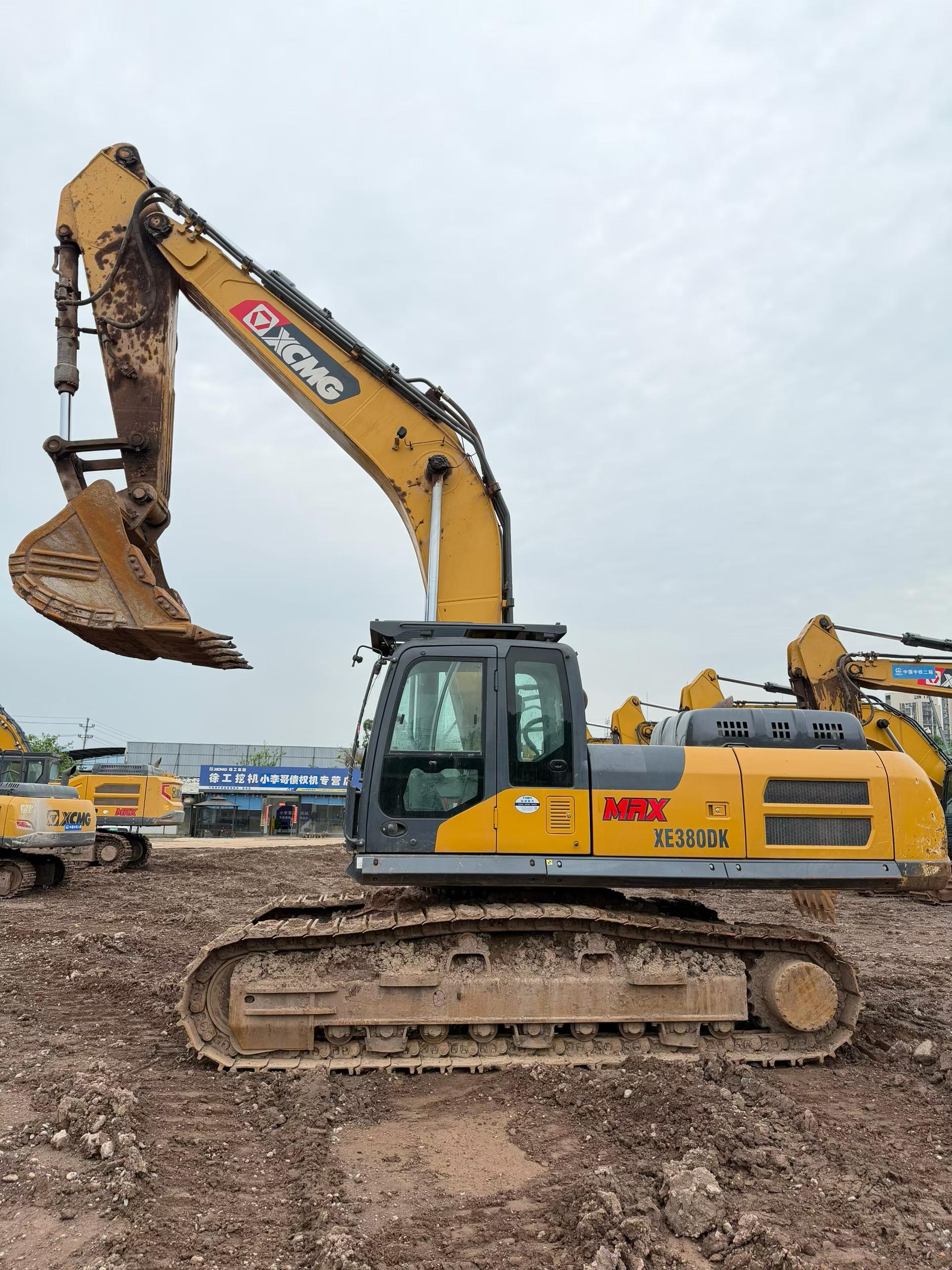

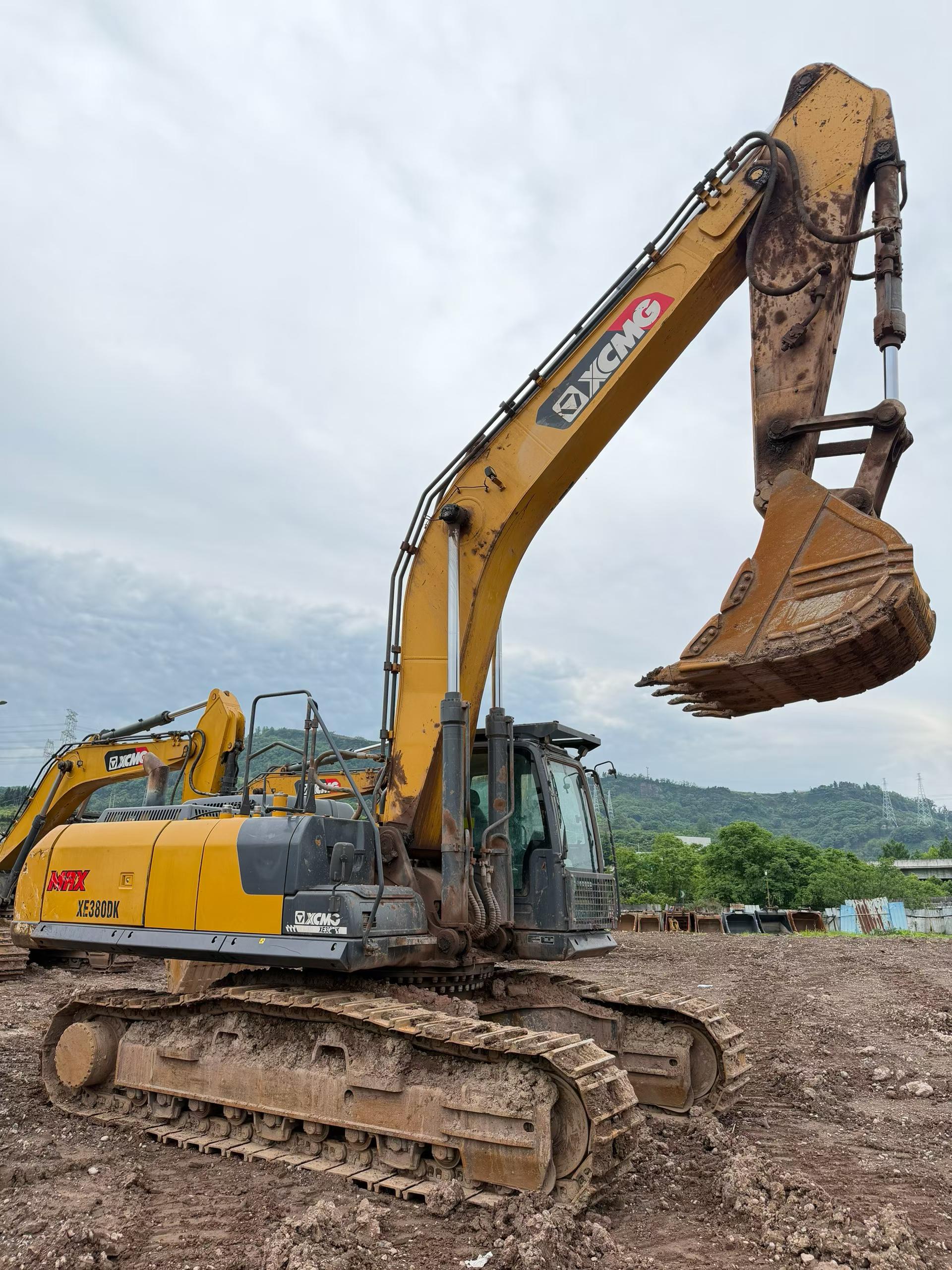

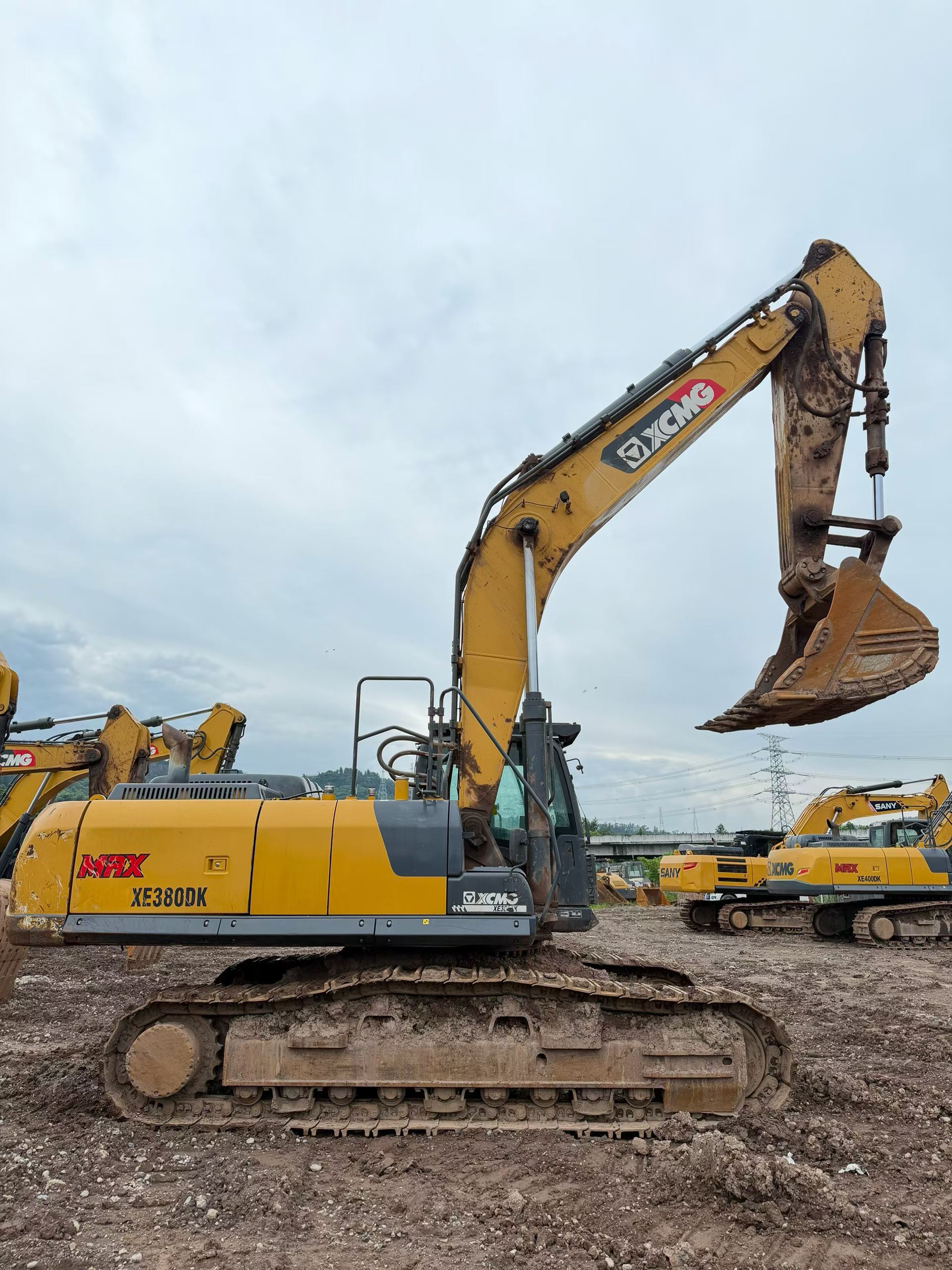

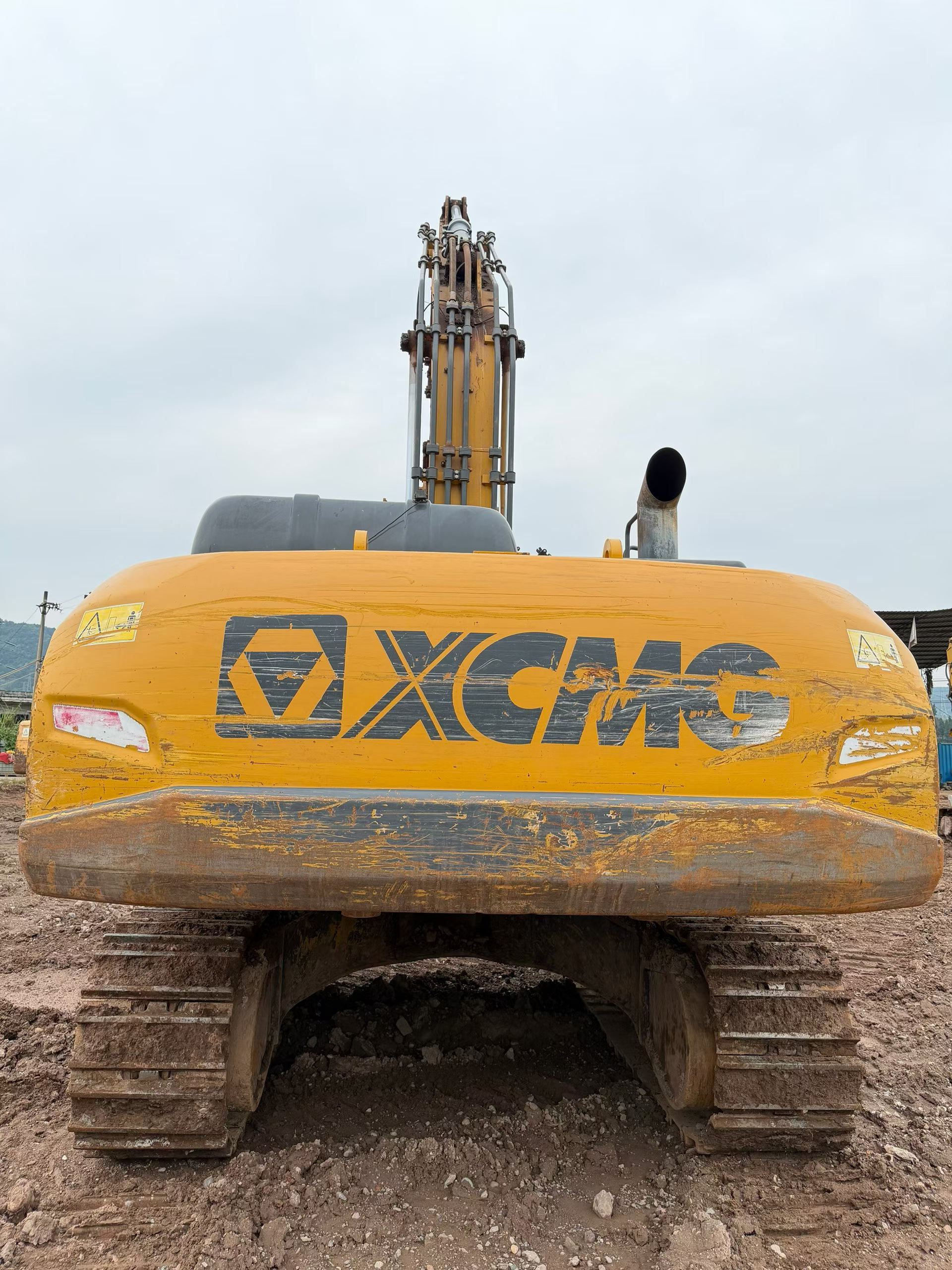

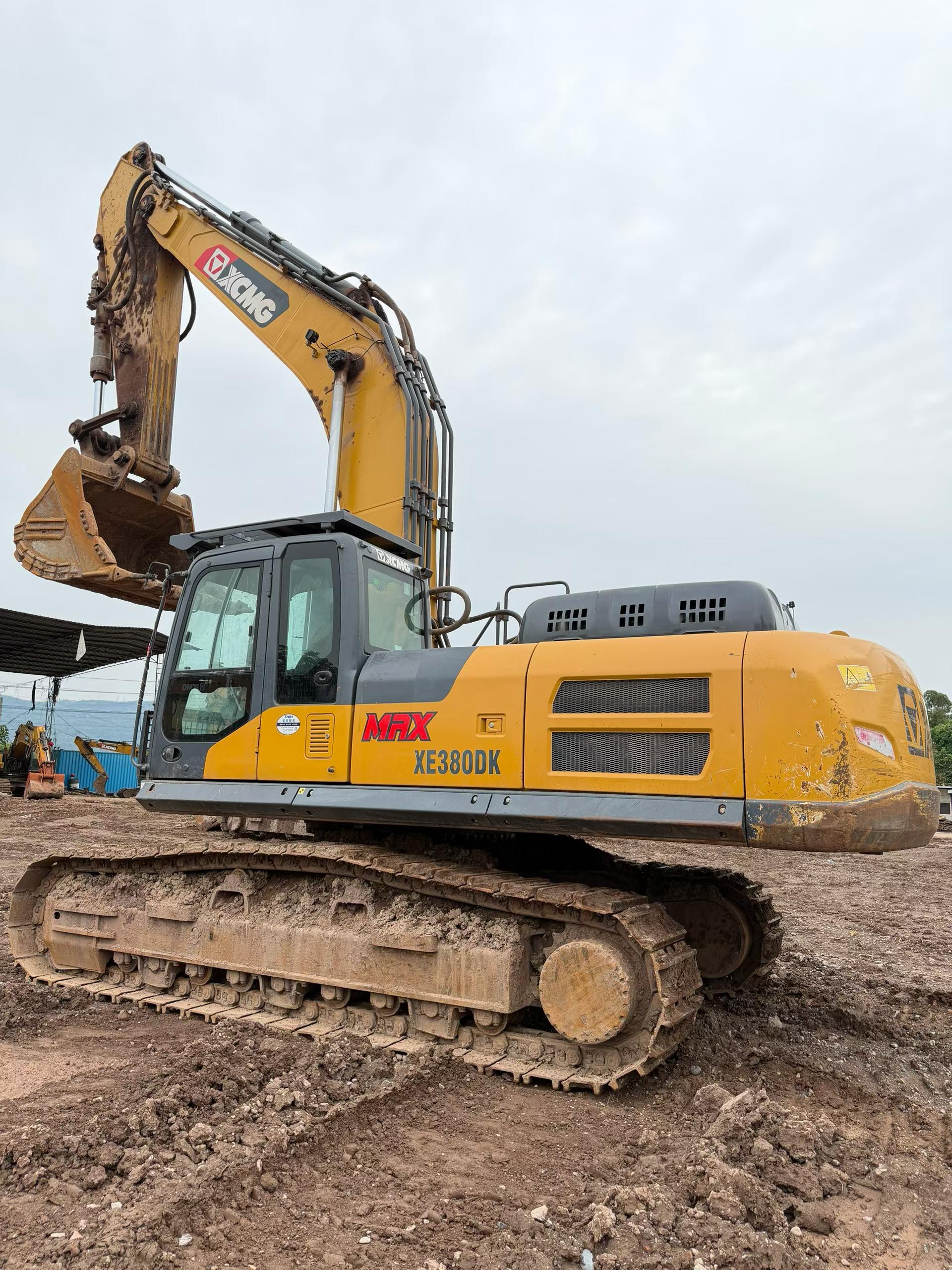

This 2021 XCMG XE380DK excavator represents a solid opportunity for contractors seeking proven performance in a late-model machine. Sourced from Chongqing, China, this unit retains its original factory paint and finish, indicating careful operation and proper maintenance throughout its service life.
The XE380DK is XCMG's 38-ton class hydraulic excavator, engineered for demanding earthmoving, mining support, and heavy construction applications. Key attributes include:
- Robust undercarriage designed for extended component life

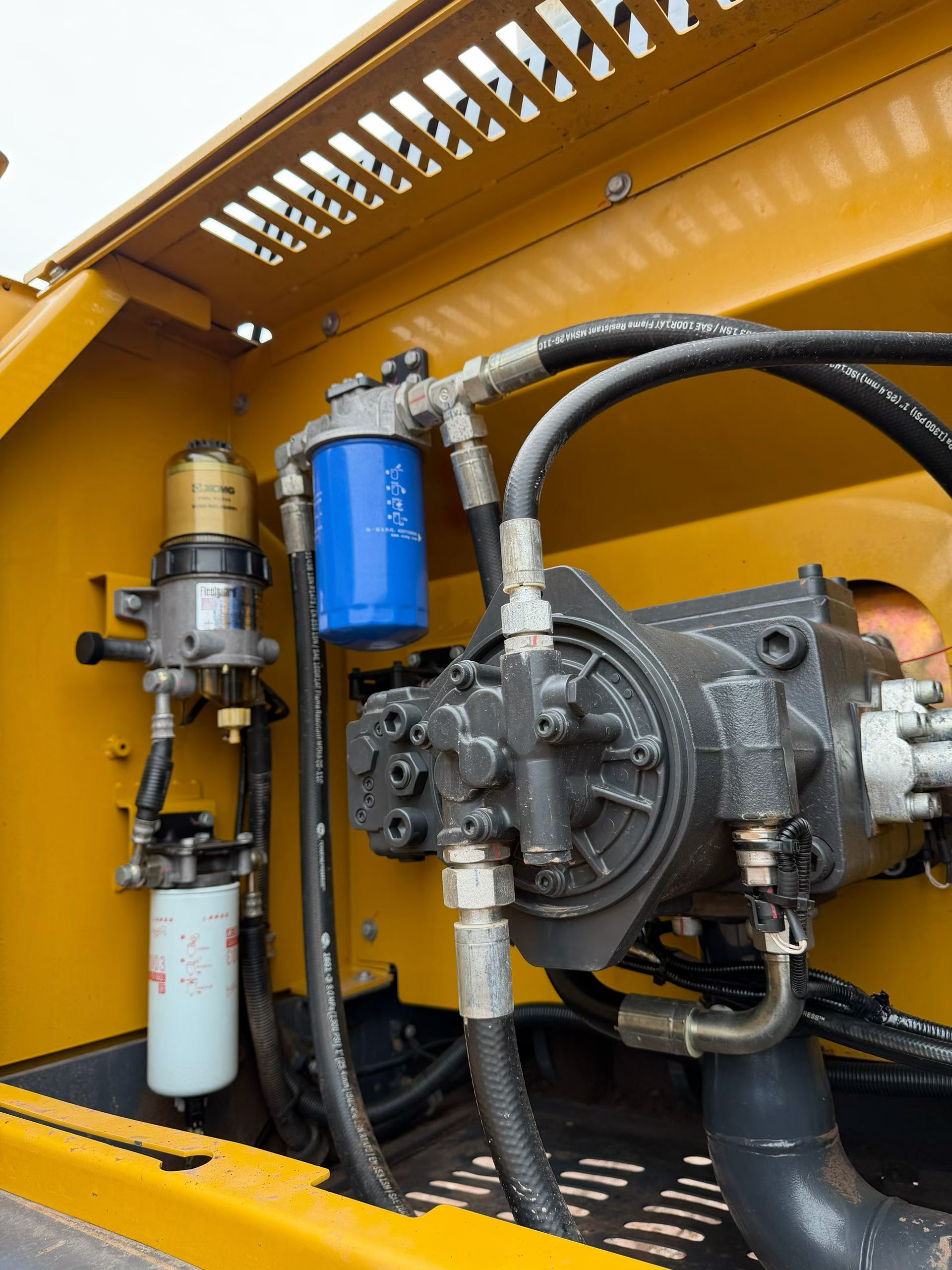

- Efficient hydraulic system for productive cycle times
- Spacious operator station with ergonomic controls
- Proven reliability in high-utilization environments
Currently located in Chongqing with competitive pricing available. Suitable for buyers seeking quality used equipment with verifiable provenance. Contact us for detailed specifications, inspection arrangements, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1074448 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.9-2.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

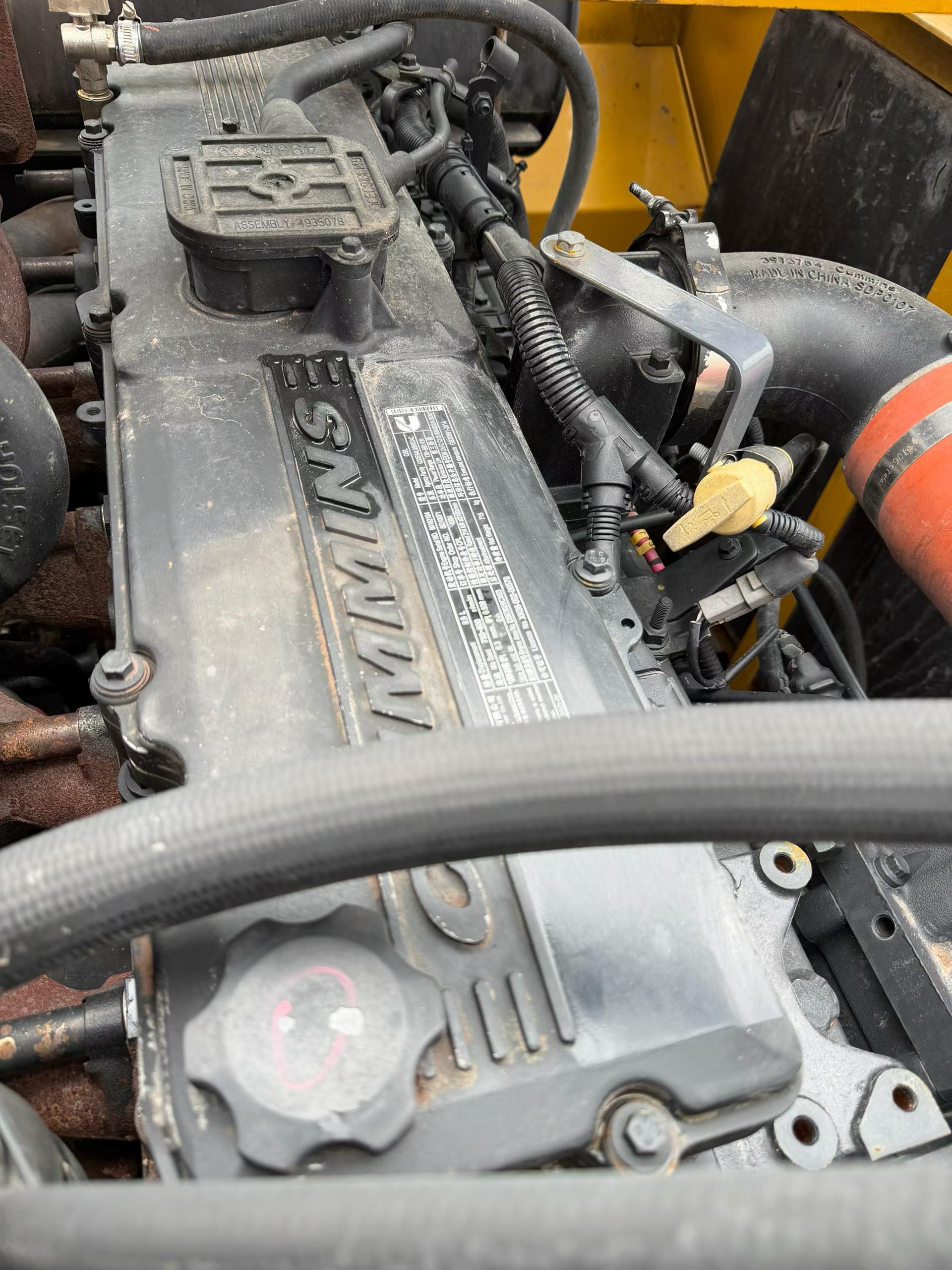

| Engine type | QSL9 |
| Rated power (kw/rpm) | 214/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 292 |
| Rod digging force (kN) | 209 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11437 |
| Total transport width (mm) | 3225 |
| Total transport height (mm) | 3715 |
| Full cab height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1227 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4560 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10968 |
| Maximum digging depth (mm) | 7147 |
| Maximum excavation height (mm) | 10508 |
| Maximum unloading height (mm) | 7300 |
| Maximum vertical digging depth (mm) | 6542 |
