Product Description
Discover the 2021 XCMG XE380DK, a robust and reliable excavator currently available in Chongqing, China. This machine is part of the 【小李哥债权机】collection, known for its quality and performance. Ideal for construction and excavation projects, the XE380DK offers a powerful solution to meet your heavy machinery needs.
- Year: 2021
- Brand: XCMG
- Model: XE380DK
- Location: Chongqing, China
This unit is ready for immediate use and is being offered at a special price. It is available for both rental and purchase, with financing options to support your business requirements. Contact us today to secure this versatile and dependable excavator for your next project.
| Specifications | Value |
|---|---|
| No. | 1109030 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.9-2.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

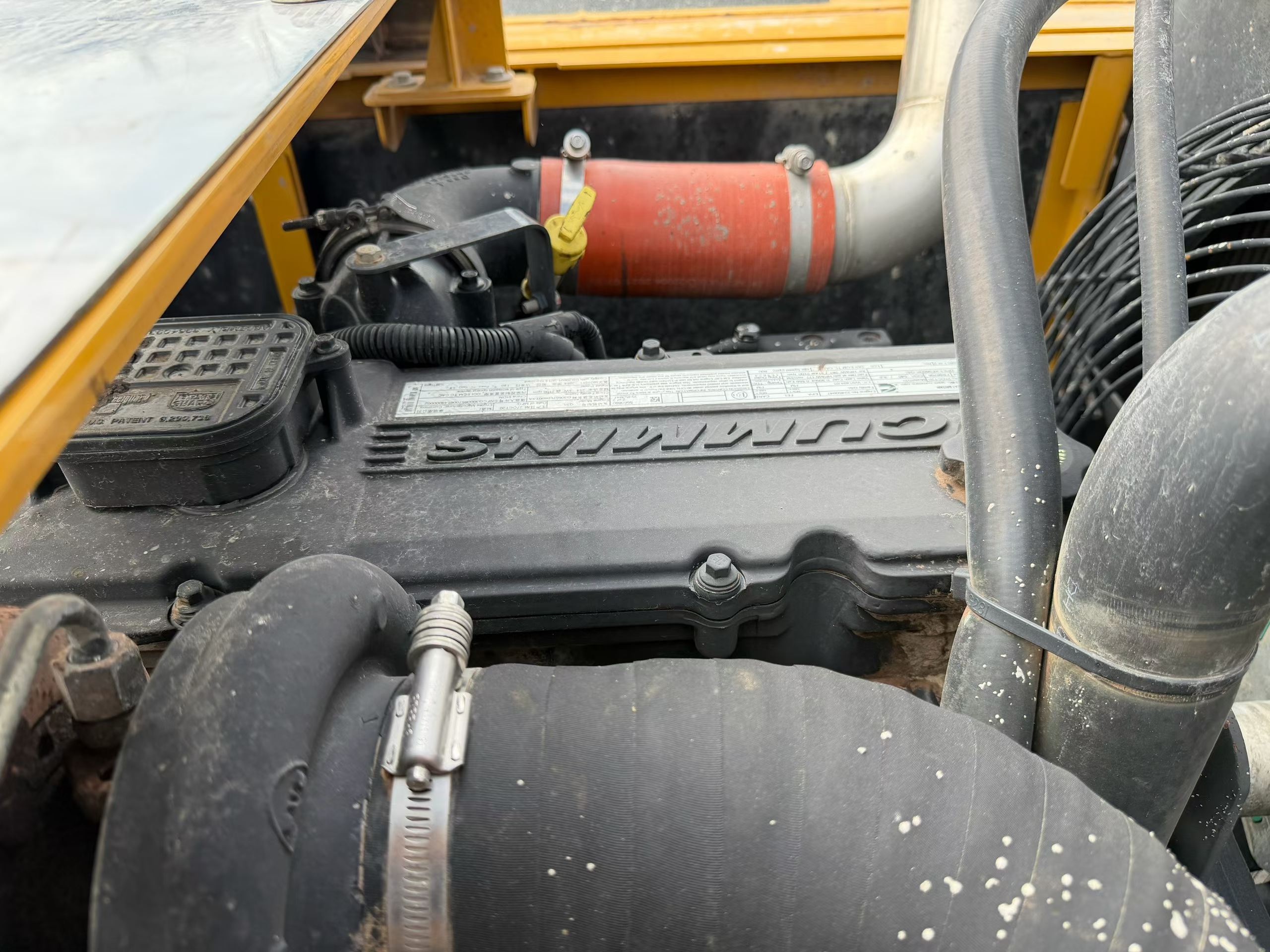

| Engine type | QSL9 |
| Rated power (kw/rpm) | 214/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 292 |
| Rod digging force (kN) | 209 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11437 |
| Total transport width (mm) | 3225 |
| Total transport height (mm) | 3715 |
| Full cab height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1227 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4560 |
| Back end turning radius (mm) | 3700 |

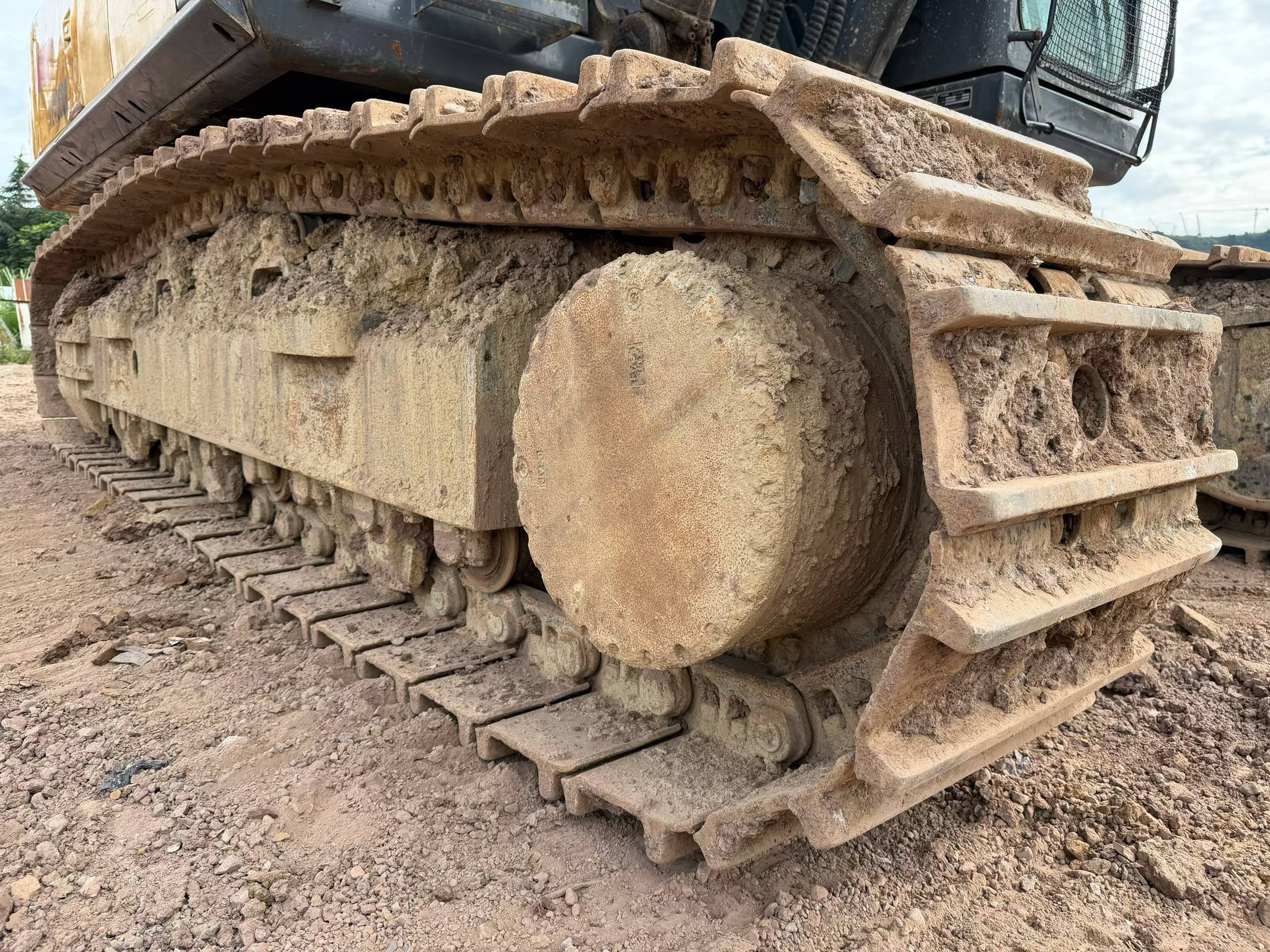

| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10968 |
| Maximum digging depth (mm) | 7147 |
| Maximum excavation height (mm) | 10508 |
| Maximum unloading height (mm) | 7300 |
| Maximum vertical digging depth (mm) | 6542 |
