Product Description

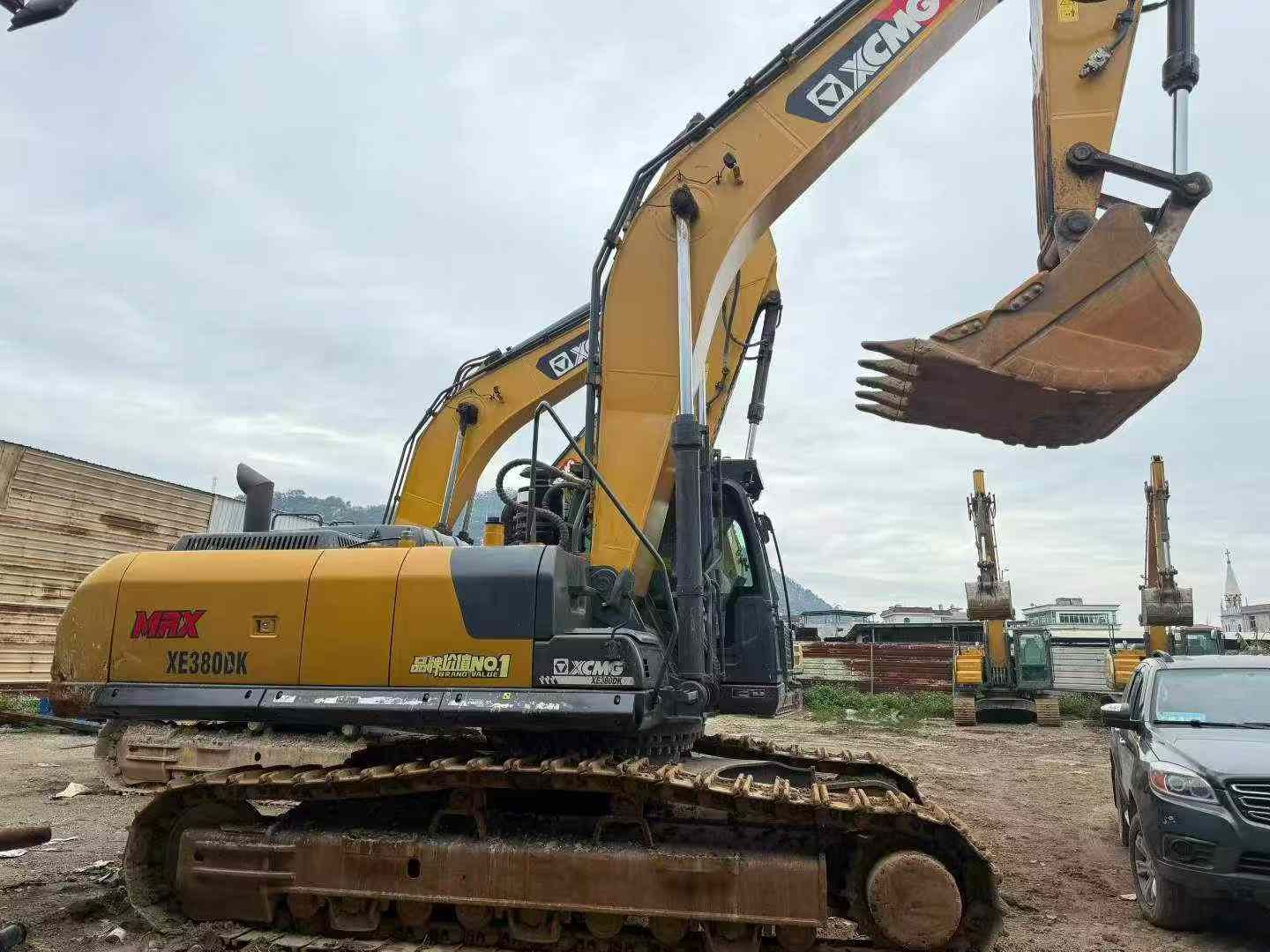

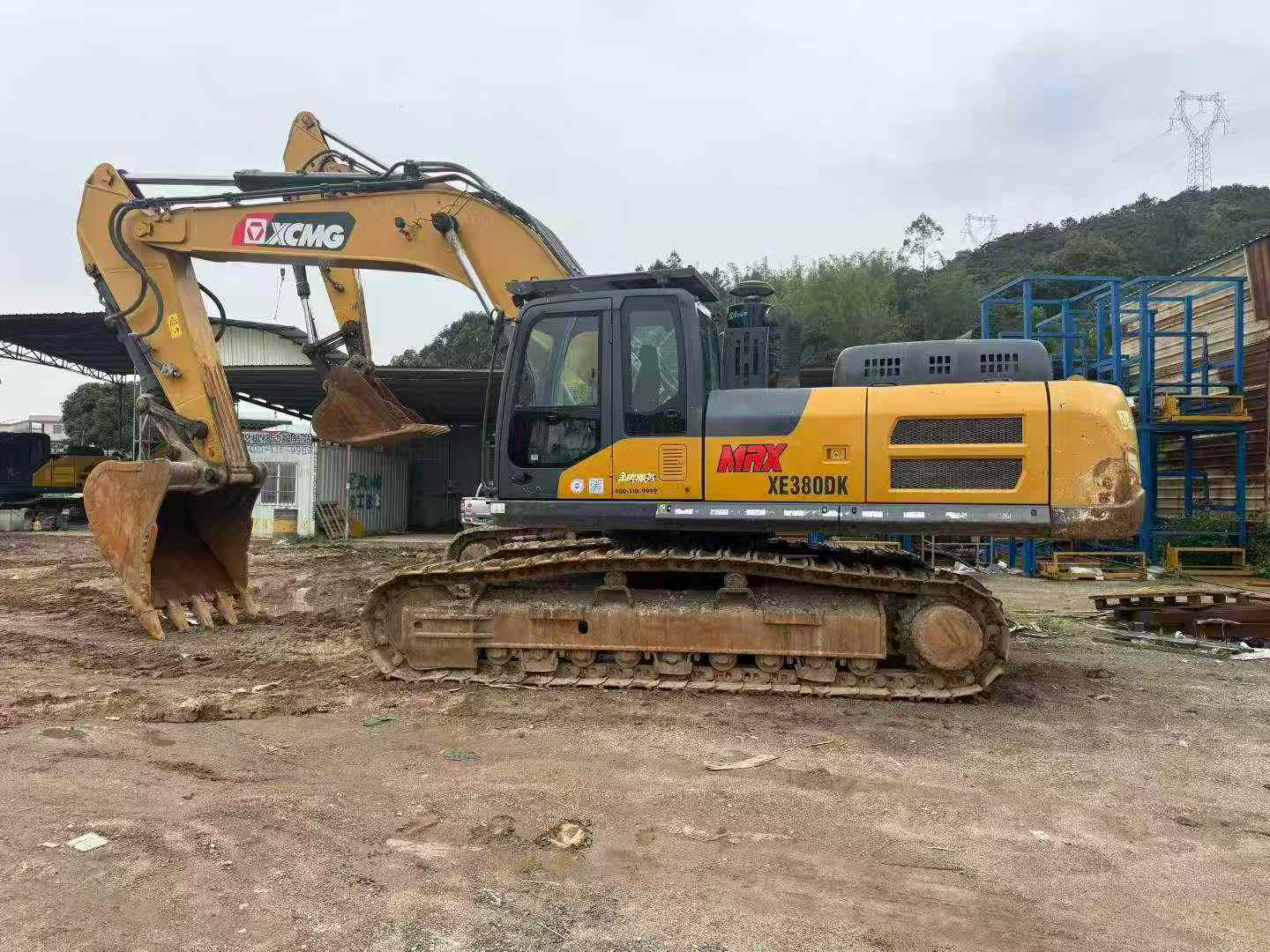

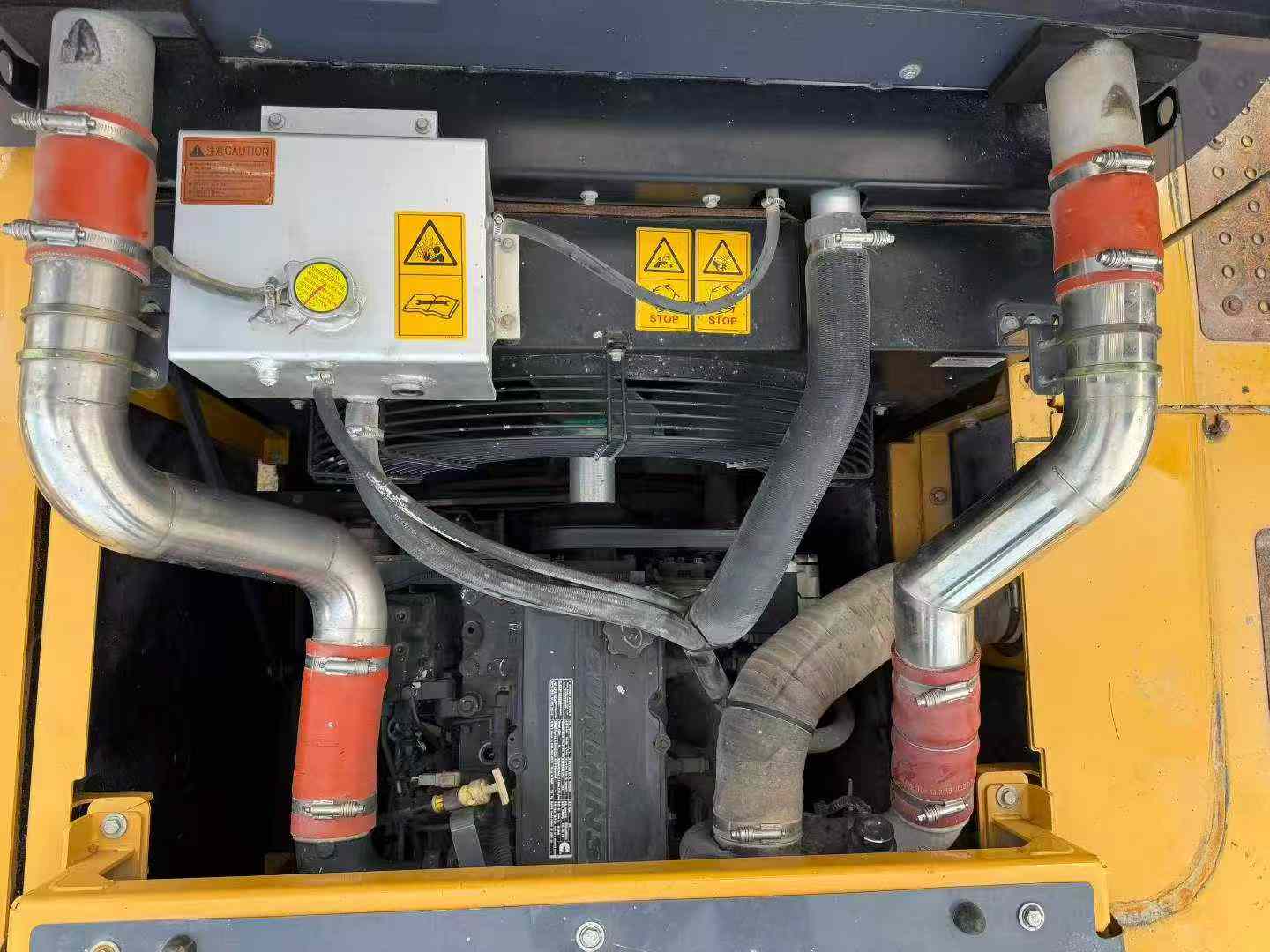

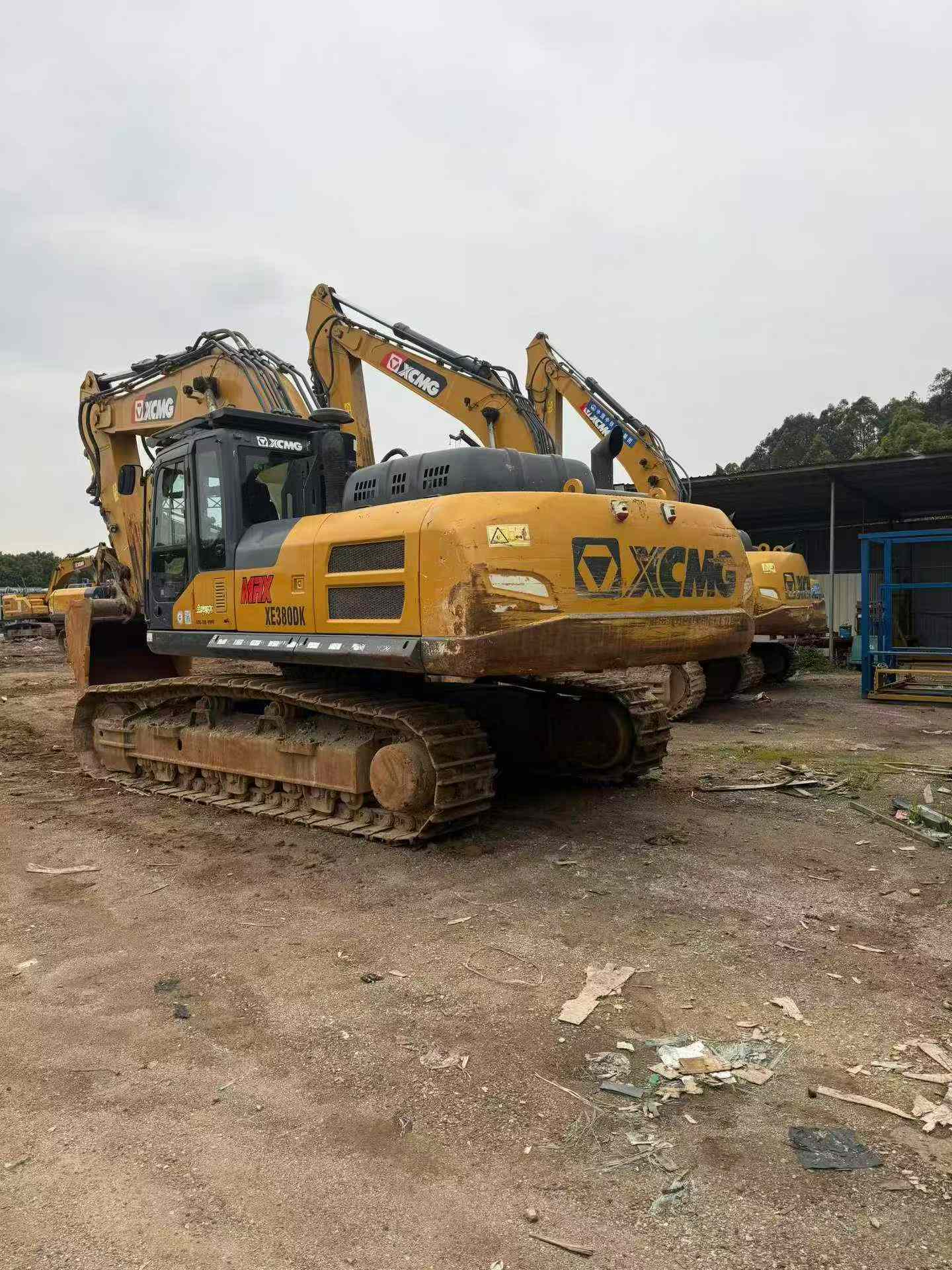

Equipped with a robust QSL9 engine, the XCMG XE380DK delivers 214 kW at 2100 rpm, ensuring powerful performance for demanding tasks. This 38-ton excavator, made in China, features a 6-cylinder, water-cooled, 4-stroke, turbocharged, and air-to-air cooled engine, providing reliable and efficient operation. The hydraulic system is designed to handle high loads, with a maximum digging force of 292 kN and a rod digging force of 209 kN, making it ideal for heavy-duty applications.
- Bucket capacity: 1.9-2.3 m³
- Working weight: 38,200 kg
- Maximum tractive force: 285 kN
- Travel speed: 5.6/3.3 km/h
- Fuel tank capacity: 660 L
- Hydraulic tank capacity: 350 L
With a ground specific pressure of 69 Kpa and a climbing ability of 35%, this model excels in various terrains. The XE380DK also boasts an impressive maximum digging radius of 10,968 mm and a maximum digging depth of 7,147 mm, enhancing its versatility on any job site. Located in Guangdong, China, this excavator is ready to meet your construction needs with precision and power.
| Specifications | Value |
|---|---|
| No. | 1058046 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.9-2.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 214/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 292 |
| Rod digging force (kN) | 209 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11437 |
| Total transport width (mm) | 3225 |
| Total transport height (mm) | 3715 |
| Full cab height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1227 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4560 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10968 |
| Maximum digging depth (mm) | 7147 |
| Maximum excavation height (mm) | 10508 |
| Maximum unloading height (mm) | 7300 |
| Maximum vertical digging depth (mm) | 6542 |
